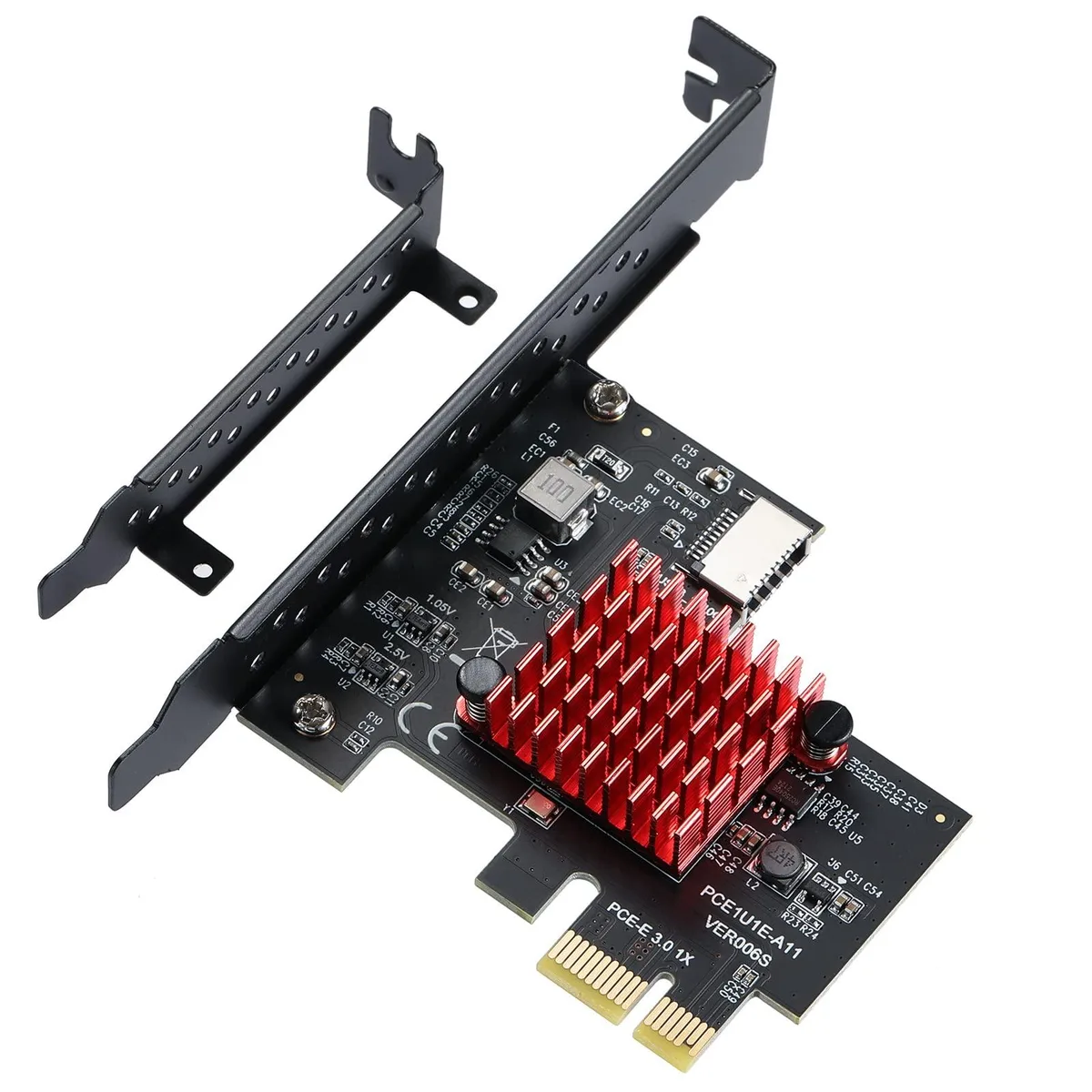

Green PCB PCIe x1 card with red heatsink and internal USB Type-E connector

Vszerda

Vszerda PCIe USB 3.1 Type-E Card 10Gbps ASM3142

SKU CH-MXZJ-G5P5T

Adds a 10 Gbps USB 3.2 Gen 2 Type-E front-panel port via a PCIe 3.0 x1 slot using the ASMedia ASM3142 controller

  • Add a front-panel USB-C port via a PCIe x1 slot
  • Transfer large files at up to 10 Gbps with ASM3142 controller
  • Achieve real-world speeds of 700 to 800 MB/s on PCIe 3.0 systems
  • Works with Windows 7 through 11 and Linux in 32-bit and 64-bit
  • Includes low-profile bracket for small-form-factor cases

PCIe 3.0 x1 USB 3.1 Gen2 Type-E Card

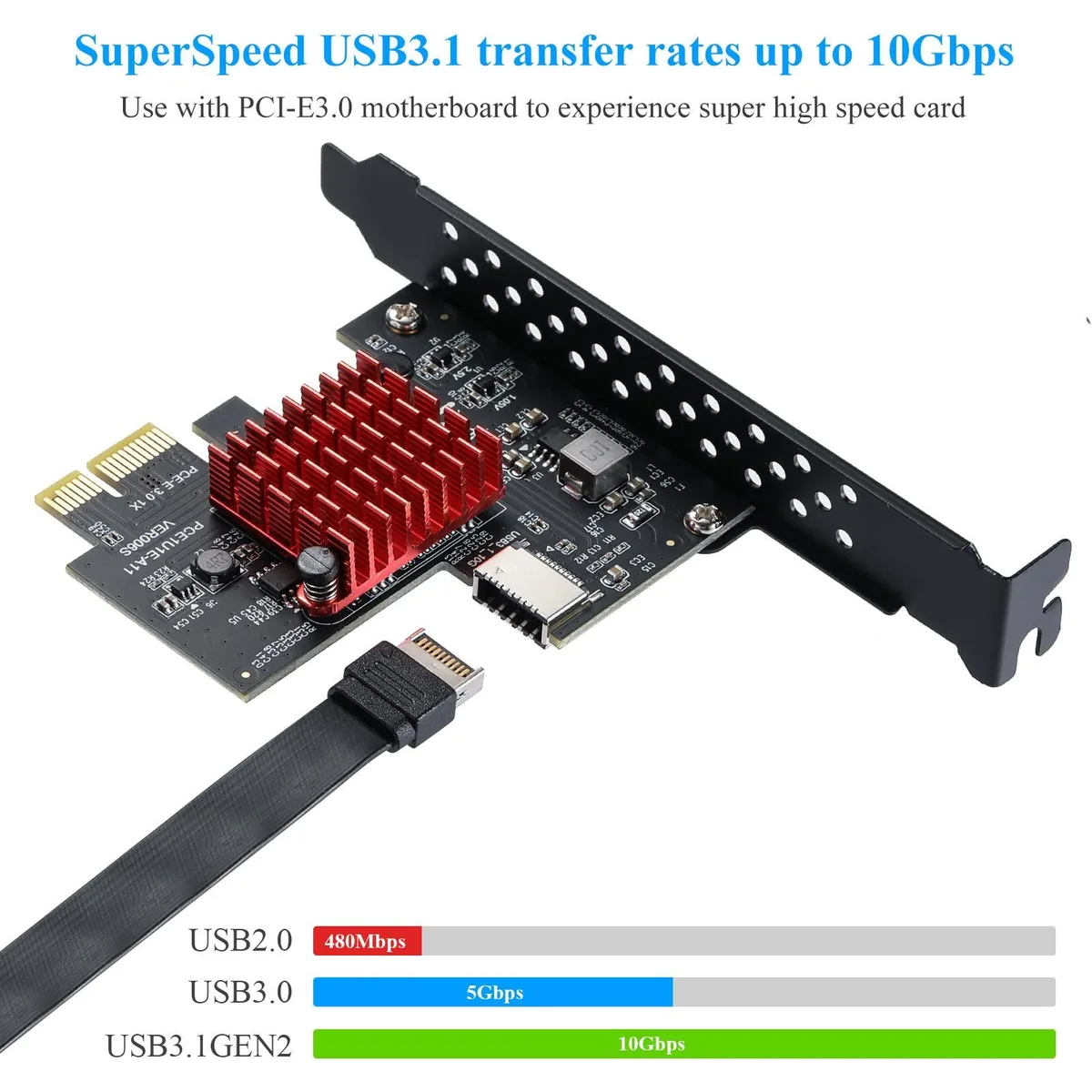

The Vszerda expansion card adds a front-panel USB 3.1 Gen2 Type-E connector through a single PCIe 3.0 x1 slot. It uses the ASMedia ASM3142 controller to deliver up to 10 Gbps bandwidth. Actual transfer rates reach 700-800 MB/s for large file workflows. A low-profile bracket is included for small chassis builds.

Builders adding front USB-C to desktop PCs

Suits system integrators and enthusiasts who need a high-speed Type-E header for modern cases. Windows 7 users should look elsewhere because driver support is limited and speeds cannot reach the rated maximum. Linux, Windows 8, 10 and 11 (32-bit and 64-bit) are fully supported without extra drivers. The slot fits x1, x2, x4, x8 or x16 PCIe connectors.

Motherboard must support PCIe 3.0 for 10 Gbps

Without a PCIe 3.0-compatible motherboard the card will not achieve its advertised 10 Gbps throughput. The ASM3142 chip is specified for USB 3.1 Gen2 Type-E at 10 Gbps. Installation requires the system power to be completely off. No other specification determines whether this adapter meets the required performance level.

Highlights

  • Add a front-panel USB-C port via a PCIe x1 slot
  • Transfer large files at up to 10 Gbps with ASM3142 controller
  • Achieve real-world speeds of 700 to 800 MB/s on PCIe 3.0 systems
  • Works with Windows 7 through 11 and Linux in 32-bit and 64-bit
  • Includes low-profile bracket for small-form-factor cases

Specifications

No published specifications for this item yet.

Questions about this item

Does the card fit a standard PCIe x1 slot and include a low-profile bracket for small chassis?

Yes, it uses a PCIe 3.0 x1 interface compatible with x1, x2, x4, x8 and x16 slots, and a low-profile bracket is supplied in the package.

What is the correct installation order for the ASM3142 card and its driver on Windows 10?

Power off the PC, insert the card into a free PCIe slot, connect the internal Type-E header, power on, then let Windows 10 install the driver automatically.

Will the ASM3142 controller require a firmware update or driver reinstall after a major OS upgrade?

The ASM3142 uses in-box drivers for Windows 10, 11 and Linux, so major OS upgrades typically retain functionality without manual driver work.
