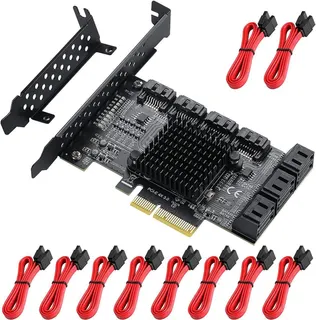

Vszerda PCIe SATA controller card with ten ports and low-profile bracket

Vszerda

Vszerda PCIe SATA Controller Card 10 Port Low Profile Bracket expansion card

SKU CH-1Y87-FGYE8

Adds ten SATA 3.0 ports via a PCIe x4 slot with ten cables and a low-profile bracket included

  • Add ten SATA 3.0 drives via one PCIe x4 slot
  • Ten SATA cables included for immediate installation
  • 1166 + JMB575 chipset improves stability and compatibility

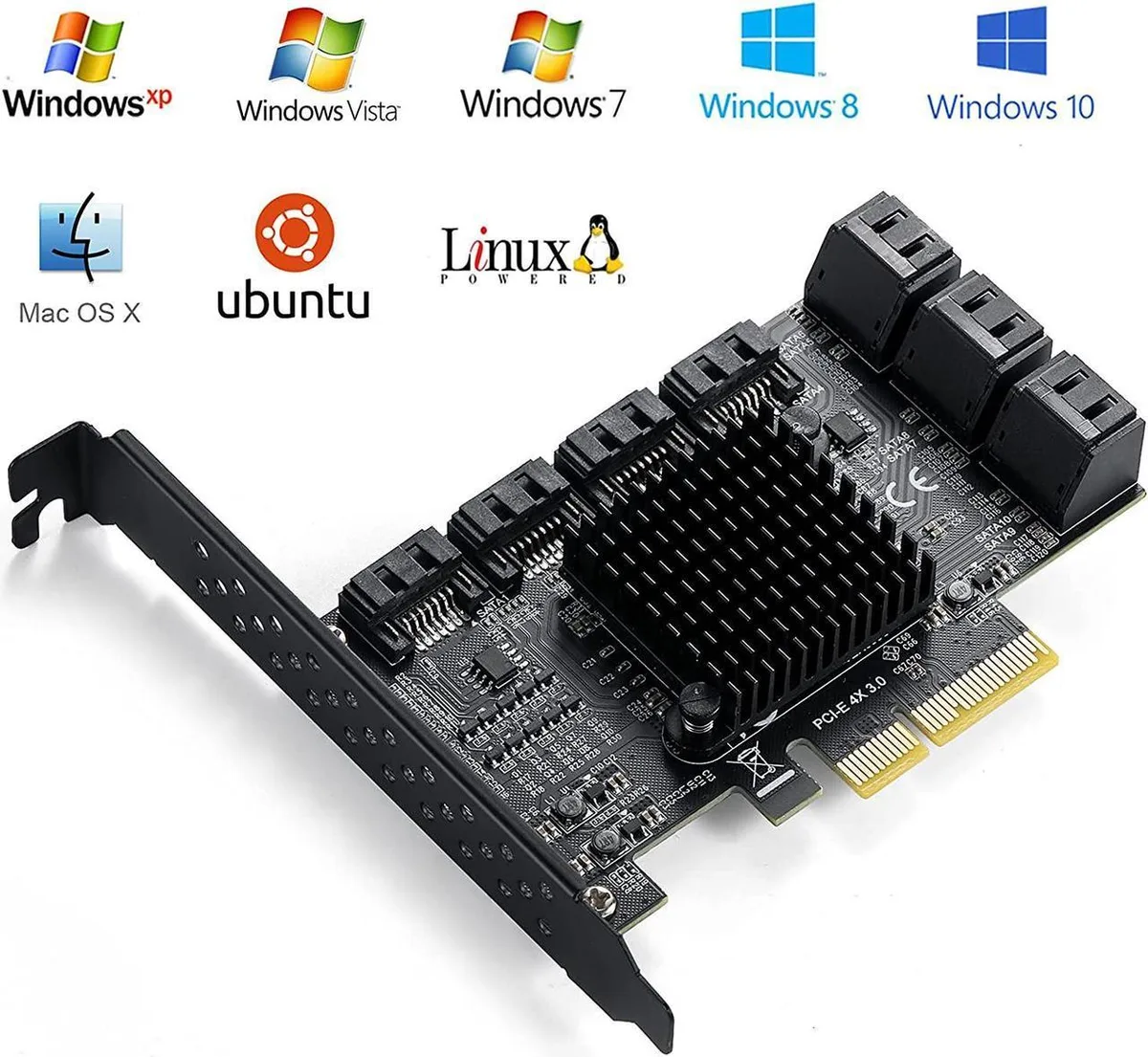

  • Works with Windows XP, 8, 10, macOS, Ubuntu and NAS systems
  • Supports 6.0, 3.0 and 1.5 Gbps speeds with NCQ and hot-swap

Vszerda 10-Port SATA Expansion

The Vszerda PCIe SATA controller card adds ten SATA 3.0 6 Gbps ports to a desktop system through a single PCI Express x4 slot. It targets builders who need to connect many hard drives or SSDs simultaneously for storage arrays or NAS devices. The board uses an 1166+JMB575 chip for broad operating-system compatibility.

Thermals and Power Draw

The card draws power from the PCIe slot and the ten included SATA cables carry data only, so drive power comes from the system supply. No active cooling is fitted; airflow inside the case handles heat from the controller. Typical throughput reaches 380-450 MB/s in PCIe 2.0 and 200-300 MB/s in PCIe 1.0 slots.

Bundled Cables and Driver Notes

Ten SATA cables and a low-profile bracket ship in the box for immediate installation in small-form-factor chassis. The card does not support RAID or port-multiplier operation without a driver install, and Windows 7 is not recommended due to stability issues. Synology systems recognise only four attached disks.

Highlights

  • Add ten SATA 3.0 drives via one PCIe x4 slot
  • Ten SATA cables included for immediate installation
  • 1166 + JMB575 chipset improves stability and compatibility
  • Works with Windows XP, 8, 10, macOS, Ubuntu and NAS systems
  • Supports 6.0, 3.0 and 1.5 Gbps speeds with NCQ and hot-swap

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the Vszerda 10-port SATA card and what is the common mistake?

Insert the card into a PCIe x4, x8, or x16 slot on the motherboard while the computer is fully powered off. A common mistake is inserting it into a legacy PCI slot, which is physically different and will not work.

What maintenance or replacement will the included SATA cables need over time?

The ten included SATA 3.0 cables may need replacement if the latch clips break or if repeated hot-swap cycles cause connector wear that leads to intermittent 6.0 Gbps link errors.

What throughput limit appears first when all 10 ports run sustained transfers on a PCIe 2.0 slot?

The PCIe 2.0 x4 host link caps aggregate throughput at roughly 380–450 MB/s, so that bus ceiling is reached before the individual 6.0 Gbps SATA ports saturate.
