Green rectangular PCB with gold PCIe 5.0 x8 edge connector and two MCIO sockets, one 74-pin and one 38-pin

Vszerda

Vszerda PCIe 5.0 8x to MCIO 8i SFF-TA-1016 VROC Adapter

SKU CH-WKVY-V02S5

Connects a PCIe 5.0 x8 slot to MCIO 8i for up to 24 Gbps SSD data transfer

  • High-speed transfers up to 24 Gbps via PCIe 5.0
  • Connect two SSDs through MCIO 8i SFF-TA-1016 interface
  • Built-in high-power DC modules ensure stable operation

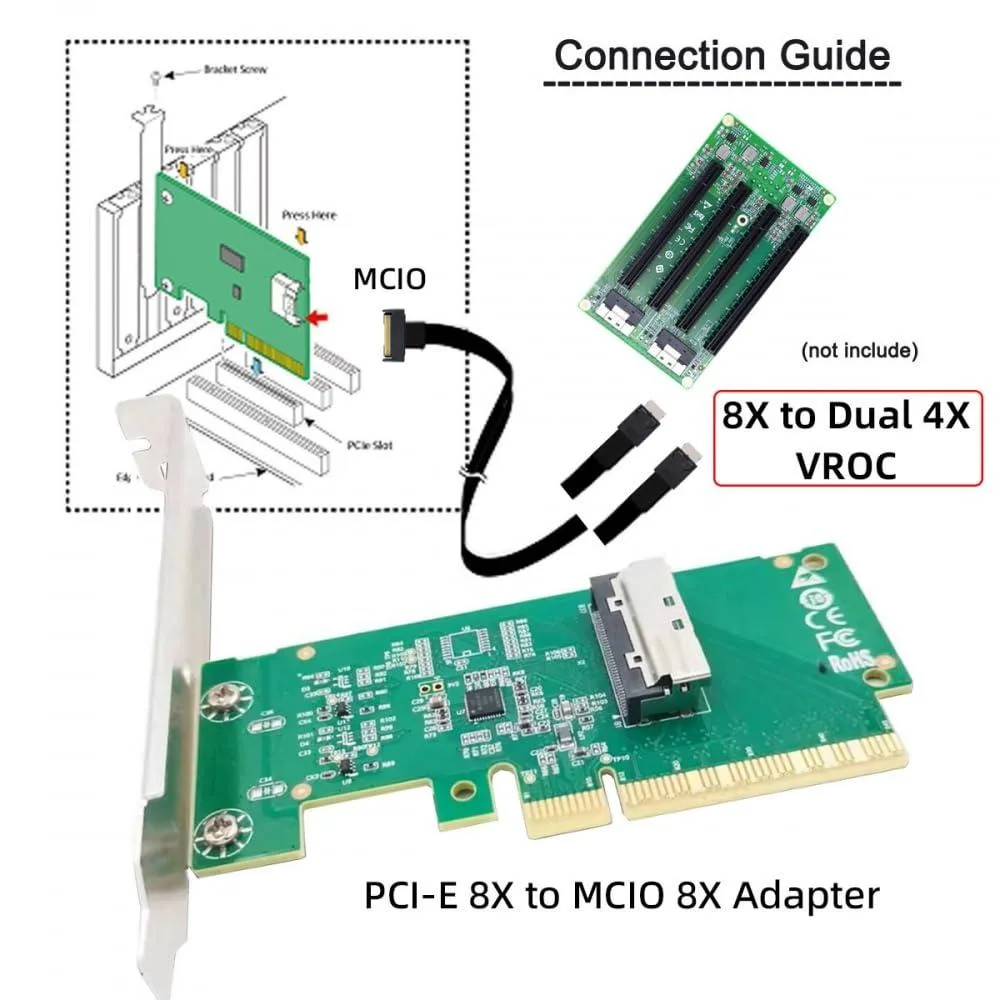

  • Simple plug-in installation using 74-pin and 38-pin connectors
  • Requires motherboard with detachable PCIe lanes for full dual-drive support

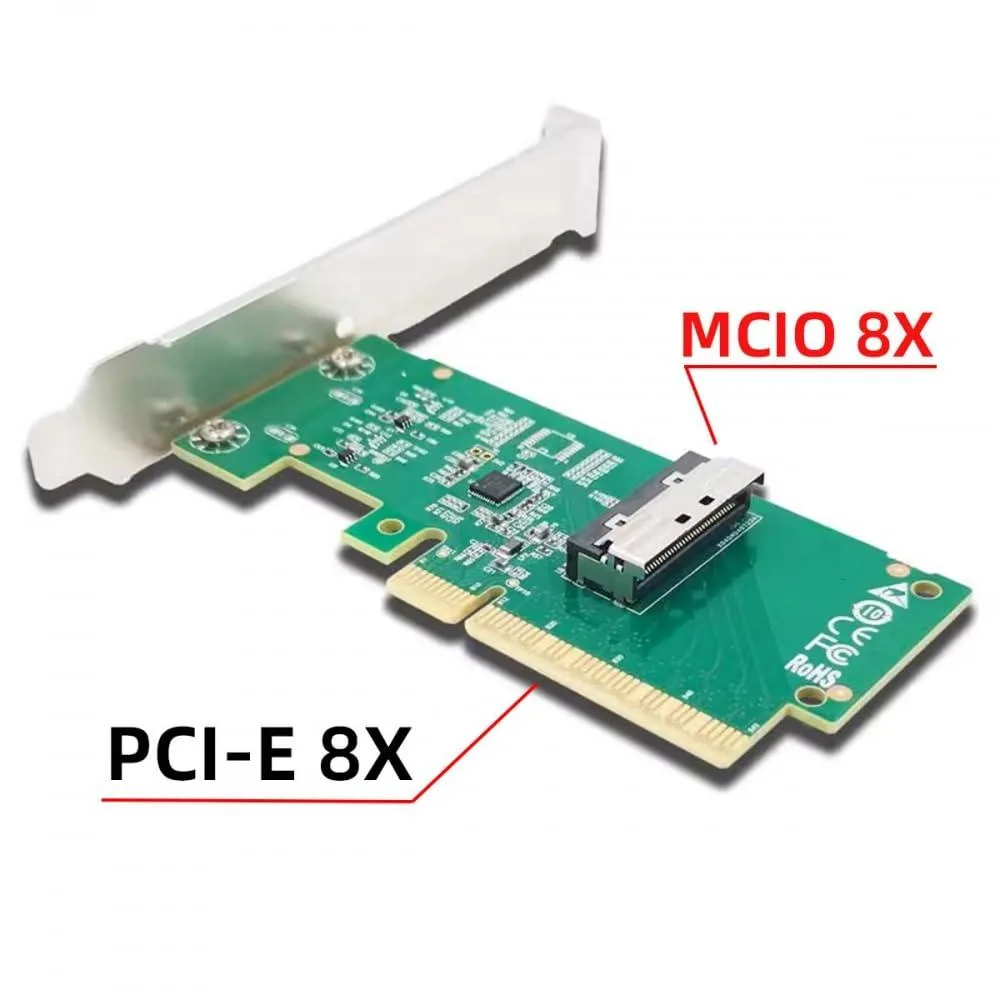

PCIe 5.0 8x to MCIO 8i Adapter

This Vszerda adapter converts a detachable PCIe 5.0 8x motherboard slot into an MCIO 8i SFF-TA-1016 connection for SSDs. It installs internally through the MCIO interface and includes high-power DC modules for stable operation. Data transfer reaches 24 Gbps with compatible drives.

Builders with bifurcation-ready boards

The card only works on motherboards that can split a PCIe 8x lane into two 4x links; boards without bifurcation will see just one drive. It is not suited for systems that lack detachable PCIe channels or for users who need more than two MCIO devices from a single slot.

Sustained throughput with onboard power

Built-in DC modules keep voltage steady during long transfers, preventing the throttling that can appear on bus-powered alternatives. The 74-pin and 38-pin MCIO connectors maintain signal integrity at 24 Gbps across extended workloads.

Highlights

  • High-speed transfers up to 24 Gbps via PCIe 5.0
  • Connect two SSDs through MCIO 8i SFF-TA-1016 interface
  • Built-in high-power DC modules ensure stable operation
  • Simple plug-in installation using 74-pin and 38-pin connectors
  • Requires motherboard with detachable PCIe lanes for full dual-drive support

Specifications

No published specifications for this item yet.

Questions about this item

Which motherboard feature is required for this Vszerda adapter to control two SSDs?

The motherboard must provide detachable PCI‑Express 5.0 x8 channels that can split the signal; without that split only one drive will be recognised.

Can I use this adapter with an older PCIe 3.0 or 4.0 slot?

The adapter is built for a PCIe 5.0 x8 link running up to 24 Gbps; plugging it into an earlier generation slot will limit bandwidth to that slot’s maximum.
