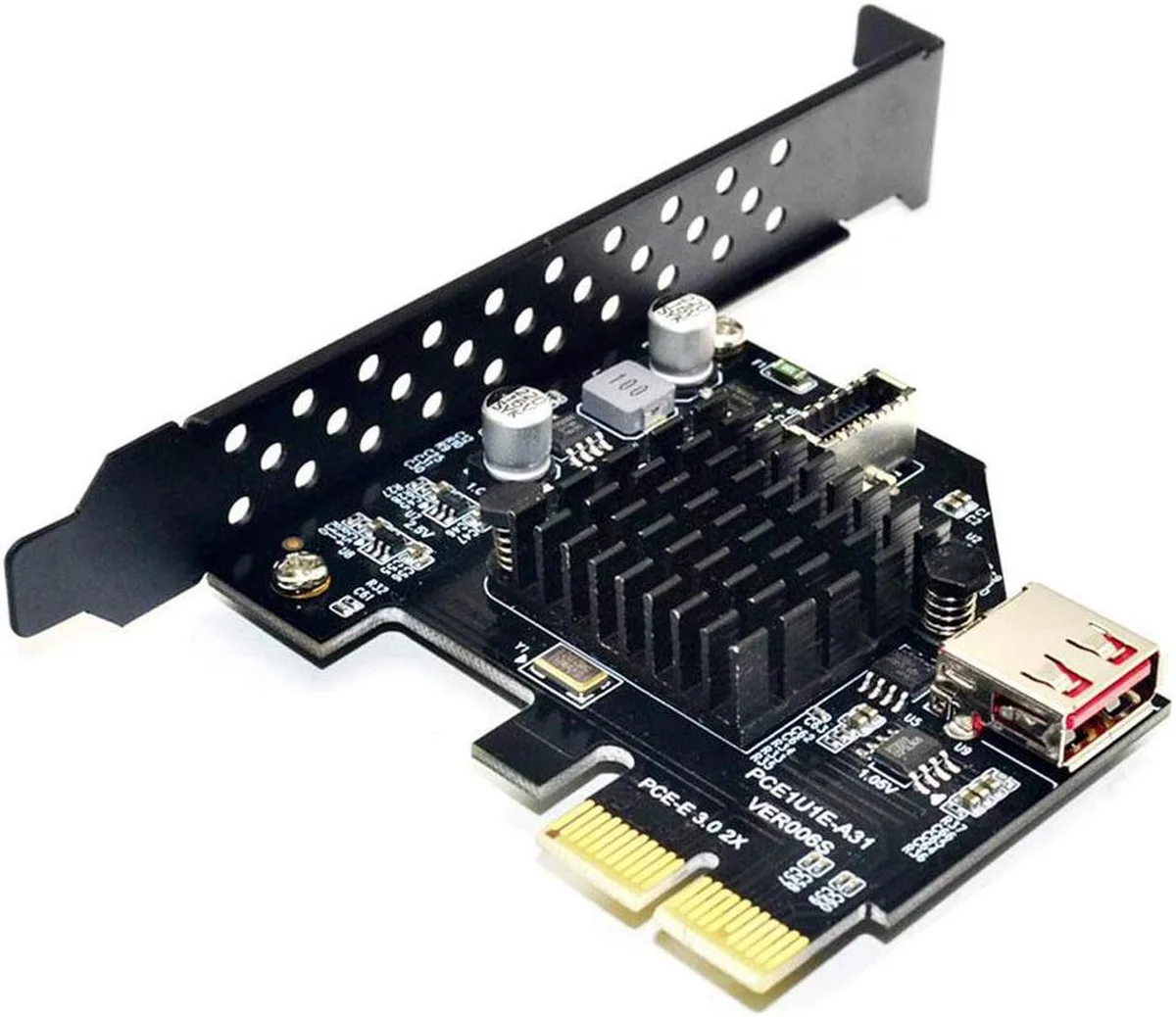

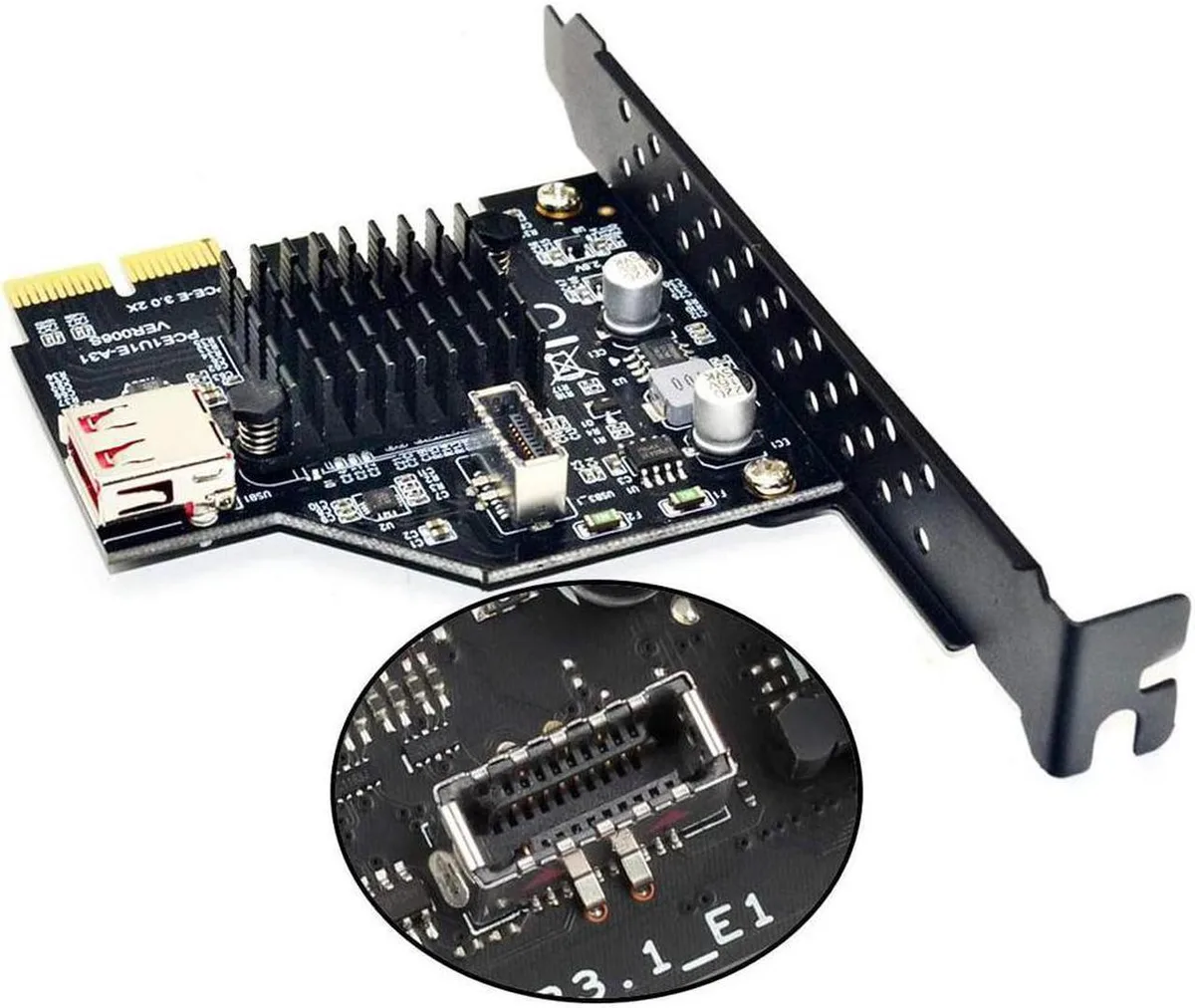

Vszerda PCIe card with USB 3.2 20-pin header and USB 2.0 Type-A port, full-profile bracket

Vszerda

Vszerda PCIe 2x USB 3.2 20-Pin Header 10Gbps USB 2.0 Type-A Full-Profile Bracket

SKU CH-FPD8-X7AAN

Adds a USB 3.2 20-pin header and a USB 2.0 Type-A port via a PCIe 2x slot with ASMedia ASM3142 controller

  • Adds a front-panel USB 3.2 20-pin header running at 10 Gbps
  • Built-in ASMedia ASM3142 controller enables USB 3.2 Gen 2 speeds
  • Fits PCIe x2, x4, x8 or x16 slots; x1 slots not supported
  • Extra USB 2.0 Type-A port provides additional internal expansion
  • Full-profile bracket installs in standard desktop cases

PCIe 2x USB 3.2 20-Pin Header Card

This PCIe 2x expansion card adds a USB 3.2 20-pin internal header and a USB 2.0 Type-A connector to a desktop system. It uses an ASMedia ASM3142 controller to deliver up to 10Gbps data transfer speed. The card fits full-profile brackets and works with PCIe 2x, 4x, 8x and 16x slots. It supports Windows XP, 7, 8, 10 and Linux operating systems.

Builders with spare PCIe 2x or wider slots

Suitable for builders who have a free PCIe 2x, 4x, 8x or 16x slot and need a front-panel USB 3.2 20-pin header with A-Key orientation. Not suitable for systems that only offer a PCIe 1x slot, because the card does not work with that slot width. Buyers who need more than one internal USB 3.2 header or who require an external USB-C port should look at other solutions.

Requires PCIe 2x or wider slot

The single specification that decides compatibility is the slot width: the card requires a PCIe 2x, 4x, 8x or 16x slot and will not function in a PCIe 1x slot. Ensure the motherboard has an appropriate free slot before purchase.

Highlights

  • Adds a front-panel USB 3.2 20-pin header running at 10 Gbps
  • Built-in ASMedia ASM3142 controller enables USB 3.2 Gen 2 speeds
  • Fits PCIe x2, x4, x8 or x16 slots; x1 slots not supported
  • Extra USB 2.0 Type-A port provides additional internal expansion
  • Full-profile bracket installs in standard desktop cases

Specifications

No published specifications for this item yet.

Questions about this item

Does the Vszerda card come with the internal USB 3.2 20-pin cable for my front panel, or do I need to buy that separately?

The card provides the USB 3.2 20-pin Type-E A-Key header on the bracket; the internal cable that connects to your front-panel USB-C port is not included and must be purchased separately.

My motherboard only has a PCIe x1 slot free — will this Vszerda adapter work in it?

No, the card requires a PCIe x2, x4, x8 or x16 slot and explicitly does not work in a PCIe x1 slot.

The box says 10 Gbps — will I actually see that speed on my PCIe 2.0 motherboard?

The ASMedia ASM3142 controller supports 10 Gbps USB 3.2 Gen 2, but the card needs a PCIe 3.0 link for full bandwidth; on a PCIe 2.0 slot the transfer rate will be limited by the bus.
