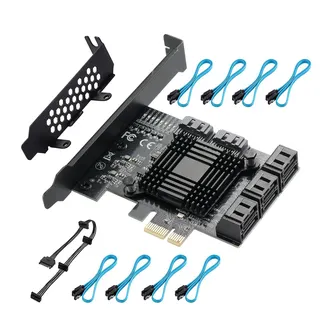

Black PCIe x1 SATA card with eight ports, heatsink, eight cables and low-profile bracket

Vszerda

Vszerda PCIe 1x SATA 3.0 8-Port Card with 8 Cables & Low Profile Bracket

SKU CH-6BGV-M8GN8

Adds eight SATA 3.0 ports through a PCIe 1x slot, includes eight cables and a low-profile bracket, uses ASM1064 and JMB575 chips for stability, works with Windows, macOS and Linux.

  • Add eight drives at once with eight included cables
  • 6 Gbps throughput per port on SATA 3.0

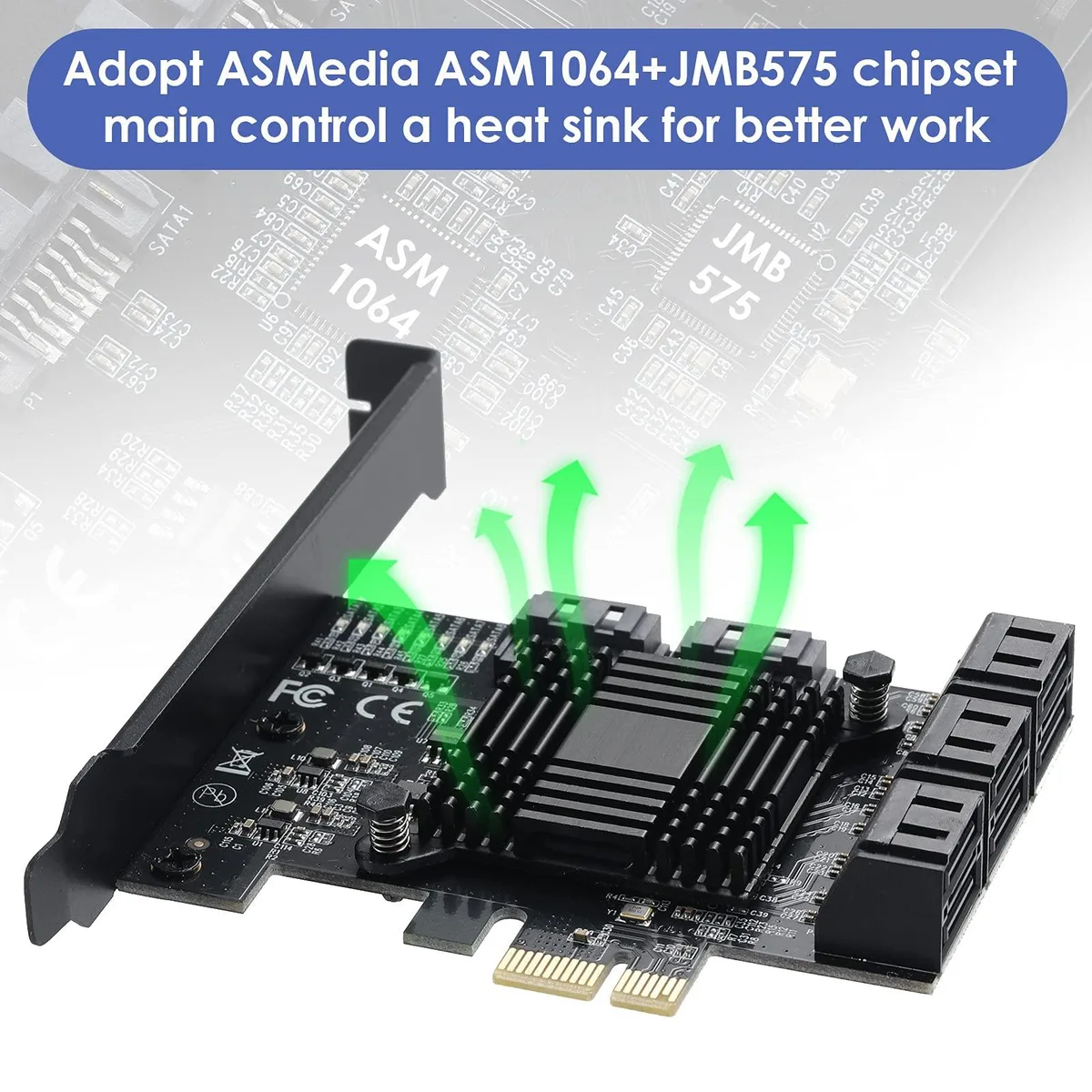

  • ASM1064 plus JMB575 chips for stable operation
  • Fits x4, x8 and x16 slots with low-profile bracket
  • Works with Windows, Linux and macOS without RAID

Eight SATA ports for storage builders

This PCIe x1 expansion card adds eight SATA 3.0 ports using ASM1064 and JMB575 chips. It supports up to eight hard drives or SSDs at 6 Gbps each. The bundle includes eight SATA cables, a low-profile bracket and a SATA power splitter cable. It is aimed at desktop users who need more internal SATA connections than the motherboard provides.

Simple drop-in install with one common snag

The card fits any PCIe x4, x8 or x16 slot and works with Windows XP, 2003, 7, 8, 10, macOS and Linux without extra drivers. Attach the supplied cables, plug in the power splitter and secure the low-profile bracket if your case needs it. The only frequent issue is that some older BIOSes do not initialise the controller until a drive is detected, so the card may appear missing until at least one SATA device is connected.

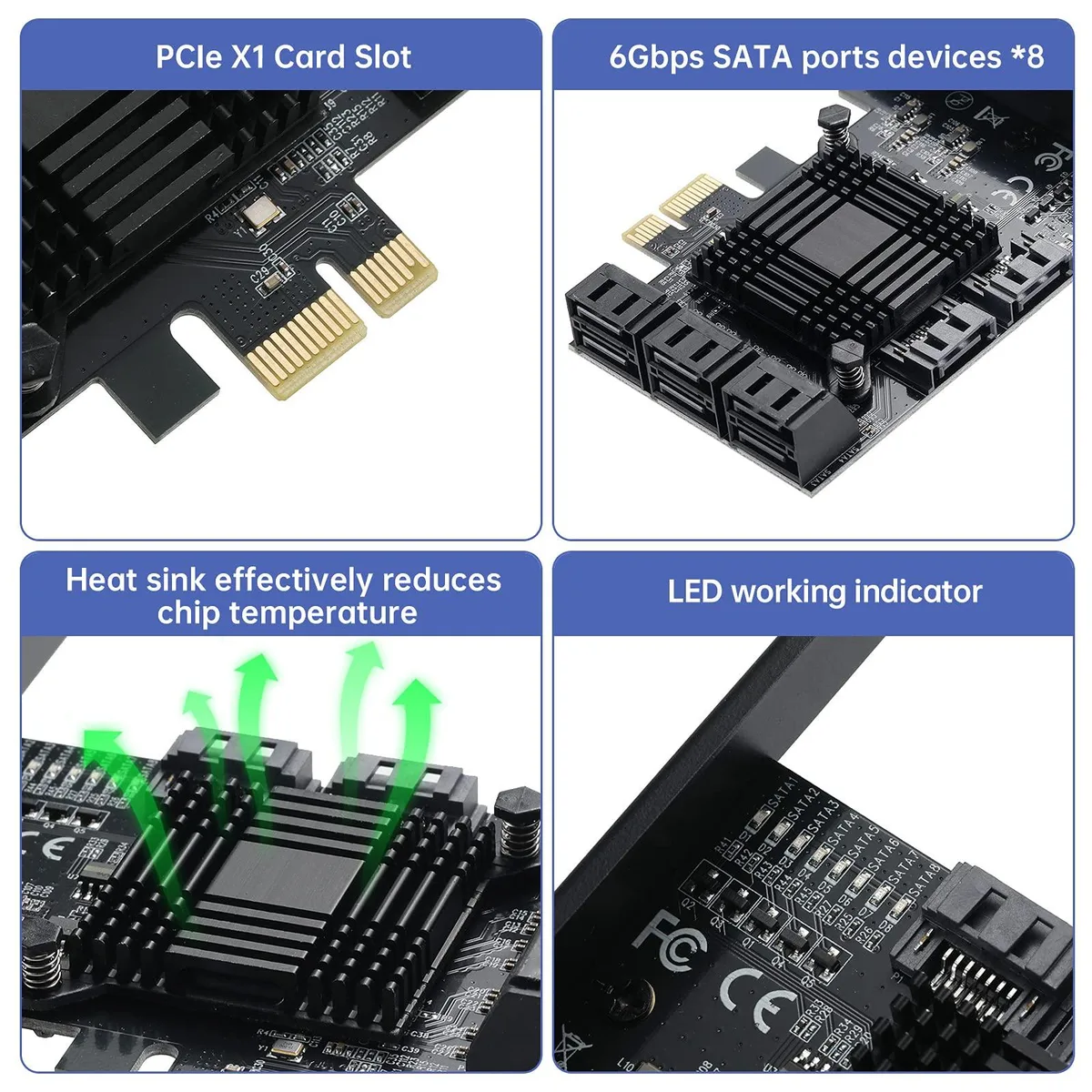

Steady throughput with passive cooling

The onboard heatsink keeps the ASM1064 and JMB575 chips cool during continuous multi-drive transfers, so sustained write speeds stay close to the 6 Gbps link rate. Hardware RAID is not supported, so each drive appears individually to the operating system. The card draws power from the slot and the splitter cable; it does not require an external power connector.

Highlights

  • Add eight drives at once with eight included cables
  • 6 Gbps throughput per port on SATA 3.0
  • ASM1064 plus JMB575 chips for stable operation
  • Fits x4, x8 and x16 slots with low-profile bracket
  • Works with Windows, Linux and macOS without RAID

Specifications

No published specifications for this item yet.

Questions about this item

How do I confirm the card is operating at 6 Gbps after installation?

Check the device manager or system log to verify each of the 8 ports negotiates a SATA 3.0 link and that drives report 6 Gbps transfer capability.

Which accessories are included and what must I supply myself?

The package contains the PCIe card, 8 SATA 3.0 cables, a low-profile bracket, and a SATA power splitter cable; you only need to provide SATA power from your PSU for each drive.

Should I choose the ASM1064 + JMB575 version or the ASM1166 + JMB575 version?

Both chipsets deliver 8 SATA 3.0 ports at 6 Gbps; the ASM1064 + JMB575 model is the one described in the main highlights and includes a heatsink for sustained operation.
