Vszerda PCI-E to 7 Ports USB 3.0 Hub Expansion Card

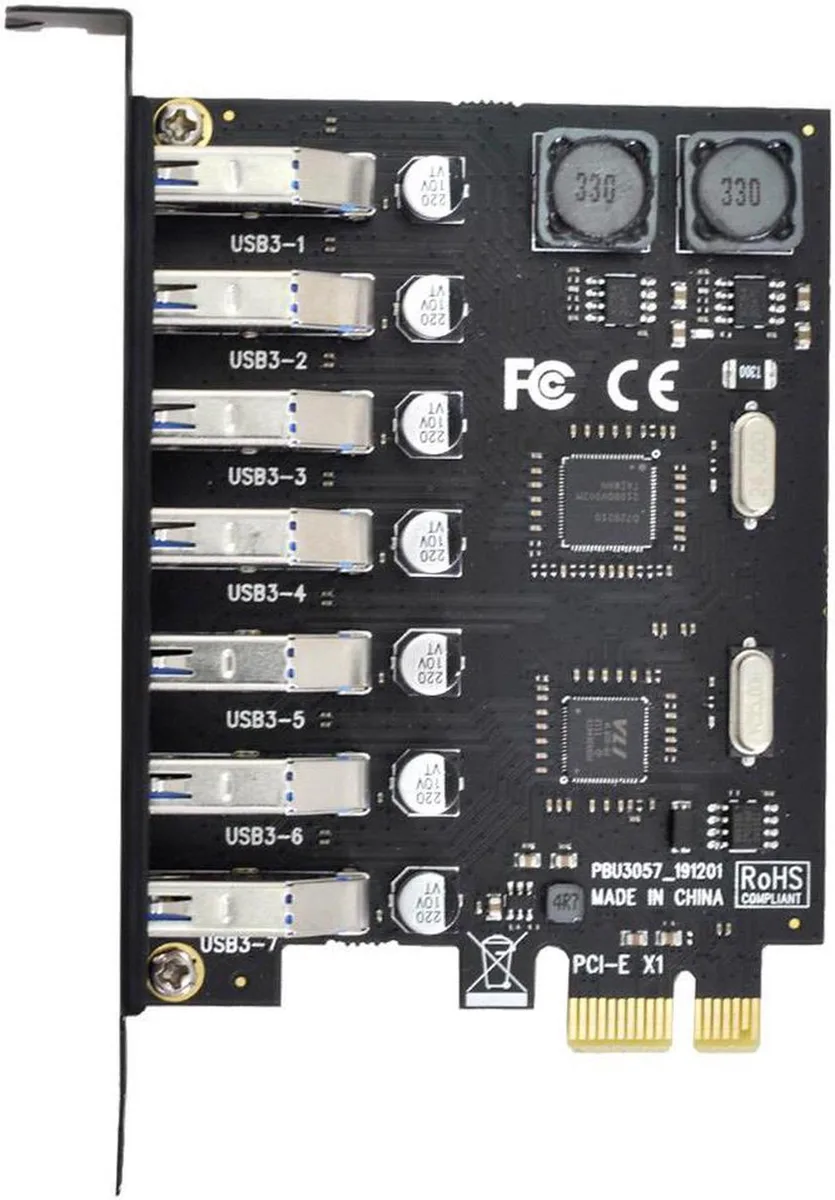

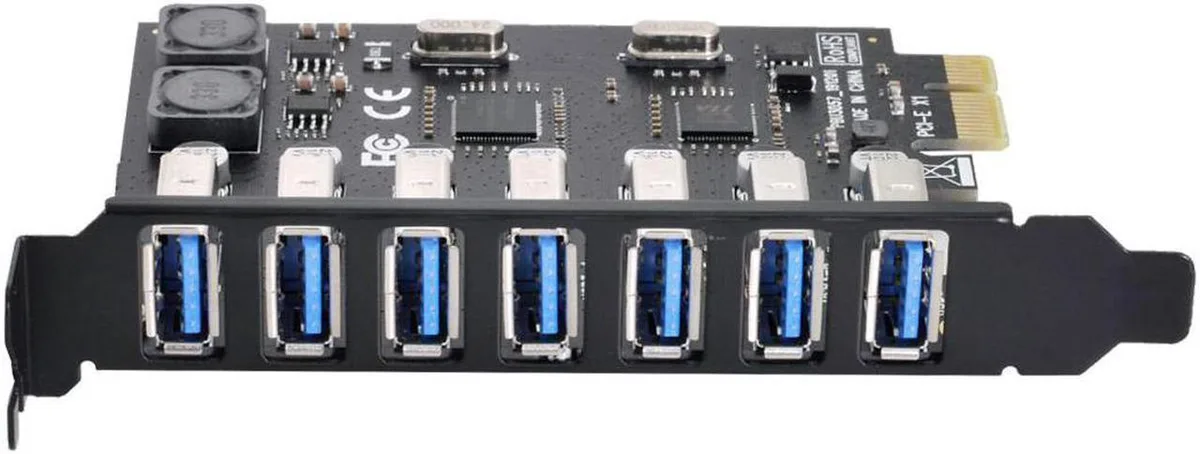

7-Port USB 3.0 PCIe Expansion Card

This PCI Express add-in card adds seven USB 3.0 Type-A ports to a desktop system through a single x1 lane. It targets PC builders and upgraders who need more high-speed ports for peripherals, external drives or VR headsets without replacing the motherboard. The card fits any standard PCIe slot and works with Windows 7, 8 and 10 on both 32-bit and 64-bit installations. A RENESAS or VLI driver must be installed before use.

Upgrade from limited onboard USB

The card replaces a shortage of native USB 3.0 headers or rear ports on older boards, delivering up to 5 Gbps bandwidth per the USB 3.0 specification. It is backward compatible with USB 1.1 and 2.0 devices, so legacy keyboards, mice and printers continue to work. The jump is worth it when the existing port count forces constant swapping or when front-panel headers are unavailable. No extra power connector is required, simplifying installation in compact cases.

Seven ports with 900 mA each

Each port supplies 5 V at 900 mA, enough for most bus-powered SSDs, flash drives and charging phones. The shared x1 lane means total throughput tops out at 5 Gbps, so simultaneous heavy transfers on multiple drives will contend for bandwidth. It comfortably handles several low-bandwidth devices such as webcams, audio interfaces or input devices at once. Builders needing guaranteed full-speed operation on every port simultaneously should consider a multi-lane controller instead.
