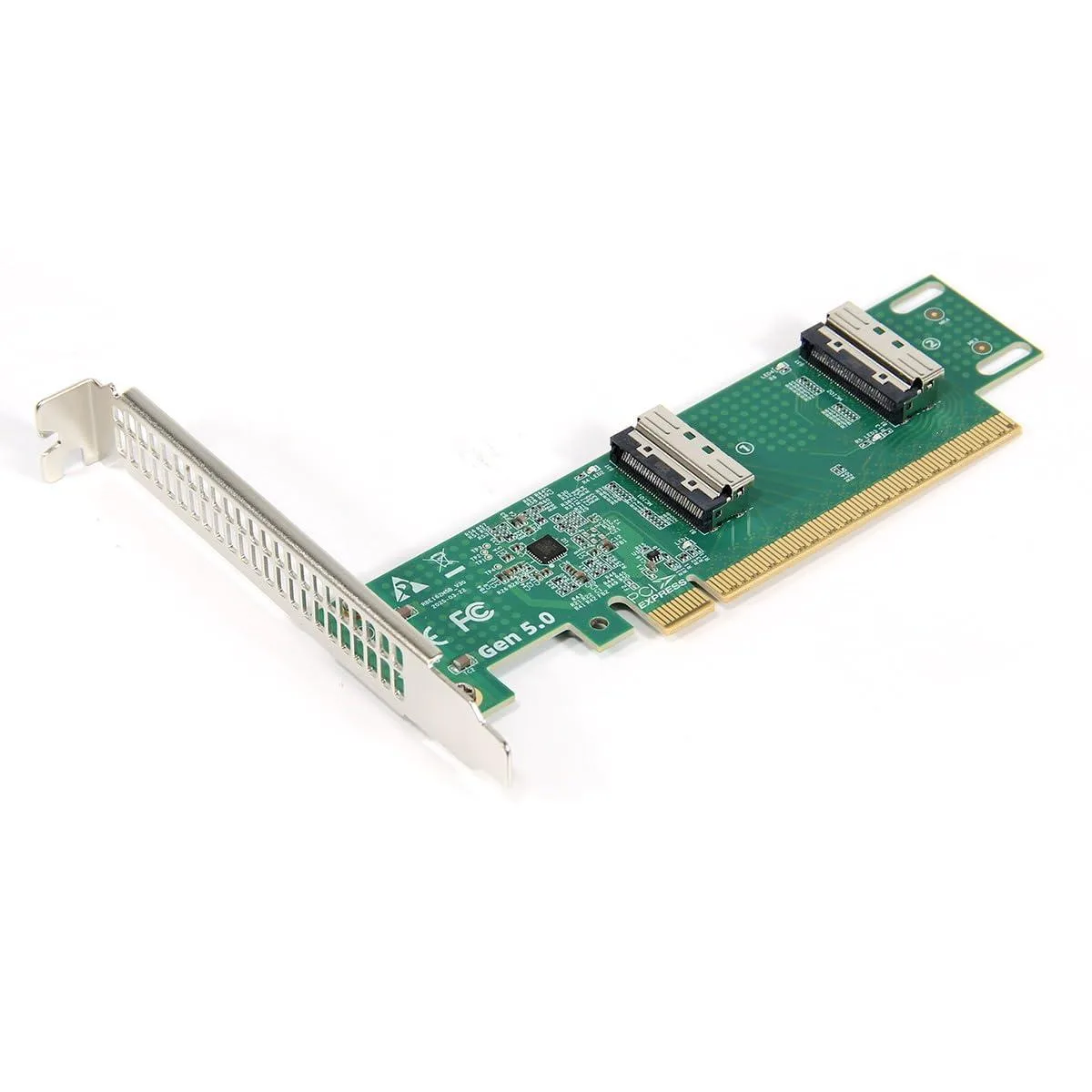

Green PCB with full-length PCIe 16x edge connector and two MCIO 8i ports

Vszerda

Vszerda PCI-E 5.0 16x to Dual MCIO 8i VROC Adapter

SKU CH-XPVM-TMGX5

Converts a PCI-E 5.0 16x slot into two MCIO 8i connectors for dual SSD support at up to 24 Gbps

  • PCIe 5.0 x16 bandwidth enables 24 Gbps dual-drive throughput
  • Dual MCIO 8i ports let one x16 slot run two SSDs
  • Built-in high-power DC modules deliver stable power to both drives
  • Splittable x16 motherboard channel required to address both disks
  • MCIO 74-pin and 38-pin connectors plug directly into SFF-TA-1016 devices

Vszerda PCI-E 5.0 16x VROC Adapter

This adapter connects a single PCI-E 5.0 16x motherboard slot to two MCIO 8i ports for SSD expansion. It targets builders who need to add high-speed storage to platforms that support bifurcation. The card requires a mainboard with detachable PCI-E channels to operate both drives.

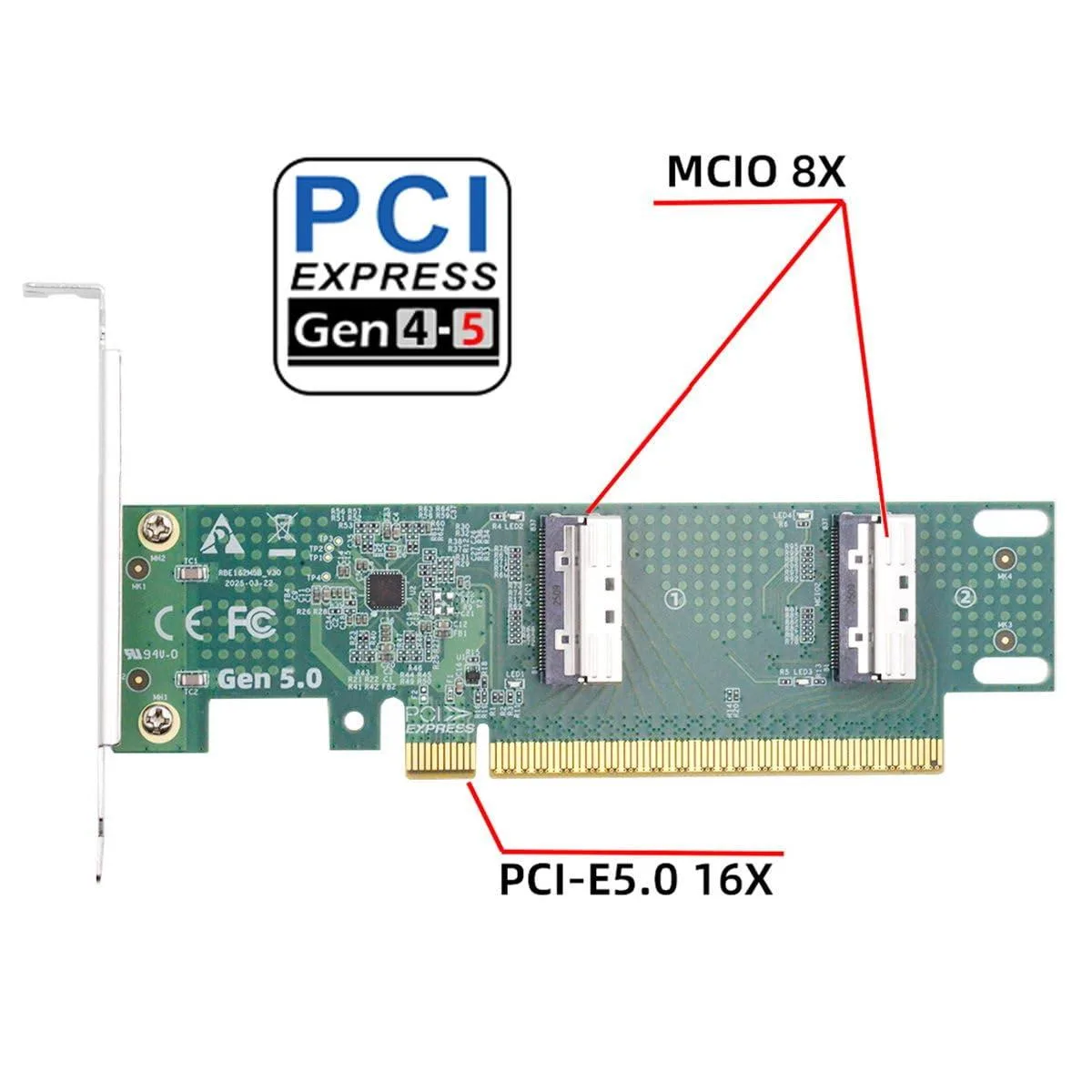

Build integration with dual MCIO 8i

The board installs internally through the MCIO interface and carries a 74-pin connector on one side plus a 74-pin/38-pin combination for the drives. On-board high-power DC modules supply the attached SSDs directly. Systems lacking PCI-E signal splitting will only recognise one of the two connected disks.

Sustained transfer at 24 Gbps

Built-in DC modules maintain stable voltage during continuous workloads rather than brief bursts. The SFF-TA-1016 compliant links support up to 24 Gbps per lane for SAS and PCIe traffic. This design keeps signal integrity consistent across extended read and write sessions.

Highlights

  • PCIe 5.0 x16 bandwidth enables 24 Gbps dual-drive throughput
  • Dual MCIO 8i ports let one x16 slot run two SSDs
  • Built-in high-power DC modules deliver stable power to both drives
  • Splittable x16 motherboard channel required to address both disks
  • MCIO 74-pin and 38-pin connectors plug directly into SFF-TA-1016 devices

Specifications

No published specifications for this item yet.

Questions about this item

Does the PCIe 5.0 x16 link support full x16 bandwidth to both MCIO 8i ports simultaneously?

The adapter only supports motherboards with detachable PCIe channels; a board without signal split can only recognise one disk.

How much heat do the on-board DC modules produce during continuous 24 Gbps transfers?

Built-in high-power DC modules are designed for sustainable and stable work, but no thermal or power-draw figures are published.

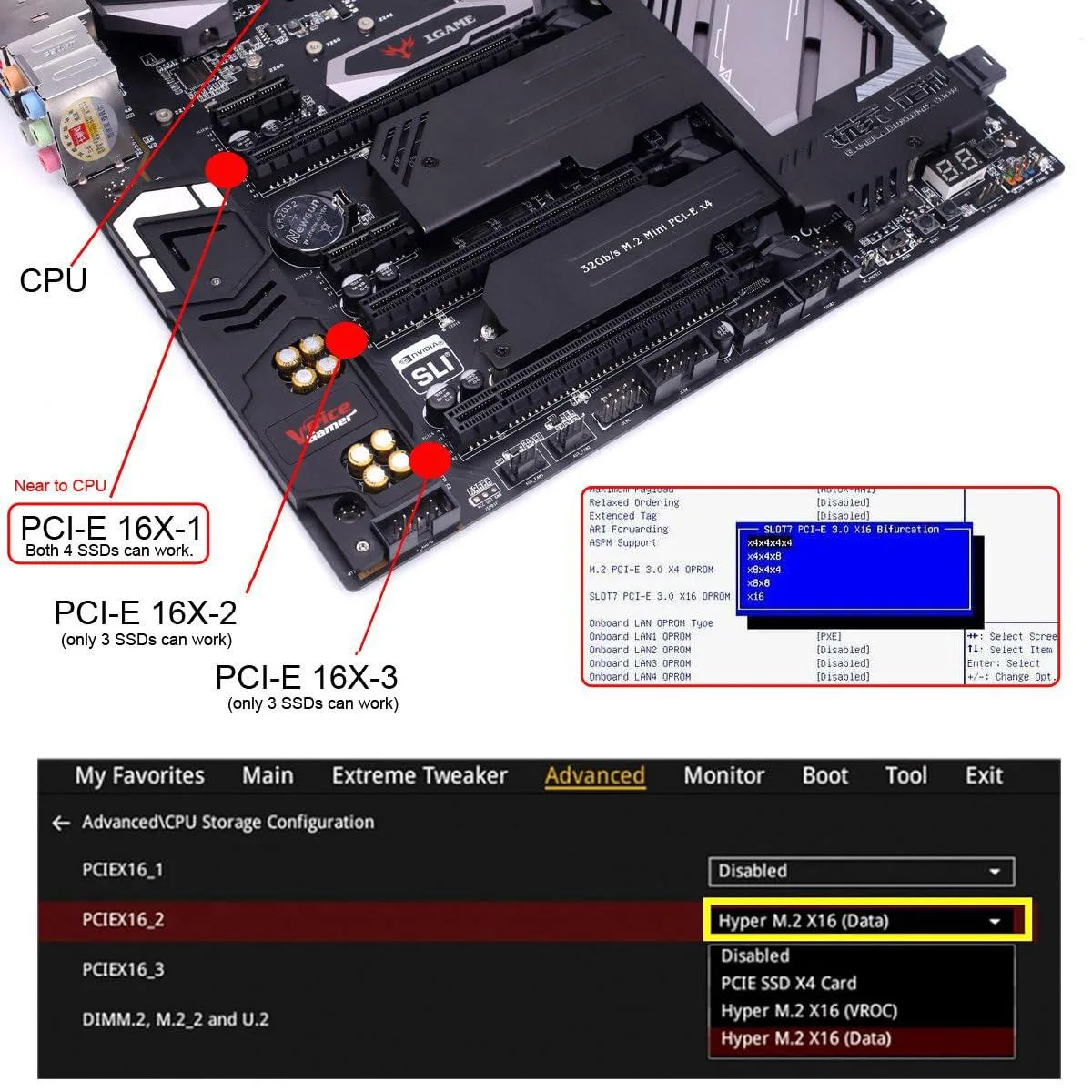

Which motherboard feature must already be present to use both MCIO 74-pin connectors?

The motherboard must provide detachable PCIe channels that can split the x16 link into two x8 paths.
