Green PCIe x1 card with USB-C, USB-A and 19-pin header, low-profile bracket included

Vszerda

Vszerda PCI-E 1X to USB 3.2 Gen1 5Gbps Type-C + Type-A + 19PIN Expansion Card

SKU CH-FW8X-9YYNE

Adds USB 3.2 Gen 1 Type-C and Type-A ports plus a 19-pin front-panel header through a PCIe x1 slot with a 15-pin SATA power connector

  • Adds USB 3.2 Gen 1 Type-C and Type-A ports via PCI-E 1X slot
  • Delivers up to 5Gbps transfer speed for fast file copying between devices

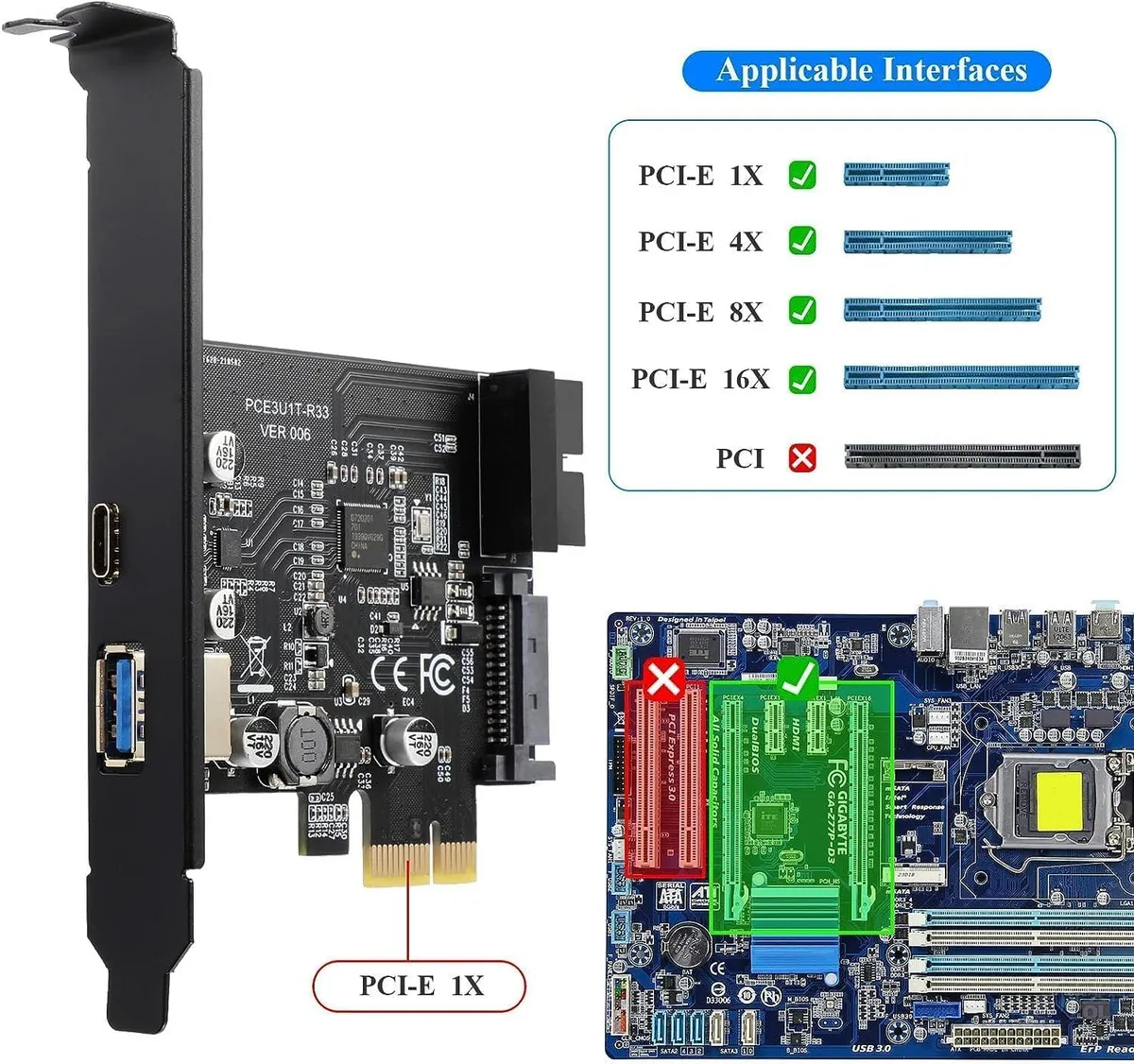

  • Works with PCIe x1, x4, x8, x16 slots on Windows 7, 8, 10 and Linux without drivers
  • Includes SATA 15PIN power connector and four solid capacitors for stable power delivery
  • Provides internal 19PIN and 20PIN headers to extend front-panel USB 3.0 connectivity

PCI-E 1X USB 3.2 Gen1 Expansion Card

This PCI-E 1X card adds one USB 3.2 Gen1 Type-C port and one Type-A port to a desktop computer. It also provides a 19-pin header for a front-panel USB 3.0 connection. The card fits x1, x4, x8 or x16 slots and works with Windows 7, 8, 10 and Linux without extra drivers.

Desktop builders adding front Type-C

The card suits owners who want modern front-panel USB on a motherboard that lacks a Type-C header. It is not suitable for older PCI slots. Buyers who need internal drive connections or additional rear ports should look at a different product.

RENESAS D720201 controller with SATA 15-pin power

A RENESAS D720201 chip runs the two external ports at up to 5 Gbps. Four solid capacitors and a SATA 15-pin power connector supply stable power to attached devices. A low-profile bracket is included for slim cases.

Highlights

  • Adds USB 3.2 Gen 1 Type-C and Type-A ports via PCI-E 1X slot
  • Delivers up to 5Gbps transfer speed for fast file copying between devices
  • Works with PCIe x1, x4, x8, x16 slots on Windows 7, 8, 10 and Linux without drivers
  • Includes SATA 15PIN power connector and four solid capacitors for stable power delivery
  • Provides internal 19PIN and 20PIN headers to extend front-panel USB 3.0 connectivity

Specifications

No published specifications for this item yet.

Questions about this item

Does the Vszerda expansion card need a specific PCIe slot width to fit my motherboard?

It fits any PCIe x1, x4, x8 or x16 slot and a low-profile bracket is included for slim cases.

Which power connector must be attached during installation so the ports deliver stable current?

Plug a SATA 15-pin power cable from the PSU into the card’s 15-pin socket before securing the bracket.

What front-panel header does the 19-pin connector on the card connect to on my motherboard?

The 19-pin header links to the motherboard’s USB 3.0 20-pin front-panel connector for internal Type-A ports.
