Vszerda PCI-E 1x to Half/Full Mini PCI-E Adapter with 4-Pin SATA Power Cable

Adapter for PCIe cards

The Vszerda adapter converts a PCI Express x1 slot so it can accept both half-size and full-size Mini PCI-E cards. A 4-pin to SATA power cable is included to supply external 5 V or 12 V power for USB and PCIe devices. The board measures 50 mm by 30 mm and uses high-quality connectors for long service life. It is designed to meet PCI Express Mini Card Electromechanical Specification Revision 1.0 and PCI Express base specification 1.1.

Engineers and production use

This adapter suits engineers and production environments that need to install Mini PCI-E cards into a standard PCIe x1 slot without redesigning a system. It supports both 30 mm by 50 mm full-size and 30 mm by 26.8 mm half-size Mini PCI-E cards. Buyers who require a different form factor or an internal power delivery method should look at other solutions.

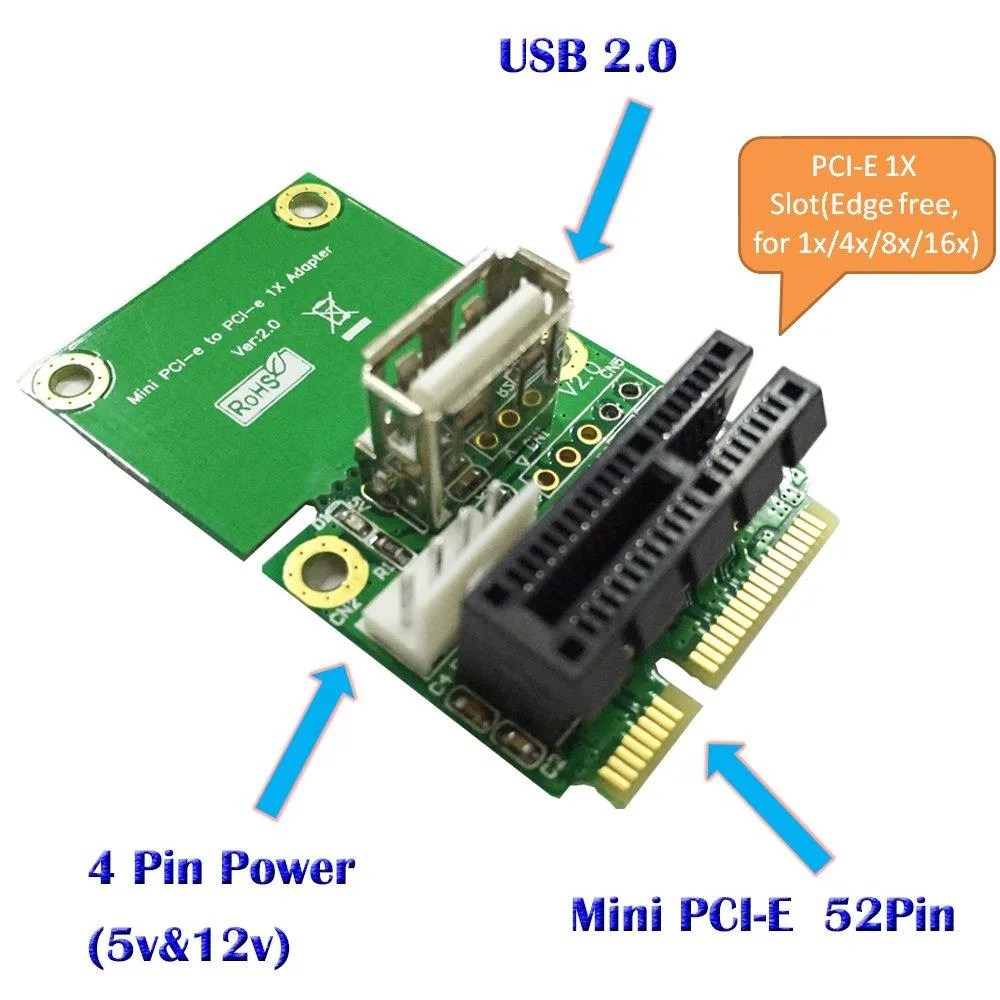

PCIe x1 edge-free connector

The edge-free PCI Express x1 connector allows the adapter to work with x1, x4, x8 and x16 PCIe cards. This specification determines whether the host slot and the target card are electrically compatible.
