Vszerda MT-801HK-C-us 8 Port HDMI KVM Switch 4K 30Hz 1U Rack Mount
Control eight computers from one 4K 30 Hz display with push-button, wired desktop or IR remote switching and included cables
- TypePush Button
- Monitor Connections8 port KVM HDMI
- PC SelectionPush Button
- Power Features5 volts
- Dimensions46.0 in x 17.8 in x 10.8 in
- Weight2.109 kilograms
- Control 8 computers from one console at 4K 30 Hz
- Four USB 2.0 hub ports connect peripherals without extra hardware
- Three switching methods: front button, wired desktop selector, IR remote
- Ships with eight 2-in-1 HDMI/USB cables in 1.5 m and 1.8 m lengths
- Mounts in a standard 19-inch 1U rack with included ears and screws
Eight-Port HDMI KVM Switch for Server Racks

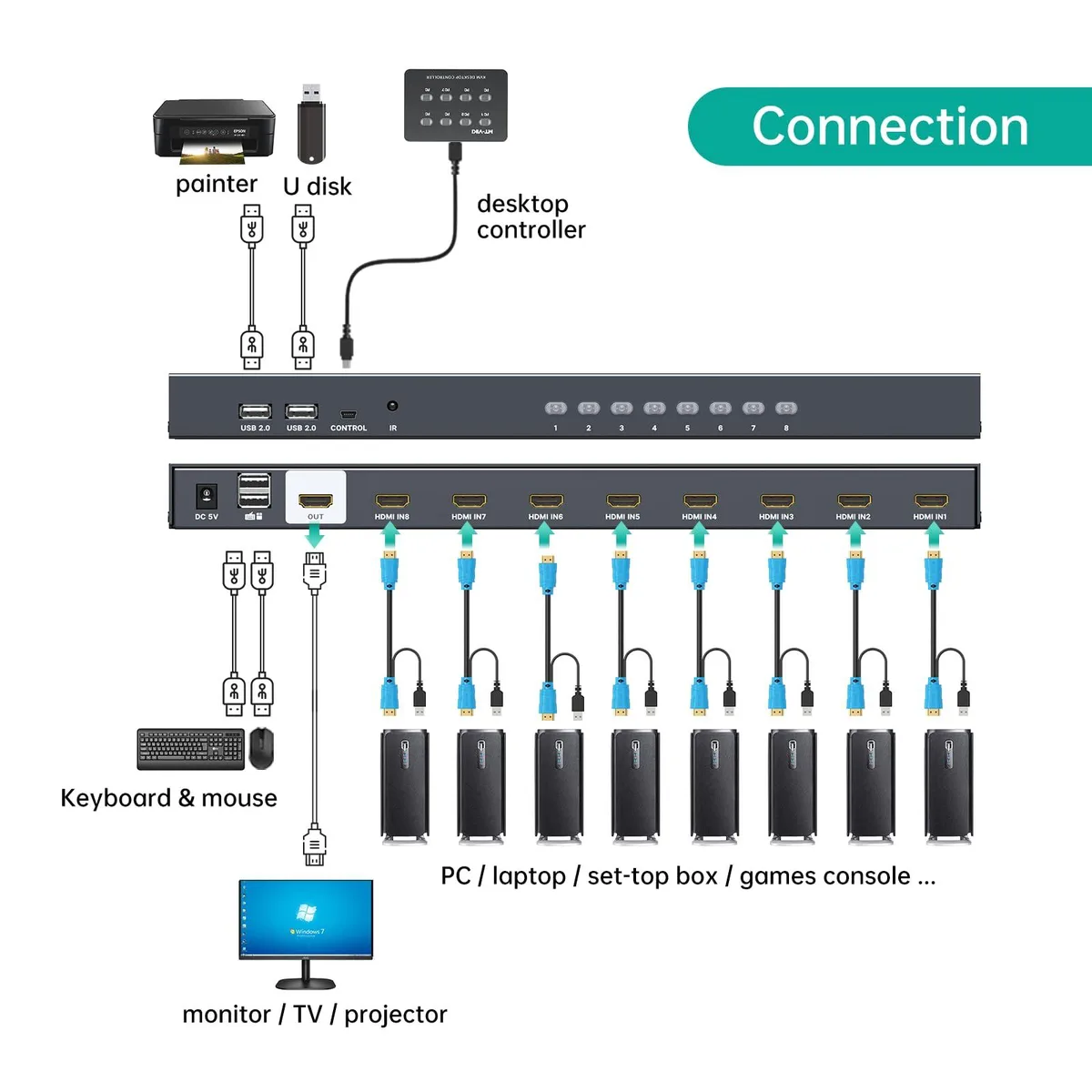

The Vszerda MT-801HK-C-us lets one monitor, keyboard and mouse control up to eight computers at 4K 30 Hz. It fits a standard 19-inch 1U rack and includes eight USB-HDMI KVM cables, a wired desktop selector, an IR remote and a power adapter. Front-panel push buttons give a fourth switching method. No software installation is required.
Replaces Multiple Consoles and Cable Clutter
This unit removes the need for separate displays and input devices per server, saving rack space and reducing cable runs. The jump is worth it when you manage several headless or co-located systems and want instant switching without network latency. It is not suited for setups that require 4K 60 Hz or higher refresh rates, nor for environments that need video-wall or multi-monitor output from a single source.
Limited to HDMI 4K 30 Hz and USB 2.0 Hub
The HDMI interface caps video at 3840×2160 30 Hz, so high-frame-rate content will not display at full motion smoothness. The four-port USB 2.0 hub handles keyboard, mouse and basic peripherals but does not support USB 3.0 speeds for storage or high-bandwidth devices. Cable lengths are fixed at 1.5 m and 1.8 m, so distant rack layouts may need extension solutions not included.
Highlights
- Control 8 computers from one console at 4K 30 Hz
- Four USB 2.0 hub ports connect peripherals without extra hardware
- Three switching methods: front button, wired desktop selector, IR remote
- Ships with eight 2-in-1 HDMI/USB cables in 1.5 m and 1.8 m lengths
- Mounts in a standard 19-inch 1U rack with included ears and screws
Specifications
| Brand | Vszerda |
|---|---|
| Model | MT-801HK-C-us |
| Part Number | MT-HK |
| Type | Push Button |
| Monitor Connections | 8 port KVM HDMI |
| PC Selection | Push Button |
| Power Features | 5 volts |
| Dimensions | 46.0 in x 17.8 in x 10.8 in |
| Weight | 2.109 kilograms |
Questions about this item
What rack depth and width does the MT-801HK-C-us require for the 1U 19-inch mounting ears?
The switch fits a standard 19-inch rack and occupies 1U height; the unit measures 46.0 in wide, 17.8 in deep and 10.8 in high with the ears attached.
Which cable ends plug into the computers versus the switch, the mistake users make?
Each 2-in-1 cable has an HDMI connector with a USB pigtail; that end goes into the computer or server, while the other HDMI head plugs into the switch.
How long are the included KVM cables and what longer options exist?
The package supplies four 1.5 m and four 1.8 m HDMI-USB cables; 10 ft and 16 ft replacements are available separately.
