Vszerda MT-1601HK-C 16-port KVM switch 4K@30Hz 1U rack mount
Controls 16 computers from one HDMI console at 4K 30 Hz with included cables and IR remote
- TypePush Button
- Monitor Connections16 port KVM HDMI
- PC SelectionPush Button
- Power Features5 volts_of_direct_current
- Dimensions38.8 in x 8.28 in x 3.2 in
- Weight3.674 kilograms
- Control 16 computers from one console at 4K 30 Hz
- Four USB 2.0 ports share peripherals across all connected systems
- Switch instantly via front buttons or IR remote control
- Ships with 16 HDMI and USB cables in three lengths
- Fits a standard 19-inch 1U rack with included mounting ears
16-port HDMI KVM with USB 2.0 hub

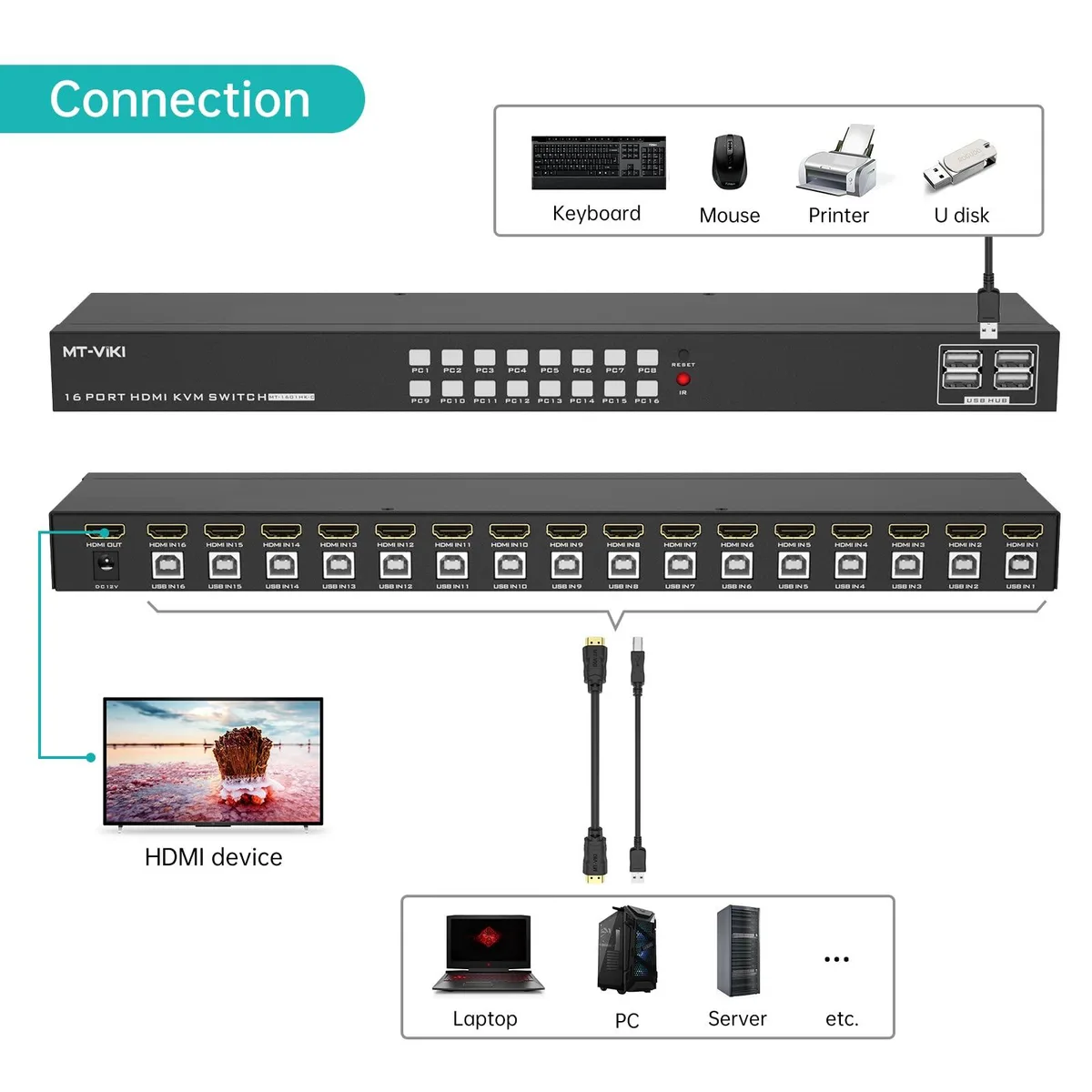

The Vszerda MT-1601HK-C is a 1U rack-mountable KVM switch that lets one monitor, keyboard and mouse control up to 16 computers or servers. It includes 16 HDMI and USB cable sets, an IR remote and front-panel push buttons for source selection. The unit supports 4K resolution at 30 Hz over HDMI 1.4 with HDCP 1.4 compliance.
IT admins running dense 19-inch racks
This switch suits administrators who need single-console access to 16 HDMI-equipped hosts in a standard 19-inch rack. It is not for operators who require 4K at 60 Hz or higher refresh rates, nor for environments that depend on USB 3.x peripheral speeds or multi-monitor configurations per seat.
4K@30 Hz HDMI 1.4 video limit
The critical specification is the maximum video bandwidth of 2.55 Gbit/s, which restricts output to 3840×2160 at 30 Hz. Any workflow demanding 4K 60 Hz, HDR or higher colour depth will not be supported by this hardware.
Highlights
- Control 16 computers from one console at 4K 30 Hz
- Four USB 2.0 ports share peripherals across all connected systems
- Switch instantly via front buttons or IR remote control
- Ships with 16 HDMI and USB cables in three lengths
- Fits a standard 19-inch 1U rack with included mounting ears
Specifications
| Brand | MT-VIKI |
|---|---|
| Model | MT-1601HK-C |
| Part Number | MT-1601HK-C |
| Type | Push Button |
| Monitor Connections | 16 port KVM HDMI |
| PC Selection | Push Button |
| Power Features | 5 volts_of_direct_current |
| Dimensions | 38.8 in x 8.28 in x 3.2 in |
| Weight | 3.674 kilograms |
Questions about this item
Should I choose the 16-port model or is a smaller version available?
The MT-1601HK-C is a 16-port KVM switch; the supplier data lists only this 16-port configuration.
What does 4K at 30 Hz actually deliver on my monitor?
You get 3840 x 2160 resolution at 30 Hz over HDMI 1.4 with 2.55 G bandwidth and HDCP 1.4 support.
Which HDMI standard is used and what does it limit?
HDMI 1.4 caps video to 4K 30 Hz and 2.55 G bandwidth; it also carries HDCP 1.4 for protected content.
