Vszerda Micro USB 4-pin bare wire cable 11in 2-pairVszerda Micro USB 4-pin bare wire 11in 2-pair
A set of four short Micro USB pigtail cables with bare-wire ends for 5 V, 2 A power and 480 Mbps data connections in DIY repairs
- TypeUSB
- Connector TypeMicro USB
- ColorBlack
- Connector Number4
- Connector DetailMicro USB
- Terminal GenderMale-to-Female
- Charge and sync at 480 Mbps via USB 2.0
- DIY repairs with colour-coded 4-pin bare-wire ends
- 24 AWG copper cores deliver stable 5 V / 2 A power
- 11-inch pigtails fit tight enclosures and panels
- Two male and two female connectors cover both cable ends

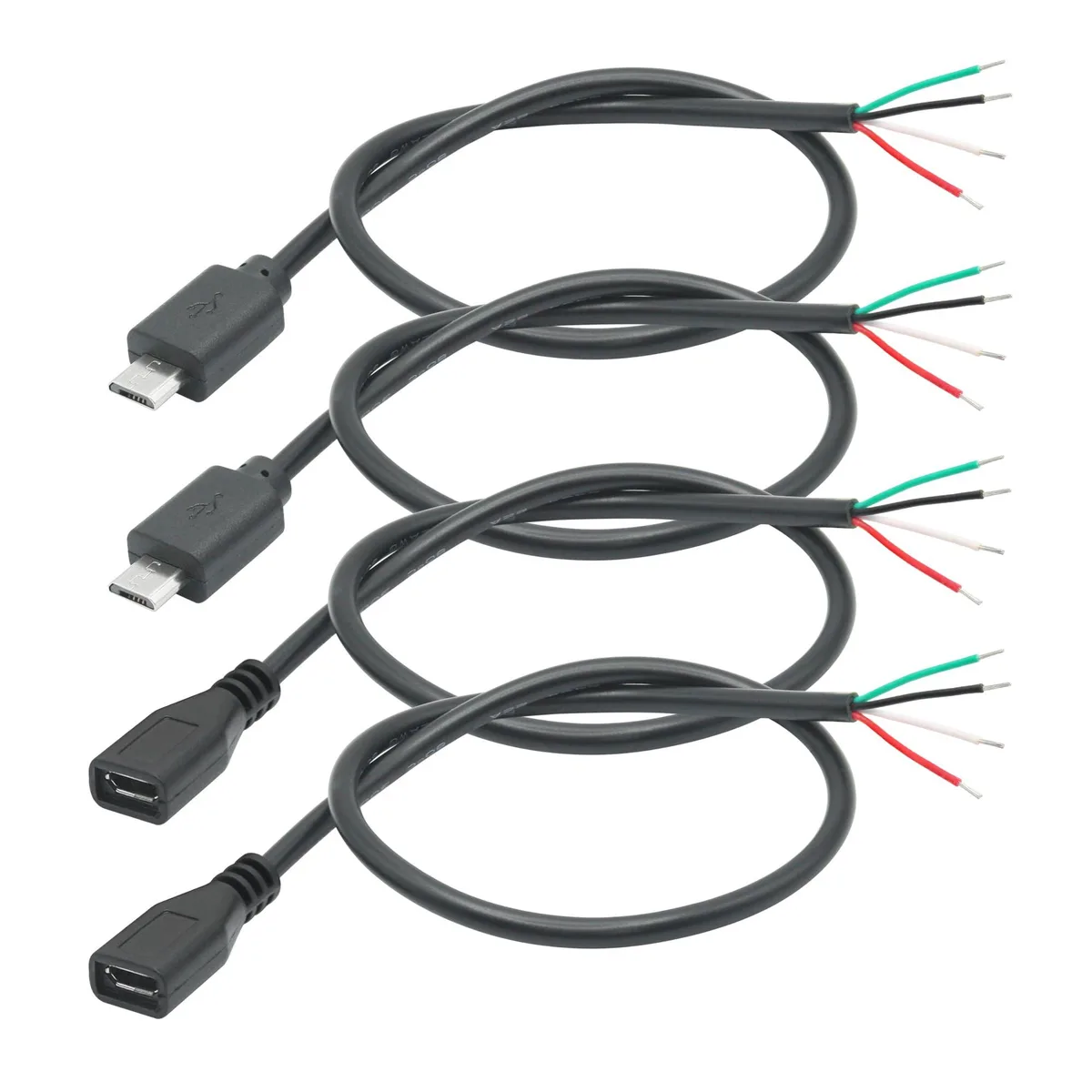

Micro USB 4-pin bare-wire cable
This 11-inch Micro USB cable ends in four colour-coded bare wires instead of a standard plug. It is intended for hobbyists and repair technicians who need to splice a USB power or data connection directly onto a circuit board, LED strip, or custom enclosure. The pack contains two male and two female pigtails for prototyping or permanent installation.
USB 2.0 speed and 5 V 2 A power limit
The conductors support USB 2.0 signalling at up to 480 Mbps and carry a maximum of 5 V at 2 A. That bandwidth is sufficient for keyboards, mice, sensors, or low-speed debug links, but it will not handle high-throughput devices such as external drives or video capture. The 24 AWG copper cores keep voltage drop low over the short 30 cm length, yet the 2 A ceiling rules out fast-charging phones or powering larger loads.
Replaces fixed Micro USB leads in tight spaces
Use these pigtails when a moulded cable is too bulky or the wrong gender for a board header, panel-mount jack, or DIY power adapter. They upgrade a soldered-on Micro USB socket to a removable connection without redesigning the PCB. The jump is worth it only when you need field-serviceable wiring or a gender change; buyers who want a ready-made device cable or higher current capacity should look elsewhere.
Highlights
- Charge and sync at 480 Mbps via USB 2.0
- DIY repairs with colour-coded 4-pin bare-wire ends
- 24 AWG copper cores deliver stable 5 V / 2 A power
- 11-inch pigtails fit tight enclosures and panels
- Two male and two female connectors cover both cable ends
Specifications
| Brand | Maixbomr |
|---|---|
| Type | USB |
| Connector Type | Micro USB |
| Color | Black |
| Connector Number | 4 |
| Connector Detail | Micro USB |
| Terminal Gender | Male-to-Female |
| Speed | 480 megabits_per_second |
| Construction | Copper |
| Features | Charge Data, DIY Cable |
Questions about this item
Should I pick the male or the female Micro USB pigtail for my repair?
The pack includes two male-to-bare-wire and two female-to-bare-wire cables, so choose male to plug into a host port or female to accept a standard Micro USB plug.
What does the 480 Mbps rating deliver when the cable is installed?
It provides USB 2.0 high-speed data transfer up to 480 Mbps, suitable for syncing devices or low-bandwidth peripherals connected through the bare-wire ends.
How does the Micro USB 2.0 interface limit power and data in practice?
The interface caps data at 480 Mbps and power at 5 V, 2 A, so the cable suits charging and data for small 5 V devices but not higher-voltage or faster protocols.
