Compact M.2 to USB adapter with Type-A plug, silver finish

Vszerda

Vszerda M.2 to USB Adapter NVMe SATA 10Gbps card reader

SKU CH-7B8G-V8XGH

Connects M.2 NVMe and SATA SSDs to USB 3.1 Gen2 at 10Gbps with Realtek 9210B chip

  • Add NVMe or SATA M.2 SSDs via USB 3.2 Type-A
  • Realtek 9210B chipset delivers 10Gbps USB 3.1 Gen2 speed
  • Supports 2280, 2260 and 2242 M.2 form factors
  • M-key socket accepts both PCIe NVMe and B+M-key SATA drives
  • Includes silicone pad and screwdriver for easy installation

Vszerda M.2 USB Adapter NVMe SATA

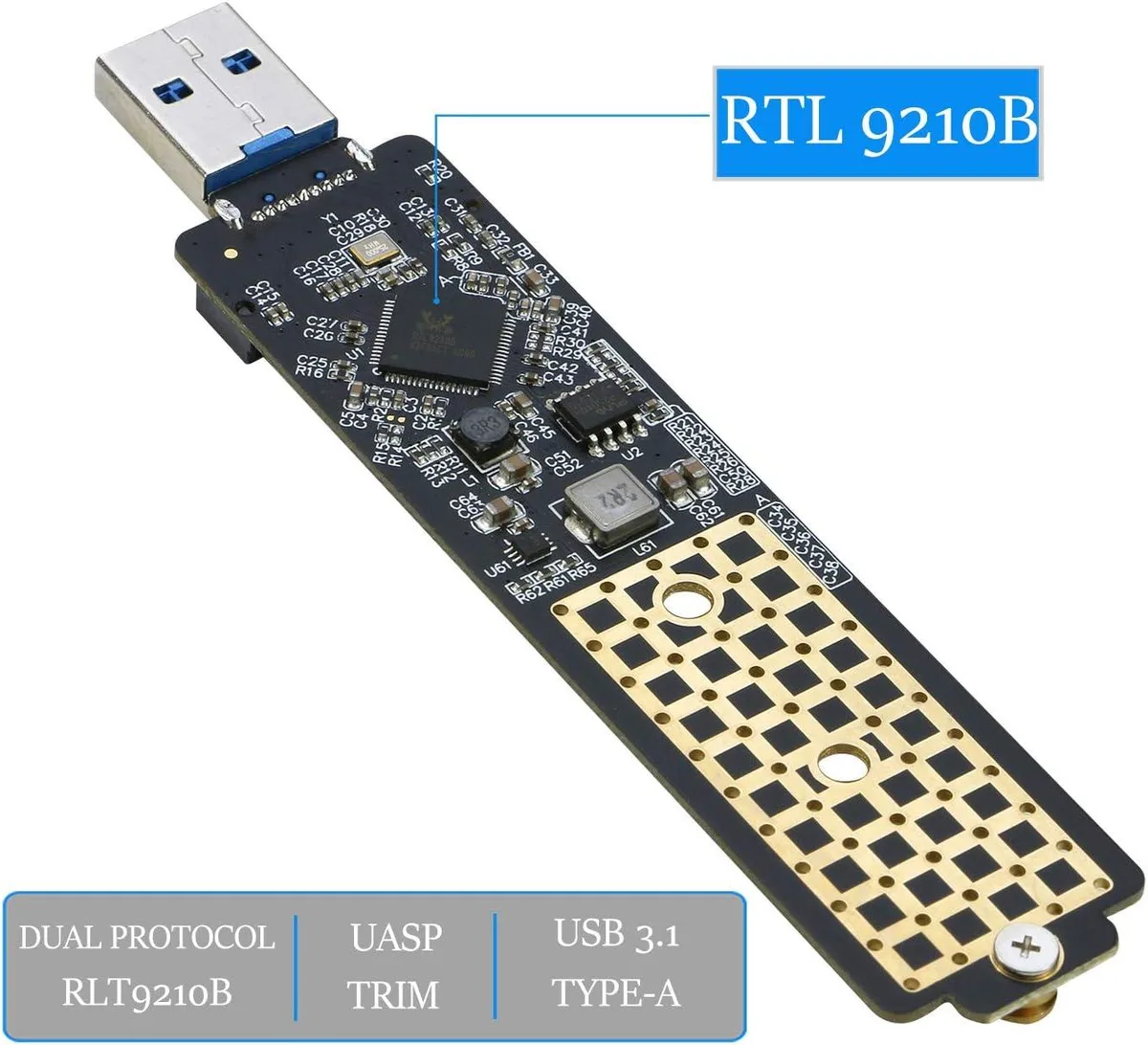

This Vszerda adapter connects M.2 SSDs to a USB Type-A port using a Realtek RTL9210B controller. It accepts both NVMe PCIe M-key drives and SATA-based B+M-key or B-key modules in 22 mm widths of 42, 60 and 80 mm. The adapter delivers up to 10 Gbps over USB 3.1 Gen 2 and falls back to 5 Gbps on USB 3.0 ports. A silicone pad and screwdriver are included for installation.

Suits users adding external M.2 storage

The adapter works with NVMe drives such as Samsung 970 EVO, 960 EVO, 950 Pro, XP941, PM951, PM961, SM951, SM962 and WD Black models. It also supports SATA M.2 drives like Samsung 860 EVO and WD SATA M.2 SSDs. Builders who need internal M.2 slots or a USB Type-C connection should look elsewhere because this device only offers a USB Type-A interface.

Realtek RTL9210B chipset 10 Gbps USB 3.1 Gen 2

The controller determines the maximum transfer rate of 10 Gbps when the host port is USB 3.1 Gen 2 or USB 3.2 Gen 2. On a USB 3.0 port the link drops to 5 Gbps. This single specification decides whether the adapter can saturate a fast NVMe drive or whether the host port becomes the bottleneck.

Highlights

  • Add NVMe or SATA M.2 SSDs via USB 3.2 Type-A
  • Realtek 9210B chipset delivers 10Gbps USB 3.1 Gen2 speed
  • Supports 2280, 2260 and 2242 M.2 form factors
  • M-key socket accepts both PCIe NVMe and B+M-key SATA drives
  • Includes silicone pad and screwdriver for easy installation

Specifications

No published specifications for this item yet.

Questions about this item

Does my computer need a USB 3.1 Type-A port to reach the 10Gbps speed of the Realtek 9210B chipset?

Yes, the adapter runs at USB 3.1 Gen2 10Gbps on a USB 3.1 or 3.2 Type-A port; on USB 3.0 Type-A it falls back to 5Gbps.

Will my Samsung 860 EVO 2280 SATA M.2 SSD fit and work in the M-key socket?

Yes, the M-key socket accepts both NVMe M-key and SATA B+M-key drives including the 860 EVO in 80×22 mm form.

How can I confirm the adapter is running at 10Gbps after plugging it in?

In Windows check the USB controller properties for SuperSpeed+ 10Gbps, or on macOS view the USB device tree for 10Gbps link speed.
