Small green circuit board with gold PCIe x1 edge connector and M.2 A/E key slot plus 12 cm metal bracket

Vszerda

Vszerda M.2 A/E Key to PCIe x1 WiFi Adapter with 12 cm Bracket

SKU CH-KBTW-5DKZS

Converts an M.2 A/E-key Wi-Fi module to a PCIe x1 slot with a 12 cm bracket and SMA antennas

  • FeaturesSSD
  • Dimensions10.0 in x 10.0 in x 1.0 in
  • Weight0.05 kilograms
  • Converts M.2 A/E-key Wi-Fi modules to PCIe x1
  • 12 cm low-profile bracket included for standard desktop cases
  • Triple-band 6 dBi RP-SMA antenna supports 2.4/5/6 GHz
  • Bluetooth routed via USB header; no driver needed for adapter
  • Compatible with AX200, AX210, BE200 and Coral TPU modules

Desktop Wi-Fi Upgrade Adapter

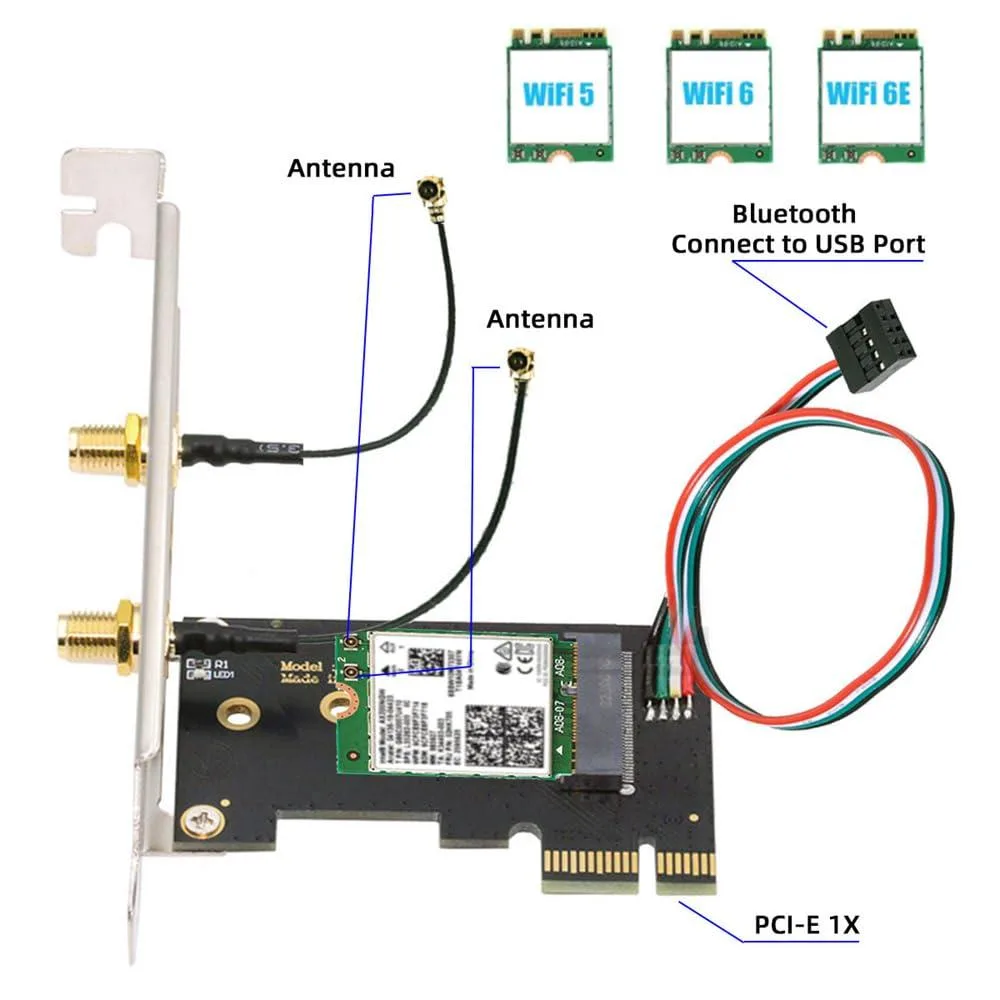

This adapter lets you install an M.2 A+E or E-key Wi-Fi module into a desktop PCIe x1 slot. It converts the module's PCIe and USB signals to the slot and a motherboard USB header. The board includes a 12 cm bracket for standard case profiles and two 6 dBi RP-SMA antennas for 2.4 GHz, 5 GHz and 6 GHz bands. It is aimed at builders adding Wi-Fi 6 or Bluetooth 5.1 to a tower system.

Installation Notes

The card plugs into any PCIe x1, x4, x8 or x16 slot and the USB cable must reach an internal motherboard header for Bluetooth to function. No driver is needed for the adapter itself, but the Wi-Fi module will require its own driver in DOS, Windows, Linux or Mac OS. A common issue is forgetting the USB connection, which leaves Bluetooth inactive even though Wi-Fi works.

Compatibility Checklist

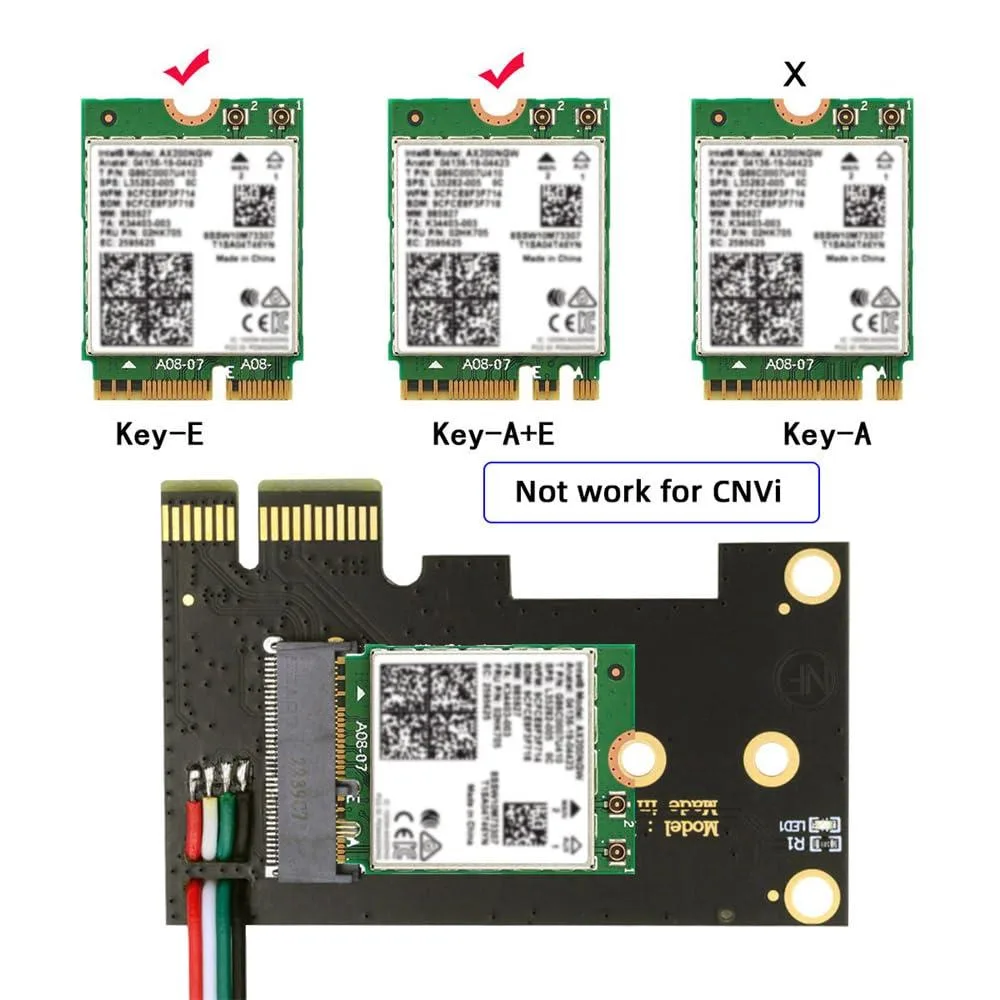

Verify your Wi-Fi module uses an A+E or E key and speaks PCIe protocol; CNVi, CNVi2, Mini PCIe and M.2 NVMe SSDs are not supported. Confirm the motherboard has a free PCIe slot and a spare internal USB header for the Bluetooth cable. Some M.2 modules do not work with AMD platforms, so check the module maker's compatibility list before ordering.

Highlights

  • Converts M.2 A/E-key Wi-Fi modules to PCIe x1
  • 12 cm low-profile bracket included for standard desktop cases
  • Triple-band 6 dBi RP-SMA antenna supports 2.4/5/6 GHz
  • Bluetooth routed via USB header; no driver needed for adapter
  • Compatible with AX200, AX210, BE200 and Coral TPU modules

Specifications

Brandxiwai
ModelEP-052-XY
Part NumberEP-052-XY
FeaturesSSD
Dimensions10.0 in x 10.0 in x 1.0 in
Weight0.05 kilograms

Questions about this item

How can I verify the adapter is functioning correctly after installation?

The adapter is a passive signal converter with no driver of its own; once the M.2 module is seated and the USB cable is plugged into a motherboard header, the OS should detect the Wi-Fi and Bluetooth hardware if the module is compatible.

What comes in the box and what must I purchase separately?

The package includes the adapter board with a pre-installed 12 cm bracket and 6 dBi RP-SMA male antennas; you must supply a compatible A+E or E key M.2 2230 Wi-Fi module such as AX200NGW or BE200NGW.

Which M.2 module versions are compatible with this adapter?

It supports NGFF M.2 2230 modules with Key E or A+E PCIe interface including BE200NGW, AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW and 7260NGW; CNVio modules like AX211NGW or AX201NGW are not supported.
