Green circuit board with vertical OCuLink port and M.2 edge connector

Vszerda

Vszerda M.2 2280 to OCuLink SFF-8612 Adapter

SKU CH-M0JN-DRKYN

Converts an M.2 2280 slot to an OCuLink SFF-8612 port for NVME SSDs or eGPUs at PCIe 4.0 speeds up to 64Gbps

  • Adds an OCuLink SFF-8612 port to an M.2 2280 slot
  • Connect an NVME SSD or eGPU via optional cable
  • Carries PCI Express 4.0 signals over the NVME protocol
  • Uses a 67 pin M.2 Key M male and SFF-8612 female connector
  • Delivers up to 64 Gbps bandwidth with NVME 1.2 support

Vszerda M.2 2280 to OCuLink Adapter

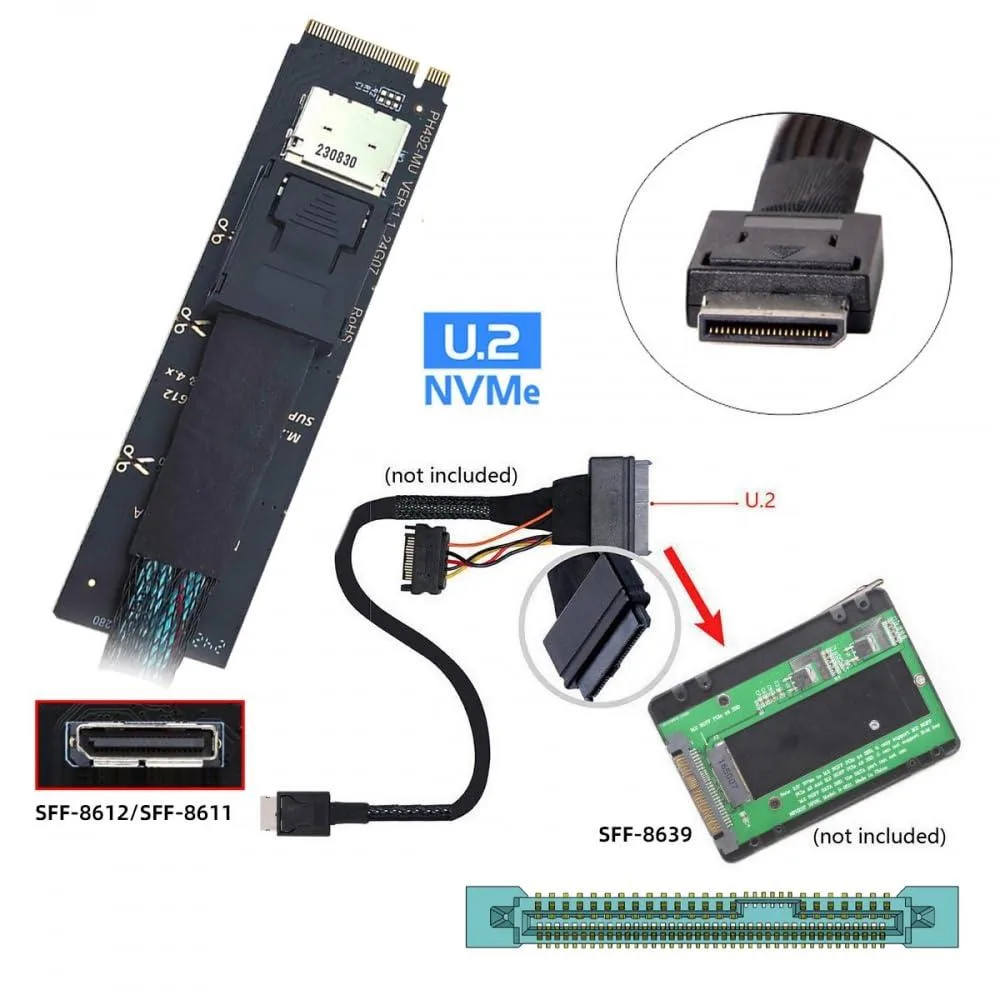

This adapter adds a single OCuLink SFF-8612 port to an M.2 2280 M-key slot. It transmits PCI Express 4.0 signals using the NVMe protocol at up to 64Gbps. The board carries a 67 pin M.2 Key M male connector and one SFF-8612 female connector.

Builders adding external NVME storage or eGPU

Suits users with a free M.2 2280 M-key slot who want to attach a U.2 SSD or external graphics card via an optional cable. Not for systems lacking an M-key slot or buyers who need multiple OCuLink ports from one adapter.

Optional cable enables the connection

The adapter itself provides only the physical interface conversion. A separate OCuLink cable must be purchased to link the SFF-8612 port to the target SSD or eGPU enclosure. No drivers or software are included in the package.

Highlights

  • Adds an OCuLink SFF-8612 port to an M.2 2280 slot
  • Connect an NVME SSD or eGPU via optional cable
  • Carries PCI Express 4.0 signals over the NVME protocol
  • Uses a 67 pin M.2 Key M male and SFF-8612 female connector
  • Delivers up to 64 Gbps bandwidth with NVME 1.2 support

Specifications

No published specifications for this item yet.

Questions about this item

What M.2 slot key and size must my motherboard provide for this 2280 M-key adapter to fit?

Your motherboard needs an M.2 2280 slot with M-key wiring that carries PCI Express 4.0 lanes.

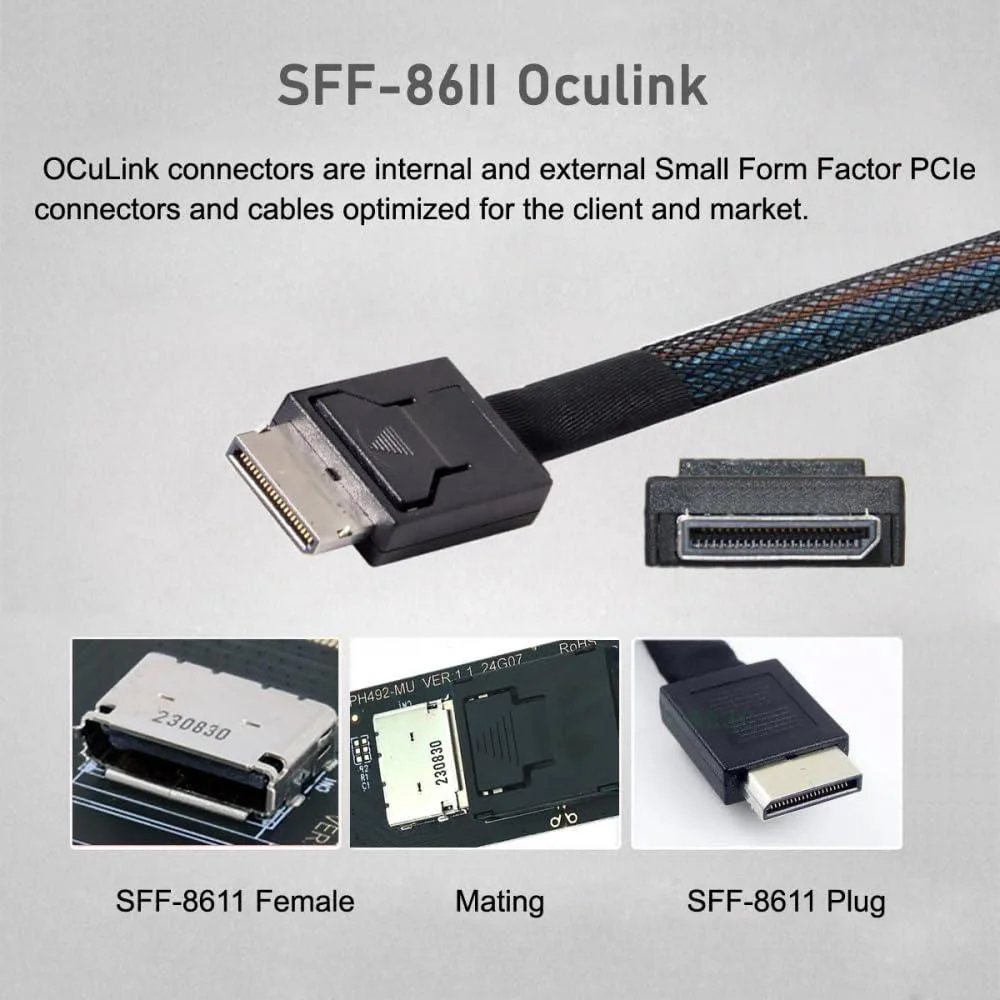

Will an OCuLink SFF-8611 cable work with the SFF-8612 port on this card?

Yes, the card has an SFF-8612 female connector that accepts standard SFF-8611 cables for NVME SSD or eGPU use.

How can I verify the link is running at the full 64 Gbps after installation?

Check the OS device manager or NVME utility — it should report a PCI Express 4.0 x4 link with NVME 1.2 support active.
