Vszerda
Vszerda KC-KVM202AS 2-Port HDMI KVM Switch 4K@60Hz EDID USB 3.0
Switches two computers between two monitors at 4K 60 Hz with EDID simulation and four USB 3.0 ports
- Type[Manual/Wired]
- PC Selection[Manual/Wired]
- Temperature0 degrees_celsius
- Power Features12 volts
- Weight0.609 kilograms
- Controls two computers with one keyboard and mouse set
- Dual 4K@60Hz monitors with EDID simulation lock
- Four USB 3.0 ports share peripherals at 5Gbps
- Extend and copy display modes via wired controller
- Includes 1.5m HDMI and USB cables plus 1.52m controller

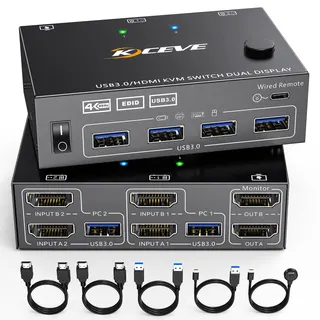

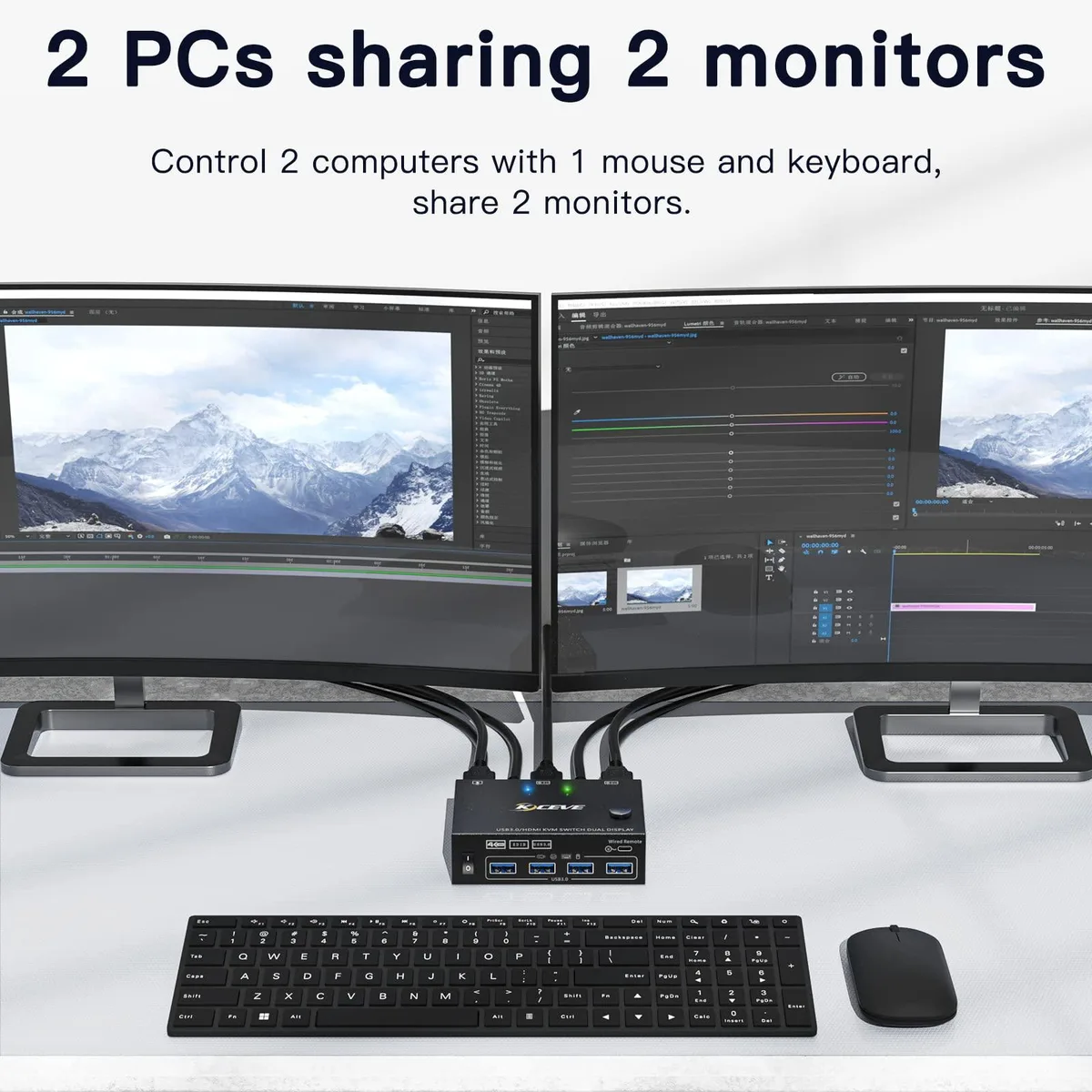

Dual-computer HDMI KVM switch
This KVM switch lets one keyboard and mouse control two computers while sharing two monitors and four USB 3.0 peripherals. It supports extended and copy display modes so users can span or mirror desktops across both screens. The unit is aimed at professionals who operate a workstation and a personal machine side by side. MacBooks are not recommended because they require extra adapters to provide the needed dual HDMI outputs.

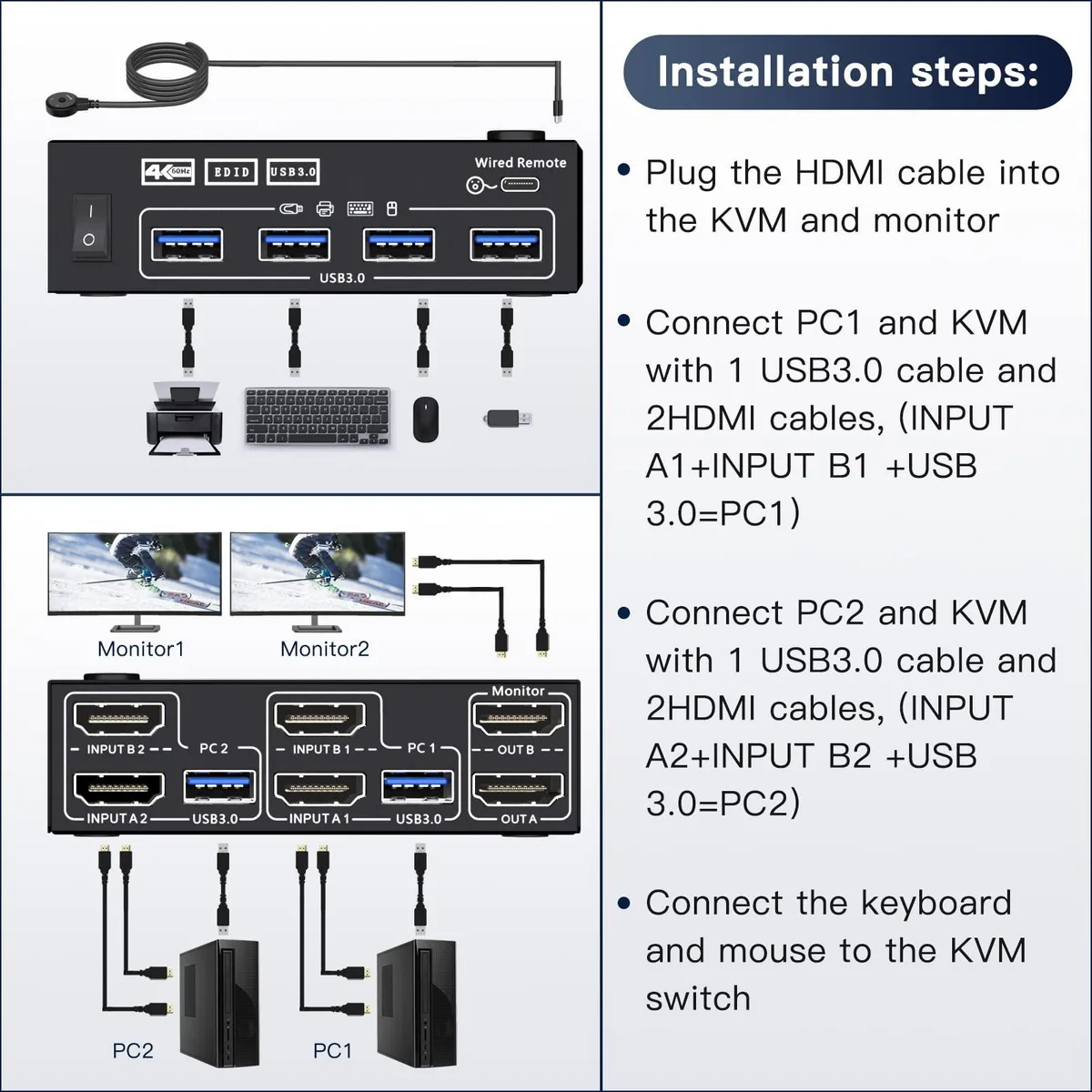

Bundled cables and wired remote
The package includes two 1.5 m HDMI cables and two 1.5 m USB cables so the switch can be connected to both computers immediately. A 1.52 m wired controller provides push-button switching from the desk without reaching the unit. No additional software or drivers are required for the supported operating systems. The included accessories cover the complete physical link between the switch and two host systems.
4K@60 Hz headroom and port limits
The switch passes video up to 4K at 60 Hz and is backward compatible with 4K 30 Hz, 1440p and 1080p resolutions. Each computer must supply two HDMI 2.0 outputs to drive both monitors at the highest refresh rate. Four USB 3.0 ports at 5 Gbps handle keyboards, mice, printers and scanners simultaneously. The device cannot support setups that need more than two monitors or more than four shared USB devices.
Highlights
- Controls two computers with one keyboard and mouse set
- Dual 4K@60Hz monitors with EDID simulation lock
- Four USB 3.0 ports share peripherals at 5Gbps
- Extend and copy display modes via wired controller
- Includes 1.5m HDMI and USB cables plus 1.52m controller
Specifications
| Brand | NAWEN |
|---|---|
| Model | KC-KVM202AS-NA |
| Part Number | KC-KVM202AS |
| Type | [Manual/Wired] |
| PC Selection | [Manual/Wired] |
| Temperature | 0 degrees_celsius |
| Power Features | 12 volts |
| Weight | 0.609 kilograms |
Questions about this item
Will the EDID simulation eventually lose the monitor handshake and need a reset?
The built-in EDID simulation locks the screen configuration so the monitor order and resolution stay consistent after every switch without manual re-detection.
What stops the unit from passing 4K@60 Hz continuously — cable bandwidth or the switch itself?
The switch supports 4K@60 Hz; the limit is the cable — HDMI 2.0 cables are required on every link to sustain that bandwidth.
Does the 12 V supply run warm when all four USB 3.0 ports and both video paths are active all day?
The unit operates from a 12 V source and is rated for 0 °C ambient temperature with no active cooling mentioned.
