Small black box with HDMI port and two BNC connectors

Vszerda

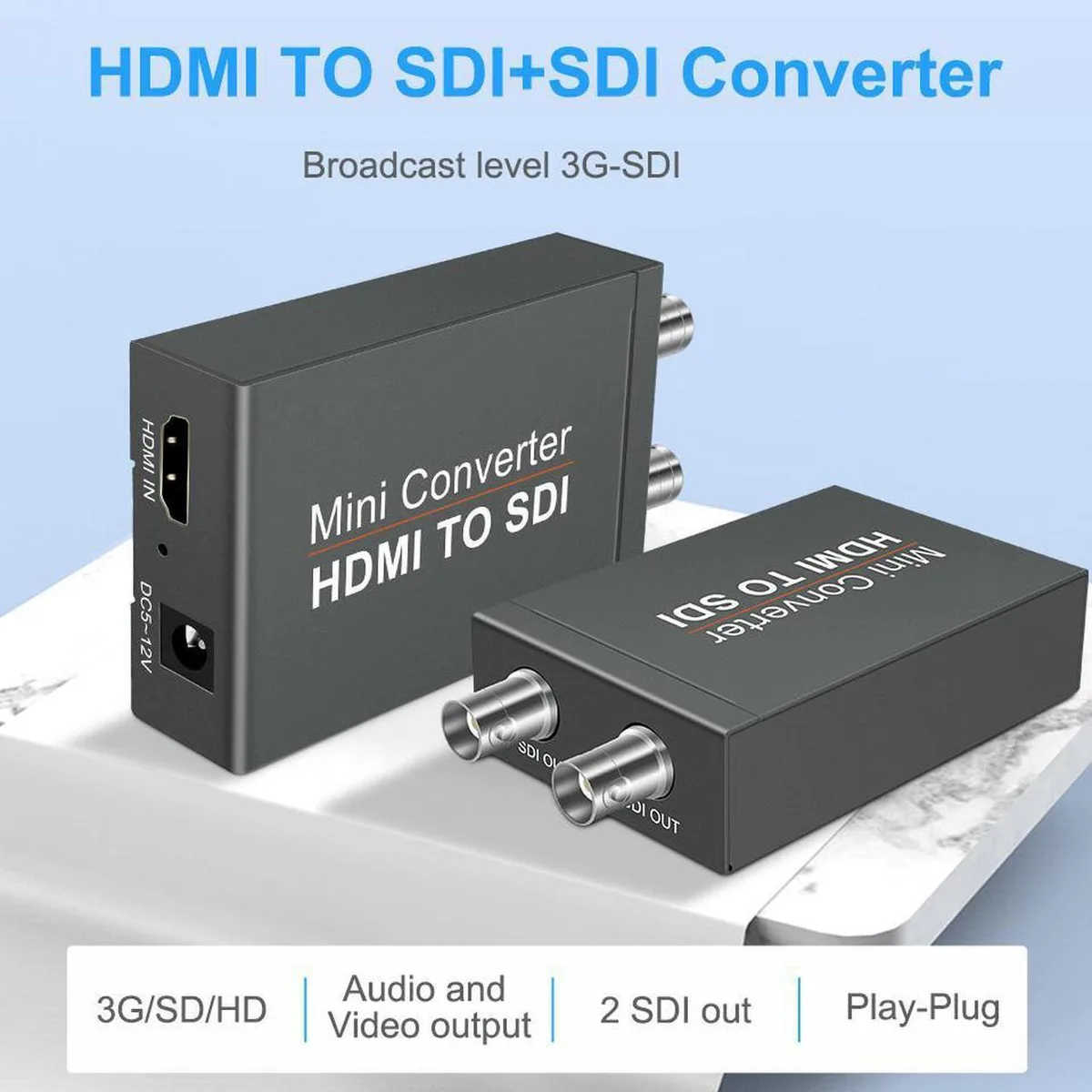

Vszerda HDMI to SDI Converter Dual Output 1080P Video Capturing Device

SKU CH-XY9V-FSB6B

Converts HDMI 1.3a video with embedded audio to dual SDI BNC outputs up to 1080p 60 Hz for long-distance broadcast workflows

  • Converts HDMI to dual SDI outputs for flexible display setups
  • Supports 1080p 60 Hz input with embedded audio for high-quality capture
  • Dual BNC ports deliver 3G-SDI up to 100 m and HD-SDI up to 200 m
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI to match the incoming signal
  • Includes power adapter and manual for immediate deployment

HDMI 1.3a to Dual SDI Converter

This Vszerda unit converts a single HDMI Type A input into two SDI outputs using full 10-bit processing. It accepts HDMI 1.3a signals up to 1080p60 with embedded 8-channel audio and automatically detects whether to output HD-SDI or 3G-SDI. The device is designed for one-way conversion only and cannot pass an SDI signal back to HDMI.

Sustained Signal Distribution

Under continuous operation the converter maintains synchronised audio and video across both BNC ports at 24-bit/48 kHz. Built-in ESD protection guards the circuitry during long cable runs, while the automatic clock detection keeps the output locked to the incoming HDMI frame rate without manual reconfiguration. Maximum reach is 100 metres for 3G-SDI and 200 metres for HD-SDI.

Compact Install with Fixed Limits

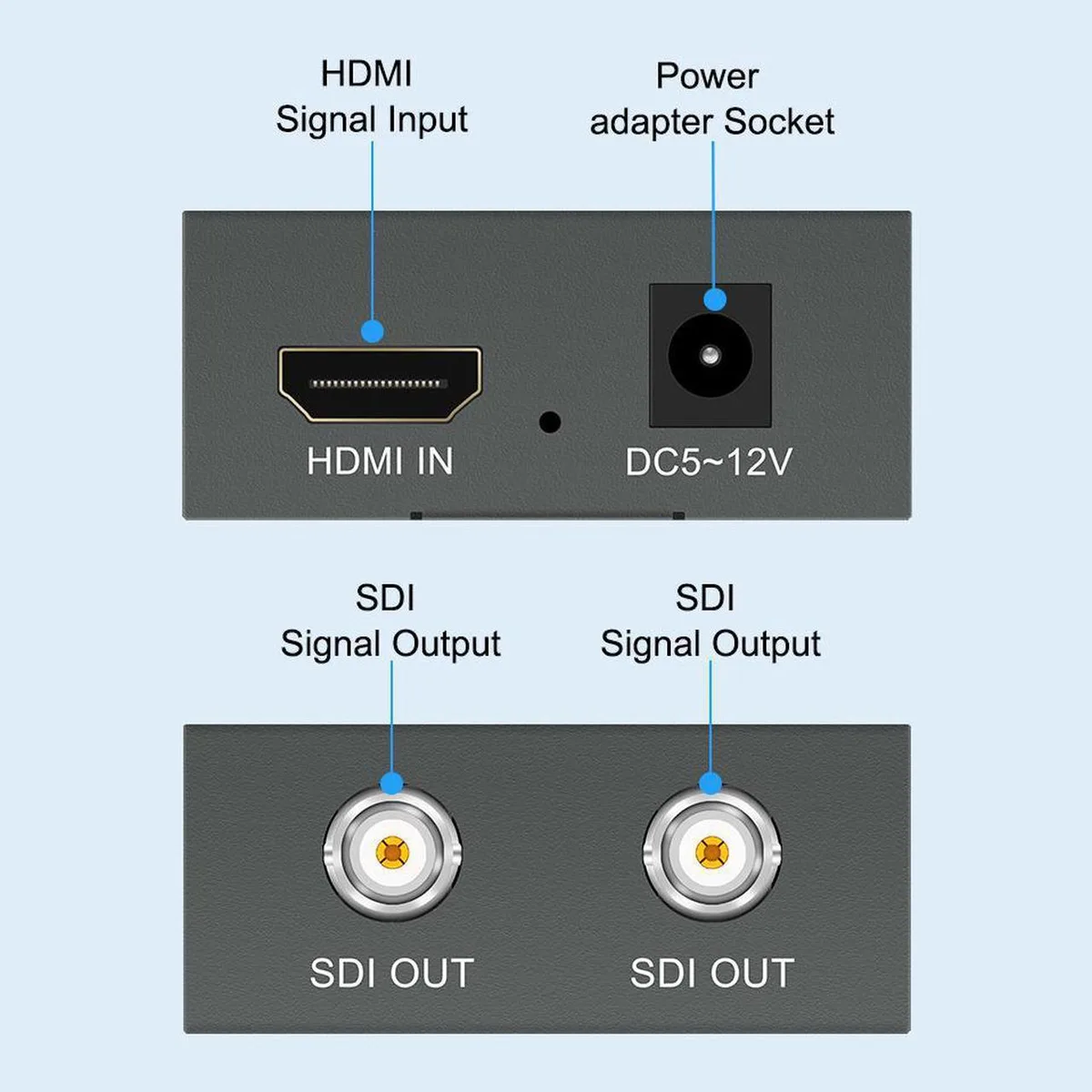

The small enclosure fits on a desk or in a rack tray and ships with a power adapter and manual. Installation is a simple HDMI in, dual BNC out connection, but the converter only supports the listed input formats: 480i, 576i, 720p50/60, 1080i50/60 and 1080p24-60. Cameras or sources outputting other resolutions or frame rates will not work, and there is no scaler to adapt them.

Highlights

  • Converts HDMI to dual SDI outputs for flexible display setups
  • Supports 1080p 60 Hz input with embedded audio for high-quality capture
  • Dual BNC ports deliver 3G-SDI up to 100 m and HD-SDI up to 200 m
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI to match the incoming signal
  • Includes power adapter and manual for immediate deployment

Specifications

No published specifications for this item yet.

Questions about this item

Does the Vszerda converter run hot or draw much power during all-day streaming?

The unit is a compact, passively cooled adapter with a small external power supply, so it stays cool and draws minimal power during continuous operation.

What cables and displays do I need to have on hand before this converter will work?

You need an HDMI Type A source cable and two BNC cables to connect the dual SDI outputs to compatible SDI monitors or recorders.

Will the 3G-SDI outputs sync with my older HD-SDI and SD-SDI gear without manual switching?

Yes, the dual BNC ports auto-detect the incoming HDMI format and automatically select 3G-SDI, HD-SDI or SD-SDI to match legacy equipment.
