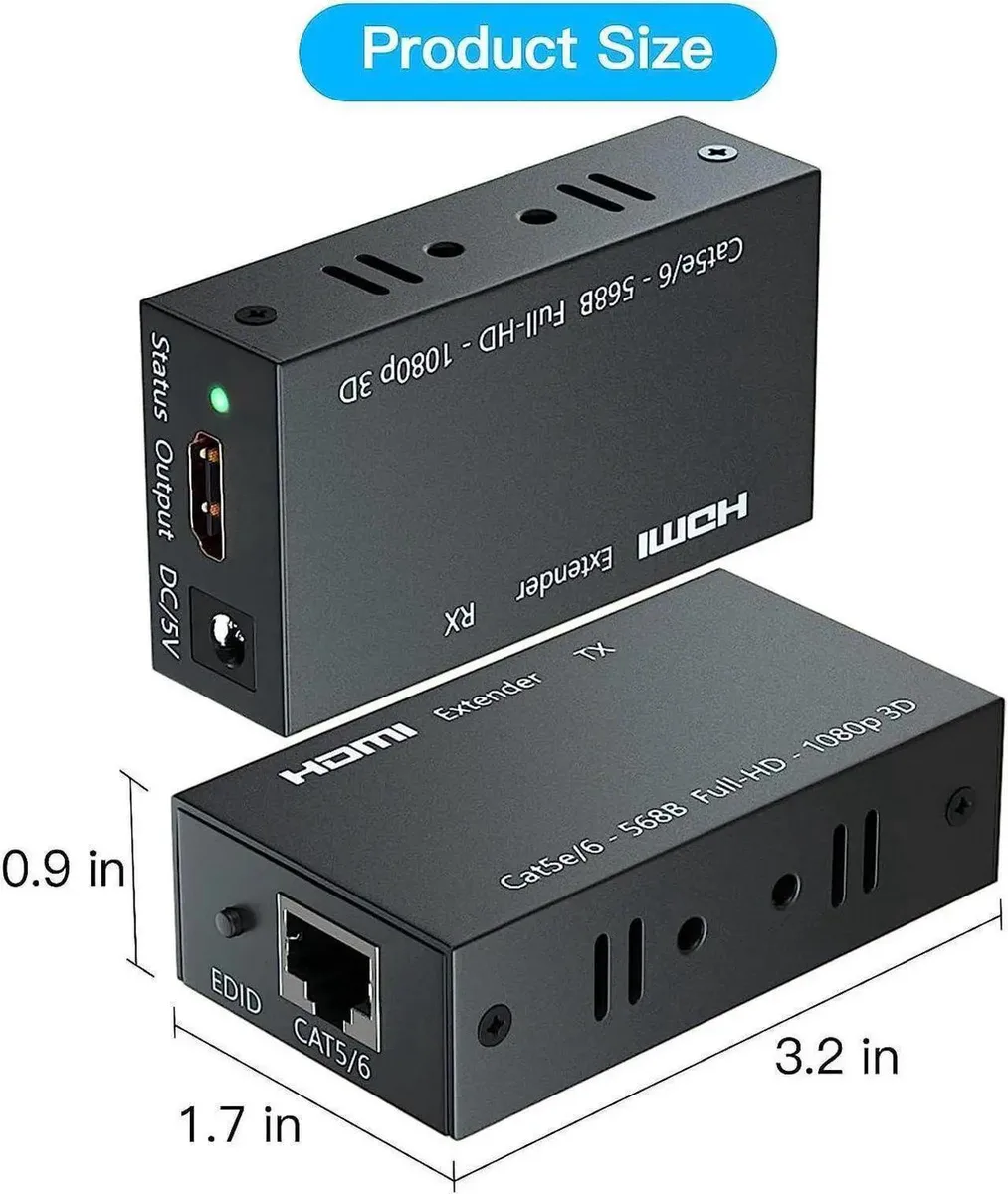

Two small black boxes with HDMI and RJ45 ports, linked by a network cable

Vszerda

Vszerda HDMI Extender 196ft 60m Cat6 1080p 3D HDCP EDID

SKU CH-SG1N-VXH1K

Transmits 1080p HDMI up to 196 feet over a single Cat6 cable with 3D and HDCP support

  • Transmits 1080p 3D video up to 196ft over a single Cat6 cable
  • Supports HDCP and EDID for reliable handshake with displays and sources
  • Carries DTS-HD Dolby TrueHD and multichannel audio formats without compression
  • Works with CAT5 or CAT6 cable using standard IEEE-568B wiring
  • Plug-and-play installation with no software drivers or operating-system restrictions

HDMI Extender over Cat6

The Vszerda HDMI extender transmits 1080p video up to 196ft using a single Cat6 cable. It includes a transmitter and receiver pair for point-to-point signal distribution. The unit supports 3D content, HDCP compliance and EDID management for automatic display handshaking. It is designed for installers who need reliable long-distance HDMI without fibre or active optical cables.

Replaces Long HDMI Runs

Standard HDMI cables are limited to 16ft at AWG26 before signal degradation appears. This extender bridges the gap when source and display are separated by walls, ceilings or conduit runs up to 60m. The jump is worth it when 4K is not required and the infrastructure already uses IEEE-568B terminated Cat6. It cannot pass signals through a router or switch, so a dedicated cable run is mandatory.

Sustained Transmission Behaviour

Broadcast-level bandwidth balancing maintains 1.65Gbps throughput for continuous 1920x1080@60Hz playback. The digital chip restores signal fidelity over the full distance without frame drops during extended sessions. Anti-interference shielding and high-temperature resistance keep performance stable in security monitoring or conferencing environments. The external power adapters accept 100V-240V at 50Hz or 60Hz for global deployment.

Highlights

  • Transmits 1080p 3D video up to 196ft over a single Cat6 cable
  • Supports HDCP and EDID for reliable handshake with displays and sources
  • Carries DTS-HD Dolby TrueHD and multichannel audio formats without compression
  • Works with CAT5 or CAT6 cable using standard IEEE-568B wiring
  • Plug-and-play installation with no software drivers or operating-system restrictions

Specifications

No published specifications for this item yet.

Questions about this item

What length and type of Cat6 cable is needed to reach the 196ft range?

Use an oxygen-free copper Cat6 cable wired to the IEEE-568B standard; cable quality directly affects the maximum 60m distance and signal quality.

How do I connect the transmitter and receiver units to power and video sources?

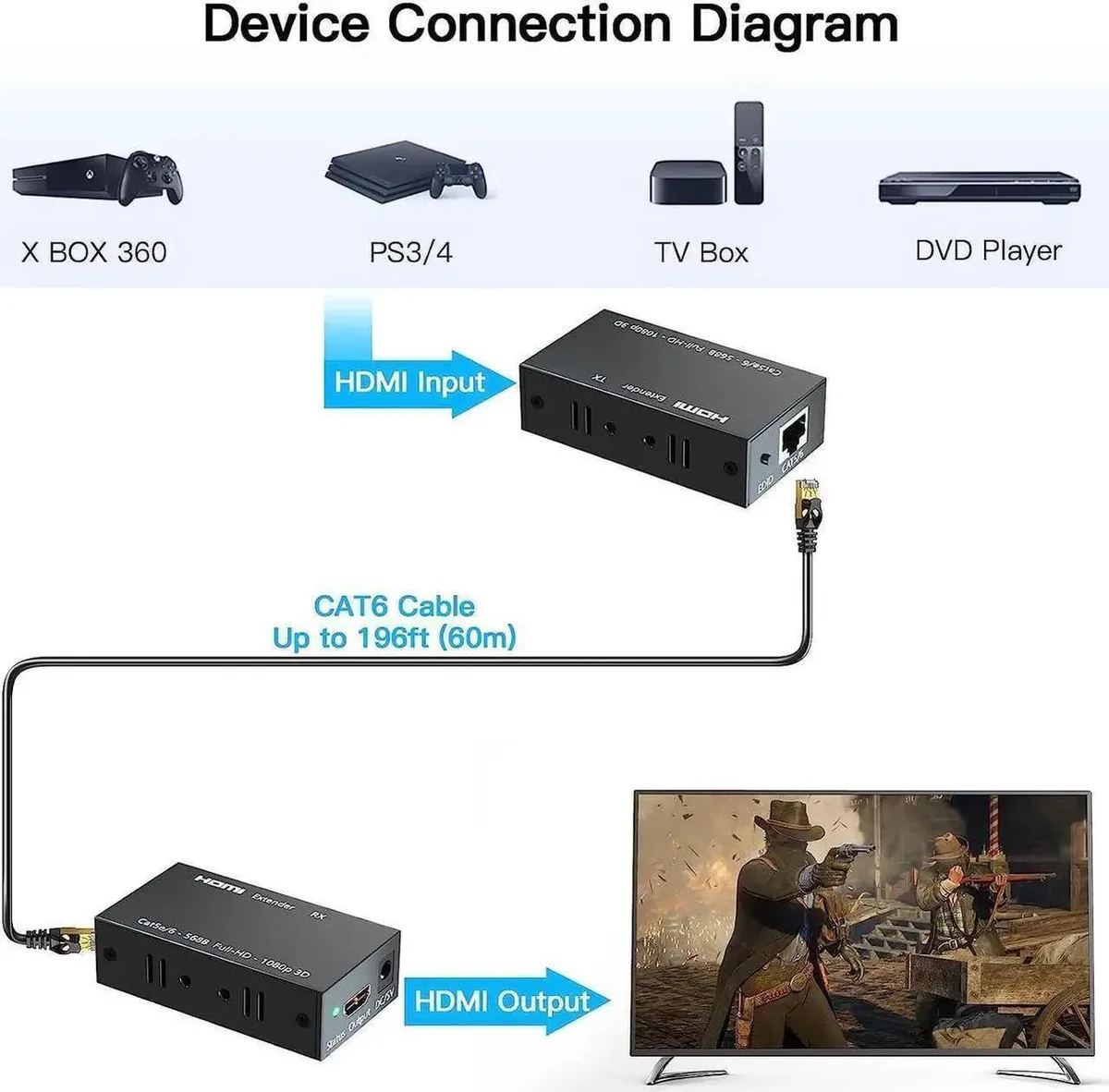

Connect each unit to the included AC 100V-240V power adapter, link source to Tx HDMI input and display to Rx HDMI output, then run a single Cat6 cable between the RJ45 ports — do not connect through a router or switch.

What HDMI cable lengths are supported on the input and output sides of the extender?

The extender supports up to 16ft (5m) of AWG26 standard HDMI cable on both the transmitter input and receiver output sides.
