A compact black metal box with multiple HDMI ports on the rear panel

Vszerda

Vszerda HD0109-B 3x3 Video Wall Controller 1080P@60Hz

SKU CH-X60F-Z0YVB

Splits one HDMI signal across nine displays in a 3x3 grid at 1080P 60Hz with IR remote switching

  • Interface,
  • Feature, , , ,
  • Features, , , ,
  • Package Content, , , ,
  • Package Contents, , , ,
  • Splits one HDMI source across nine displays
  • Supports 3x3, 3x2, 2x3, 2x2 and 4x2 layouts
  • Delivers 1080P resolution at 60Hz refresh
  • Controlled by front button or IR remote
  • Works with PC, laptop, TV box, DVD, PS3/4

3x3 video wall controller

The Vszerda HD0109-B splits a single HDMI source across nine displays in a 3x3 grid. It accepts UHD 4K input and delivers 1080P output at 60Hz to each screen. The unit suits installers building large-format signage or monitoring walls from one computer, media player or console.

IR remote and front-panel buttons

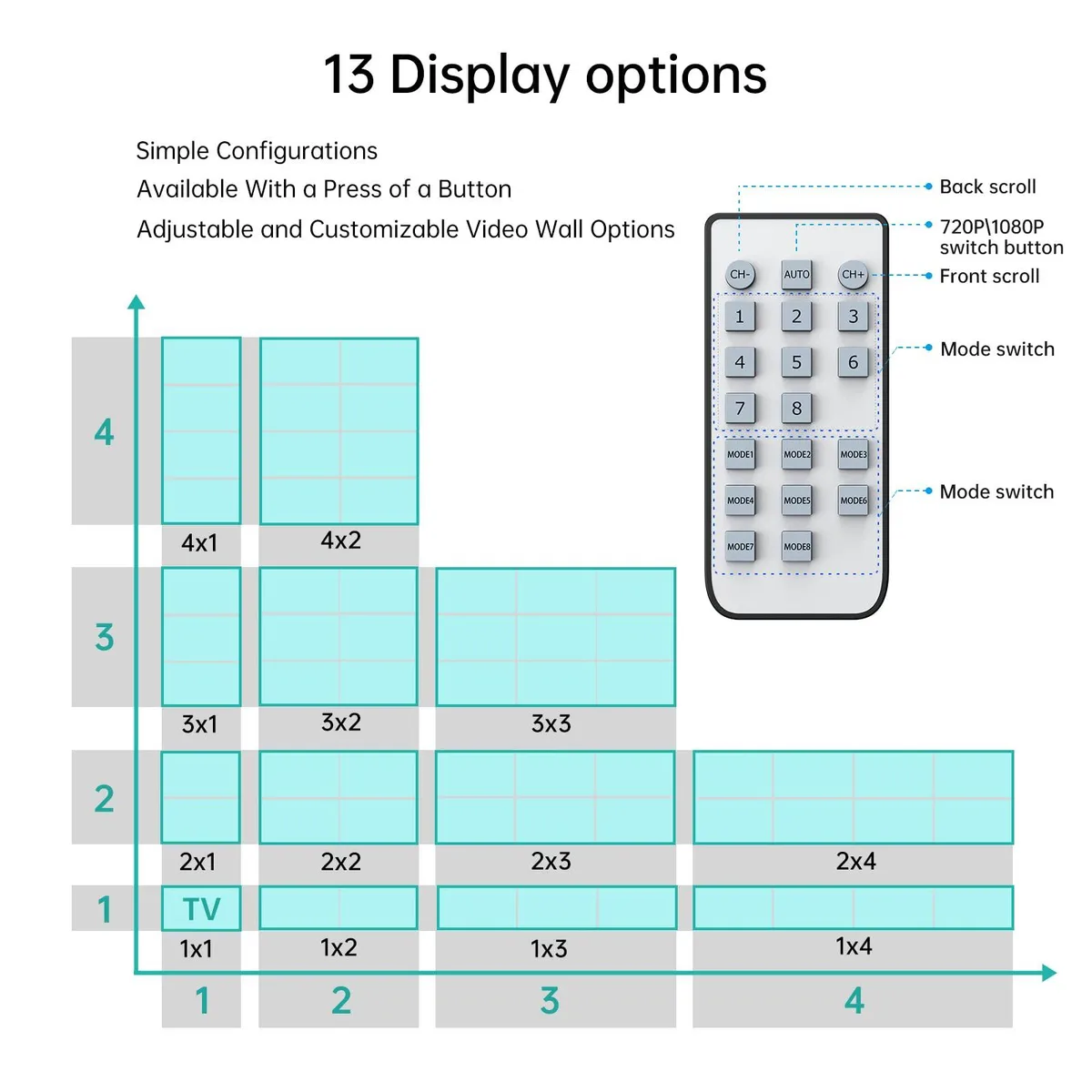

Two switching methods let operators change layout or source without reaching behind the rack. The controller also supports alternative splicing modes such as 3x2, 2x3, 2x2, 4x2 and 2x4 for flexible screen arrangements. A 12 V supply with over-current protection keeps the processor stable during continuous operation.

HDMI bandwidth limits output to 1080P

Although the input handles UHD 4K, the nine outputs are capped at 1080P@60Hz, so finer detail from a 4K source is downscaled. Cable runs beyond 200 ft require an active HDMI extender, which is not included. Buyers needing more than nine displays or higher per-screen resolution must choose a different processor.

Highlights

  • Splits one HDMI source across nine displays
  • Supports 3x3, 3x2, 2x3, 2x2 and 4x2 layouts
  • Delivers 1080P resolution at 60Hz refresh
  • Controlled by front button or IR remote
  • Works with PC, laptop, TV box, DVD, PS3/4

Specifications

BrandVszerda
ModelHD0109-B
Part NumberHD0109-B
Interface,
Feature, , , ,
Features, , , ,
Package Content, , , ,
Package Contents, , , ,

Questions about this item

Will the HD0109-B require any firmware updates or internal fan maintenance over time?

The controller has no user-serviceable firmware or internal fan; maintenance is limited to keeping ventilation openings clear and checking HDMI cable connections periodically.

What is the first limit reached when the HD0109-B runs a 4K source continuously across nine 1080P@60Hz displays?

The output resolution is capped at 1080P@60Hz per port, so the scaler becomes the bottleneck before thermal or bandwidth limits appear.

How much heat and noise does the HD0109-B produce when powered at 12V and driving all nine outputs all day?

The unit draws 12V with over-current protection and runs silently with passive cooling; surface temperature stays warm but within normal operating range for continuous use.
