Green PCB adapter with M.2 slot, PCIe x1 edge connector, USB cable and two black RP-SMA antennas

Vszerda

Vszerda EP-052-HX M.2 Key E to PCIe X1 WiFi Bluetooth adapter network card

SKU CH-0ZTT-JYSXY

Converts a PCIe slot to M.2 Key E/A+E for Wi-Fi 6/7 and Bluetooth modules, includes 6 dBi triple-band antennas

  • Interface802_11_acbgn
  • BUS802_11_acbgn
  • FeaturesWireless Card & Desktop
  • Weight11 grams
  • Adds Wi-Fi and Bluetooth to a desktop via PCIe X1 slot
  • Includes 6 dBi triple-band antennas for 2.4 GHz 5 GHz 6 GHz coverage
  • Works with M.2 Key E and A+E modules such as AX200NGW AX210NGW BE200NGW
  • Bluetooth connects through internal USB header on the motherboard
  • Supports WiFi 4 Wifi6 Wifi7 and Bluetooth 4.0 through 5.4

Vszerda EP-052-HX M.2 Key E Adapter

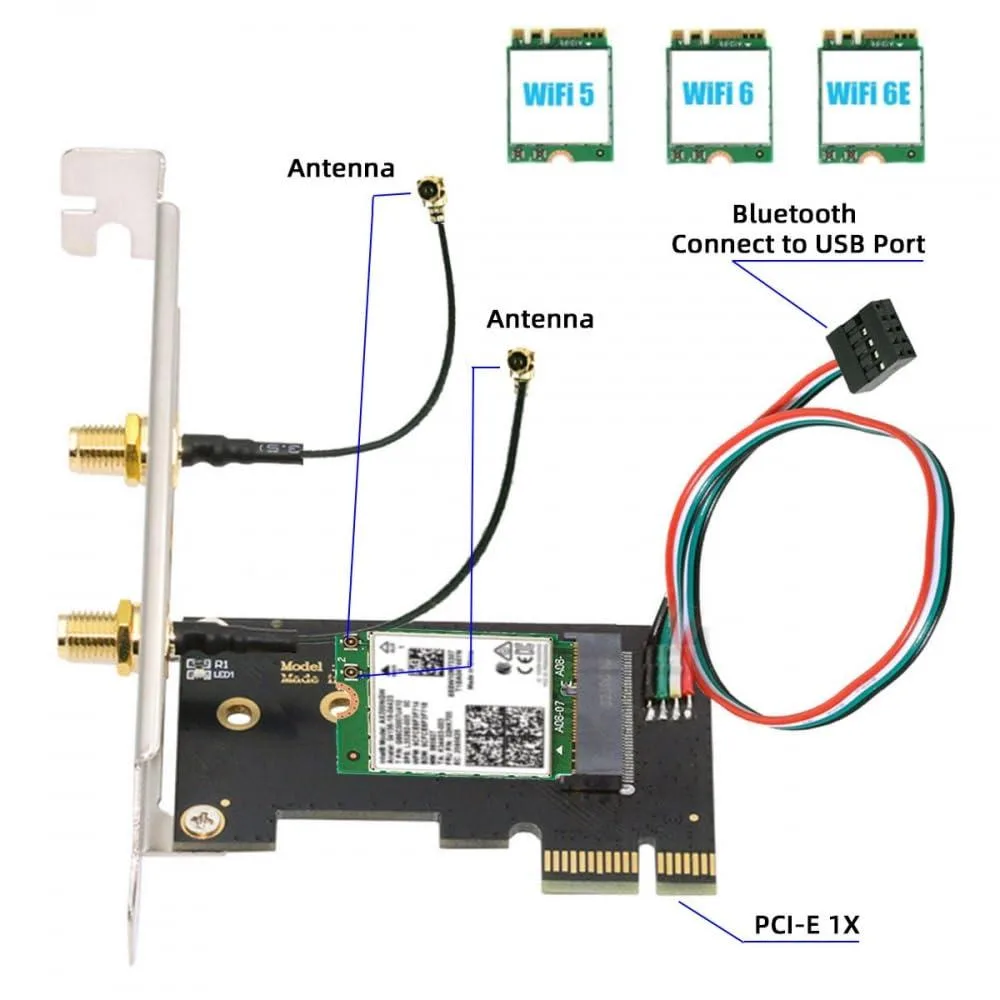

This adapter converts a desktop PCIe X1 slot into an M.2 Key E or A+E interface for NGFF Wi-Fi and Bluetooth modules. It includes 6 dBi triple-band antennas covering 2.4 GHz, 5 GHz and 6 GHz frequencies. The board draws power from the PCIe slot and requires no extra connectors. A USB header cable must be attached to the motherboard to enable Bluetooth functionality.

Desktop builders adding Wi-Fi 6 or Wi-Fi 7

Suits owners of compatible NGFF 2230 modules such as BE200NGW, AX210NGW, AX200NGW, 9260NGW, 8265NGW, 8260NGW, 7265NGW or 7260NGW. Not for buyers who need a Key M slot, or for modules that use Key B or other keyings. Laptop users and systems without a free PCIe slot cannot use this card.

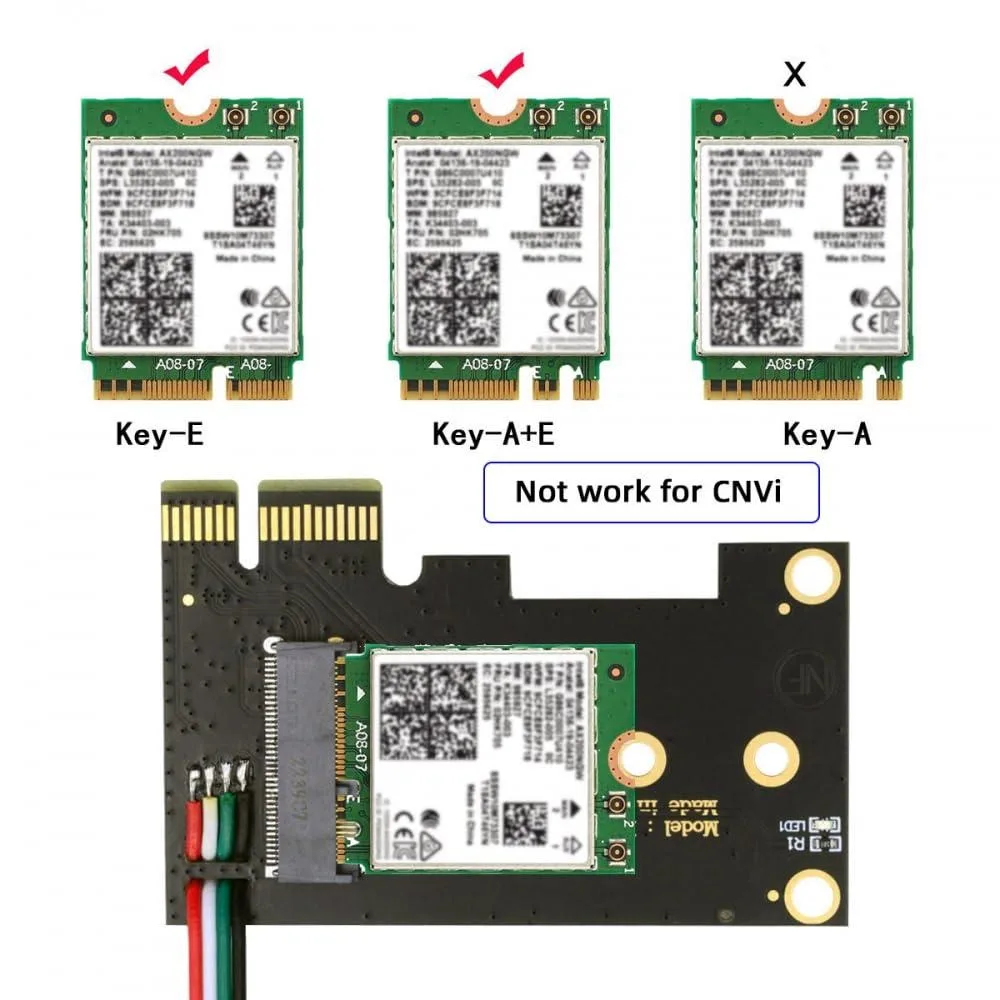

M.2 Key E and A+E mechanical keying

The adapter only accepts NGFF M.2 2230 wireless modules that follow the Key E or A+E pinout and PCIe protocol. Any module with a different keying will not fit or function.

Highlights

  • Adds Wi-Fi and Bluetooth to a desktop via PCIe X1 slot
  • Includes 6 dBi triple-band antennas for 2.4 GHz 5 GHz 6 GHz coverage
  • Works with M.2 Key E and A+E modules such as AX200NGW AX210NGW BE200NGW
  • Bluetooth connects through internal USB header on the motherboard
  • Supports WiFi 4 Wifi6 Wifi7 and Bluetooth 4.0 through 5.4

Specifications

BrandVszerda
ModelEP-052-HX
Part NumberEP-052-HX
Interface802_11_acbgn
BUS802_11_acbgn
FeaturesWireless Card & Desktop
Weight11 grams

Questions about this item

Does the PCIe x1 link throttle throughput when the installed module runs at WiFi 6/6E/7 speeds?

The adapter passes the module through a PCIe x1 lane; sustained throughput will be limited by that single lane rather than the module's own ceiling.

How much heat or noise does the adapter itself add during all-day operation?

The board has no active cooling and draws power only from the slot, so it adds negligible heat and zero noise.

Which parts must already be in the system for Bluetooth to function?

A free internal USB header on the motherboard is required to connect the supplied USB cable for Bluetooth.
