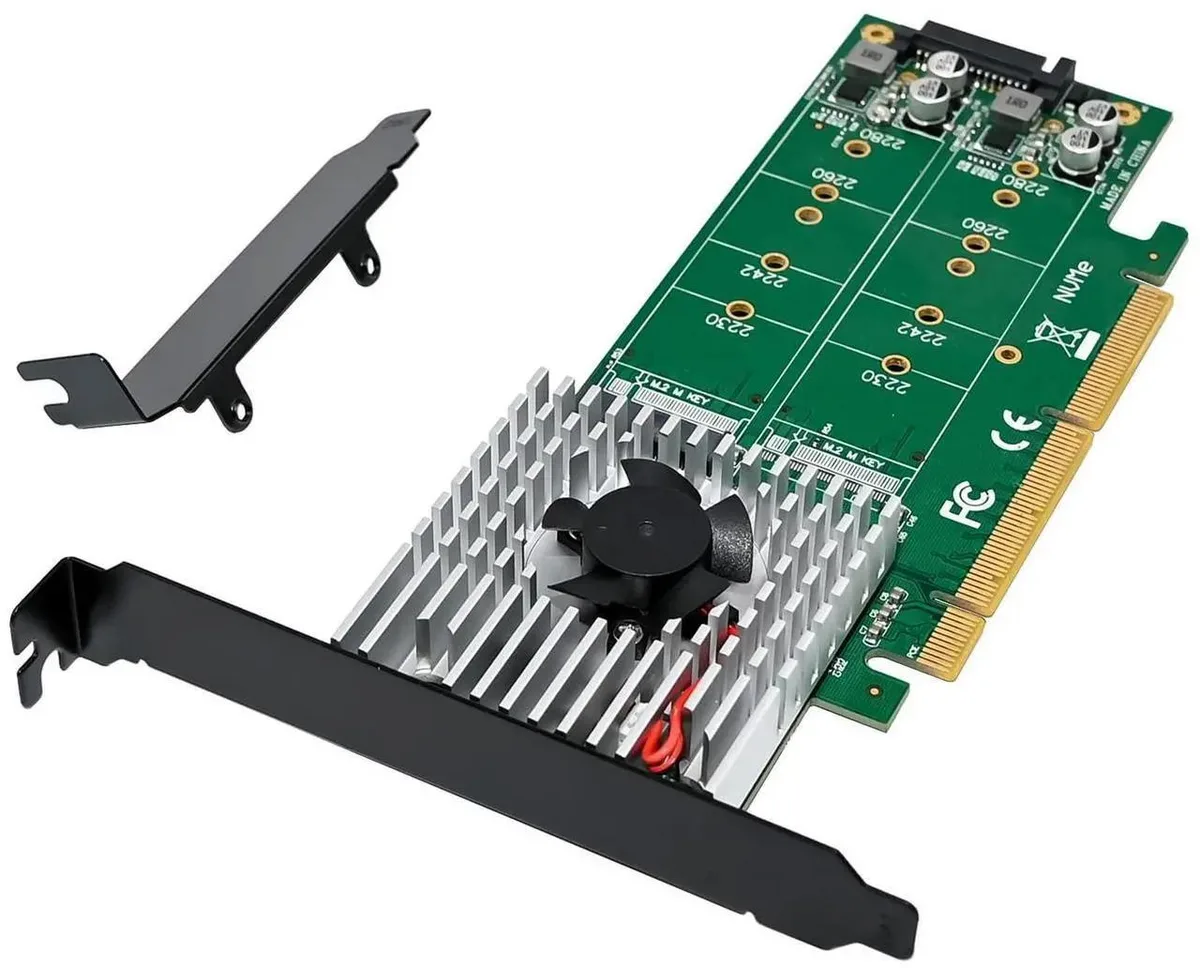

Green PCB card with two M.2 slots and a low-profile metal bracket

Vszerda

Vszerda Dual M.2 NVMe PCIe 3.1 Adapter with Low-Profile Bracket

SKU CH-96BP-VNDPE

Adds two M.2 NVMe SSDs to a PCIe 3.1 x8 or x16 slot with a low-profile bracket included

  • Adds two NVMe drives without motherboard bifurcation thanks to ASM2812 chipset
  • Fits 2230, 2242, 2260, 2280, 22110 M-key NVMe SSDs via adjustable standoffs
  • Single-drive speeds up to 3.5 GB/s read and 3.2 GB/s write on PCIe 3.1 x4
  • Works in x8 or x16 slots, compatible with PCIe 3.0, 2.0, 1.0 standards
  • Includes full-height and low-profile brackets for any chassis

Dual M.2 NVMe PCIe 3.1 Adapter

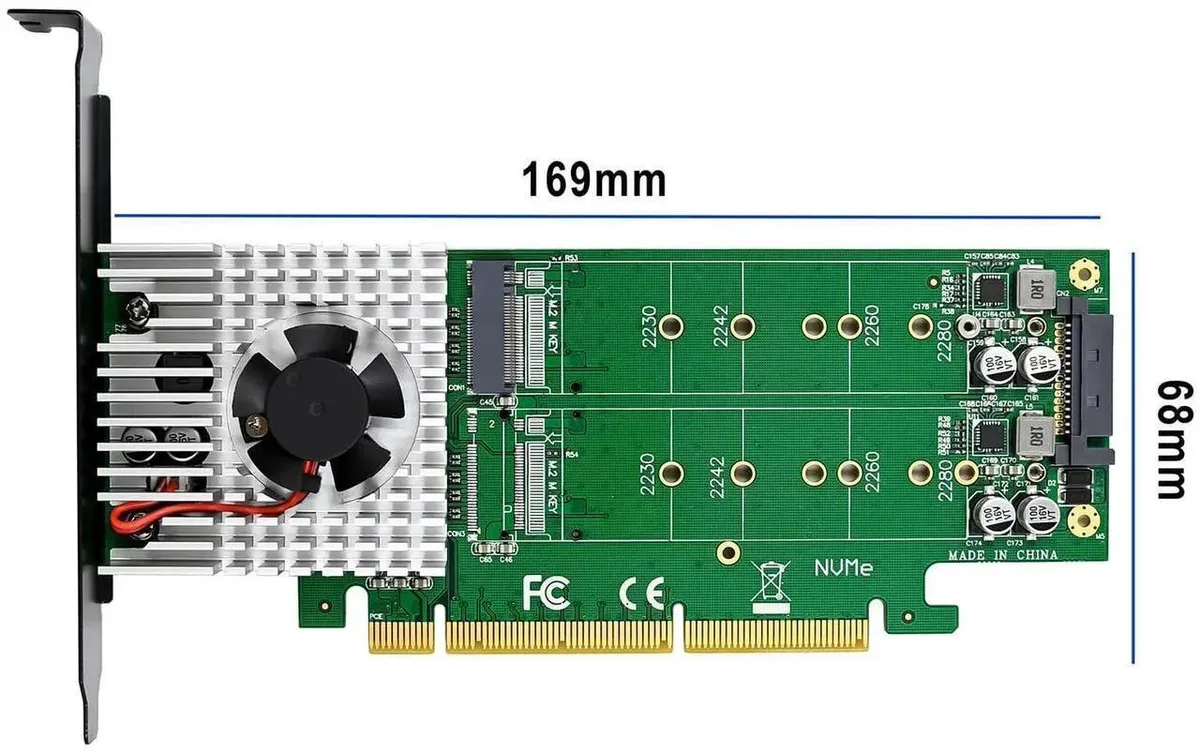

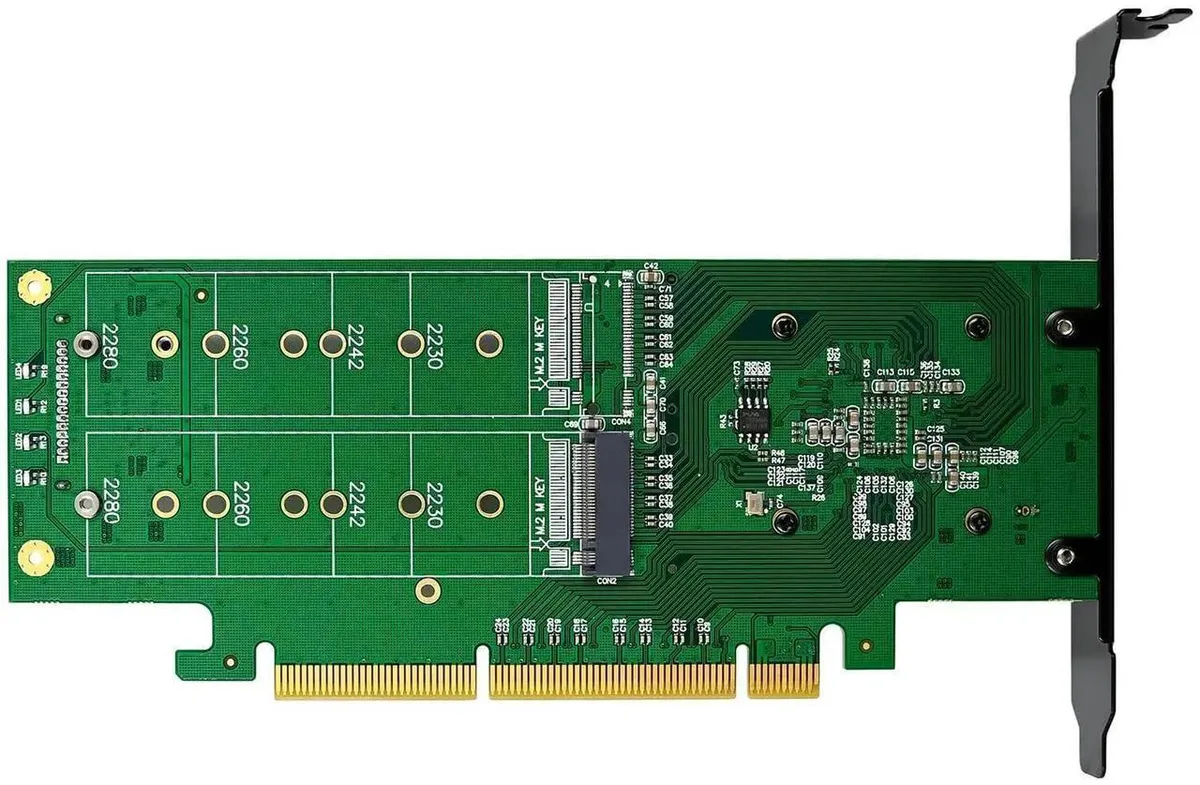

The Vszerda adapter installs two M.2 NVMe SSDs into a single PCIe x8 or x16 slot using an ASMedia ASM2812 chipset. Each drive receives a dedicated PCIe 3.1 x4 link without requiring motherboard bifurcation support. It accepts M-key NVMe modules in 2230, 2242, 2260, 2280 and 22110 lengths. A full-height bracket and a low-profile bracket are both included.

Upgrade from single-drive or SATA M.2 slots

This card adds a second NVMe drive when the board has only one M.2 socket or when existing slots share bandwidth with other devices. The jump is worth it when the platform supports PCIe 3.0 or 2.0 and the BIOS can boot from NVMe. Older mainboards that lack NVMe boot support will not benefit for OS drives. Each SSD operates on its own x4 channel up to 3.5 GB/s read and 3.2 GB/s write per drive.

Suits builders adding fast storage to workstations

Ideal for users with a free PCIe x8 or x16 slot who need two independent NVMe drives and want software RAID 0, 1 or JBOD managed by the OS. Not for buyers who need SATA M.2 support, B-key or B+M-key modules, or AHCI PCIe SSDs. Systems without NVMe boot capability in the firmware should look elsewhere for a boot drive solution.

Highlights

  • Adds two NVMe drives without motherboard bifurcation thanks to ASM2812 chipset
  • Fits 2230, 2242, 2260, 2280, 22110 M-key NVMe SSDs via adjustable standoffs
  • Single-drive speeds up to 3.5 GB/s read and 3.2 GB/s write on PCIe 3.1 x4
  • Works in x8 or x16 slots, compatible with PCIe 3.0, 2.0, 1.0 standards
  • Includes full-height and low-profile brackets for any chassis

Specifications

No published specifications for this item yet.

Questions about this item

What PCIe slot width and keying does this adapter require for its two M.2 M-key sockets?

It installs in an x8 or x16 PCIe 3.1 slot and provides two M-key sockets for NVMe SSDs.

Which screw-hole spacing do I use when mounting a 2280 or 2242 drive on the adjustable stand-offs?

The board has multiple mounting holes for 110 mm, 80 mm, 60 mm, 42 mm and 30 mm lengths; choose the hole pair that matches your SSD.

When should I replace the low-profile bracket if I move the card to a different chassis?

Swap the full-height bracket for the included low-profile bracket when installing in a half-height or small-form-factor case.
