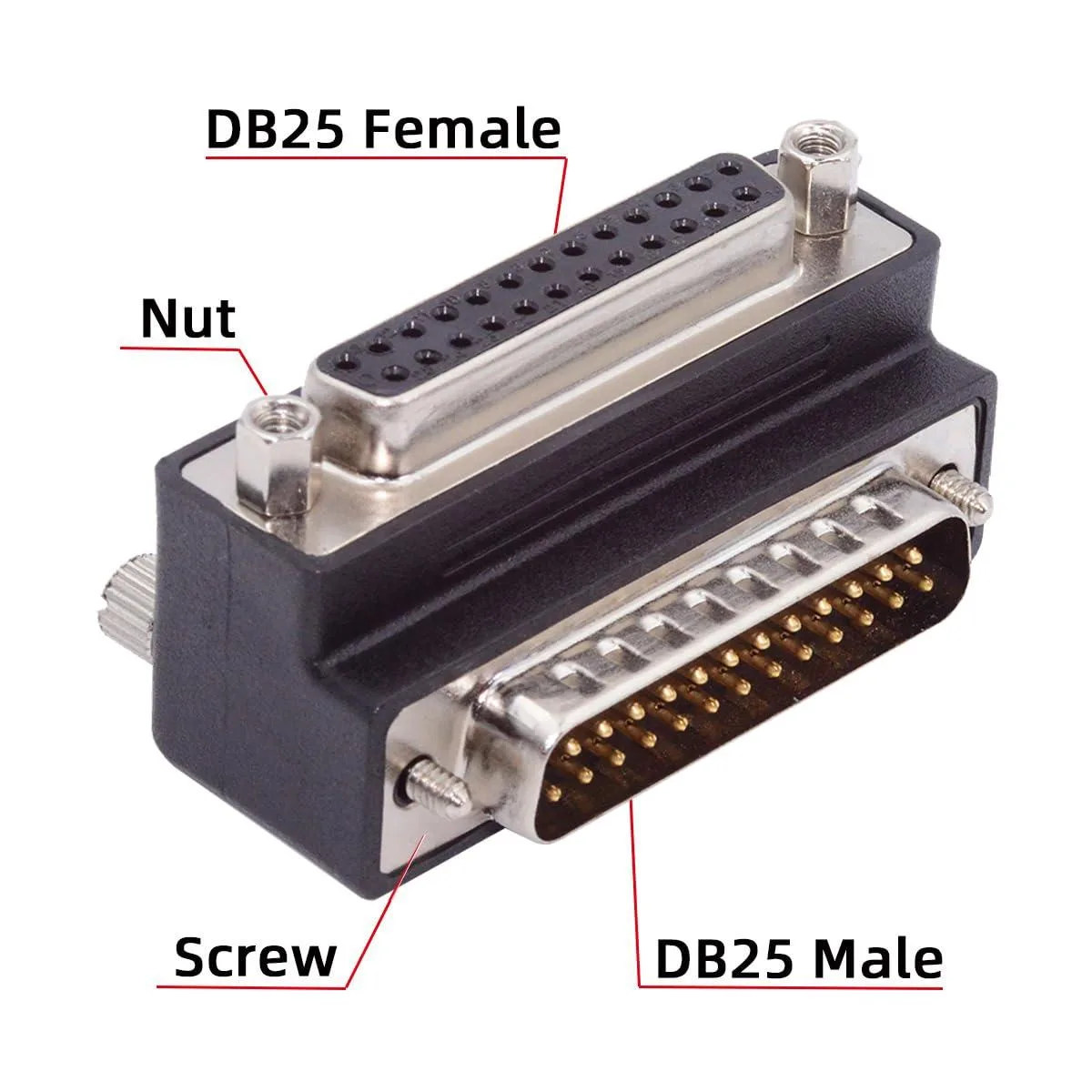

DB25 male-to-female 90° angled adapter with nuts and screws

Vszerda

Vszerda DB25 Male Nut to Female Screw 90° Angled Adapter

SKU CH-HX8F-R1V5R

A 25-pin DB25 male-to-female adapter with a 90-degree angled design for tight spaces

  • Connect in tight spaces with 90° angled design
  • Secure fit using male nuts and female screws
  • 25-pin DB25 interface for parallel and audio gear
  • D-shaped shield blocks EMI and ensures correct orientation

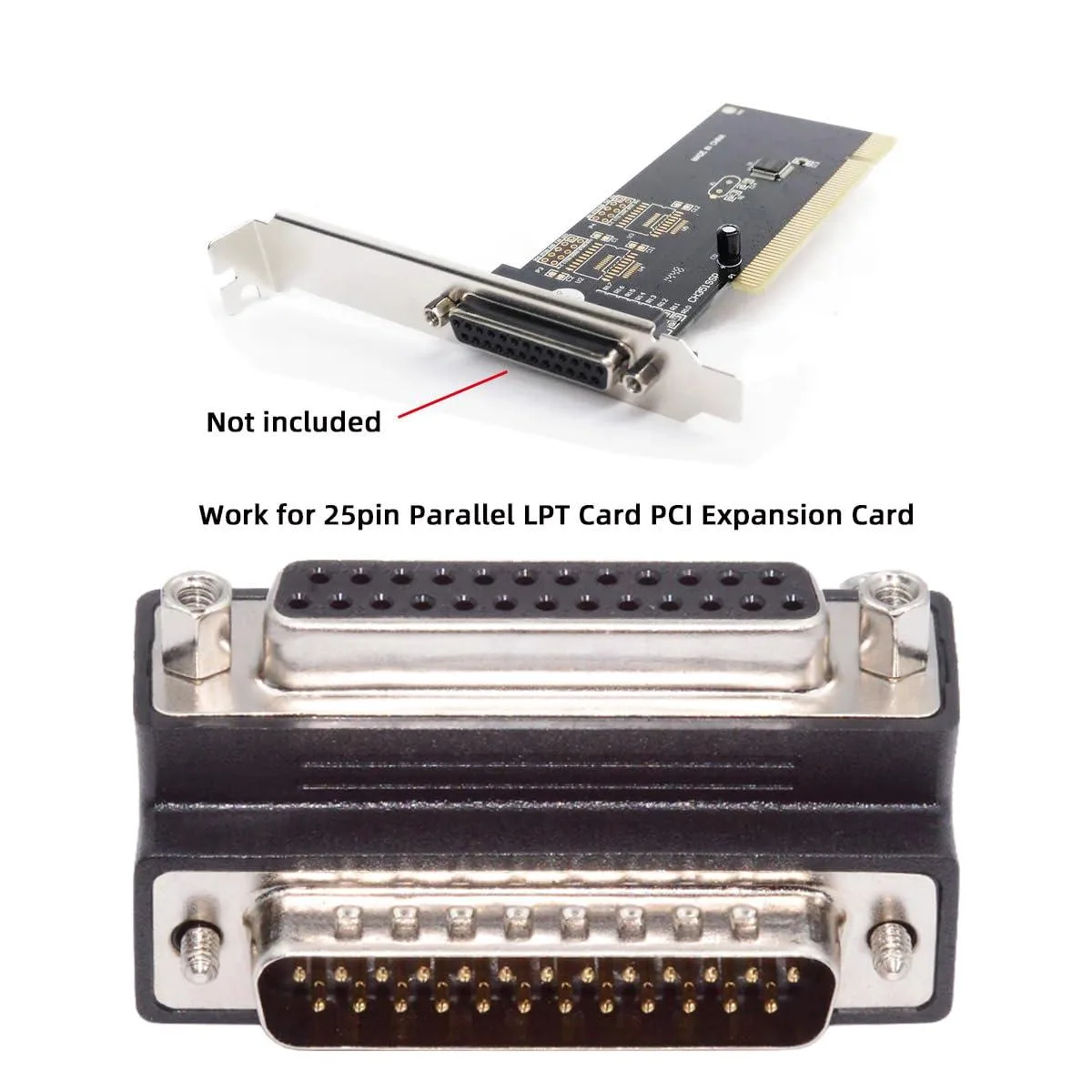

  • Compatible with legacy LPT cards and modern equipment

DB25 angled adapter for tight ports

This DB25 male-to-female adapter bends 90 degrees so you can plug a cable into a female port when clearance is limited. It carries 25 pins in two rows and is built for legacy parallel, serial or industrial I/O connections. The D-shaped shield ensures correct orientation and blocks electromagnetic interference. Buyers who need a straight-through coupler or a different pin count cannot use this part.

Parallel LPT and AES/EBU interface limits

The adapter passes whatever signals the host DB25 port provides, whether that is a parallel printer interface, an AES/EBU digital-audio link or a proprietary industrial bus. It adds no active circuitry, so bandwidth, voltage levels and pin-out remain exactly as the connected equipment defines them. Users who expect protocol conversion, signal buffering or hot-plug protection will not find those functions here.

Simple screw-on installation

The male end secures with thumbscrew nuts and the female end accepts standard DB25 screws, so no tools are required beyond finger tightening. Mis-alignment is the usual problem: the D-shell only mates one way, so forcing it bends pins. Verify the port gender and pin-out before connecting, because the adapter cannot correct a mismatched wiring scheme.

Highlights

  • Connect in tight spaces with 90° angled design
  • Secure fit using male nuts and female screws
  • 25-pin DB25 interface for parallel and audio gear
  • D-shaped shield blocks EMI and ensures correct orientation
  • Compatible with legacy LPT cards and modern equipment

Specifications

No published specifications for this item yet.

Questions about this item

Which variant of the DB25 angled adapter should I choose?

This adapter is a single version with a 25-pin male nut end and a 25-pin female screw end in a 90-degree angled form factor.

What does the 90-degree angle do once the adapter is fitted?

The right-angle bend lets the cable run parallel to the chassis so you can plug into a female DB25 port even when rear clearance is tight.

What interface standard does the DB25 connector follow and what does it limit?

The DB25 follows the legacy D-sub parallel pinout, limiting use to 25-contact serial, parallel, or multi-channel audio wiring schemes.
