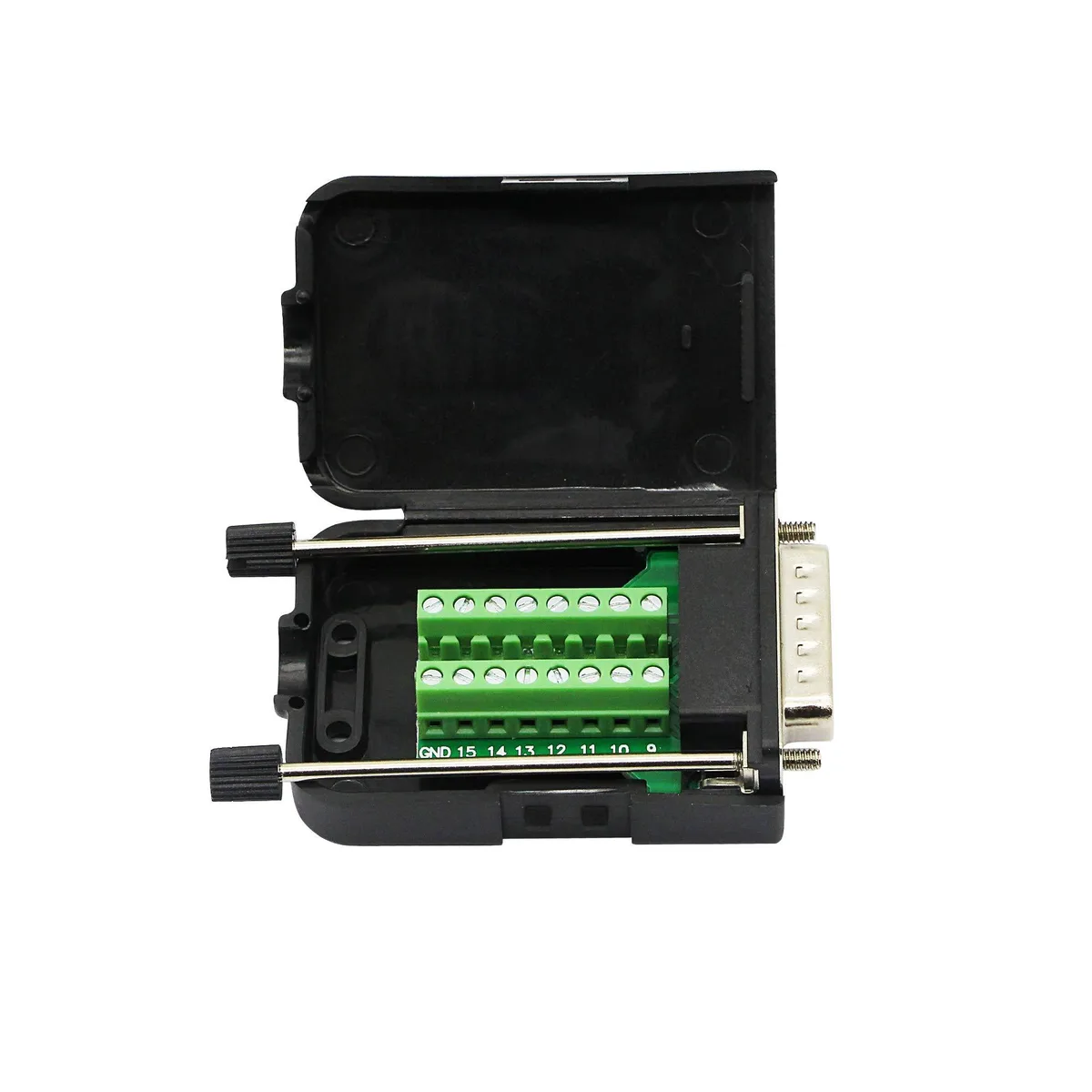

Black DB15 male breakout board in plastic case with screw terminals and cable strain relief

Vszerda

Vszerda DB15 Male Breakout Connector Black (MB)

SKU CH-3PT2-04MCT

Converts a DB15 female port to a 15-position screw terminal block with strain relief and a 59 x 41 x 20 mm enclosure

  • Solder-free wiring with included screwdriver and terminal block
  • 15-position screw terminals with clear pin labels for easy identification
  • Gold-plated DB15 male plug ensures reliable signal transmission
  • Compact 59 x 41 x 20 mm enclosure with strain relief
  • FR-4 PCB with copper matrix resists oxidation and interference

DB15 Male Breakout Connector

The Vszerda DB15 Male Breakout Converter turns a DB15 female port with positioning screws into a 15-position screw terminal block. No soldering is required; stranded or solid-core wire is secured with a small screwdriver. The kit includes the breakout board in a black plastic case, a nylon cable pressing plate, two screws, two long bolts and a screwdriver.

Screw Terminal Wiring Limits

The board accepts wire up to 10.45 mm in diameter and the stern tube hole measures 10 mm. The enclosure dimensions are 59 x 41 x 20 mm, which sets the maximum cable bundle size that can pass through the strain-relief opening. All 15 signal positions are clearly numbered on the PCB for straightforward identification during assembly.

Enclosed PCB Terminal Build

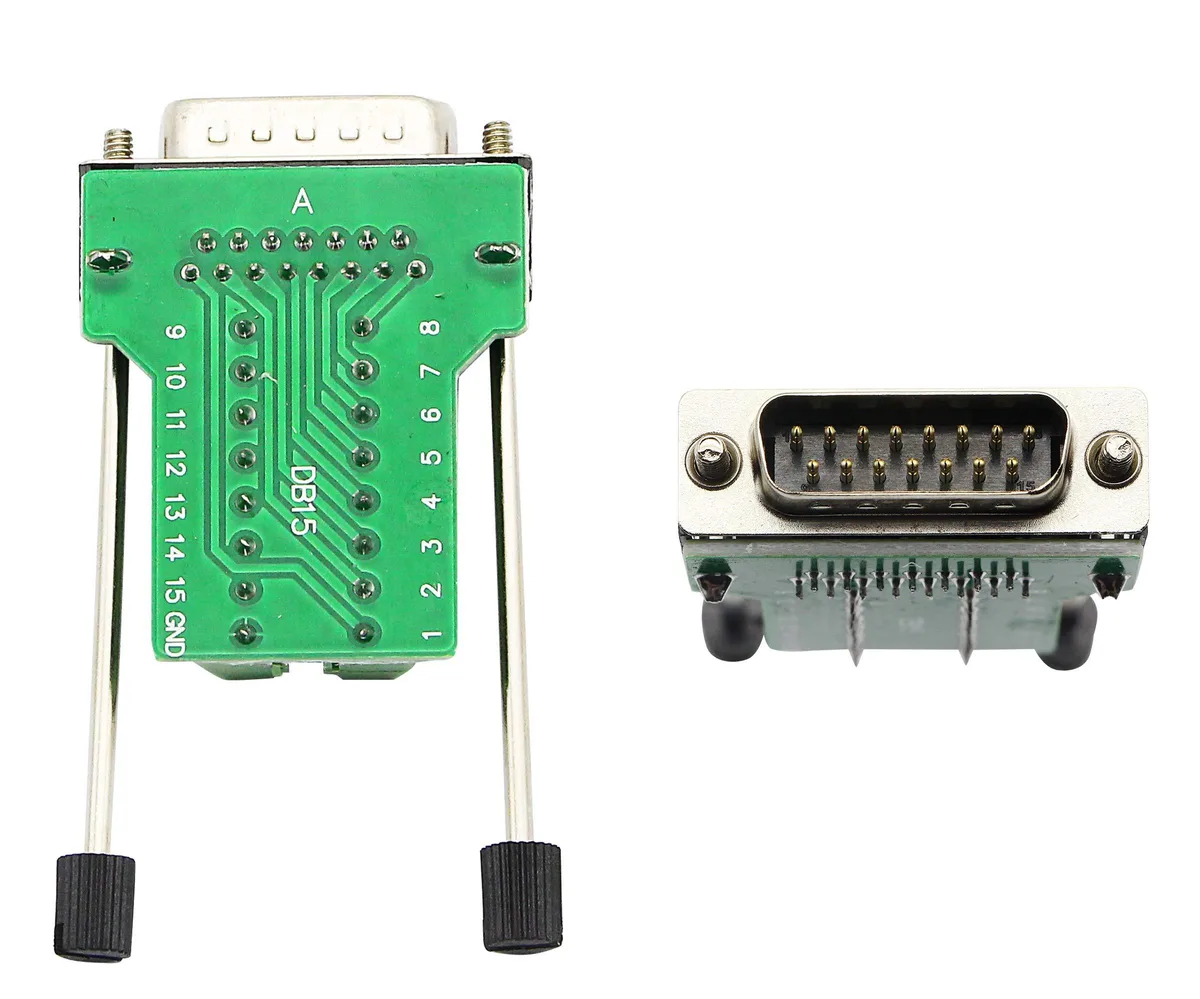

The double-sided FR-4 fibre-glass PCB uses an all-copper matrix with gold-plated DB15 pins for oxidation-resistant contact. A widened, bolded case snaps shut firmly and the cable buckle anchors to the nylon pressing plate so fastening forces never stress the crimp points. Supplied long bolts provide secure panel or chassis mounting for industrial control, radio, automation and tax-control equipment.

Highlights

  • Solder-free wiring with included screwdriver and terminal block
  • 15-position screw terminals with clear pin labels for easy identification
  • Gold-plated DB15 male plug ensures reliable signal transmission
  • Compact 59 x 41 x 20 mm enclosure with strain relief
  • FR-4 PCB with copper matrix resists oxidation and interference

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 15-position terminal block or a different pin count for my DB15 cable?

This adapter converts a DB15 male connector to a 15-position screw terminal block, matching the standard 15 pins of a DB15 interface.

What does the 10.45 mm maximum wire diameter mean when I am wiring the terminals?

You can use stranded or solid-core wires up to 10.45 mm in diameter; strip the insulation, insert into the numbered terminals, and tighten the screws with the included screwdriver.

The DB15 interface is often used for serial or VGA — what does this breakout actually connect?

It breaks out all 15 DB15 signal pins to individually labelled screw terminals inside a 59 x 41 x 20 mm enclosure with a 10 mm cable gland and strain-relief bolts.
