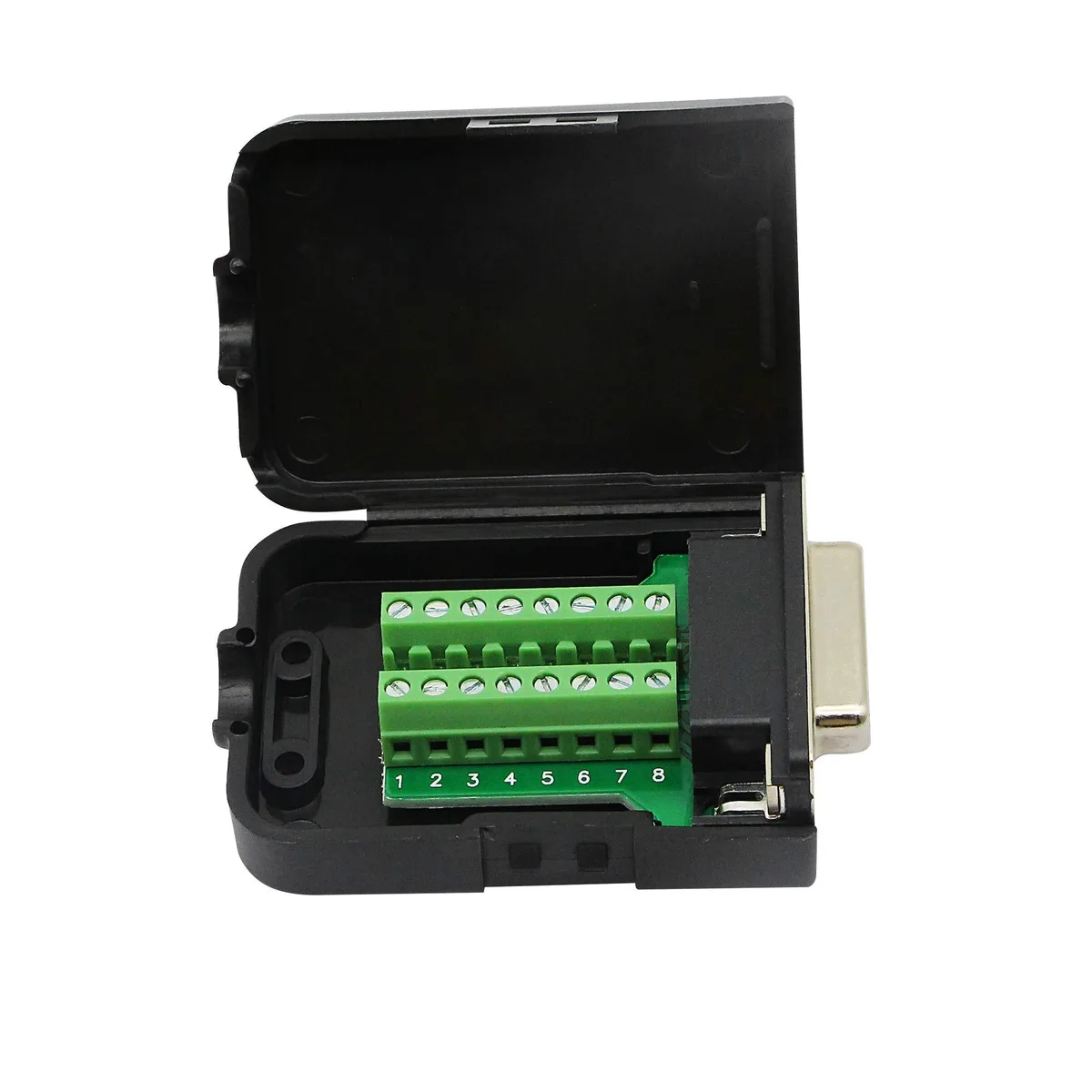

Black DB15 female breakout board in green PCB enclosure with screw terminals and strain relief

Vszerda

Vszerda DB15 Breakout Connector Female Solderless Terminal Black FB

SKU CH-94K1-2AARE

Converts a DB15 male connector to a 15-position screw terminal block with strain relief, no soldering required

  • Solderless wiring saves bench time with screw-terminal DB15 breakout
  • 15 clearly labelled signal ports simplify custom cable assembly
  • FR-4 double-sided copper board resists interference for stable links
  • 59 × 41 × 20 mm plastic case includes strain relief and long bolts
  • Supports wires up to 10.45 mm diameter for industrial use

DB15 female breakout for custom wiring

The Vszerda DB15 breakout board converts a DB15 male connector with positioning screws into a 15-position screw terminal block. No soldering is required; stranded or solid-core wire can be secured with a small screwdriver. It suits engineers and technicians building custom jigs for industrial control equipment, radios, automation systems or tax-control machines. The board carries clear port labels for quick identification.

Check your cable diameter and panel space

Verify that each wire does not exceed the largest wire diameter of 10.45 mm before ordering. The enclosure measures 59 x 41 x 20 mm and the stern-tube hole is 10 mm, so confirm the adapter fits your mounting cut-out. Ensure the DB15 male plug on your existing cable includes positioning screws for a secure mating connection. The package supplies a screwdriver, two screws, two long bolts and a nylon cable pressing plate for assembly.

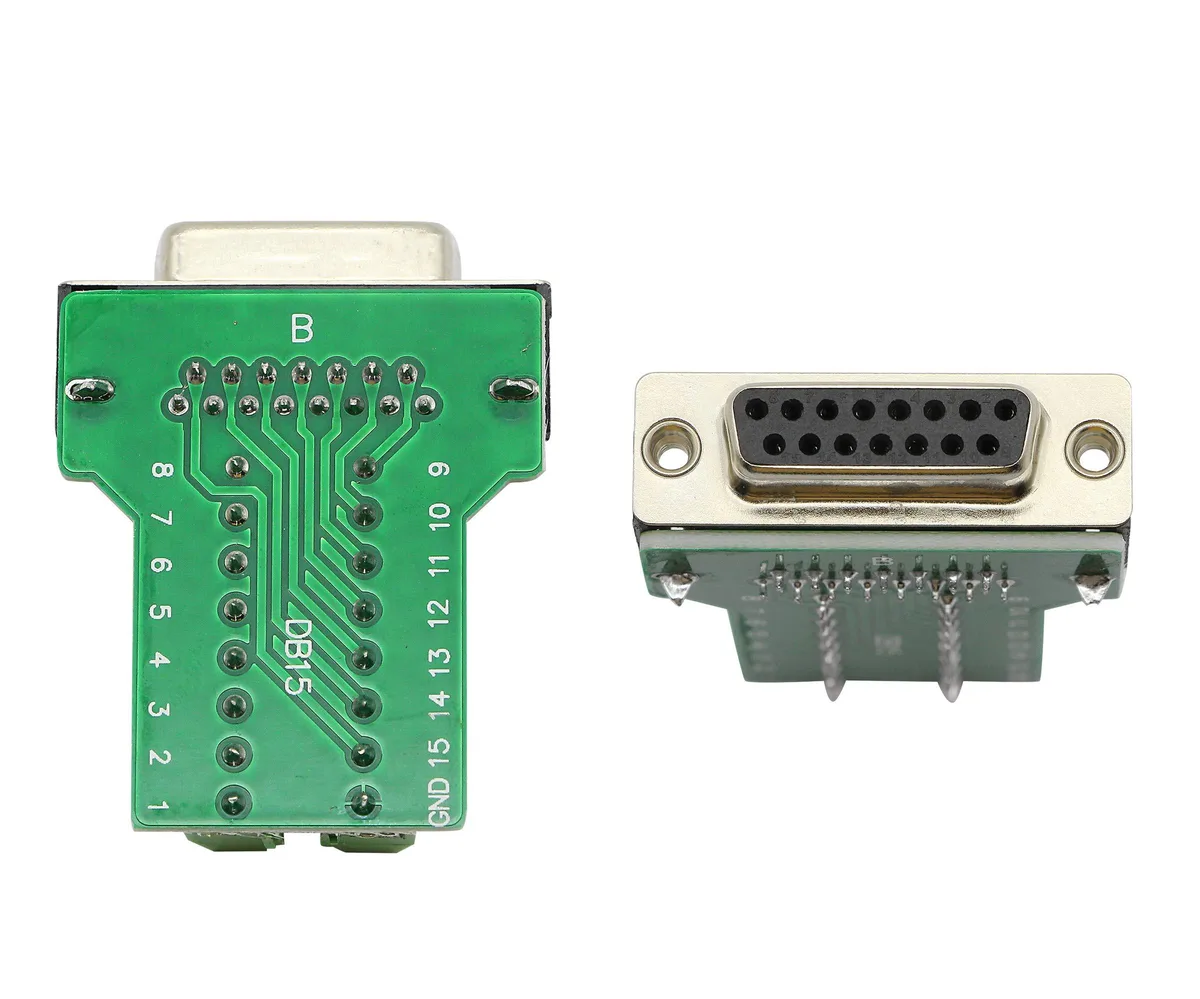

FR-4 PCB with strain-relief housing

The carrier uses a high-density copper-clad FR-4 fibreglass PCB with gold-plated contacts for oxidation resistance and stable signal transmission. A widened, bolded outer casing opens and closes easily while staying firm once fastened. The nylon cable buckle anchors the wire to the pressing plate so tightening forces do not stress the crimp points. This design absorbs long-term vibration and traction, protecting every termination inside the black and green enclosure.

Highlights

  • Solderless wiring saves bench time with screw-terminal DB15 breakout
  • 15 clearly labelled signal ports simplify custom cable assembly
  • FR-4 double-sided copper board resists interference for stable links
  • 59 × 41 × 20 mm plastic case includes strain relief and long bolts
  • Supports wires up to 10.45 mm diameter for industrial use

Specifications

No published specifications for this item yet.

Questions about this item

What is included in the package and do I need to buy any tools separately?

The package includes the DB15 breakout board with plastic case, a nylon cable pressing plate, two screws, two long bolts and a screwdriver. No extra tools are required.

How many signal positions does this breakout connector provide?

The connector converts a DB15 male plug into a 15-position screw terminal block, giving one terminal for each of the 15 signal lines.

What is the maximum wire diameter that fits the terminal block?

The terminal block accepts wires up to 10.45 mm in diameter, allowing stranded or solid-core conductors to be secured without soldering.
