Vszerda DB15 Breakout Connector (Black) (MN)
Converts a DB15 female port to a 15-position screw terminal block with strain-relief case, requiring no soldering for custom wiring
- No-solder screw terminals for fast custom wiring
- 15-position DB15 male to screw-terminal breakout
- FR-4 PCB with gold-plated contacts for stable signals
- 59 x 41 x 20 mm case with 10 mm cable gland
- Includes screwdriver, cable clamp, screws and nuts
DB15 Breakout Connector for Custom Wiring
The Vszerda DB15 breakout board converts a DB15 female port with positioning screws into a 15-position screw terminal block. It enables custom wiring jigs without soldering by accepting stranded or solid core wire secured with a small screwdriver. A black plastic enclosure and supplied nylon cable pressing plate provide strain relief for the assembly.
15 Signal Positions with Clear PCB Labels

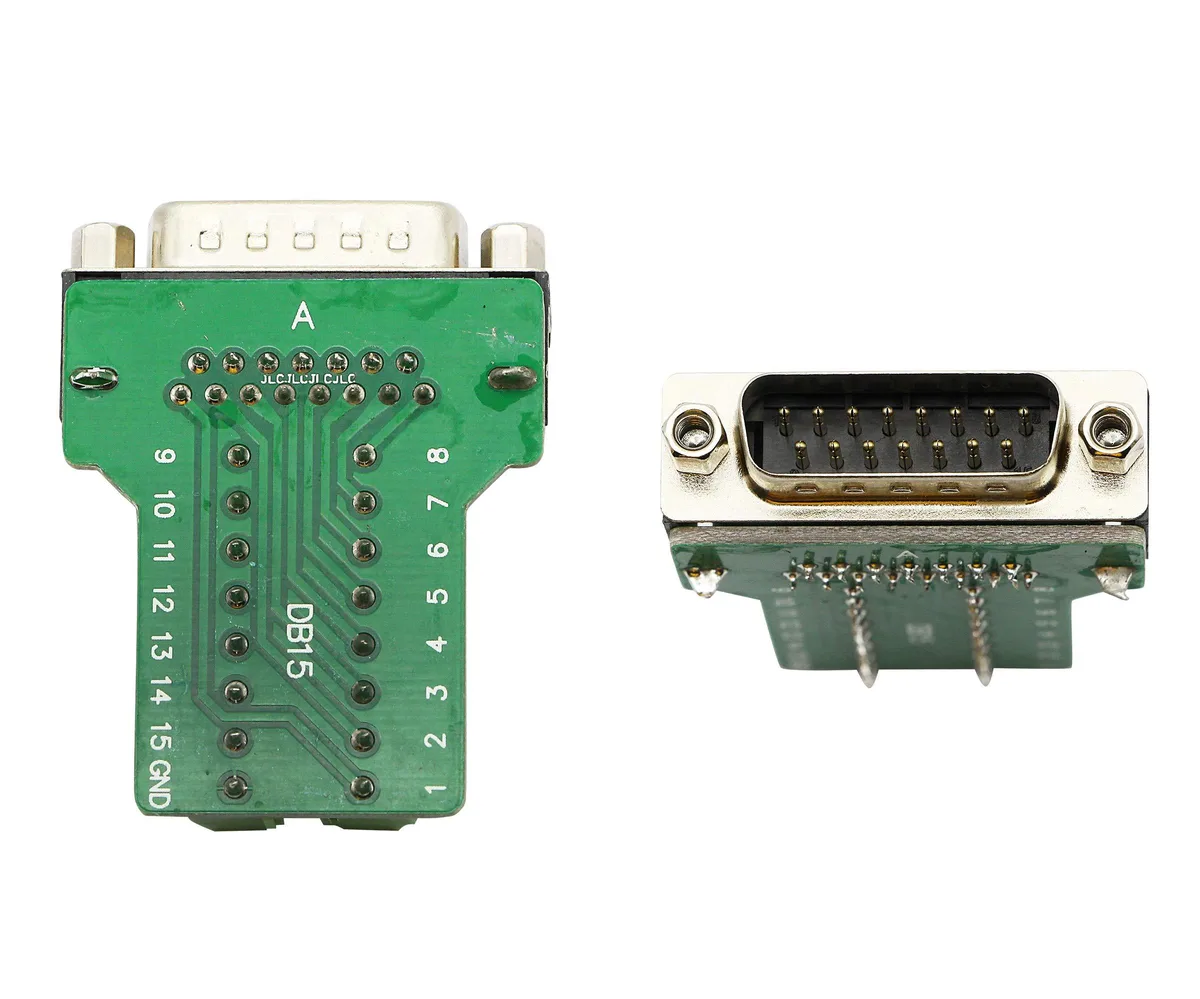

Each of the 15 terminals is marked with connection numbers on the FR-4 fiberglass PCB for straightforward identification during wiring. The board uses an all-copper matrix with gold-plated contacts to maintain signal stability and resist oxidation. The largest wire diameter accepted is 10.45 mm, and the stern tube hole measures 10 mm for cable entry.
Compact Enclosure with Integrated Strain Relief

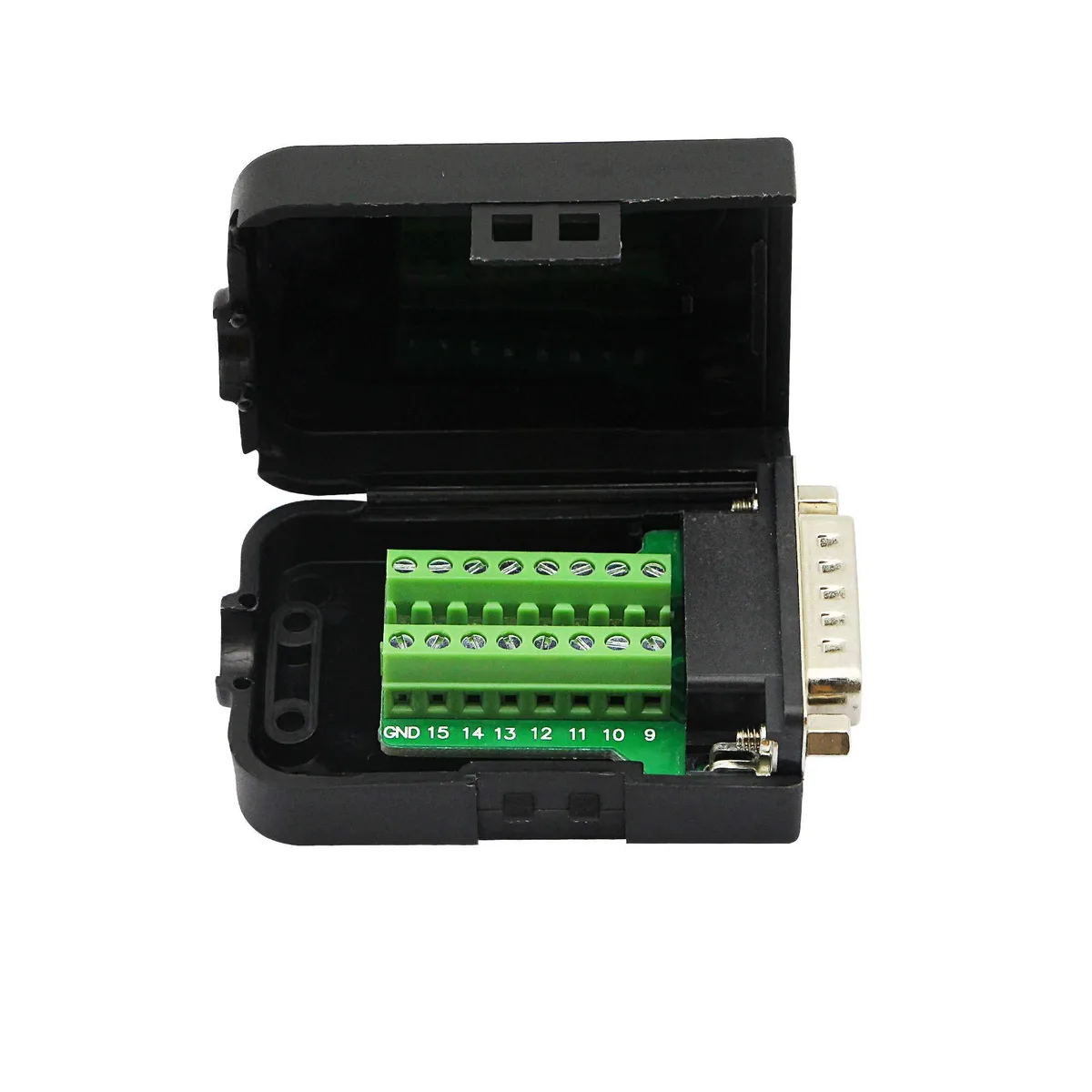

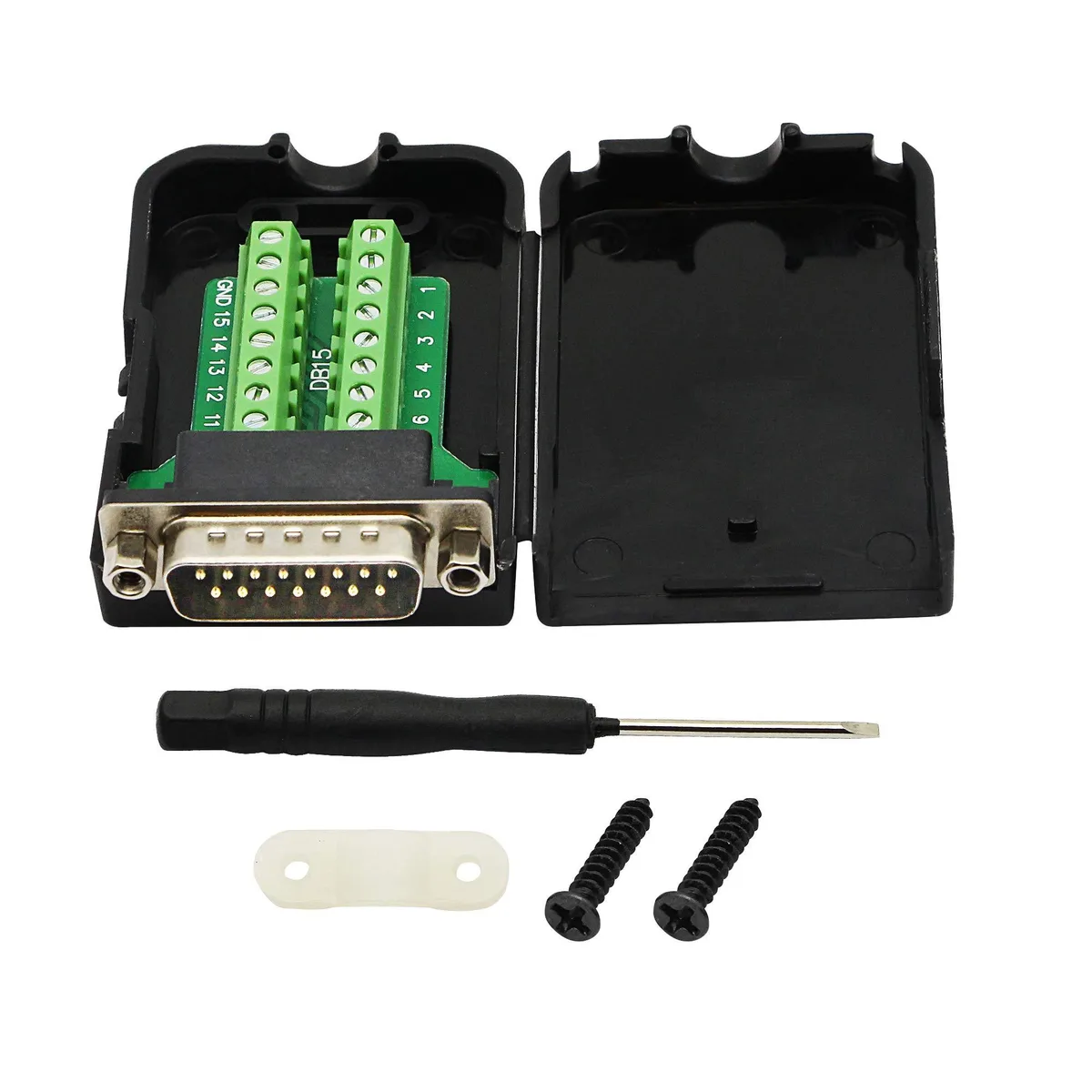

The enclosure measures 59 x 41 x 20 mm and features a widened, bolded casing designed for easy opening and secure fastening. A cable buckle on the nylon pressing plate absorbs traction and collision forces to protect crimping points during long-term use. The package includes the breakout board, case, cable plate, two screws, two nuts, and a screwdriver.
Highlights
- No-solder screw terminals for fast custom wiring
- 15-position DB15 male to screw-terminal breakout
- FR-4 PCB with gold-plated contacts for stable signals
- 59 x 41 x 20 mm case with 10 mm cable gland
- Includes screwdriver, cable clamp, screws and nuts
Specifications
No published specifications for this item yet.
Questions about this item
Will the DB15 breakout board fit alongside the 59 x 41 x 20 mm enclosure in my existing control panel?
The enclosure measures 59 by 41 by 20 mm, so compare those dimensions with your panel cut-out before installation.
How can I verify every signal is connected correctly after wiring the 15 screw terminals?
Each terminal is labelled with its PCB board number, letting you cross-reference every wire against the schematic.
Which fasteners and tools are included so I don't need to buy anything extra?
The box contains the breakout board with case, a nylon cable pressing plate, two screws, two nuts and a small screwdriver.
