Vszerda

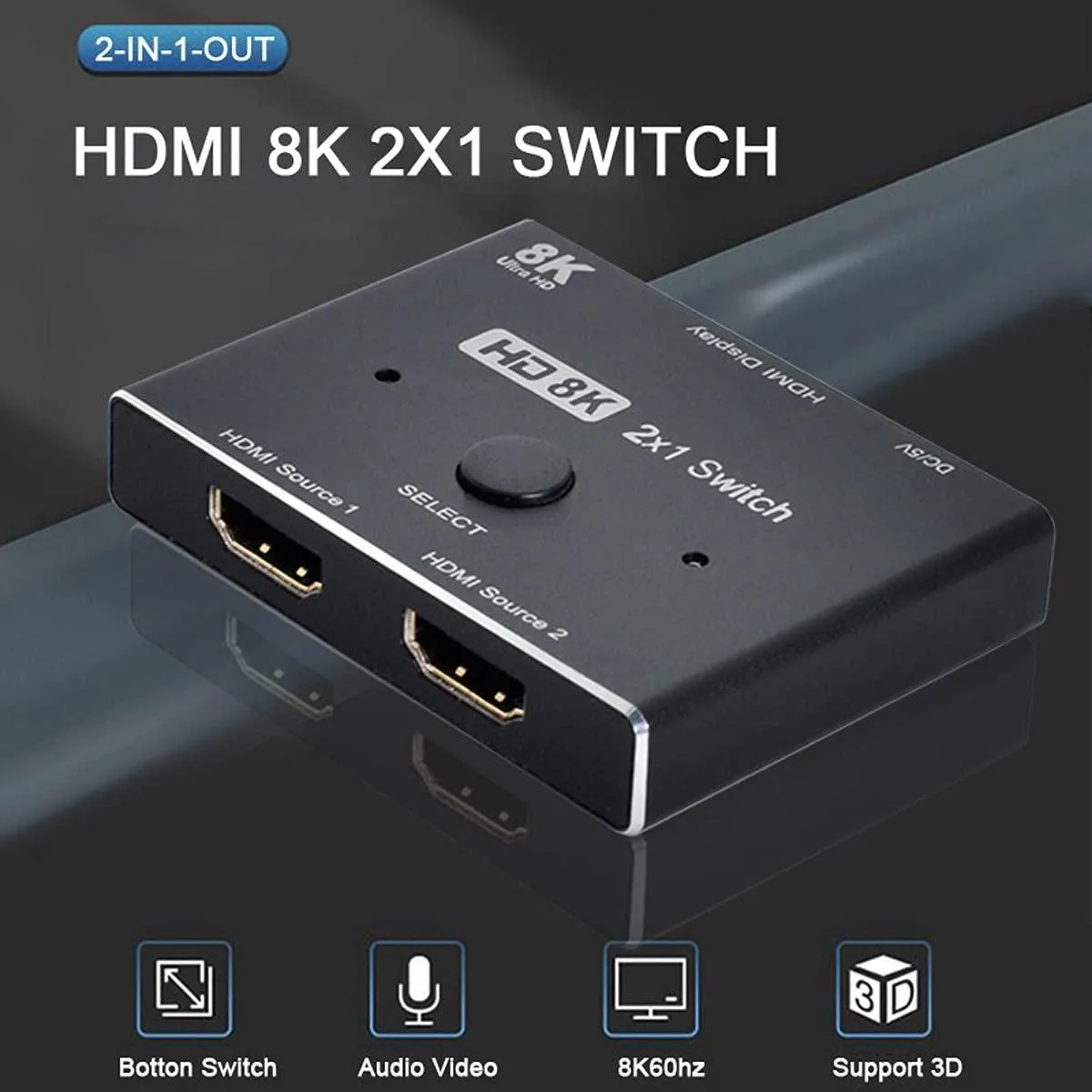

Vszerda CY-HD-015 2-in-1-out HDMI 2.1 KVM switch 8K@60Hz
Connects two HDMI sources to one display at up to 8K@60Hz with 48Gbps bandwidth and a one-second push-button swap
- Weight0.05 kilograms
- Switch two HDMI sources to one display at 8K@60Hz
- Supports 4K@120Hz and 1080P@240Hz for high-refresh gaming
- 48Gbps bandwidth handles uncompressed ultra-high-definition video
- Press-button switching changes active source within one second
- Powered by 5V USB with LED indicators showing active port
2-in-1 HDMI 2.1 KVM switch for 8K@60Hz

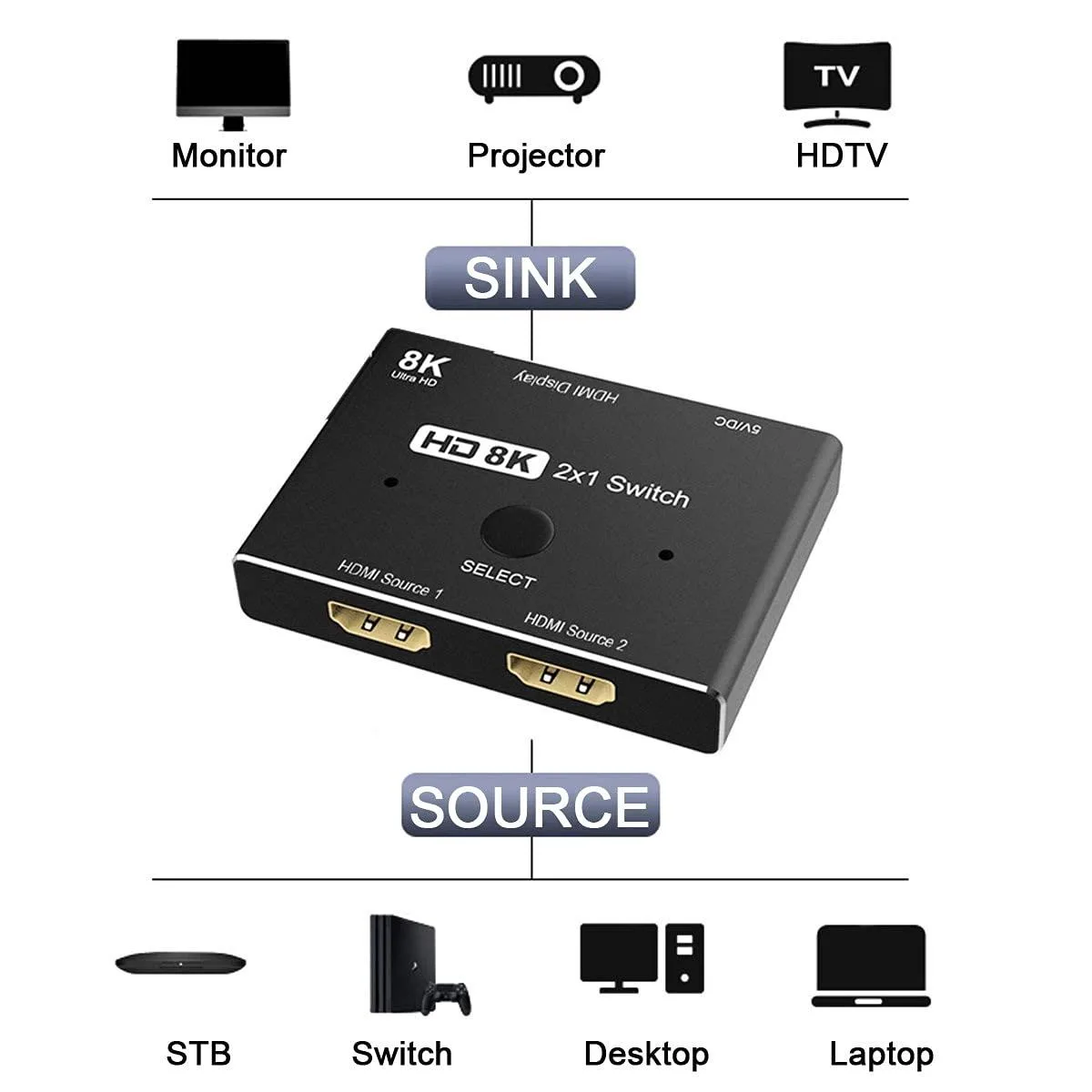

The Vszerda CY-HD-015 lets you connect two HDMI sources to a single display. It supports 8K at 60 Hz, 4K at 120 Hz and 1080P at 240 Hz with bandwidth up to 48 Gbps. External 5 V USB power is required and switching takes about one second via the front button. Indicator lights show the active port.
Replaces manual cable swapping for dual-source
Instead of unplugging cables, you press the button to change the active source in roughly one second. The jump is worth it when you regularly move between two computers, a console and a PC, or any pair of HDMI 2.1 devices feeding one screen. Two displays cannot show content simultaneously, so this does not suit multi-monitor workflows.
Limited to single-output HDMI 2.1 switching
The switch passes HDCP and SST signals but only one output is active at a time. You must use certified HDMI 2.1 cables to reach 48 Gbps; older cables will fall back to lower resolutions. No audio breakout, USB peripheral sharing or IR remote is provided. The unit weighs 0.05 kg and measures 4.33 x 4.33 x 0.39 inches.
Highlights
- Switch two HDMI sources to one display at 8K@60Hz
- Supports 4K@120Hz and 1080P@240Hz for high-refresh gaming
- 48Gbps bandwidth handles uncompressed ultra-high-definition video
- Press-button switching changes active source within one second
- Powered by 5V USB with LED indicators showing active port
Specifications
| Brand | chenyang |
|---|---|
| Model | CY-HD-015 |
| Part Number | CY-HD-015 |
| Weight | 0.05 kilograms |
Questions about this item
Does the Vszerda CY-HD-015 need a separate power supply to work?
Yes, it requires an external 5 V USB power connection; the unit does not draw enough power from the HDMI sources alone.
What is the most common mistake when hooking up this 2-in-1-out switch?
Using cables that are not rated for HDMI 2.1; without certified 48 Gbps leads the 8K 60 Hz signal will not pass through.
What part will likely need replacing first on the CY-HD-015?
The HDMI 2.1 cables — they carry 48 Gbps and degrade faster than the switch itself, so plan to swap them if drop-outs appear.
