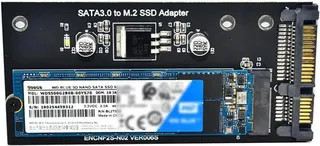

Small green circuit board with M.2 B+M key slot and 22-pin SATA connector

Vszerda

Vszerda CX25 M.2 B+M Key SATA Adapter 300 MB/s

SKU CH-B48T-EYG00

Adapter converts SATA M.2 SSDs to a 22-pin SATA 6G interface at 300 MB/s

  • Connects M.2 SATA SSD to standard 22-pin SATA port
  • Supports four common M.2 lengths including 4.2 cm
  • Delivers up to 300 MB/s throughput via SATA 6G
  • Driver-free installation works immediately on any system
  • Ceramic capacitors and LDO regulator ensure stable power delivery

Purpose & Audience

The Vszerda CX25 is a passive adapter that lets you connect a SATA-based M.2 SSD to a standard 22-pin SATA port. It is aimed at builders who want to reuse an existing SATA M.2 drive in a desktop or enclosure that only offers a regular SATA connection.

Build Integration

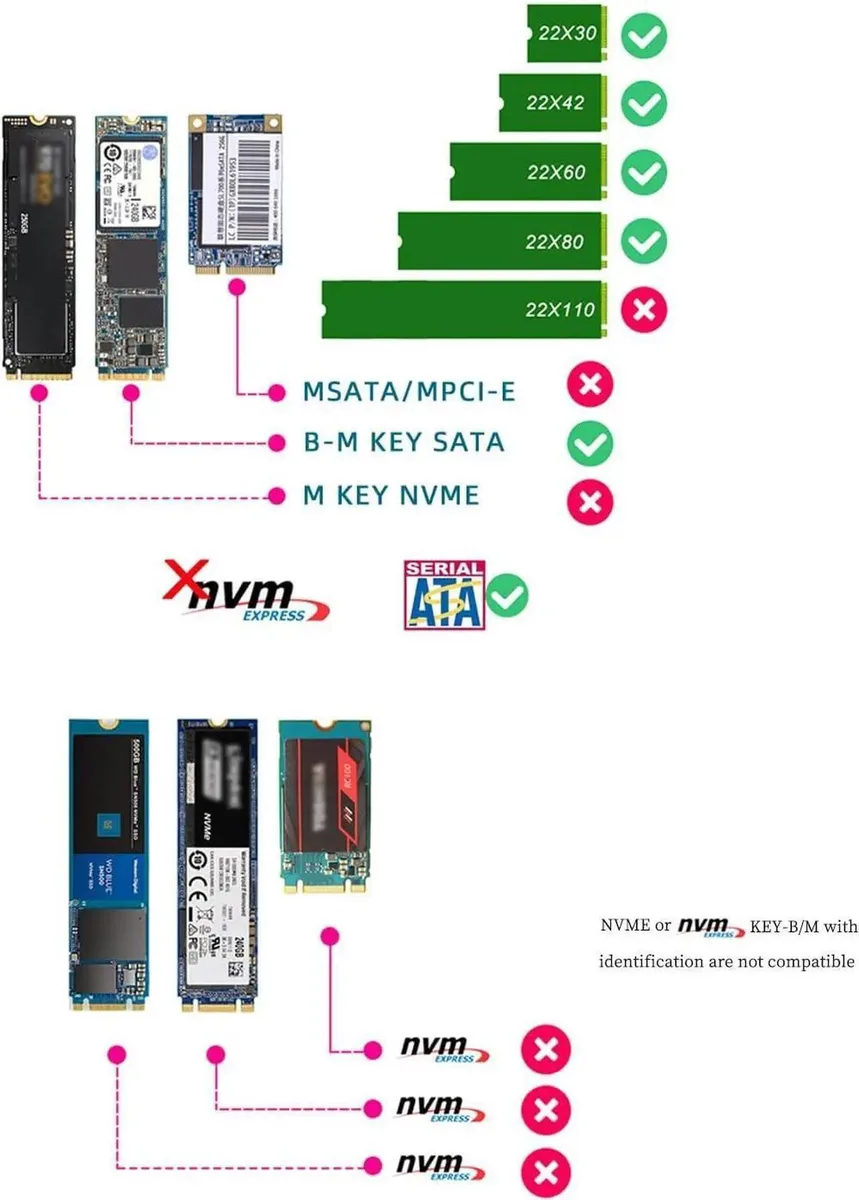

The card requires no driver and draws power directly from the SATA connector, so it adds no extra cables or software steps. It accepts M.2 modules in 3 cm, 4.2 cm, 6 cm and 8 cm lengths, freeing you from hunting for a specific form factor. The adapter does not support NVME drives, so the slot must be populated with a SATA-keyed module.

Capacity & Headroom

The interface passes through the native SATA 6 Gbit/s link, with real-world throughput capped at 300 MB/s. That headroom is sufficient for typical SATA SSD workloads such as OS boots, application storage and bulk file transfers. It will not accelerate a drive beyond its own SATA limit, and it cannot be used with NVME devices at any speed.

Highlights

  • Connects M.2 SATA SSD to standard 22-pin SATA port
  • Supports four common M.2 lengths including 4.2 cm
  • Delivers up to 300 MB/s throughput via SATA 6G
  • Driver-free installation works immediately on any system
  • Ceramic capacitors and LDO regulator ensure stable power delivery

Specifications

No published specifications for this item yet.

Questions about this item

What is the maximum throughput this adapter can pass from a SATA M.2 SSD?

The adapter supports up to 300 MB/s, matching the SATA 6 Gbps link speed of the connected drive.

Does the board generate noticeable heat or require active cooling during continuous operation?

It uses a ceramic filter capacitor and high-power LDO regulator that run cool without a fan or heatsink.

Which drive lengths can I mount on the CX25 adapter?

The board accepts 3 cm, 4.2 cm, 6 cm and 8 cm M.2 SATA SSDs.
