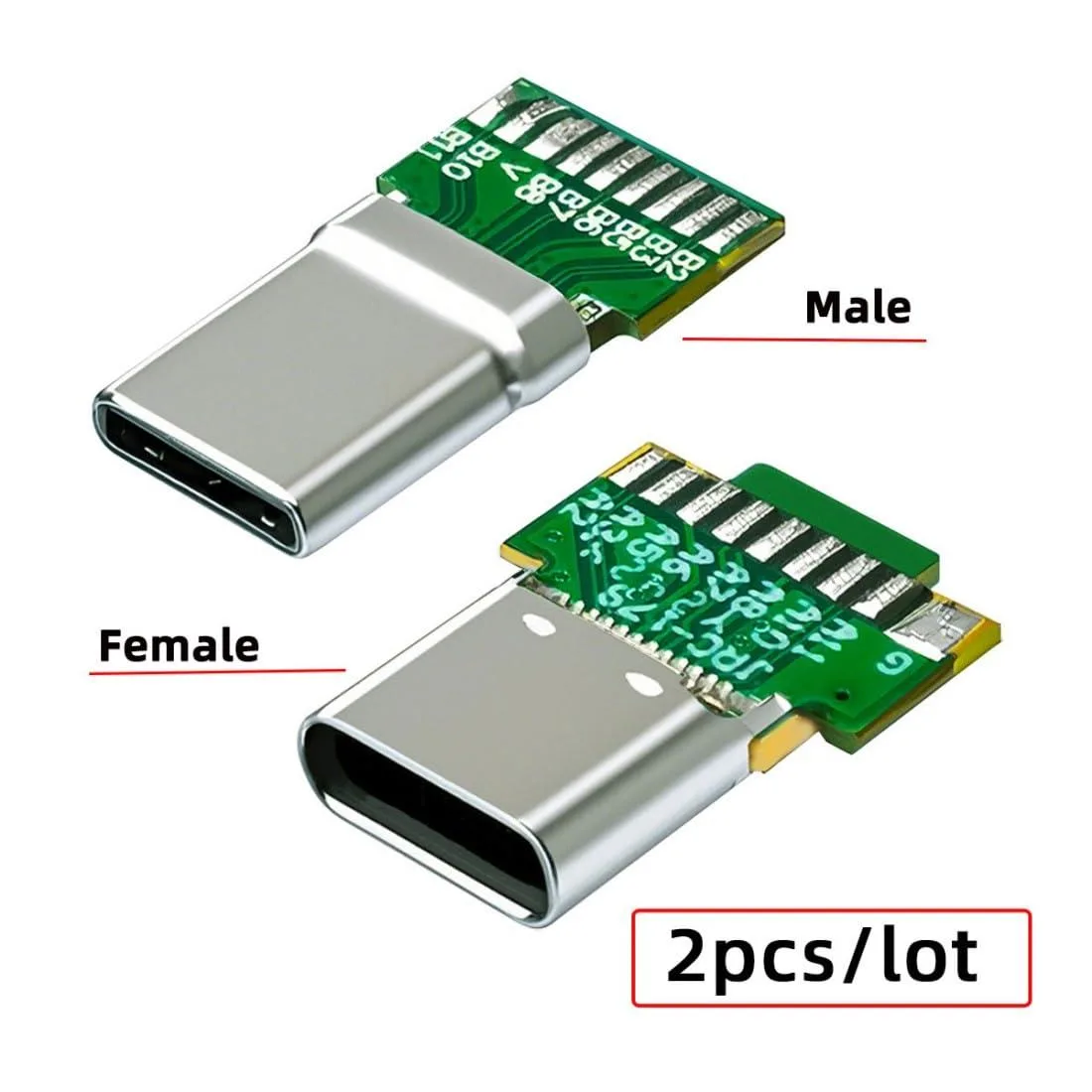

Two small USB-C solder connectors, one male and one female, on green PCB boards

Vszerda

Vszerda CN-036 USB C DIY Connector 2 Pack 18Pin 65W Solder Adapter

SKU CH-M3GV-DK7BR

Two solder-type USB-C connectors with 18-pin PCB supporting 10 Gbps data and 65 W power delivery

  • DIY solder connector for custom USB-C repairs
  • 18-pin PCB supports 10 Gbps data and 65 W power
  • Delivers up to 20 V 3.25 A with 65 W source
  • Powers Mac laptops tablets phones via USB-C
  • Pack includes one male and one female plug

DIY USB-C Solder Connector Kit

This two-pack provides one male and one female USB Type-C connector for custom cable builds or port repairs. Each unit features an 18-pin PCB layout rated for 10 Gbps data and 65 W power delivery. Soldering skill is required to attach wires to the exposed pads. The connectors suit laptops, tablets and phones that charge at up to 65 W.

Compact PCB Build and Daily Handling

The board measures 1.97 by 1.97 by 0.39 inches and weighs 8 grams, so it fits inside tight enclosures or existing cable hoods. Gold-plated contacts resist oxidation during repeated mating cycles. Because the pads are spaced for manual soldering, a fine-tip iron and flux are the only tools needed. Finished joints should be strain-relieved to prevent pad lift during daily plugging.

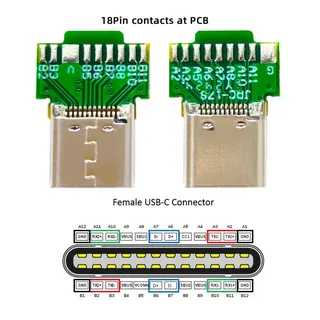

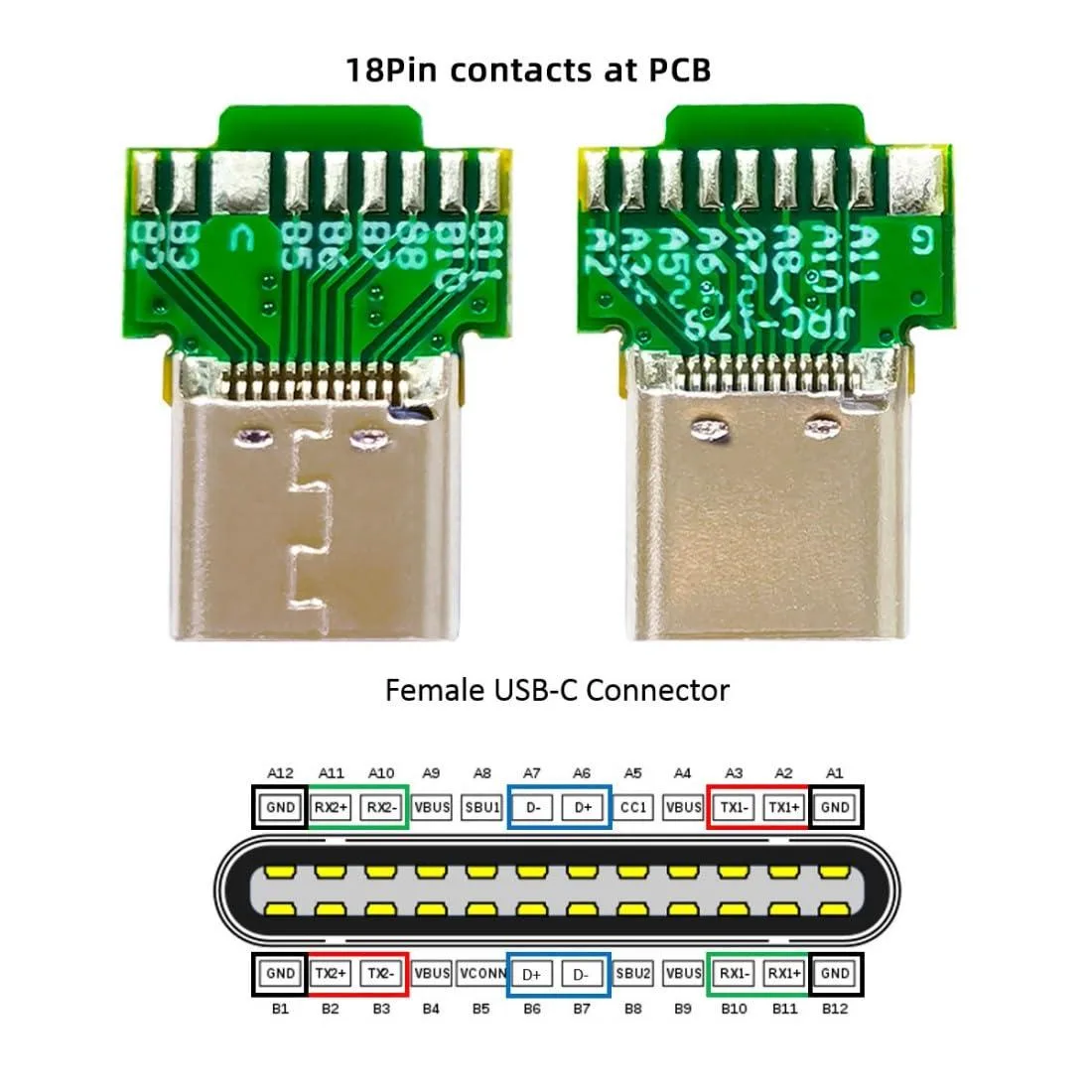

18-Pin Pinout Determines Compatibility

The 18-pin arrangement carries USB 3.1 Gen 2 data lanes plus the configuration channel and VBUS paths needed for 20 V at 3.25 A operation. Devices that demand alternate pin assignments or higher current will not negotiate correctly. Verify the target device schematic matches this pinout before ordering.

Highlights

  • DIY solder connector for custom USB-C repairs
  • 18-pin PCB supports 10 Gbps data and 65 W power
  • Delivers up to 20 V 3.25 A with 65 W source
  • Powers Mac laptops tablets phones via USB-C
  • Pack includes one male and one female plug

Specifications

No published specifications for this item yet.

Questions about this item

What data rate does the 18-pin USB-C pinout support?

The 18-pin pinout is specified for 10Gbps data transfer and 65W power delivery.

What are the physical dimensions of each connector?

The package measures 1.97 x 1.97 x 0.39 inches and contains both connectors weighing 8 grams total.

How do I attach the connector to my cable wires?

You must solder the wires to the PCB pads yourself; manual soldering proficiency is required.
