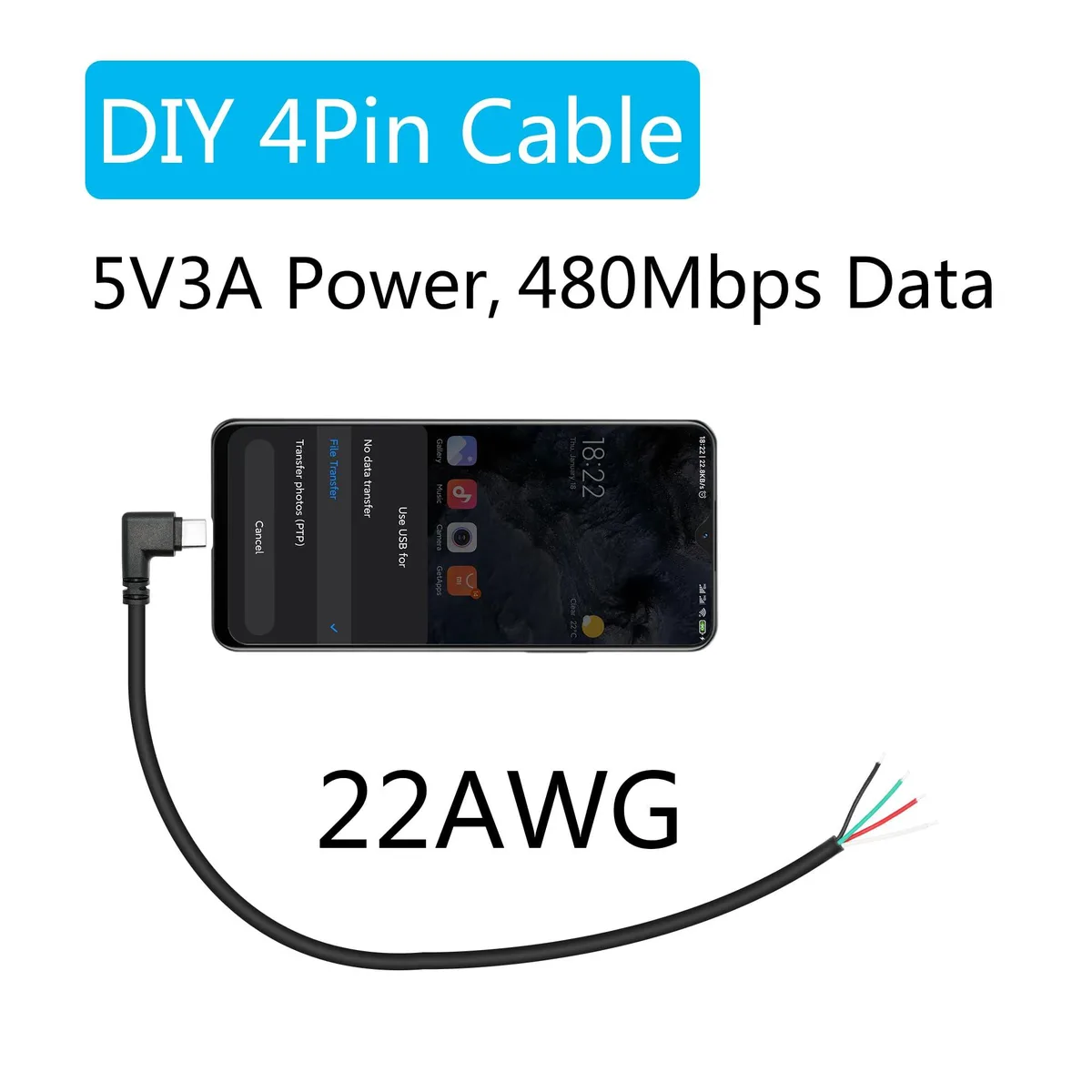

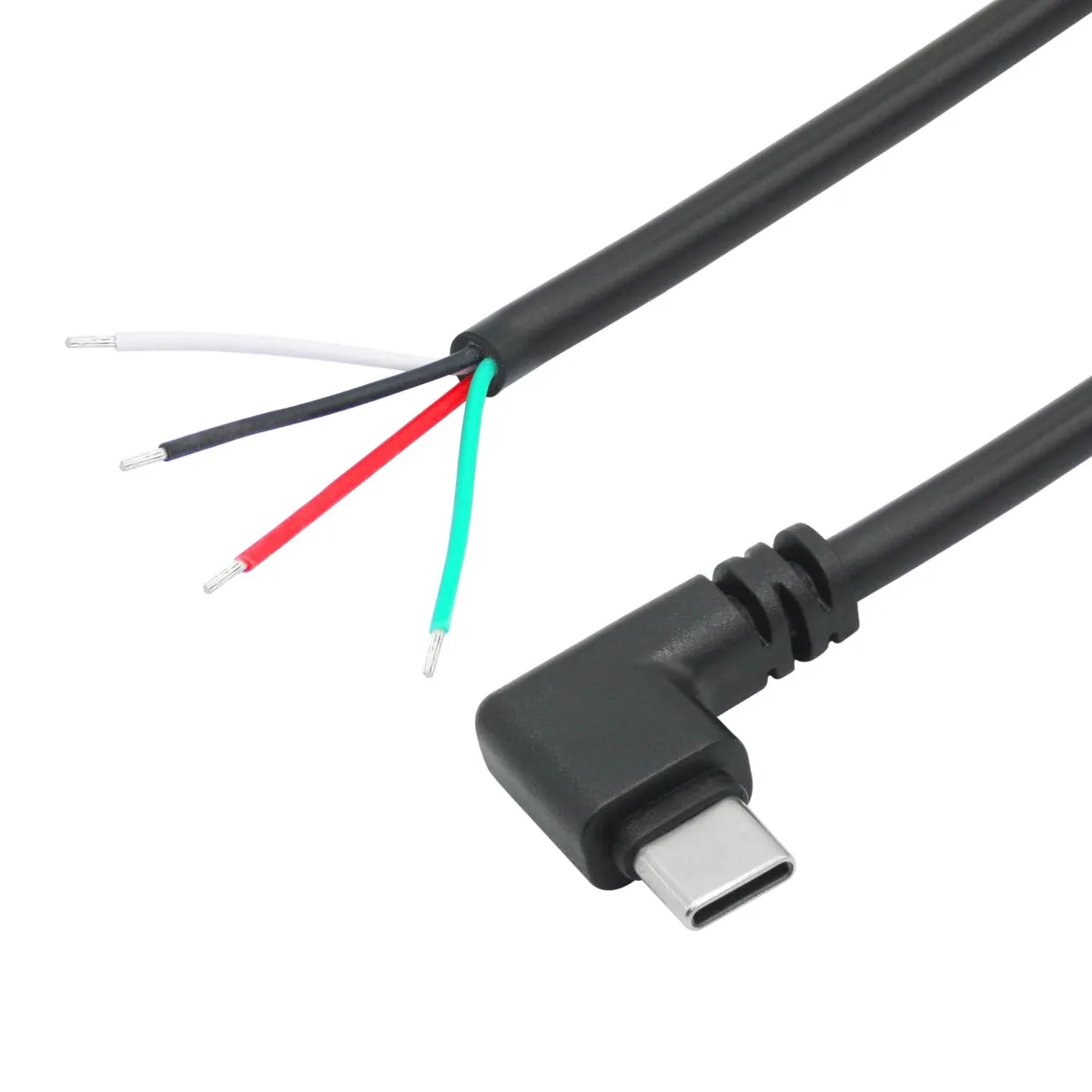

Two black right-angle USB-C plugs with four bare wires, eleven inches long

Vszerda

Vszerda 90° USB-C to 4-pin bare wire 11in 22AWG 480Mbps 2-pack

SKU CH-AY22-6A1CJ

Right-angle USB-C male to four-pin bare-wire pigtail, 11 in, 22 AWG, 480 Mbps data and 3 A charging, two-pack

  • TypeUSB
  • Connector TypeUSB Type C
  • ColorBlack
  • Connector Number4
  • Connector DetailUSB Type C
  • Terminal GenderMale-to-Male
  • Right-angle plug fits tight spaces with 90° design
  • 480 Mbps data plus 5 V 3 A charging through four colour-coded wires
  • 22 AWG all-copper cores inside flexible PVC jacket
  • Tinned bare-wire ends simplify soldering or screw-terminal connections
  • Two 11-inch cables included for DIY repairs or custom power projects

Right-angle USB-C DIY cable

The Vszerda 90° USB-C to 4-pin bare wire cable is built for makers and repair technicians who need a short, angled connection. Each 11-inch pigtail terminates in four colour-coded leads ready for soldering or screw terminals.

Replaces damaged straight plugs

The right-angle hood fits tight clearances where a straight connector would bend or block adjacent ports. The jump is worth it when the device sits flush against a wall, inside an enclosure, or beside other cables that leave no room for a straight plug.

Suits low-power 5 V projects

Hobbyists powering LED lamps, small fans or phone-charge circuits gain a tidy 3 A path with 480 Mbps data lines. Builds needing more than 3 A, longer runs, or a different pinout should look at other cable types.

Highlights

  • Right-angle plug fits tight spaces with 90° design
  • 480 Mbps data plus 5 V 3 A charging through four colour-coded wires
  • 22 AWG all-copper cores inside flexible PVC jacket
  • Tinned bare-wire ends simplify soldering or screw-terminal connections
  • Two 11-inch cables included for DIY repairs or custom power projects

Specifications

BrandMaixbomr
TypeUSB
Connector TypeUSB Type C
ColorBlack
Connector Number4
Connector DetailUSB Type C
Terminal GenderMale-to-Male
Speed480 megabits_per_second
ConstructionPVC
FeaturesCharging 3A, Data transmission, DIY Cable

Questions about this item

What clearance does the 90° USB-C plug need behind the device?

The right-angle plug extends sideways from the port, letting the 11 inch cable run parallel to the device so it fits through narrow gaps without stressing the connector.

How do I solder the four bare wires to my board?

The tinned 22AWG leads follow the colour code — red for 5 V positive, black for ground, white for D− and green for D+ — so each wire can be soldered directly to the matching pad.

When should I replace this pigtail cable?

Replace the cable if the PVC jacket shows cracking, the copper conductors become exposed, or the 90° plug no longer seats firmly in the USB-C port.
