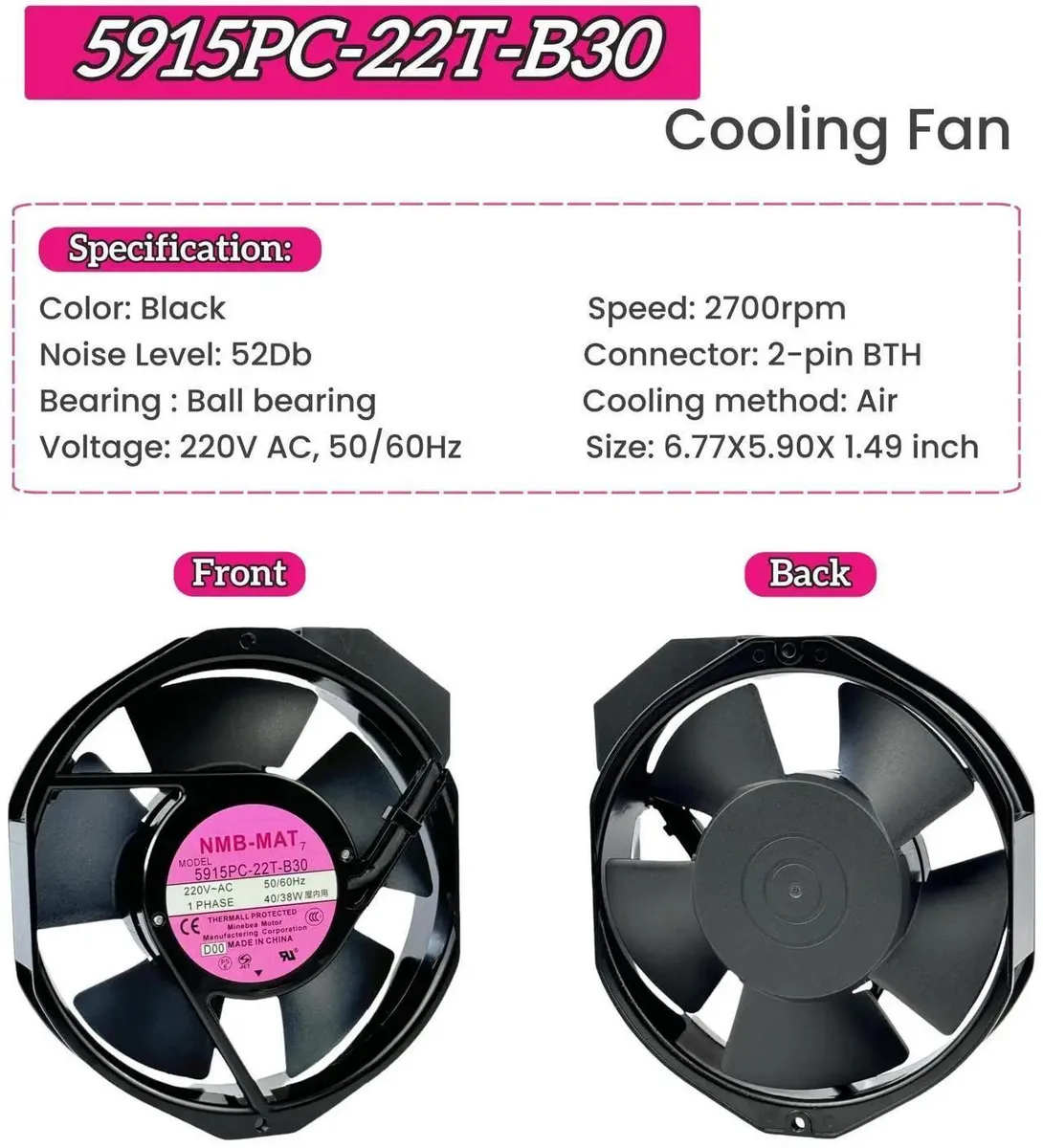

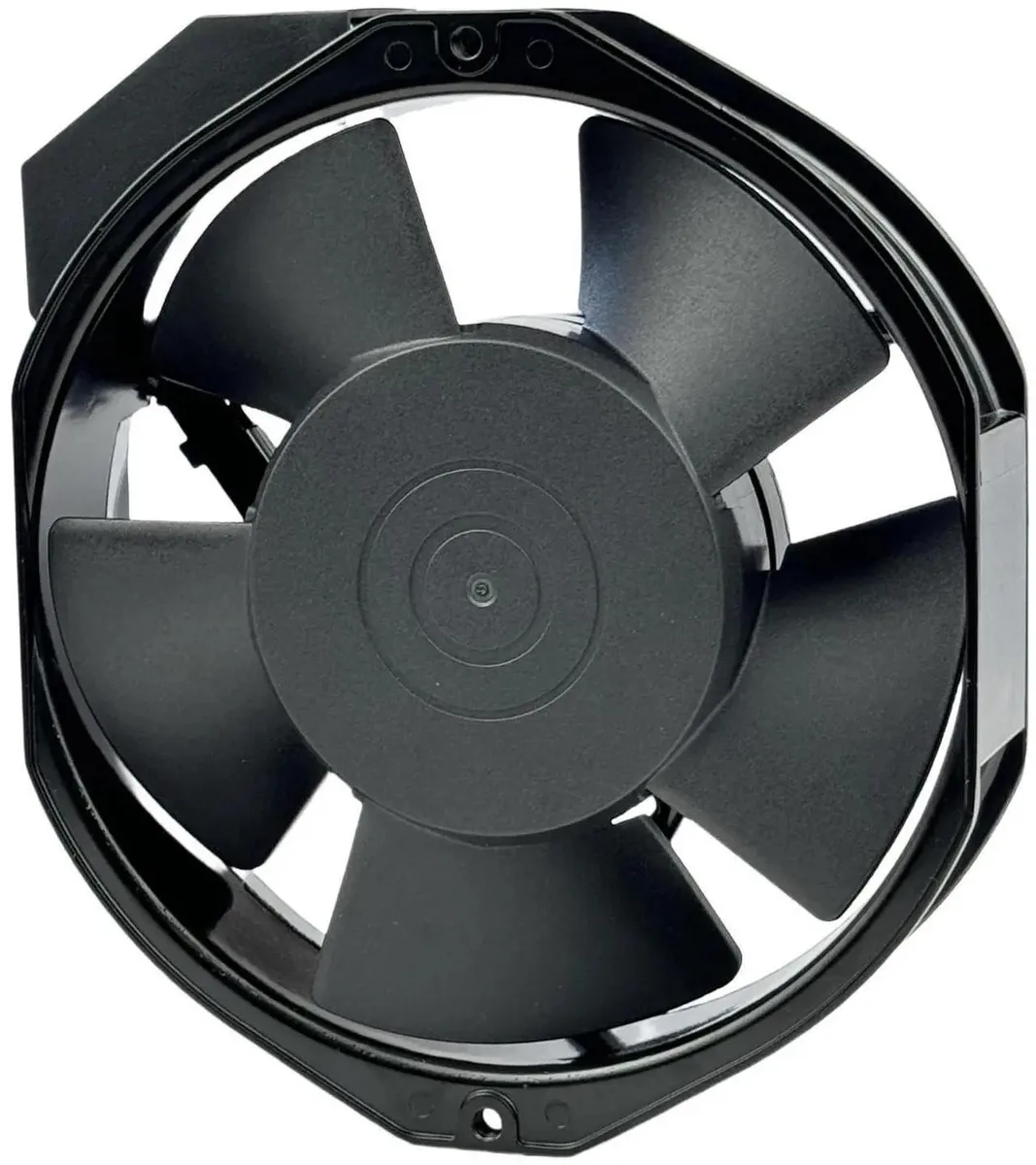

Vszerda 5915PC-22T-B30 220V 40W 172×150×38mm Cooling Fan

SKU CH-XYAY-65930 MPN 5915PC-22T-B30

220 V AC cooling fan, 40 W at 50/60 Hz, 172×150×38 mm, 2700 rpm, 52 dB, ball bearing, 2-pin BTH connector

  • Runs on standard 220 V AC power at 50/60 Hz
  • High-temperature metal housing resists heat in demanding enclosures
  • Ball-bearing design spins at 2700 rpm for reliable airflow
  • Compact 172×150×38 mm frame fits tight cabinet spaces
  • Low 52 dB noise keeps operating environment quiet

220V AC enclosure cooling fan

The Vszerda 5915PC-22T-B30 is a 220V AC axial fan built for inverter and enclosure cooling. It suits technicians and engineers who need a direct mains-powered replacement for a failed original unit. The 2-pin BTH connector allows a quick swap without rewiring. Ball-bearing construction supports continuous duty in industrial cabinets.

40W at 50/60Hz with 2700rpm airflow

At 50Hz the fan draws 40W and at 60Hz it draws 38W while spinning at 2700rpm. This output handles typical inverter enclosures and power-supply cabinets where steady forced-air cooling is required. The 52dB noise level means it is audible in quiet rooms, so it is less suited to noise-sensitive office or home-lab settings.

172×150×38mm metal frame with 2-pin BTH

The aluminium frame measures 172mm by 150mm by 38mm and uses a 2-pin BTH connector. Verify that the mounting holes and connector pitch match the existing cut-out before ordering. Builders needing a different voltage, connector type or thinner profile will need another model.

Highlights

  • Runs on standard 220 V AC power at 50/60 Hz
  • High-temperature metal housing resists heat in demanding enclosures
  • Ball-bearing design spins at 2700 rpm for reliable airflow
  • Compact 172×150×38 mm frame fits tight cabinet spaces
  • Low 52 dB noise keeps operating environment quiet

Specifications

No published specifications for this item yet.

Questions about this item

Will the 220V AC 50/60Hz input match the power supply in my existing inverter enclosure?

Yes — the fan runs on 220V AC at either 50Hz or 60Hz, so it connects directly to the same mains feed used by most inverter cabinets.

How can I confirm the 5915PC-22T-B30 is spinning at the rated 2700rpm once installed?

Listen for the steady 52dB airflow note and feel strong air movement at the 172×150mm outlet; a tachometer on the 2-pin BTH lead will read 2700rpm.

Does the box include mounting hardware or just the 172×150×38mm fan with its 2-pin BTH connector?

Only the fan unit itself is supplied — screws, gaskets or wiring adapters must be sourced separately.
