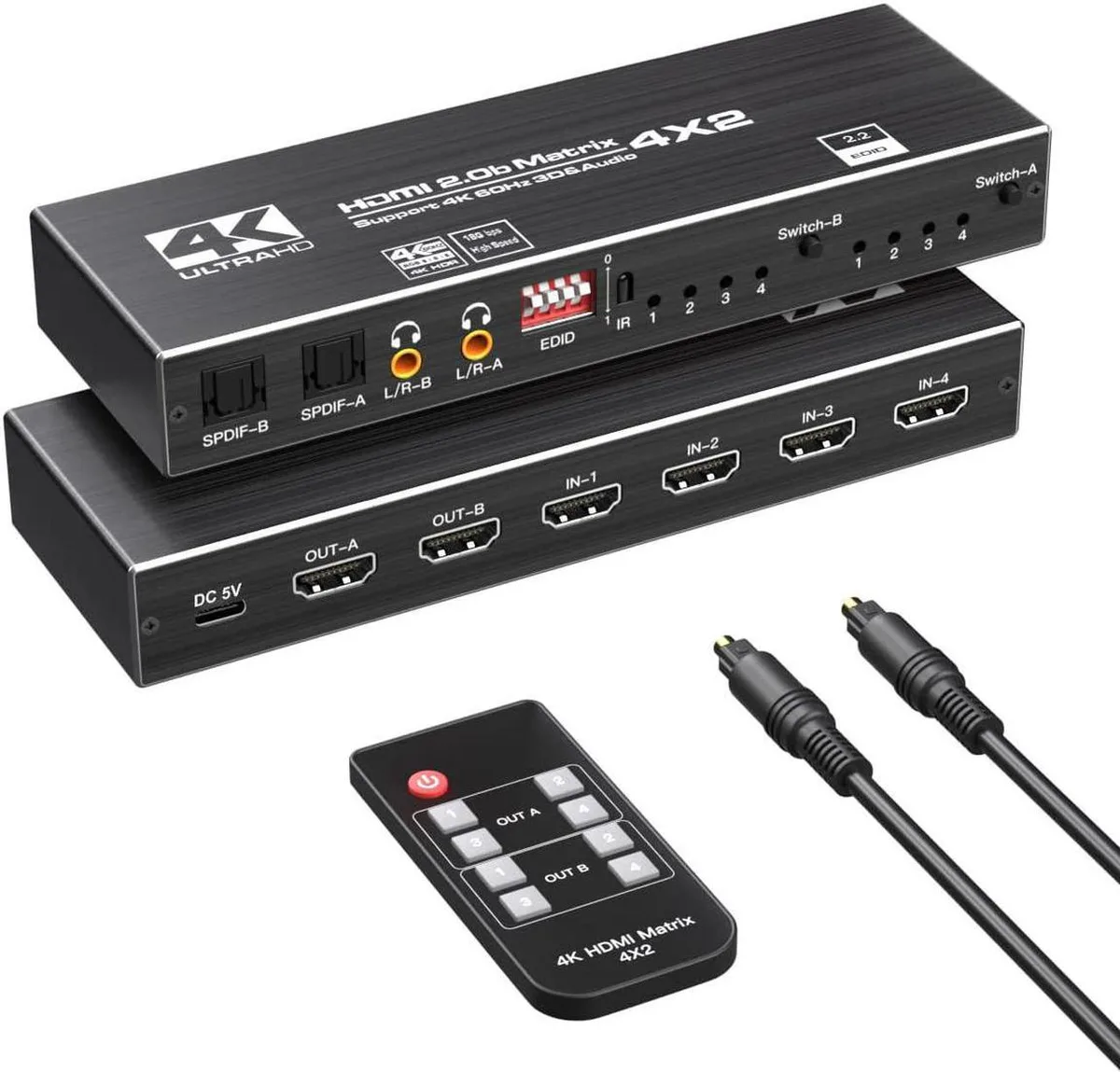

Black rectangular box 170 by 56 by 24 mm with four HDMI inputs and two outputs

Vszerda

Vszerda 4K HDMI Matrix Switch 4x2 KVM Switch

SKU CH-8H8A-6C4WA

Routes four HDMI sources to two displays at 3840×2160 60 Hz with HDMI 2.0b and HDCP 2.2 plus optical and 3.5 mm audio extraction

  • Connect four sources to two displays with 4x2 matrix switching
  • Enjoy 4K@60Hz resolution up to 3840x2160 with 18.5Gbps bandwidth

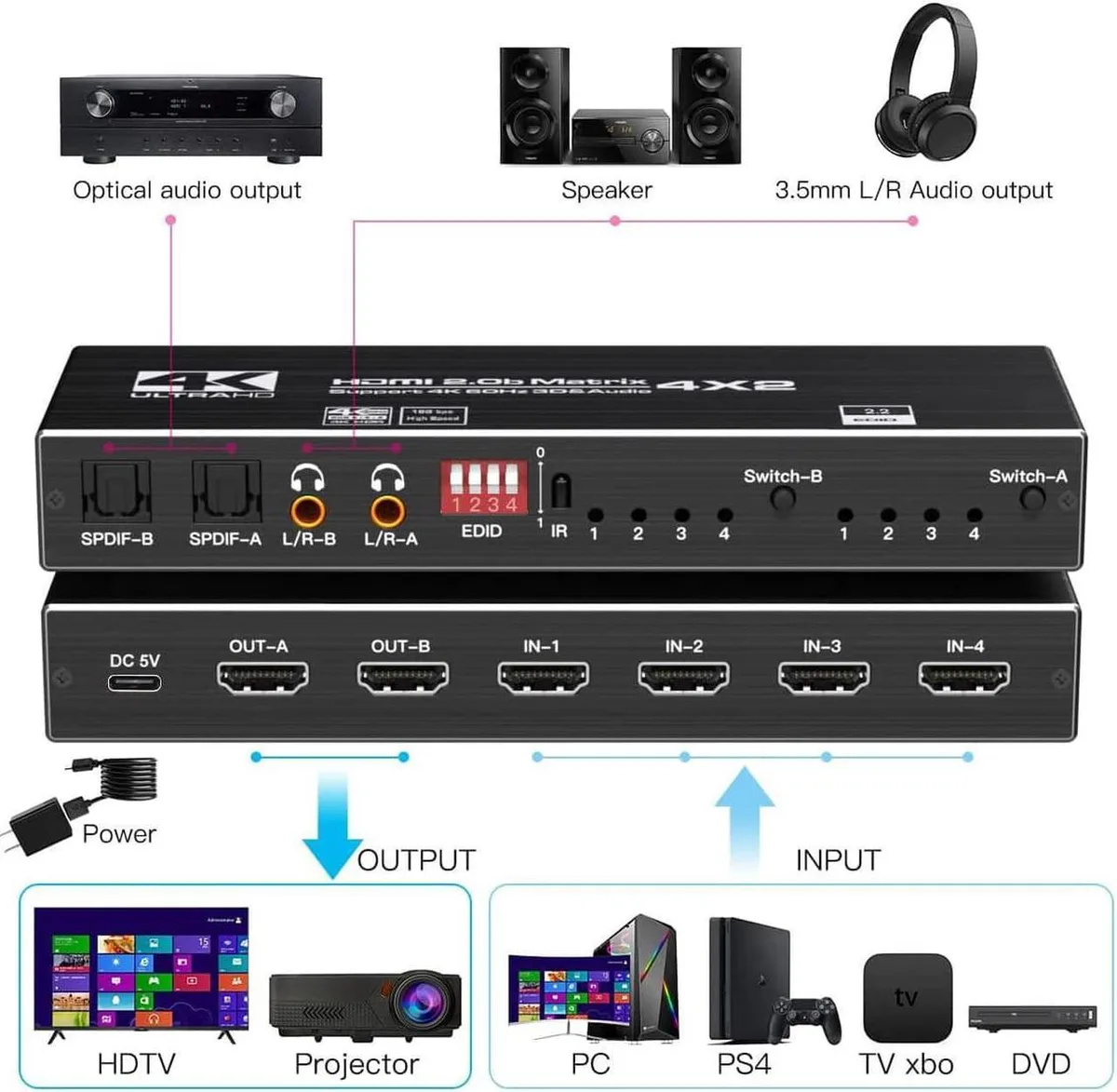

  • Extract audio via 3.5mm stereo and optical Toslink outputs simultaneously
  • Control switching conveniently with included IR remote controller
  • Compact 170x56x24mm design fits any entertainment or work setup

4x2 HDMI Matrix Switch

The Vszerda 4K HDMI Matrix Switch connects four HDMI sources to two displays. It switches or splits signals between monitors or projectors. HDMI 2.0b and HDCP 2.2 support handle protected content. A DC 5V power supply is included for operation.

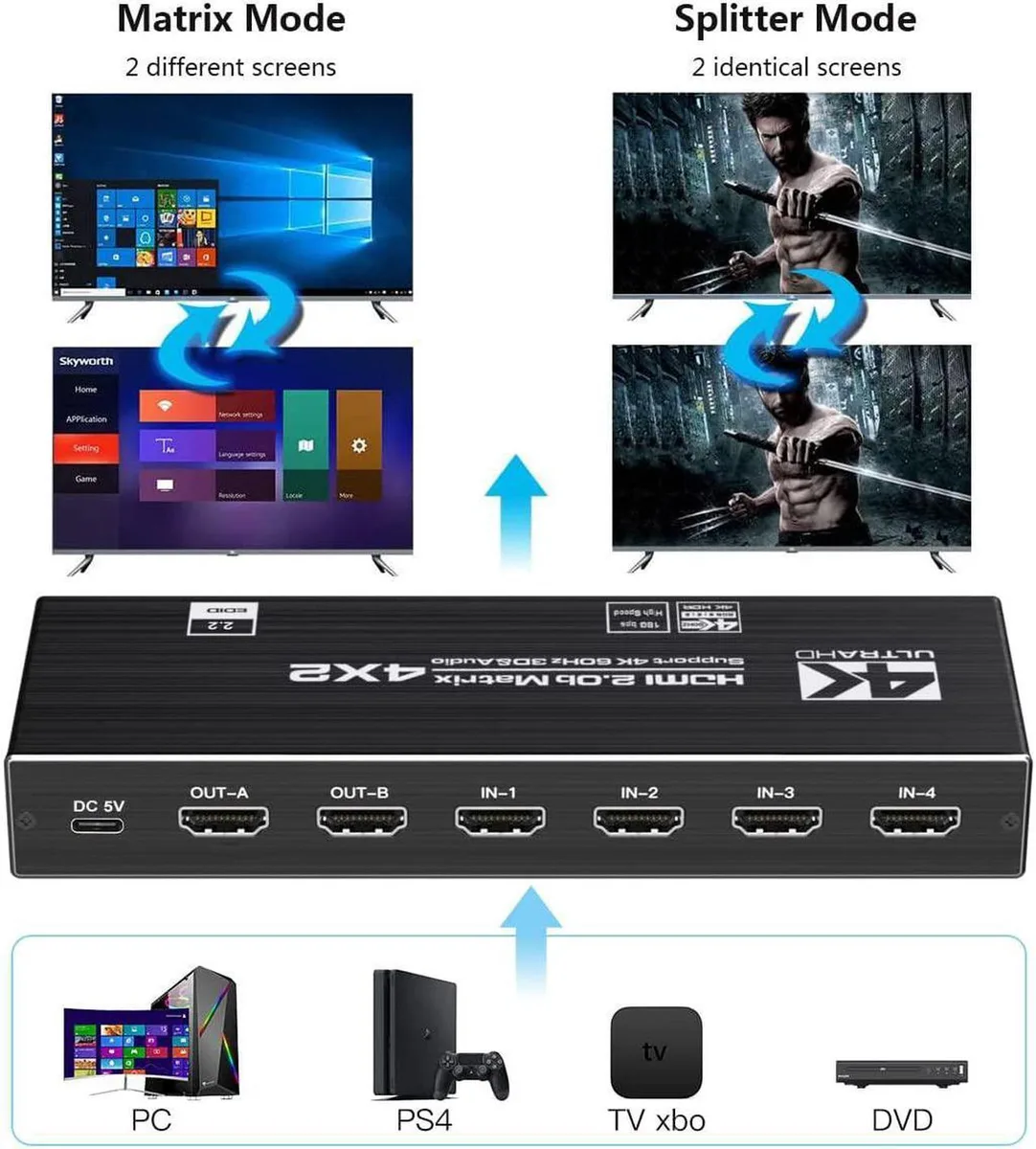

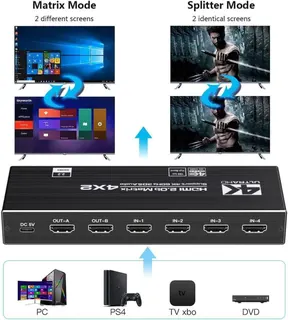

Matrix switching for multi-display setups

This unit suits users routing four sources like consoles, PCs, or streamers to two screens simultaneously. It fits home theatres, conference rooms, and multi-monitor workstations. Builders needing more than two outputs or different video interfaces should consider other solutions.

4K@60Hz 18.5Gbps bandwidth

The switch passes 3840x2160 at 60 Hz with RGB 4:4:4 colour. It supports 18.5 Gbps data rate and TMDS clock up to 600 MHz. Deep colour up to 48-bit and 3D formats are also supported. This bandwidth determines compatibility with high-refresh 4K sources.

Highlights

  • Connect four sources to two displays with 4x2 matrix switching
  • Enjoy 4K@60Hz resolution up to 3840x2160 with 18.5Gbps bandwidth
  • Extract audio via 3.5mm stereo and optical Toslink outputs simultaneously
  • Control switching conveniently with included IR remote controller
  • Compact 170x56x24mm design fits any entertainment or work setup

Specifications

No published specifications for this item yet.

Questions about this item

What does 4K@60Hz actually deliver on my monitors?

Each output can show up to 3840×2160 at 60 Hz with RGB 4:4:4 colour, so text stays sharp and motion remains smooth on both screens simultaneously.

How does the HDMI 2.0b and HDCP 2.2 spec limit what I can pass through?

The 18.5 Gbps bandwidth caps you at 4K 60 Hz 4:4:4; higher refresh rates or 8K signals will not pass, but all current 4K sources at 60 Hz are fully supported.

What space and power do I need to install the unit?

The box measures 170×56×24 mm and weighs 0.175 kg; it runs from a 5 V DC supply drawing up to 600 mA, so a standard USB-style adapter is sufficient.
