Compact aluminium capture card with HDMI ports USB Type-C and 3.5 mm audio jacks

Vszerda

Vszerda 4K HDMI Capture Card USB/Type-C 1080p 60fps Loop-Out 3.5mm Mic

SKU CH-JR36-WGTT2

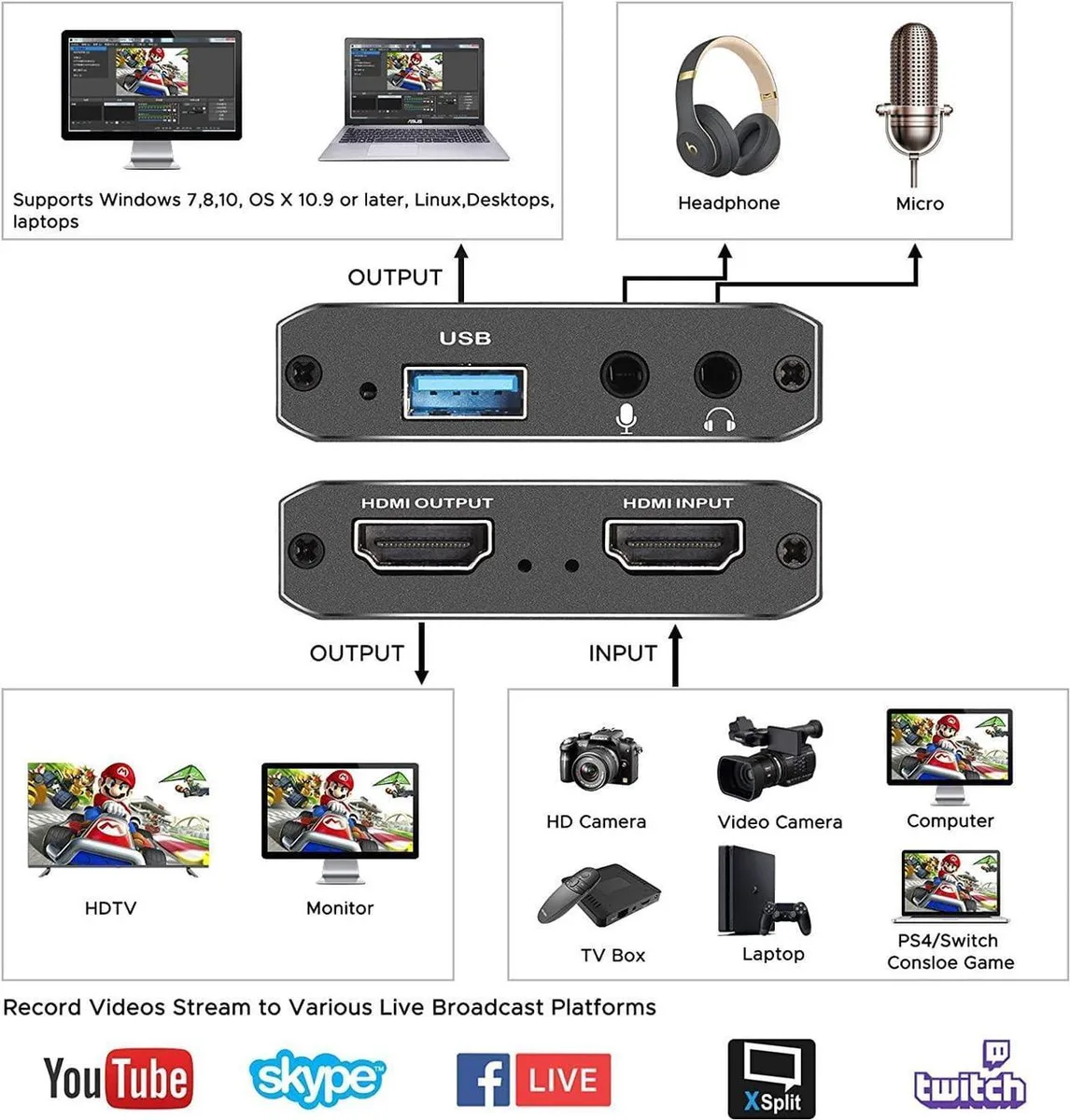

Captures 4K HDMI input at 60 fps and streams 1080p at 60 fps via USB 2.0 or 3.0 with a 3.5 mm mic port and loop-out

  • 4K@60fps HDMI input for sharp gameplay capture
  • 1080p@60fps USB streaming with low latency
  • HDMI loop-out up to 4K@30fps for lag-free local play
  • 5mm mic and headphone ports for live commentary
  • Plug-and-play on Windows, Mac OS X 10.9+ and Linux

Capture Card for Streaming and Recording

The Vszerda capture card accepts HDMI input up to 4K@60fps and delivers 1080p@60fps video over USB 2.0 or 3.0. It works with Windows 7, 8, 10, Mac OS X 10.9 or above and Linux without driver installation. Console players, camera users and conference hosts can start streaming to OBS, Twitch or YouTube immediately. Not for users who need 4K@60fps capture over USB.

Thermals Noise and Power Draw

The aluminium alloy shell dissipates heat passively during extended sessions. No fan is present, so the device adds no audible noise to a streaming setup. Power is drawn directly from the USB 2.0 or 3.0 port, requiring no external adapter. Builders with limited USB power budget should verify port capacity.

Microphone and Loop-Out Features

A 3.5mm microphone input lets you add live commentary to gameplay or presentations. The 3.5mm audio output routes headphone monitoring without latency. HDMI loop-out passes the source signal to a display at up to 4K@30fps while the USB stream runs at 1080p@60fps. Users who need simultaneous 4K recording and 4K pass-through should look elsewhere.

Highlights

  • 4K@60fps HDMI input for sharp gameplay capture
  • 1080p@60fps USB streaming with low latency
  • HDMI loop-out up to 4K@30fps for lag-free local play
  • 5mm mic and headphone ports for live commentary
  • Plug-and-play on Windows, Mac OS X 10.9+ and Linux

Specifications

No published specifications for this item yet.

Questions about this item

How do I hook up the Vszerda capture card and its 3.5 mm microphone jack without missing a step?

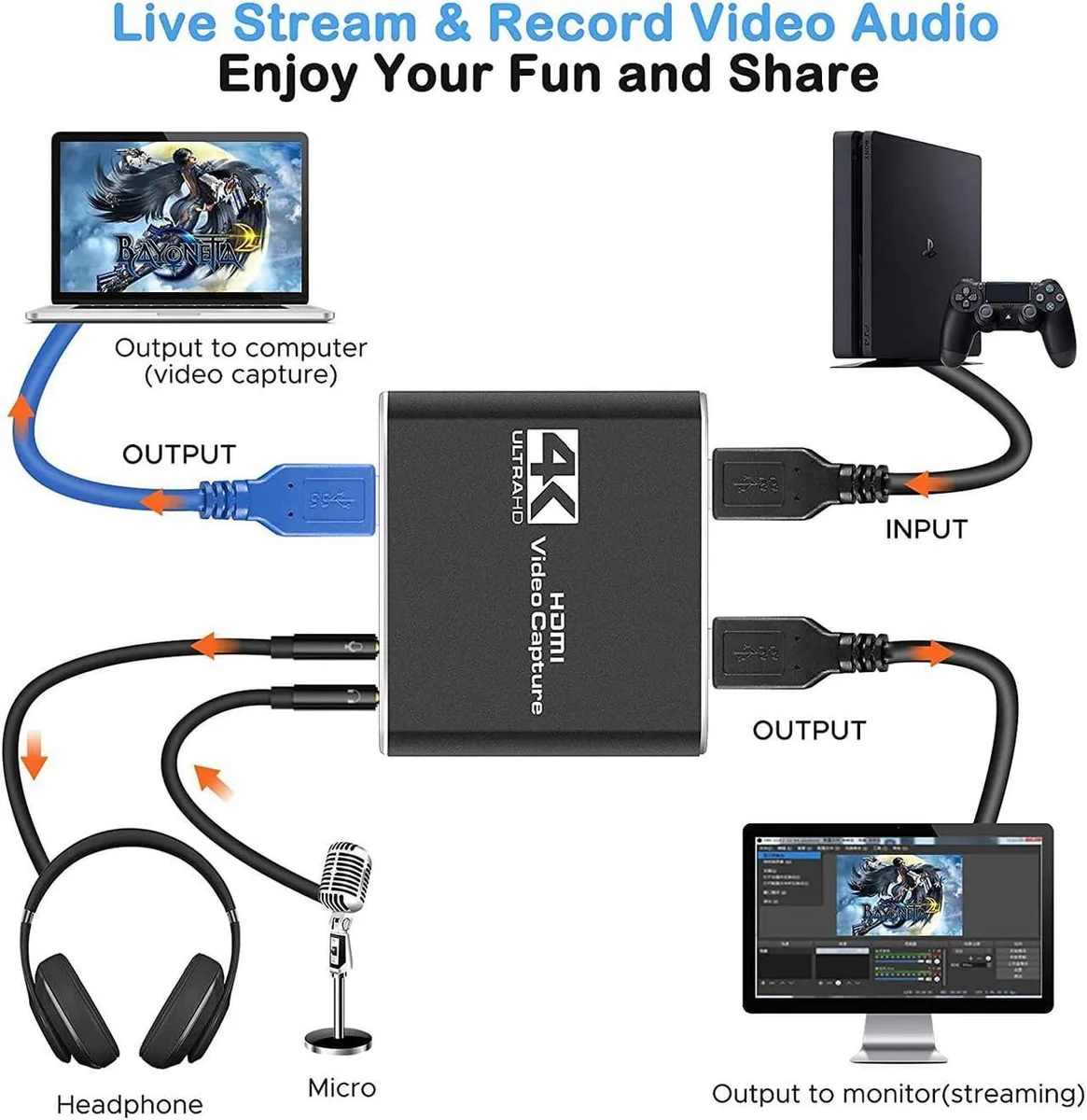

Connect the HDMI source to the input, run the USB or Type-C cable to the computer, plug headphones or a mic into the 3.5 mm port, then select the device in OBS or similar software; the common mistake is forgetting to set the 3.5 mm jack as the audio input in the streaming app.

What upkeep will the aluminium-alloy capture card and its 3.5 mm ports need over time?

No scheduled maintenance is required; occasionally blow dust from the HDMI and USB connectors and check the 3.5 mm jacks for debris, but the aluminium shell has no moving parts or filters to replace.

At what point does the 1080p 60 fps USB 2.0 stream become the bottleneck during long sessions?

The USB 2.0 link caps the recorded stream at 1080p 60 fps, so extended broadcasts cannot exceed that resolution or frame rate even though the HDMI input accepts 4K 60 fps and the loop-out can pass 4K 30 fps.
