Green circuit board with four red SATA ports silver heatsink and gold PCIe connector

Vszerda

Vszerda 4-Port SATA 3.0 PCIe Card Low Profile Bracket

SKU CH-034P-R35KD

Adds four SATA 3.0 ports via a PCIe slot using a Marvell 88SE9215 chipset and includes cables plus a low-profile bracket

  • Adds four SATA 3.0 ports for simultaneous drive connection up to 6Gbps

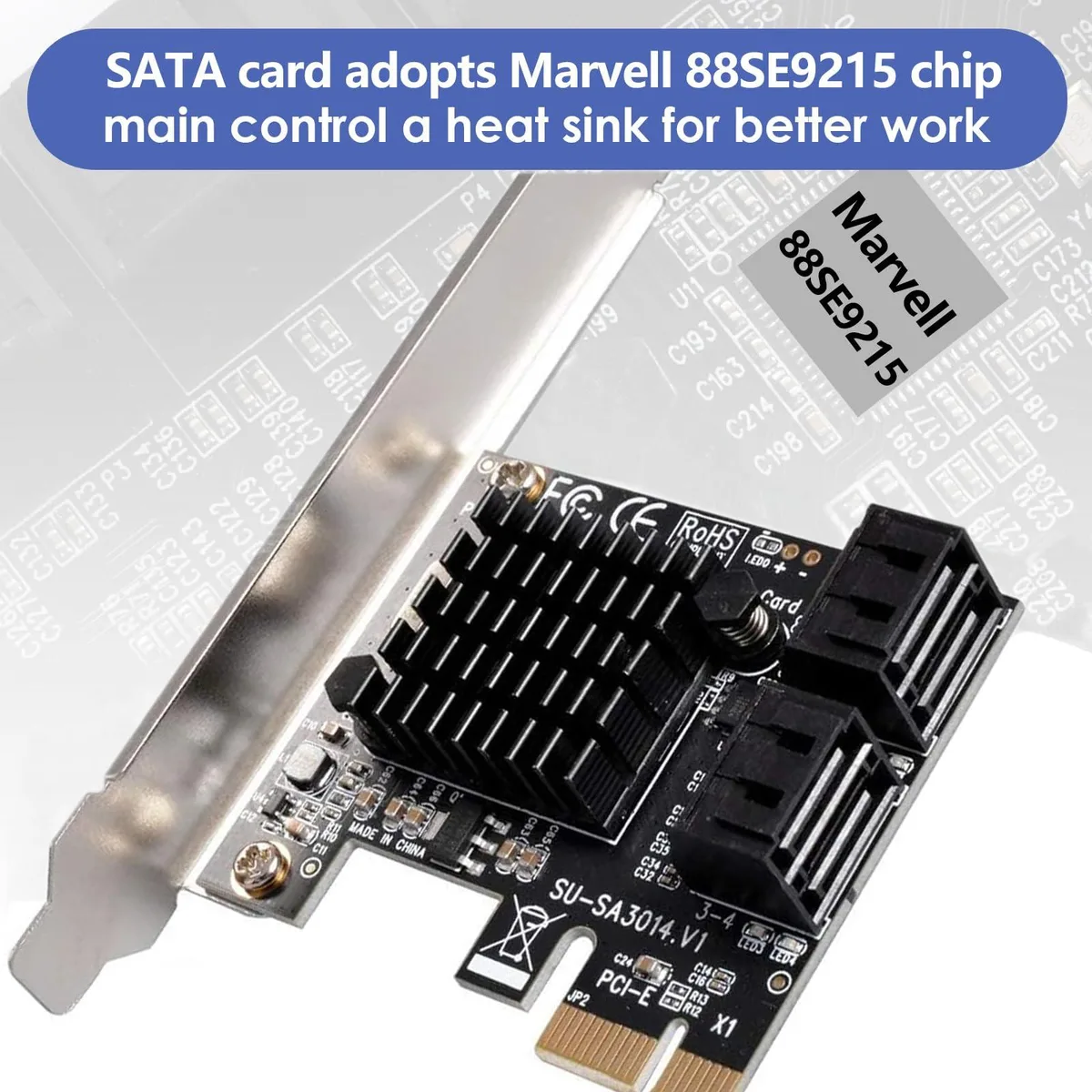

  • Marvell 88SE9215 chipset with heatsink improves stability and high-temperature resistance
  • Works in PCIe x1, x4, x8 and x16 slots across Windows, Mac and Linux
  • Low-profile bracket and four SATA cables included for compact builds
  • Function-tested hardware backed by 12-hour support response

What this card adds

This PCIe expansion card adds four SATA 3.0 ports so you can connect up to four SATA hard drives at once. It uses a Marvell 88SE9215 chipset and includes a heat sink for stable operation. The package supplies the card, four SATA cables, a low-profile bracket and a small screwdriver for installation.

Bandwidth and slot limits

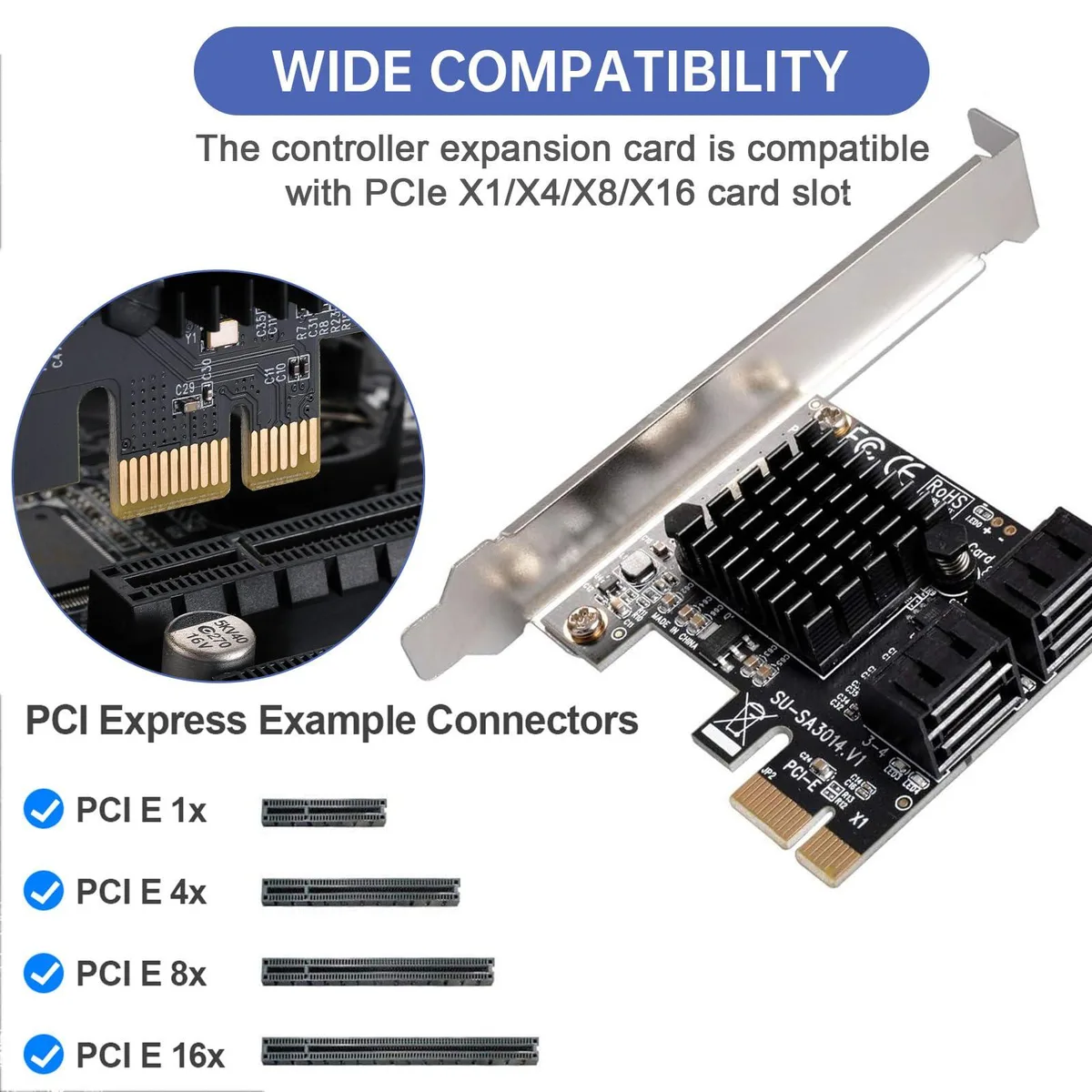

Each port runs at up to 6 Gbps, the native speed of the SATA 3.0 interface. The card fits PCIe x1, x4, x8 and x16 slots, but the single-lane electrical connection caps total throughput to the bandwidth of one PCIe lane. Drives that need more bandwidth than a single lane provides will not reach their peak rate.

Build and mounting notes

A low-profile bracket is included so the card fits slim cases without extra parts. The board carries a heat sink that helps the Marvell chipset handle sustained loads. Four cables are bundled, matching the four ports exactly. Buyers who need more than four drives or a different interface will need another solution.

Highlights

  • Adds four SATA 3.0 ports for simultaneous drive connection up to 6Gbps
  • Marvell 88SE9215 chipset with heatsink improves stability and high-temperature resistance
  • Works in PCIe x1, x4, x8 and x16 slots across Windows, Mac and Linux
  • Low-profile bracket and four SATA cables included for compact builds
  • Function-tested hardware backed by 12-hour support response

Specifications

No published specifications for this item yet.

Questions about this item

How many SATA 3.0 ports does this card provide?

The card adds four SATA 3.0 ports, allowing up to four drives to be connected at once.

What throughput can I expect from the SATA 3.0 ports once the card is installed?

Each port runs at up to 6 Gbps, so the actual transfer rate depends on the drive and system but will not exceed the SATA 3.0 limit.

Which PCIe slot sizes accept this x1 card?

It fits x1, x4, x8 and x16 slots because the edge connector is electrically x1 and physically compatible with larger slots.
