Green circuit board with four M.2 slots and gold PCIe x16 edge connector

Vszerda

Vszerda 4-Port M.2 NVMe PCIe x16 Adapter (ph44)

SKU CH-DTST-YTF4R

Adds four NVMe drives at up to 32 Gbps each over a PCIe x16 slot with LED status lights

  • Expands four drives at 32Gbps each via PCIe x16
  • Supports PCIe 3.0 and 4.0 with motherboard bifurcation
  • Thick PCB construction stabilises the x16 connector and protects data
  • High-power DC chip prevents drive drops and speed loss
  • Four LED indicators give instant per-drive status

Vszerda 4-Port M.2 NVMe Adapter

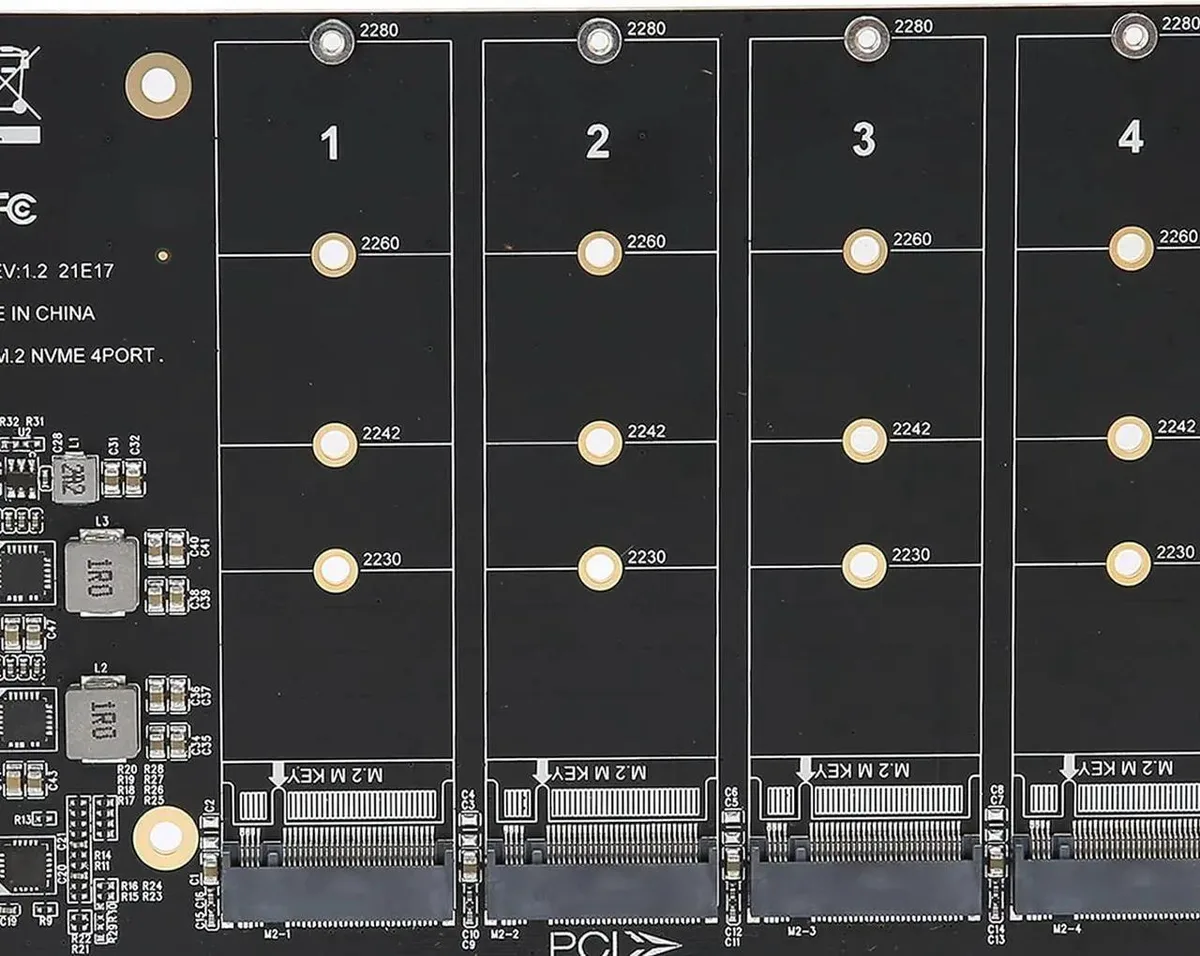

This PCIe x16 add-in card expands a single slot into four M.2 NVMe drive positions. It is built for workstations and servers that need high-density local storage without occupying extra expansion slots. The board accepts four M-key NVMe SSDs and uses a thick PCB to keep the x16 connector stable. Each drive has a dedicated LED indicator for quick status checks.

PCIe Bifurcation Requirement

The card delivers four simultaneous 32Gbps links only when the host platform supports PCIe bifurcation or PCIe RAID. Compatible chipsets include X299 and X399 desktop platforms as well as server motherboards that expose the splitting function. Without bifurcation the adapter will not present all four drives at full speed.

Sustained Operation Stability

A high-power DC power stage supplies each NVMe device independently to prevent voltage droop under continuous load. The design targets zero drive drops, no throttling and no data blocking during long sequential reads or writes. Thicker PCB traces and reinforced power delivery keep all four SSDs running at their rated PCIe 3.0 and 4.0 rates for extended periods.

Highlights

  • Expands four drives at 32Gbps each via PCIe x16
  • Supports PCIe 3.0 and 4.0 with motherboard bifurcation
  • Thick PCB construction stabilises the x16 connector and protects data
  • High-power DC chip prevents drive drops and speed loss
  • Four LED indicators give instant per-drive status

Specifications

No published specifications for this item yet.

Questions about this item

What does the 32 Gbps per port figure mean once the card is installed in a real machine?

Each M.2 slot can deliver up to 32 Gbps of bandwidth when the motherboard provides PCIe 4.0 lanes and bifurcation support for all four ports simultaneously.

Which PCIe standard does the x16 interface use and what does that cap in practice?

The card supports PCIe 3.0 and 4.0 protocols; actual speed is limited by the motherboard's lane allocation and whether it enables PCIe bifurcation or RAID.

What does the card physically need to fit and mount inside a PC?

It requires a full-size PCIe x16 slot and enough clearance for the four M.2 NVMe modules plus the onboard LED indicators and DC power circuitry.
