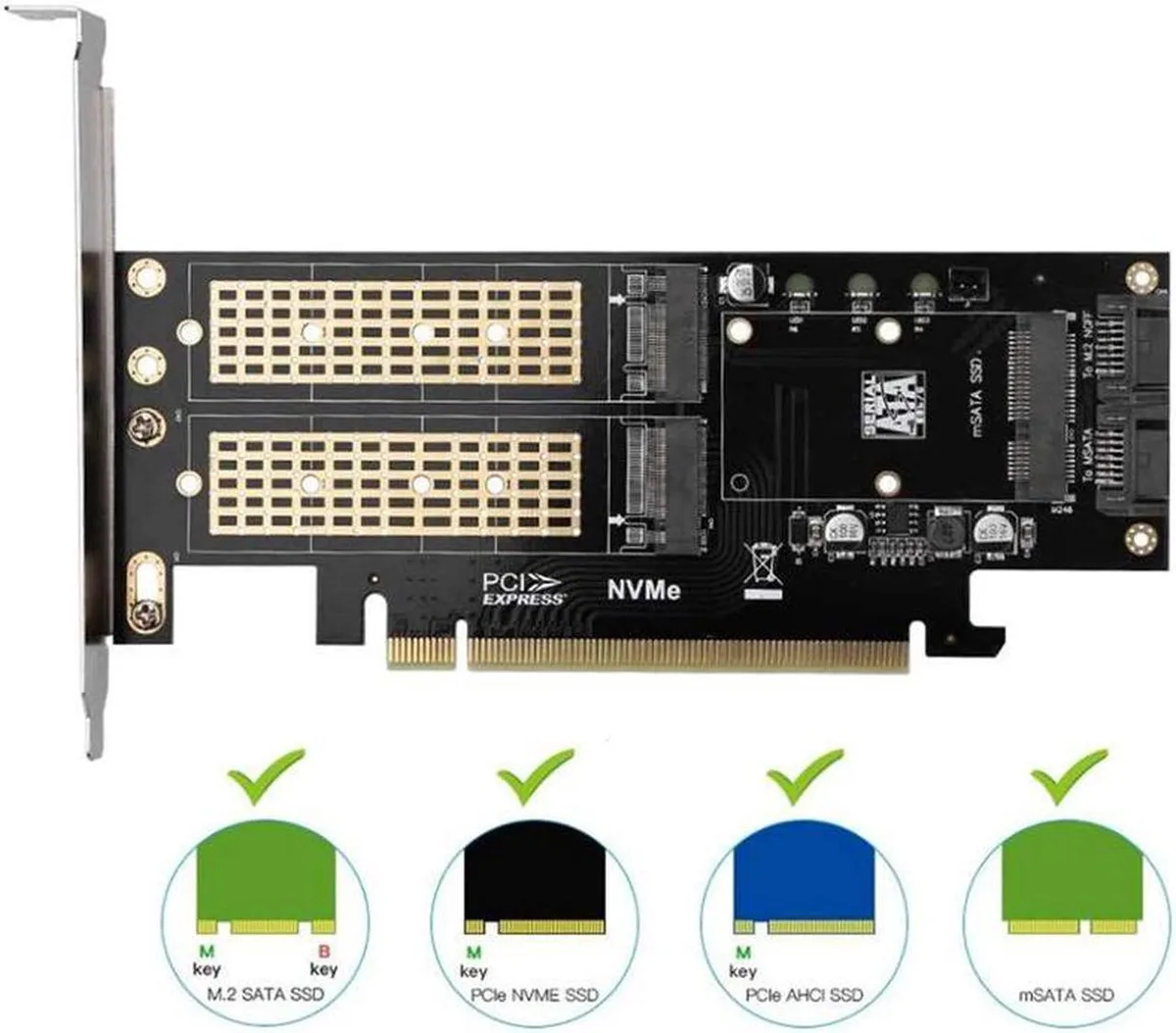

Black PCIe 16X adapter card with M.2 slots and two SATA cables

Vszerda

Vszerda 3-in-1 NGFF mSATA SSD Adapter Card PCIe 16X SATA 6.0Gbps

SKU CH-AXX5-E48FD

Connects one B-key and one M-key NGFF SSD plus an mSATA drive to a PCIe 16X slot, supports 2230, 2242, 2260 and 2280 lengths, SATA 6.0Gbps data transfer, no driver or extra power needed

  • Connect B-key and M-key NGFF SSDs simultaneously via PCIe 16X
  • SATA III interface delivers up to 6.0Gbps transfer for B-key drives
  • Supports four NGFF lengths: 2230, 2242, 2260, 2280
  • PCIe 3.0 compliant with 39Gbps bandwidth for M-key NVME SSDs
  • Driver-free, no extra power needed, works with Windows, Mac, Linux

Vszerda NGFF mSATA PCIe Adapter Card

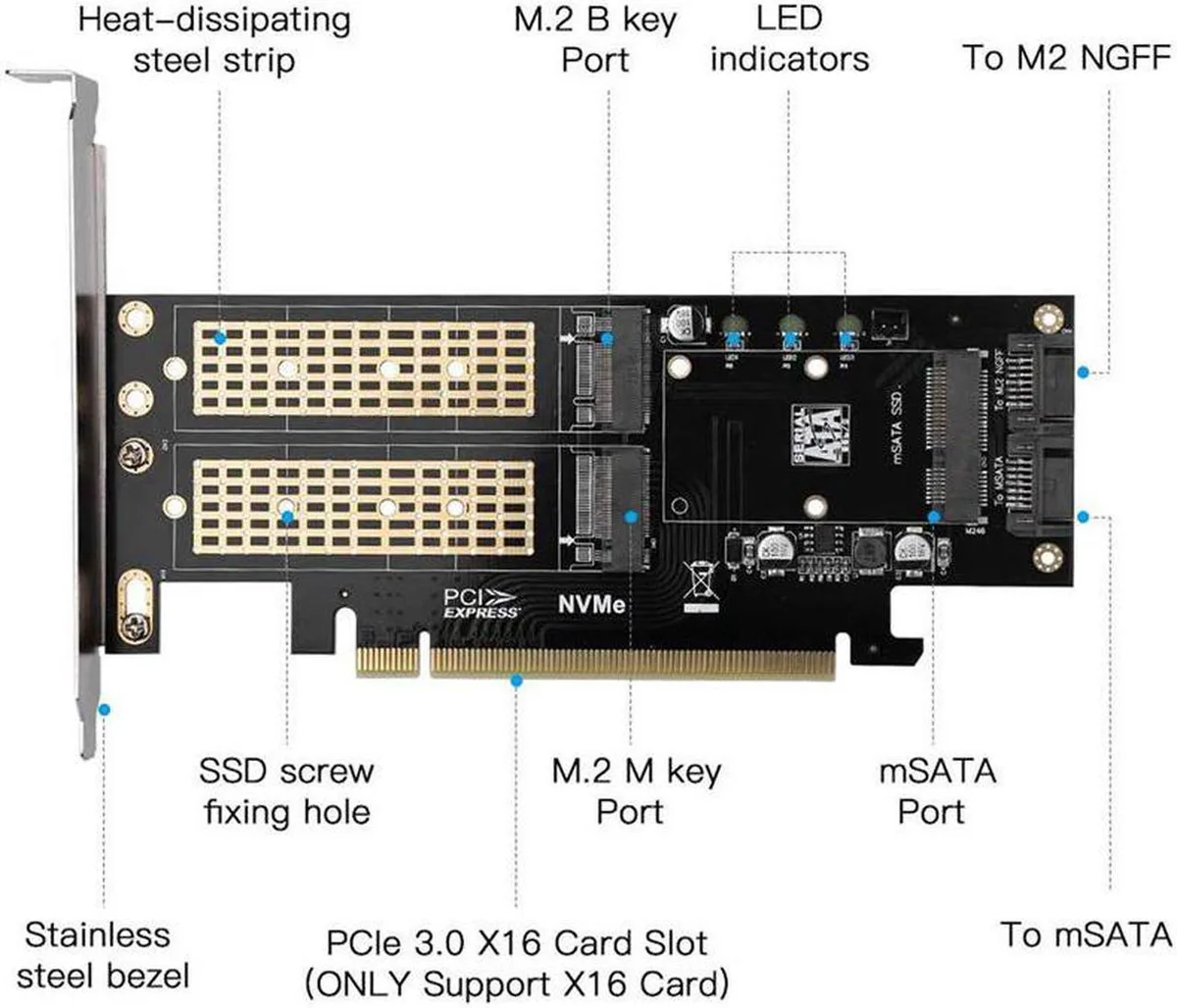

This Vszerda adapter lets a desktop motherboard accept one B-key SATA NGFF drive and one M-key PCIe NGFF drive at the same time through a single PCIe 16X slot. It also includes a dedicated mSATA connector and two SATA cables for the B-key device. No extra power or drivers are needed, and the card works with Windows, macOS and Linux out of the box.

For multi-drive upgrades on PCIe 16X slots

Builders who want to add both a SATA and an NVME M.2 drive without occupying multiple expansion slots will find this card a compact solution. It is not suited for systems that lack a PCIe 16X connector running at version 2.0 or higher, nor for users who need to install more than two M.2 devices simultaneously.

Capacity headroom and limits

The card supports four common NGFF lengths: 2230, 2242, 2260 and 2280, so most consumer M.2 modules fit without modification. The SATA pathway tops out at 6.0 Gbps, while the PCIe pathway is compliant with a 39 Gbps PCIe 3.0 link, giving ample headroom for current NVME drives.

Highlights

  • Connect B-key and M-key NGFF SSDs simultaneously via PCIe 16X
  • SATA III interface delivers up to 6.0Gbps transfer for B-key drives
  • Supports four NGFF lengths: 2230, 2242, 2260, 2280
  • PCIe 3.0 compliant with 39Gbps bandwidth for M-key NVME SSDs
  • Driver-free, no extra power needed, works with Windows, Mac, Linux

Specifications

No published specifications for this item yet.

Questions about this item

What motherboard slot must I already have free to install this adapter card?

A PCIe 16X slot, version 2.0 or higher, is required for the M key SSD to function.

Will a SATA-based M.2 drive still reach 6.0 Gbps when used with this card?

Yes, the SATA 3.0 interface on the B key supports up to 6.0 Gbps data transfer.

How can I confirm both NGFF SSDs are recognised after fitting the card?

Check the OS disk manager or BIOS; each drive should appear as a separate block device once the SATA cable is connected for the B key SSD.
