Green PCB adapter card with two silver aluminum heatsinks and LED indicators

Vszerda

Vszerda 3-in-1 M.2 mSATA SSD Adapter Card with 2 Aluminum Heatsinks

SKU CH-8JRX-S4Z9J

A single PCIe card hosts one NVMe M.2, one SATA M.2 and one mSATA drive at once, with two aluminium heatsinks and status LEDs

  • Supports three SSD types simultaneously for maximum storage flexibility
  • NVME M.2 runs at PCIe 3.0 x4 32 Gbps bandwidth
  • SATA M.2 and mSATA operate at SATA 6 Gbps speeds
  • Two aluminum heatsinks with copper-hole PCB dissipate heat effectively
  • Includes regular and low-profile brackets plus two SATA cables

3-in-1 M.2 mSATA Adapter Card

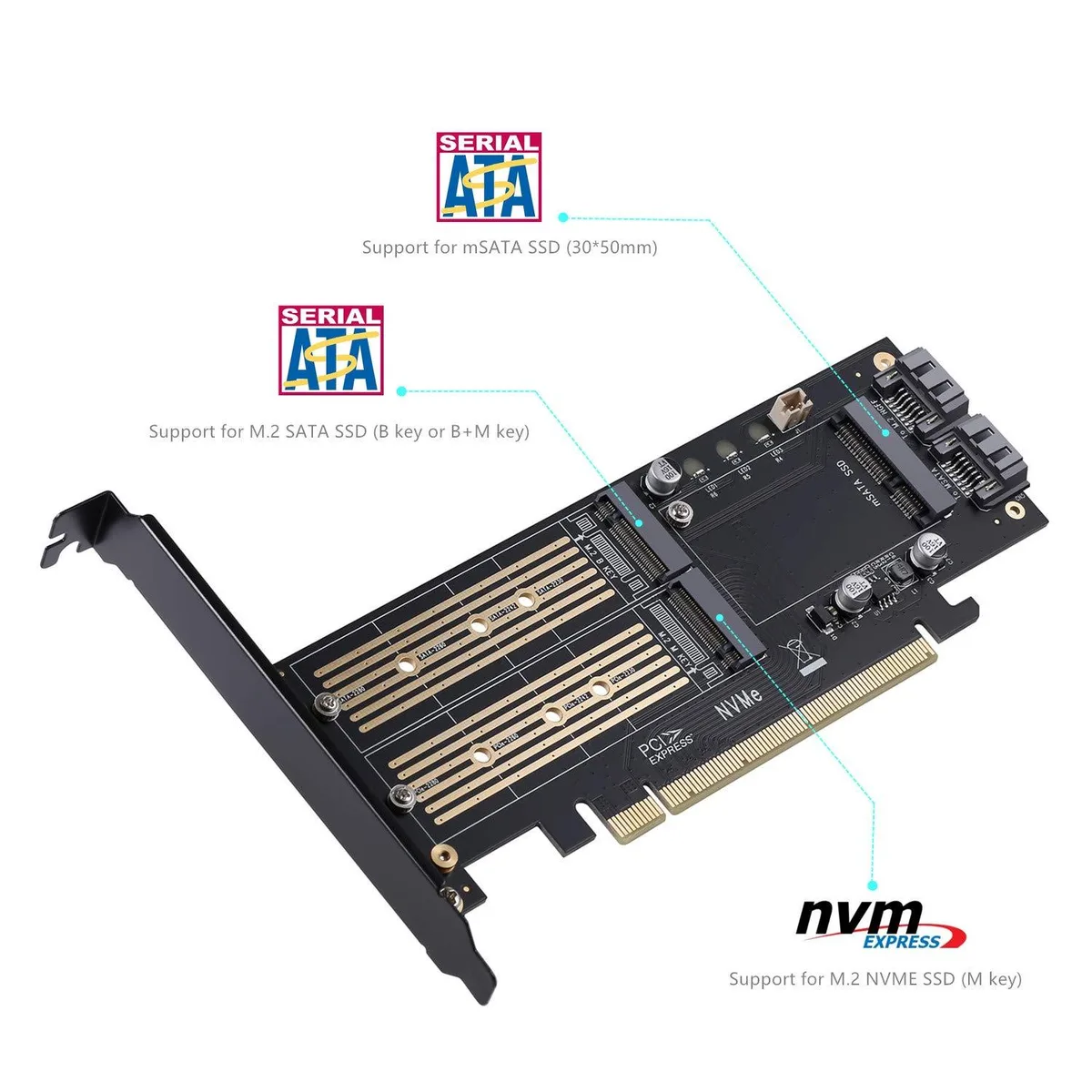

The Vszerda adapter card adds three solid-state drives to a desktop through a single PCIe 3.0 x4 slot. It accepts a Key-M NVME drive, a Key-B or B+M SATA M.2 drive and a 30x50 mm mSATA module at the same time. Builders who need to consolidate mixed drive types on one expansion slot will find it useful.

Dual aluminium heatsinks and flexible brackets

Two aluminium heatsinks cover the M.2 positions and the PCB uses 24 x 5 copper holes for airflow. Both regular and low-profile brackets are supplied so the card fits standard towers and slim cases. LED indicators show power and data activity for each channel without extra software.

PCIe 3.0 x4 bandwidth and simultaneous operation

The NVME path runs at PCIe 3.0 x4 with 32 Gbps bandwidth while the two SATA channels each deliver 6 Gbps. All three drives can operate together when the NVME drive uses the PCIe bus and the SATA drives connect through the included cables. The card draws power from the slot and requires no driver for Windows 10, Linux or supported Server releases.

Highlights

  • Supports three SSD types simultaneously for maximum storage flexibility
  • NVME M.2 runs at PCIe 3.0 x4 32 Gbps bandwidth
  • SATA M.2 and mSATA operate at SATA 6 Gbps speeds
  • Two aluminum heatsinks with copper-hole PCB dissipate heat effectively
  • Includes regular and low-profile brackets plus two SATA cables

Specifications

No published specifications for this item yet.

Questions about this item

What bandwidth does the PCIe 3.0 x4 interface cap at for NVMe SSDs?

The PCIe 3.0 x4 slot delivers up to 32 Gbps bandwidth for Key-M NVMe M.2 drives in 2230, 2242, 2260 and 2280 sizes.

What physical slot and brackets does the card need to fit in a chassis?

It requires a PCIe x16 slot and ships with both regular and low-profile brackets for flexible installation.

How is the adapter installed and which step is often missed?

Insert the card into a PCIe x16 slot, attach the chosen bracket, fit M.2 or mSATA drives with the supplied screws, connect the included SATA cables for SATA-based drives, then apply the two aluminium heatsinks using the thermal pads — the heatsink step is frequently skipped.
