A black panel with USB-C and USB-A ports on a metal PCIe bracket

Vszerda

Vszerda 20Gbps USB 3.2 Gen 2x2 Front Panel Adapter with PCIe Bracket

SKU CH-TJD1-HJMP4

Adds a front-panel USB-C port at 20Gbps and a USB-A port at 5Gbps via motherboard Type-E and 19-pin headers with a PCIe bracket

  • 20 Gbps peak throughput via USB 3.2 Gen 2x2 Type-E header
  • 5 Gbps USB 3.0 Type-A port for legacy devices
  • Backward compatible with USB 2.0 peripherals
  • Plug-and-play installation with no drivers required
  • Includes PCIe bracket for secure case mounting

Vszerda 20Gbps USB 3.2 Gen 2x2 Front Panel Adapter

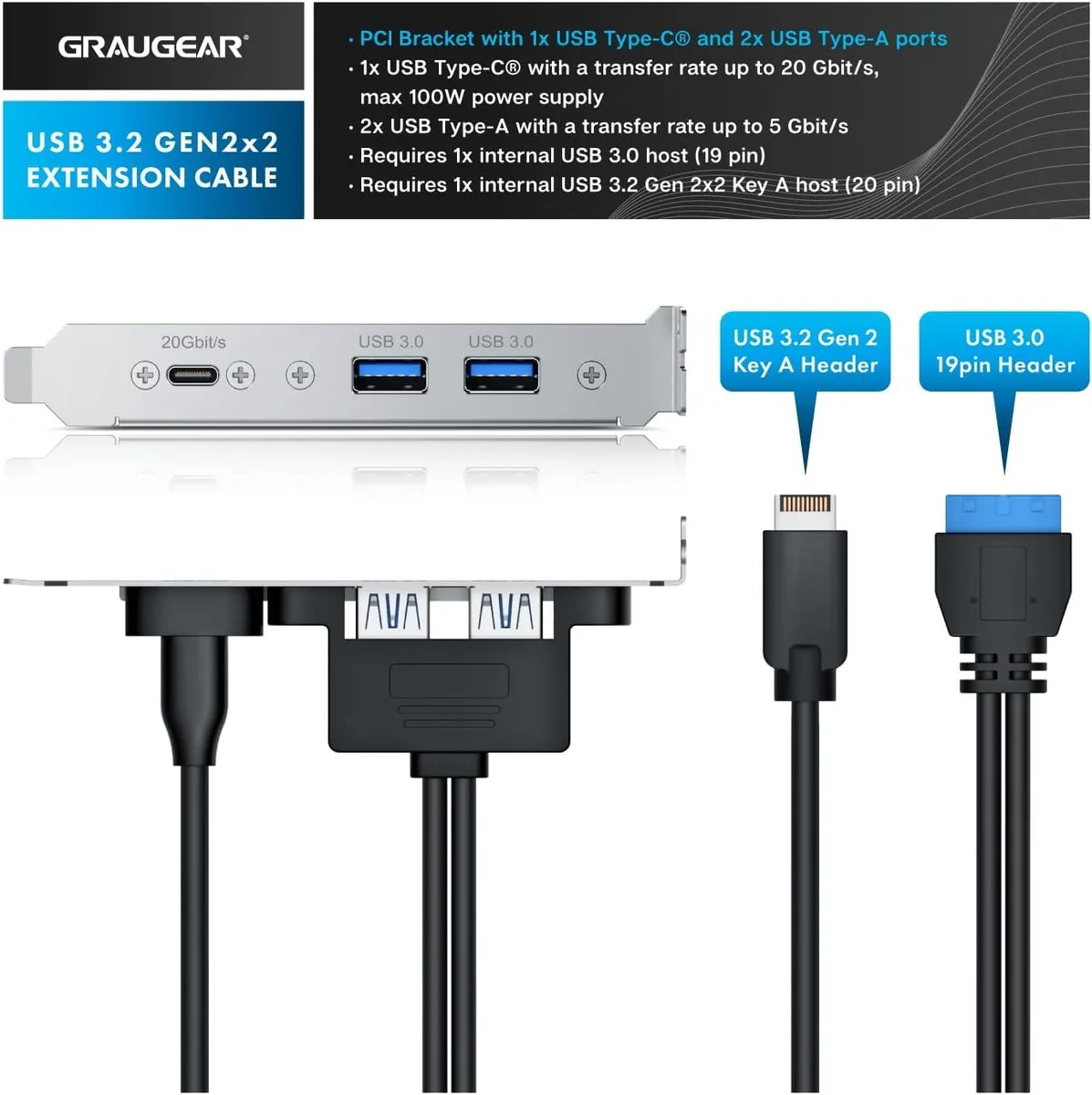

This adapter adds a front-panel USB-C port and a USB Type-A port to a desktop PC. It connects to a motherboard 20-pin Key-A Type-E header and a 19-pin USB 3.0 header. The device suits builders who want fast external storage or peripheral access without opening the case.

Upgrade from USB 3.0 front panel

The adapter replaces a standard 5Gbps USB 3.0 front-panel assembly with a 20Gbps USB 3.2 Gen 2x2 connection. The jump is worth it when the motherboard provides a 20-pin Type-E header and the user moves large files to external SSDs. Systems lacking the Type-E header cannot use the full speed.

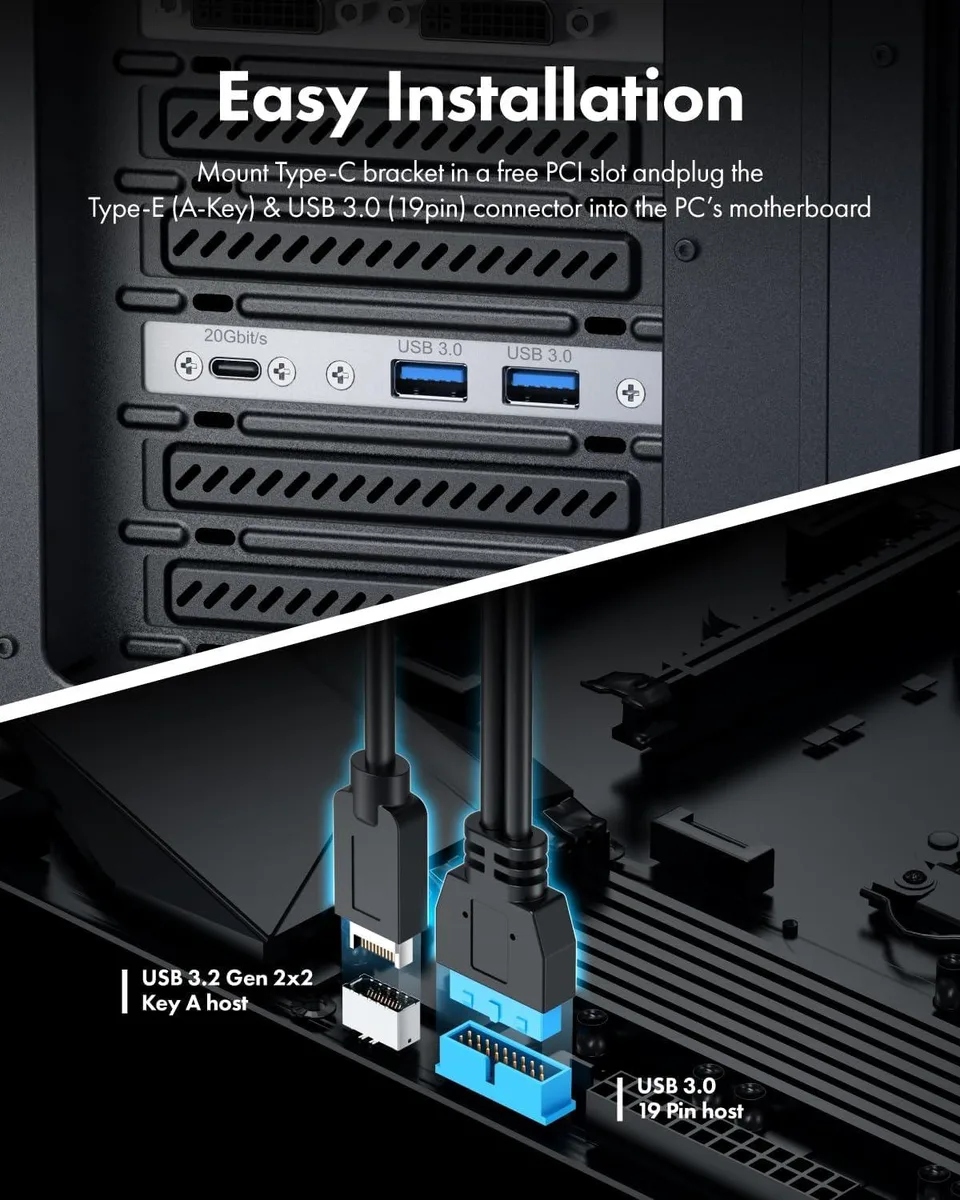

Simple bracket installation

The included PCIe bracket mounts in a rear expansion slot and the cables plug into the two motherboard headers. No driver is required for operation. Installation fails when the motherboard has only the 19-pin USB 3.0 header and no 20-pin Type-E header, leaving the high-speed port inactive.

Highlights

  • 20 Gbps peak throughput via USB 3.2 Gen 2x2 Type-E header
  • 5 Gbps USB 3.0 Type-A port for legacy devices
  • Backward compatible with USB 2.0 peripherals
  • Plug-and-play installation with no drivers required
  • Includes PCIe bracket for secure case mounting

Specifications

No published specifications for this item yet.

Questions about this item

Does the adapter need both a 20-pin Type-E header and a 19-pin USB 3.0 header on the motherboard?

Yes, the product connects to both a 20-pin USB 3.2 Key-A Type-E header and a 19-pin USB 3.0 header simultaneously.

Which step do builders often miss when installing this front-panel adapter?

Verifying that the motherboard actually has both the 20-pin Type-E header and the 19-pin USB 3.0 header before starting the installation.

Will the USB-C port on this adapter need a firmware update or driver to keep running at 20Gbps?

No, the adapter is fully plug-and-play and requires no driver or firmware updates for 20Gbps operation.
