Small green circuit board with silver RJ45 port and low-profile metal bracket

Vszerda

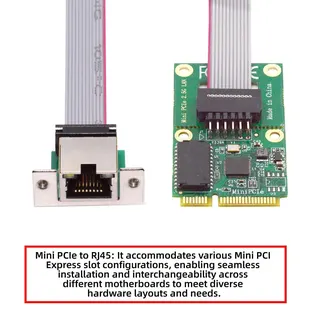

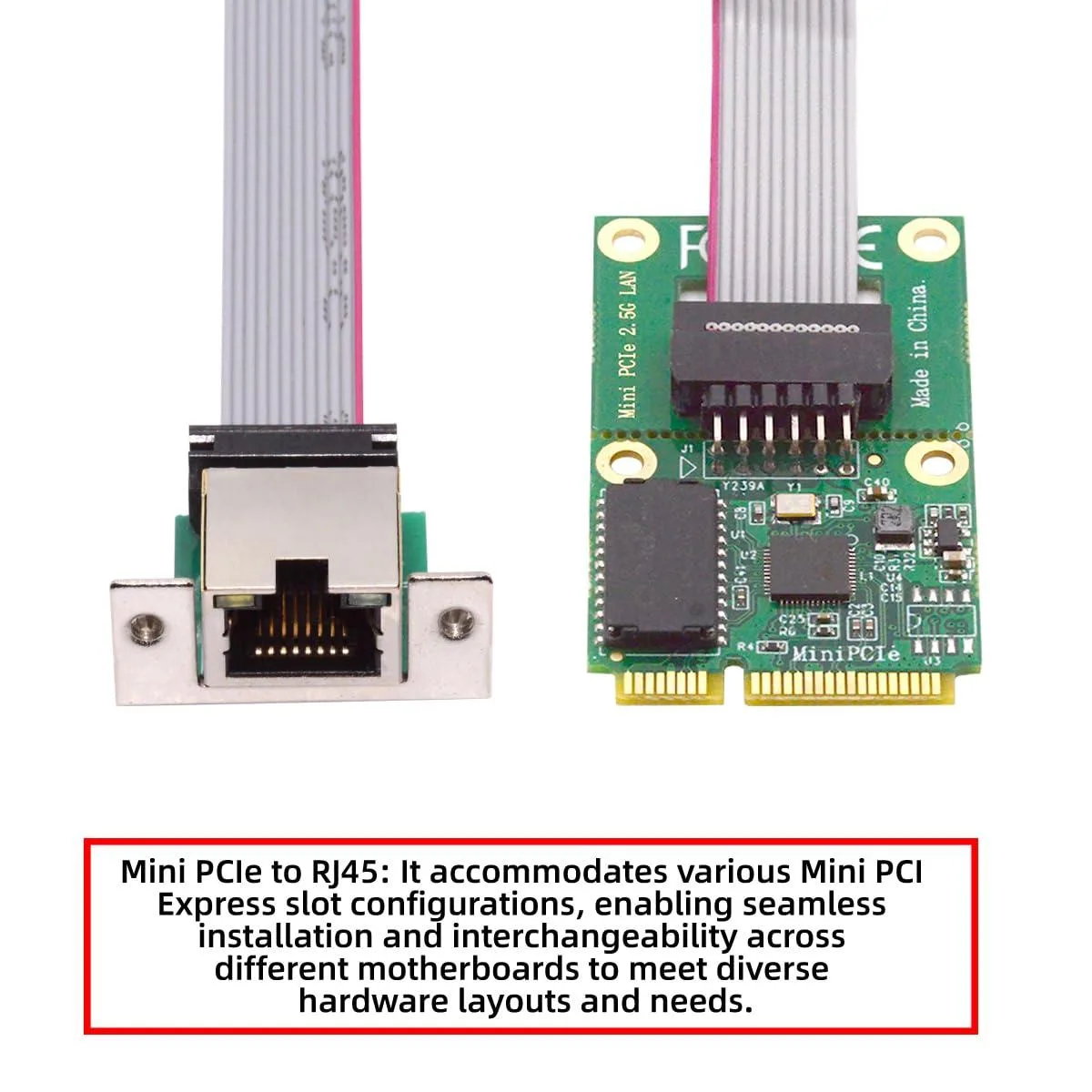

Vszerda 2.5G Mini PCIe to RJ45 network card low profile

SKU CH-2AWE-35V2N

Adds 2.5 Gbps Ethernet over Mini PCIe with Realtek RTL8125B and low-profile bracket

  • Dimensions11 cm x 11 cm x 1 cm
  • 5 Gbps throughput accelerates file transfers and streaming
  • Realtek RTL8125B chip delivers 2.5 Gbps with 1 Gbps/100 M/10 M auto-negotiation
  • Mini PCIe interface fits diverse motherboard slot configurations
  • Low-profile bracket enables installation in compact desktop chassis
  • Supports Windows 11, Windows 10 and Linux on PC, server or NAS

2.5G Mini PCIe Network Adapter

The Vszerda 2.5G Mini PCIe to RJ45 network card adds a single 2.5 gigabit Ethernet port to any desktop motherboard with an available Mini PCI Express slot. It targets builders who need faster wired throughput than standard gigabit without replacing the board. The low-profile bracket allows installation in slim or standard chassis.

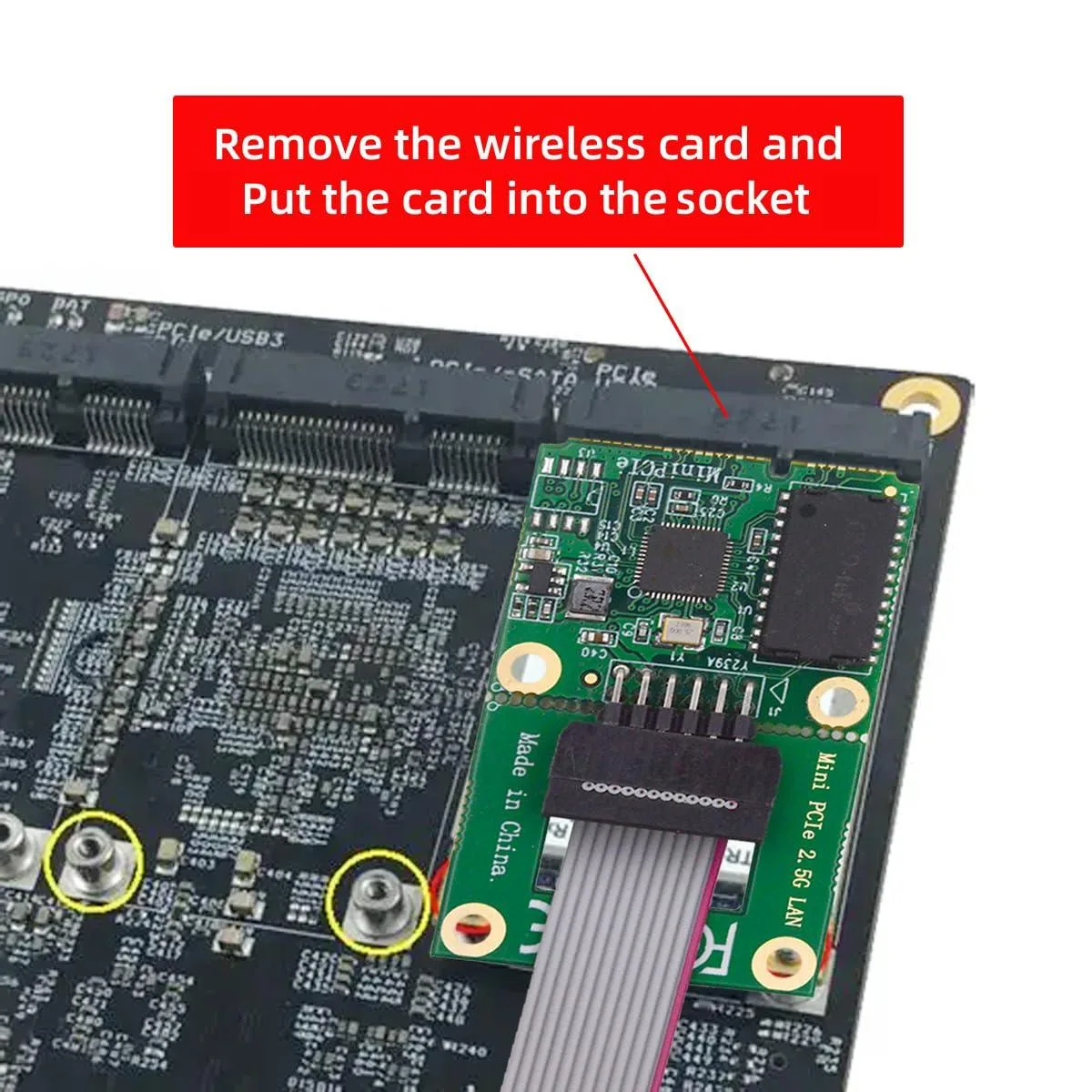

Fits Mini PCIe Slot Only

This adapter requires a free Mini PCI Express slot and is not compatible with full-size PCI or PCI Express slots. It connects via an RJ45 jack using Cat5e or better cable up to 100 metres. The card draws power from the slot itself and needs no auxiliary power connector, leaving the full-size expansion slots untouched for other add-in cards.

Up to 2.5 Gigabit Throughput

The Realtek RTL8125B controller negotiates 2.5G, 1G, 100M or 10M speeds automatically and supports IEEE 802.3bz, VLAN tagging and PXE boot. It handles large file transfers, HD streaming and low-latency gaming on 2.5G infrastructure. Performance is limited to 1G on older switches or cables below Cat5e, and the single port cannot aggregate bandwidth.

Highlights

  • 5 Gbps throughput accelerates file transfers and streaming
  • Realtek RTL8125B chip delivers 2.5 Gbps with 1 Gbps/100 M/10 M auto-negotiation
  • Mini PCIe interface fits diverse motherboard slot configurations
  • Low-profile bracket enables installation in compact desktop chassis
  • Supports Windows 11, Windows 10 and Linux on PC, server or NAS

Specifications

BrandNGFF
Dimensions11 cm x 11 cm x 1 cm

Questions about this item

Does the Realtek RTL8125B chip throttle under sustained 2.5Gbps throughput?

The Realtek RTL8125B chip is designed for 2.5GBASE-T speeds and includes heat-dissipation features to maintain stable transmission during continuous use.

How much heat or noise does the card produce when running all day at full speed?

The low-profile bracket and board layout provide passive heat dissipation; no fan is present so the card adds no audible noise.

What must my motherboard already have for this adapter to work?

A free Mini PCI Express slot is required; standard PCI or PCIe slots are not compatible.
