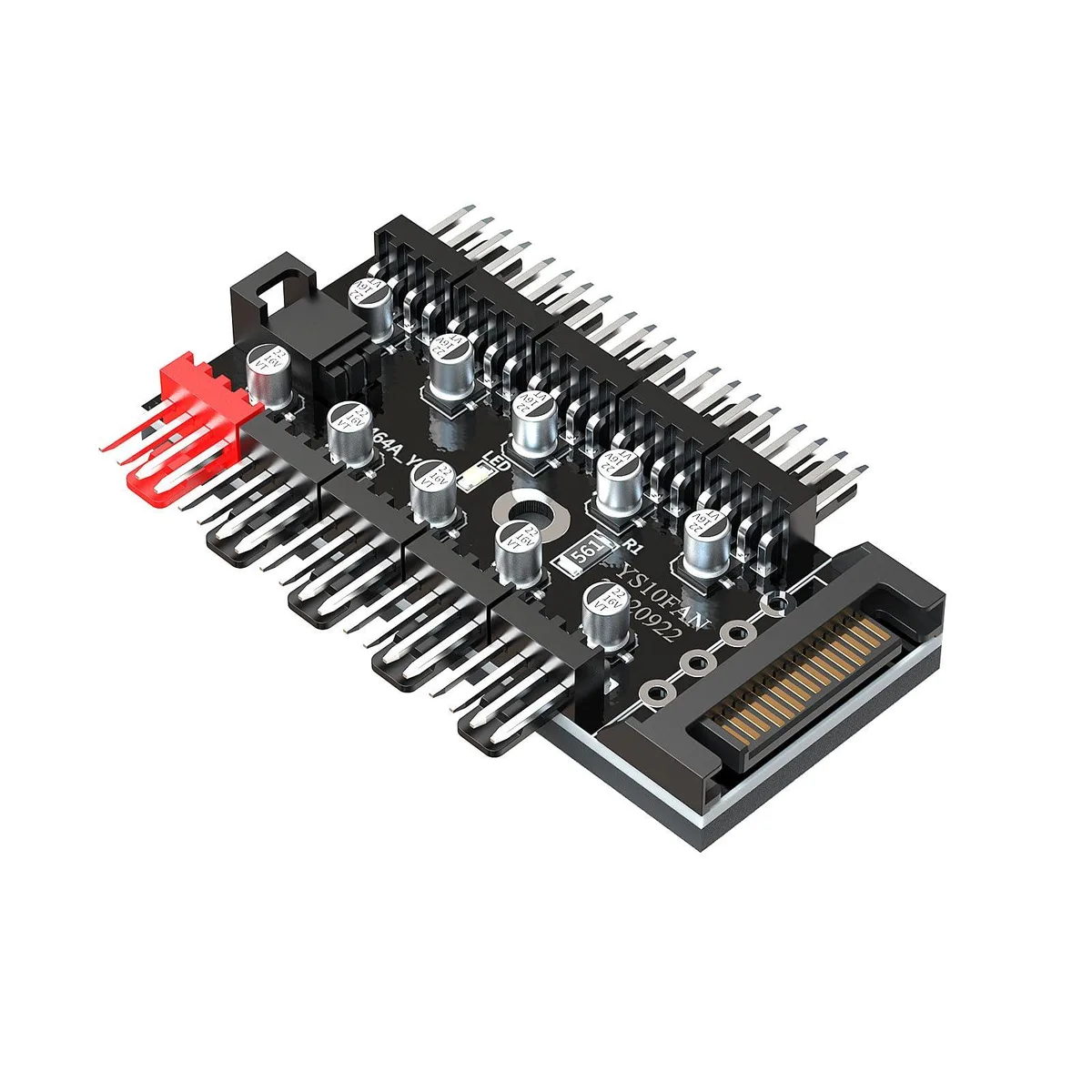

Small black rectangular hub with ten 4-pin PWM fan headers and a SATA power connector, 3M adhesive backing visible

Vszerda

Vszerda 10-Port 12V 4-Pin PWM Fan Hub SATA Powered

SKU CH-HFMR-5313Y

Connects up to 10 PWM fans to a single motherboard header with SATA power for stable operation

  • Controls up to 10 fans from one motherboard header
  • PWM speed control via 4-pin connection to motherboard
  • Stable power delivery through SATA cable from PSU
  • Reduces motherboard load with direct PSU power
  • Compact hub with adhesive backing for easy case mounting

10-Port PWM Fan Hub

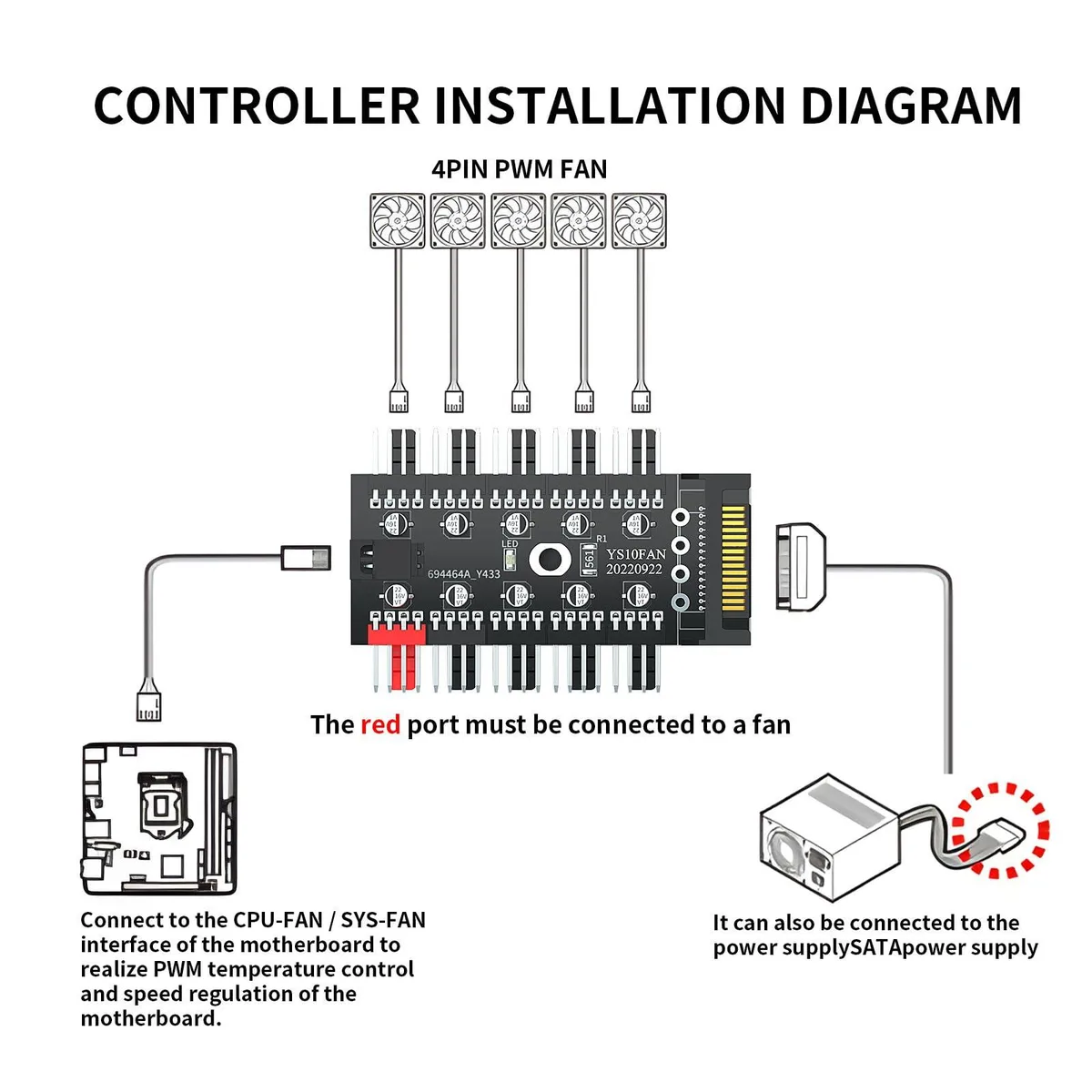

This Vszerda hub expands a single motherboard 4-pin header to ten 12V 4-pin connectors. It draws power through a SATA cable from the power supply, reducing load on the board. The red CPU header provides speed detection while the remaining ports deliver PWM control without individual speed reporting. Compact dimensions and 3M adhesive backing allow easy placement inside the chassis.

Builders needing many fans from one header

Suits systems that require simultaneous control of up to 10 PWM fans through a single CPU fan connector. Not for users who need speed feedback from every attached fan, as only the dedicated CPU port reports rotation data. Also unsuitable for setups lacking a SATA power connector from the PSU. Three-pin fans can be connected but will run at fixed speed without PWM adjustment.

Ten 12V 4-pin ports with one speed-sense header

The hub presents ten 4-pin sockets, yet only the red CPU interface returns a tachometer signal to the motherboard. All other ports share the PWM line for speed control but cannot report individual fan speeds. This single specification determines whether the hub matches a build that relies on per-fan monitoring versus simple grouped PWM control.

Highlights

  • Controls up to 10 fans from one motherboard header
  • PWM speed control via 4-pin connection to motherboard
  • Stable power delivery through SATA cable from PSU
  • Reduces motherboard load with direct PSU power
  • Compact hub with adhesive backing for easy case mounting

Specifications

No published specifications for this item yet.

Questions about this item

How many fans can run from the single motherboard header?

The hub splits one header into ten 4-pin PWM ports so up to ten fans can be controlled together.

Does the SATA power connection limit the total current available to the fans?

Power comes straight from the PSU through the SATA lead, removing load from the motherboard and supplying the hub directly.

What motherboard connector is required to use the PWM speed control?

A standard 4-pin PWM fan header on the motherboard is needed to send the speed signal to the hub.
