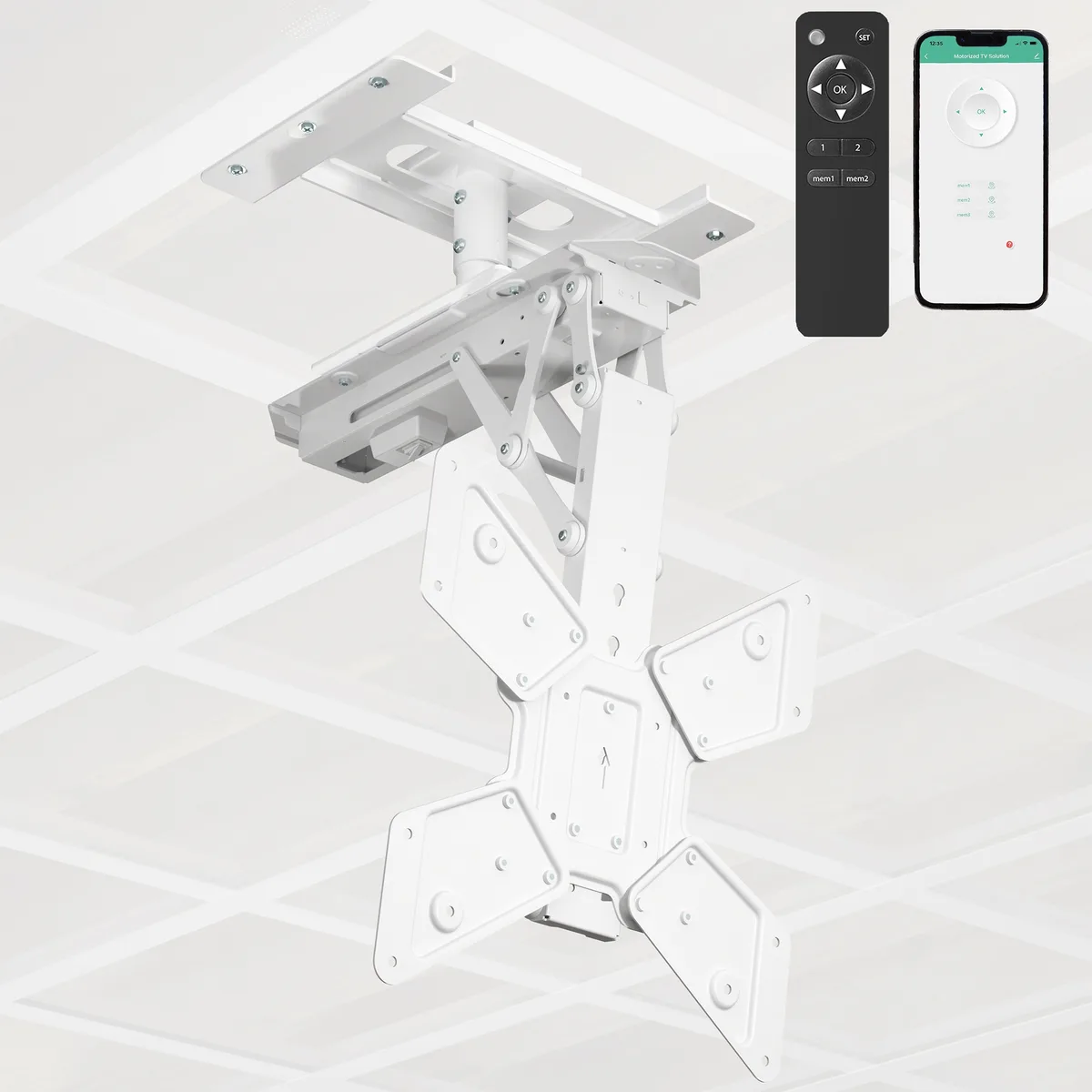

White steel ceiling mount with motorised flip-down TV bracket and remote control

VIVO

VIVO White Electric Flip-Down Drop Ceiling TV Mount 23-55

SKU CH-6JZH-FRZYR

Motorised drop-ceiling mount lowers 23–55 in screens up to 77 lbs with RF remote memory, 0° to –75° tilt and four pole-height settings

  • ColorWhite
  • TV Size Capacity< 55"
  • Motorised drop-ceiling mount installs on wood joists in two orientations
  • Fits 23 to 55 inch screens with VESA patterns up to 400x400 mm
  • Steel frame holds 77 lb TVs and 105.6 lb total weight
  • RF remote stores two height presets for one-touch adjustment
  • Pole offers four fixed height settings plus motorised travel

Electric Drop-Ceiling TV Mount

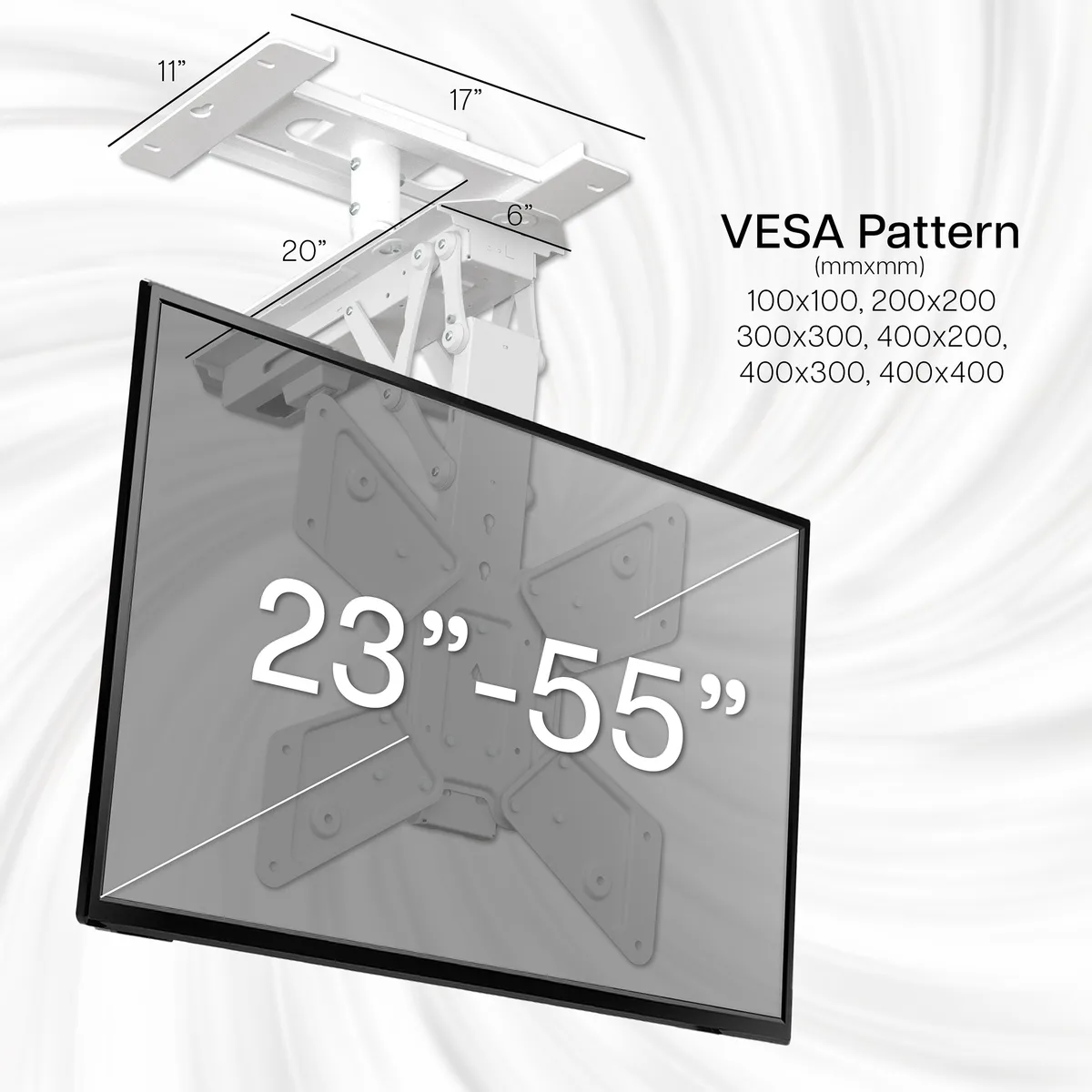

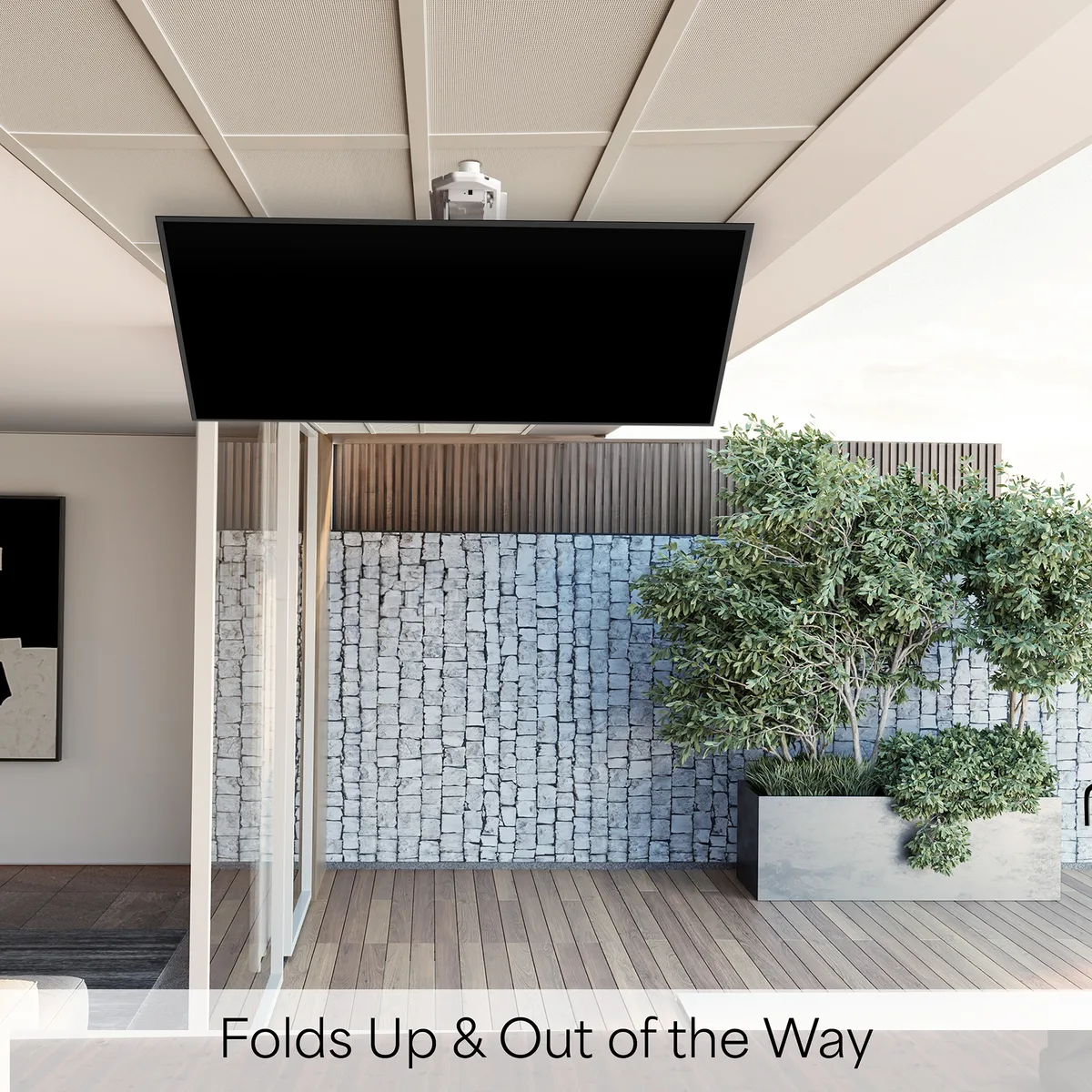

The VIVO White Electric Flip-Down Drop Ceiling TV Mount attaches to wooden joists above a suspended ceiling. An electric motor lowers the screen into the room and folds it flat against the ceiling when not in use. It accepts screens from 23 to 55 inches with VESA patterns of 100x100, 200x200, 300x300, 400x200, 400x300 and 400x400 mm. The steel frame supports a TV up to 77 lbs and a total load of 105.6 lbs.

Suits Drop-Ceiling Installs; Not For Solid Ceilings

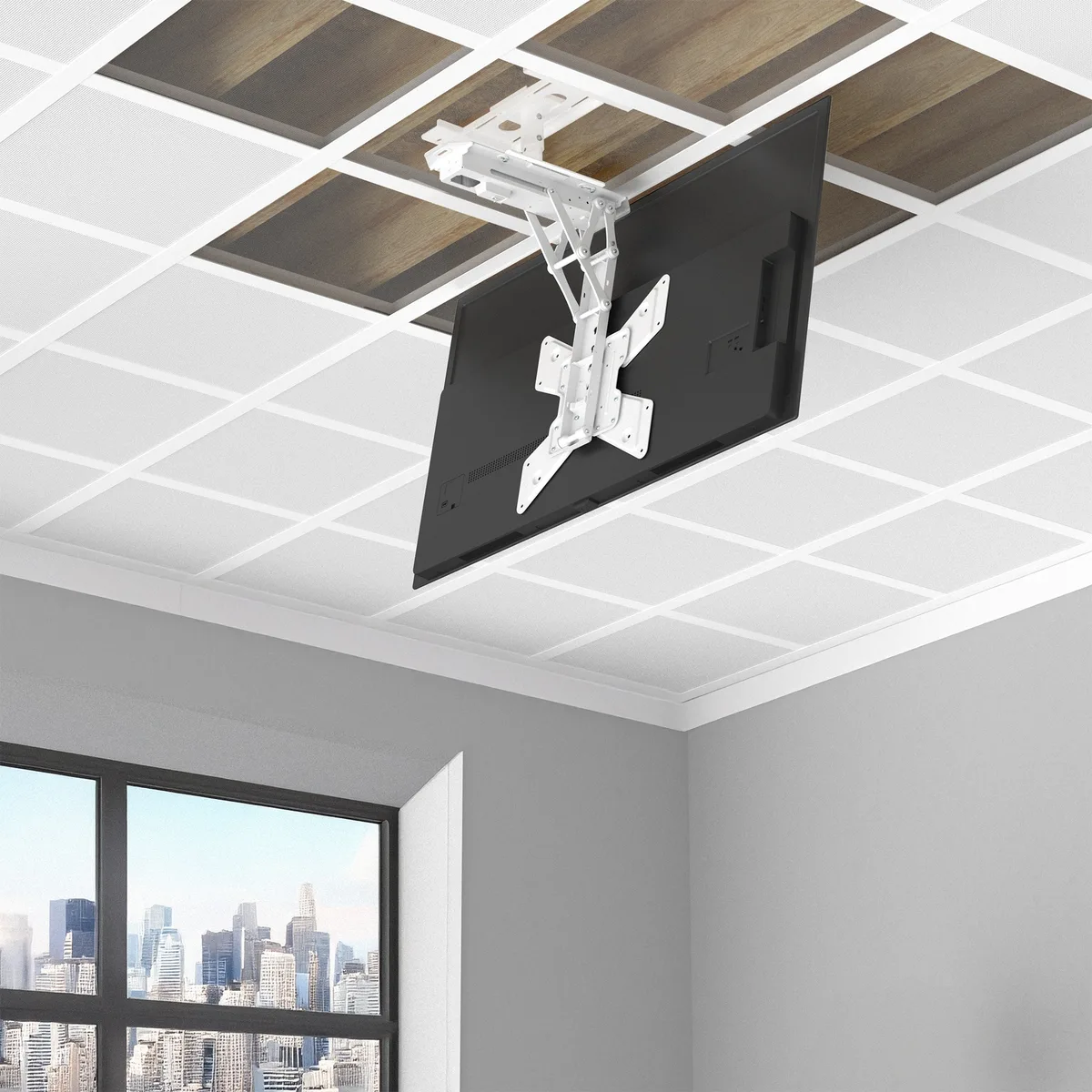

This mount is built for drop-ceiling grids with accessible wooden joists and can be oriented parallel or perpendicular to them. The RF remote stores two height presets and works from across the room. Buyers with concrete slabs, drywall ceilings without joist access, or screens larger than 55 inches will need a different mounting solution. The unit also requires a nearby power outlet for the motorised lift.

77 lb TV Capacity With 105.6 lb Total Headroom

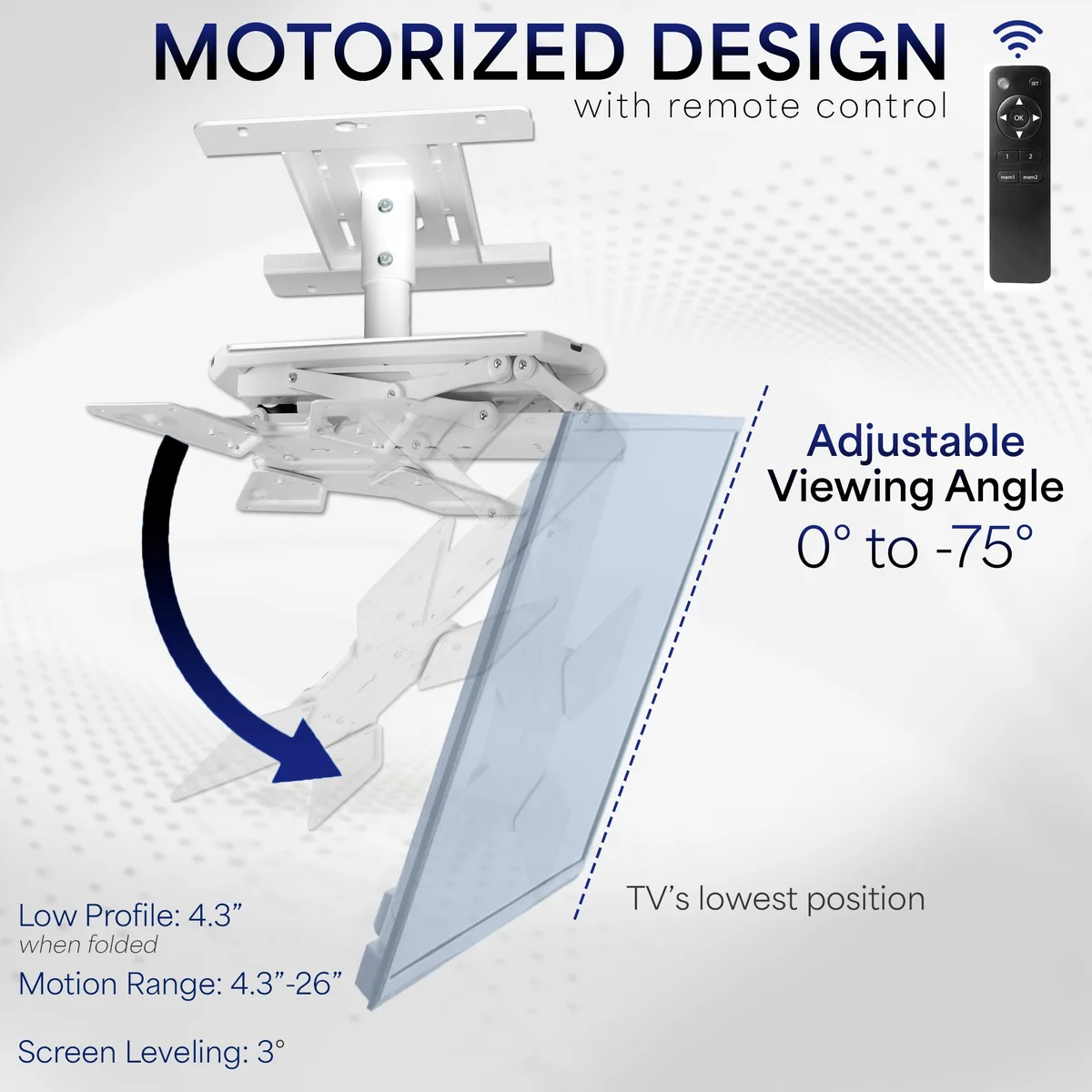

The mount comfortably handles TVs up to 77 lbs while the structure is rated for 105.6 lbs including the mount itself. Tilt adjusts from 0 to -75 degrees and the screen can be levelled within 3 degrees. Four fixed pole-height settings combine with the motorised travel to fine-tune the drop distance. Heavier displays or screens beyond the 55 inch diagonal exceed the rated capacity.

Highlights

  • Motorised drop-ceiling mount installs on wood joists in two orientations
  • Fits 23 to 55 inch screens with VESA patterns up to 400x400 mm
  • Steel frame holds 77 lb TVs and 105.6 lb total weight
  • RF remote stores two height presets for one-touch adjustment
  • Pole offers four fixed height settings plus motorised travel

Specifications

ColorWhite
TV Size Capacity< 55"

Questions about this item

My TV has a 400x400 mm VESA pattern — will the included VESA plate fit without an adapter?

Yes, the mount supports VESA patterns up to 400x400 mm including 100x100, 200x200, 300x300, 400x200 and 400x300 mm so your 400x400 mm TV mounts directly.

I plan to keep my existing wooden joists — does the bracket require any specific joist spacing or additional hardware?

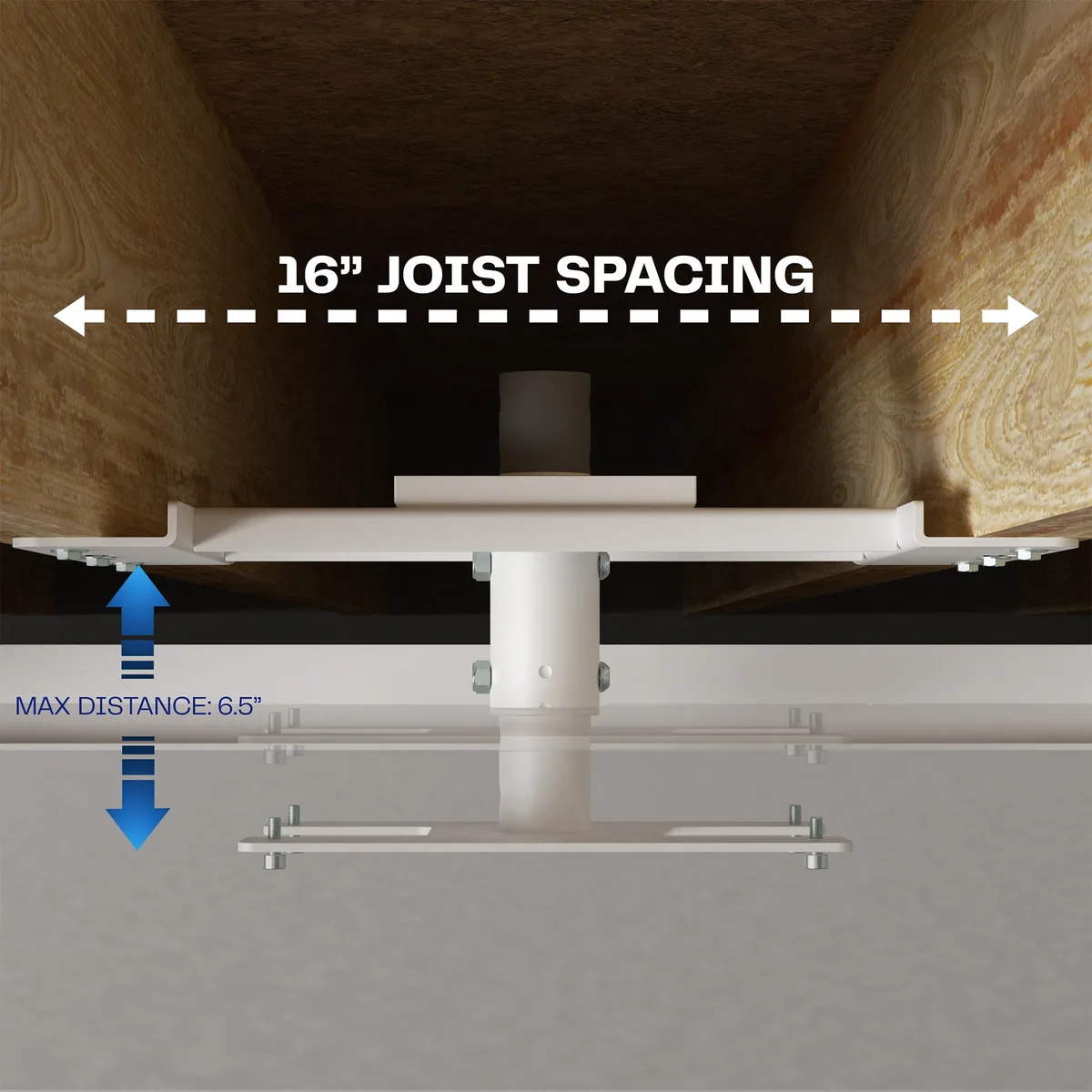

The drop ceiling bracket measures 17 x 11 inches with a 6.3 inch middle section and installs directly to wood joists in parallel or perpendicular orientation using the supplied hardware.

After mounting, how can I verify the motorised lift and tilt are operating correctly?

Use the RF remote to run the lift through its full travel and set the two memory positions; confirm the screen tilts smoothly from 0° to -75° and use the 3° level adjustment to eliminate any tilt.
