Two black steel brackets, each 25 by 2.8 by 1 inches, extend mounting plates from 16 to 24 inches

VIVO

VIVO Wall and Ceiling Plate Extension Brackets 16 to 24 inches

SKU CH-B9AD-C7YQM

Steel extension brackets expand 16-inch plates up to 24 inches for non-standard stud spacing, support 154 lbs on walls or 110 lbs on ceilings, and allow 8-inch lateral TV centering

  • ColorBlack
  • Extends 16-inch plates to 24 inches for non-standard stud spacing
  • Supports up to 154 lbs on walls and 110 lbs on ceilings
  • Heavy-duty black steel construction maintains stability across full extension range
  • Allows left-to-right TV centering adjustments up to 8 inches after installation
  • Includes all mounting hardware and instructions for secure wood-stud or joist attachment

Extension Brackets for Non-Standard Stud Spacing

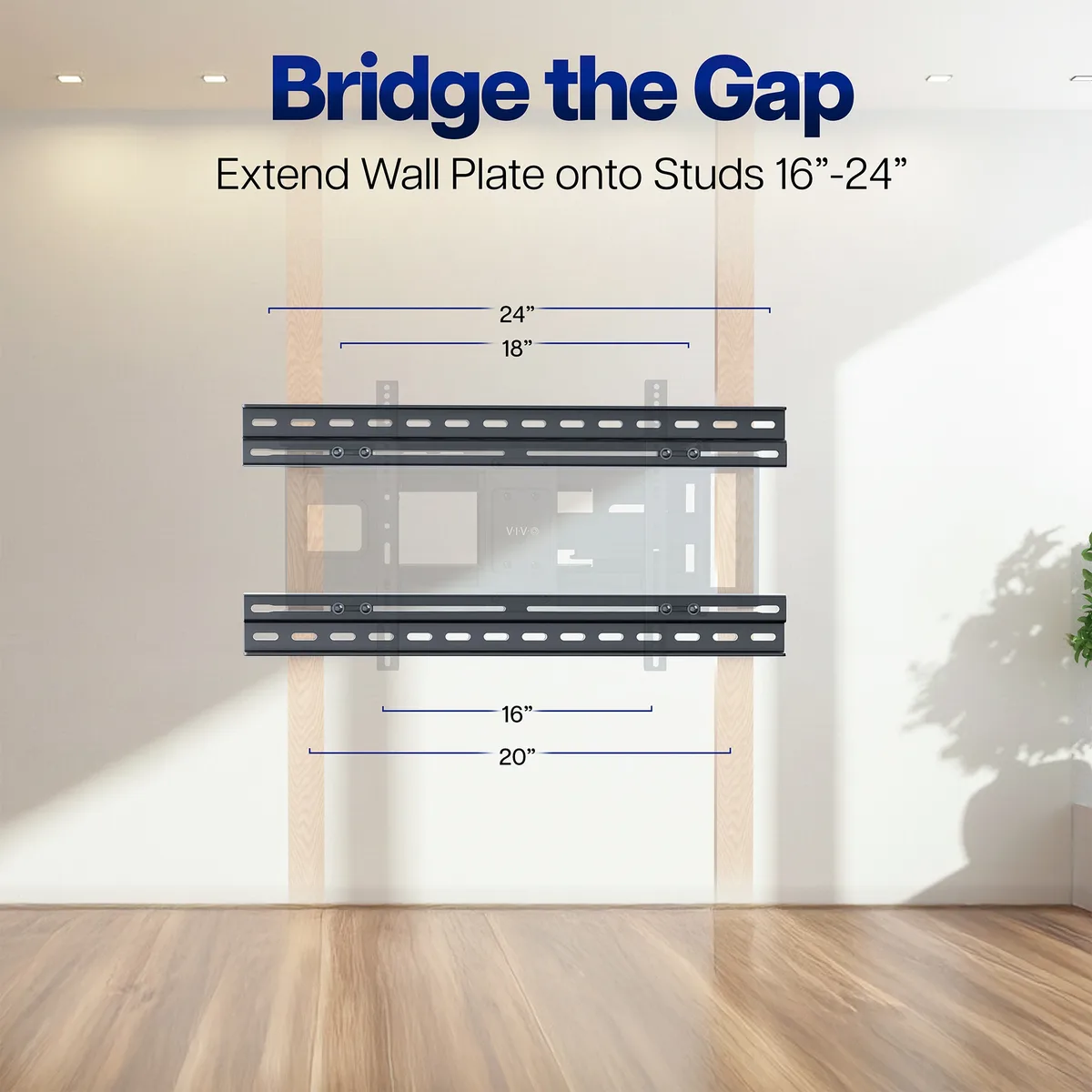

These steel brackets extend a standard 16-inch wall or ceiling plate up to 24 inches, covering stud or joist gaps from 17 to 23 inches. They are built for installers who encounter irregular framing in wood structures. The set includes two 25-inch brackets with all mounting hardware.

Weight Limits and Mounting Constraints

Wall-mounted capacity is 154 lbs while ceiling-mounted capacity is 110 lbs, and the total includes the mount plus the display. Installation must anchor into solid wood studs or joists; drywall or plasterboard alone will not hold. The brackets only work with wood framing, not metal studs or concrete.

Steel Build and Daily Adjustments

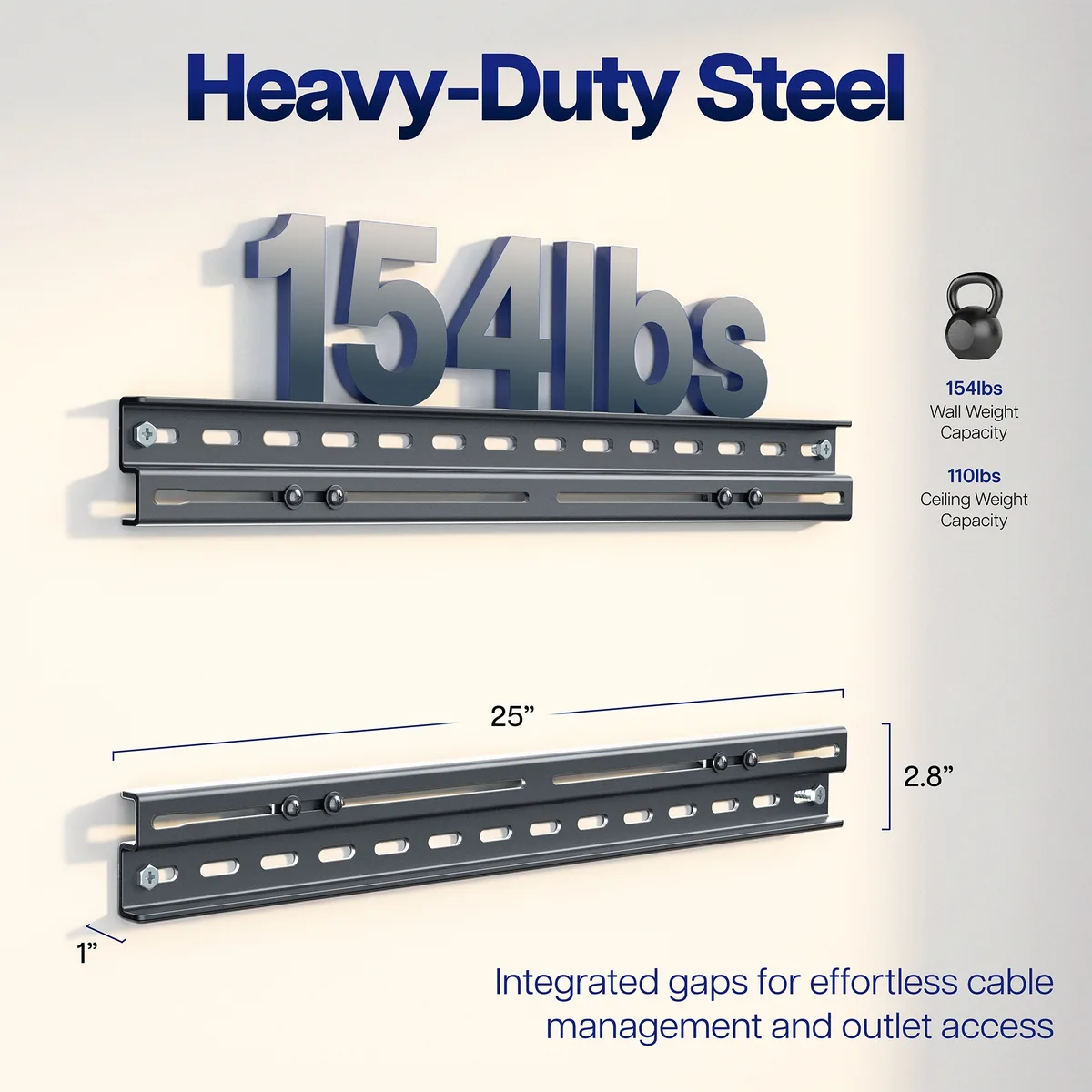

Heavy-duty black steel construction weighs 9.8 lbs for the pair and resists flex during positioning. A sliding function lets you shift the TV left or right up to 8 inches for precise centering after the brackets are secured. The 2.8-inch bracket width keeps the profile slim against the wall or ceiling.

Highlights

  • Extends 16-inch plates to 24 inches for non-standard stud spacing
  • Supports up to 154 lbs on walls and 110 lbs on ceilings
  • Heavy-duty black steel construction maintains stability across full extension range
  • Allows left-to-right TV centering adjustments up to 8 inches after installation
  • Includes all mounting hardware and instructions for secure wood-stud or joist attachment

Specifications

ColorBlack

Questions about this item

Which stud spacing range should I choose if my joists are 19 inches apart?

The brackets extend a standard 16 inch plate to cover any spacing from 17 through 23 inches, so a 19 inch gap is fully supported.

What does the 154 lb wall mounted capacity mean once the brackets are installed?

It is the total load the two steel brackets can carry on wood studs; you must subtract the weight of your TV and its mount from that 154 lb figure.

How does the sliding adjustment work and what does it cap in practice?

The brackets slide left or right up to 8 inches, letting you centre the TV after the plate is fixed to studs spaced between 16 and 24 inches.
