Black steel VESA adapter bracket kit, two-piece sliding design, 8.9 inch square plates

VIVO

VIVO VESA Adapter Bracket Kit 75 100 200mm 32.2 lbs Black

SKU CH-B8Q8-BWWEB

Removable VESA plate kit supports 75x75mm to 200x200mm patterns, holds 32.2 lbs, and lets the screen tilt and rotate once clipped in

  • Simplifies large-screen mounting with a two-piece removable VESA plate
  • Secures monitors up to 32.2 lbs across 75, 100 and 200 mm patterns
  • Allows tilt and rotation once the plate clips into the bracket
  • Includes every screw and hardware piece except wall anchors
  • Steel construction in black finish measures 8.9 x 8.9 inches

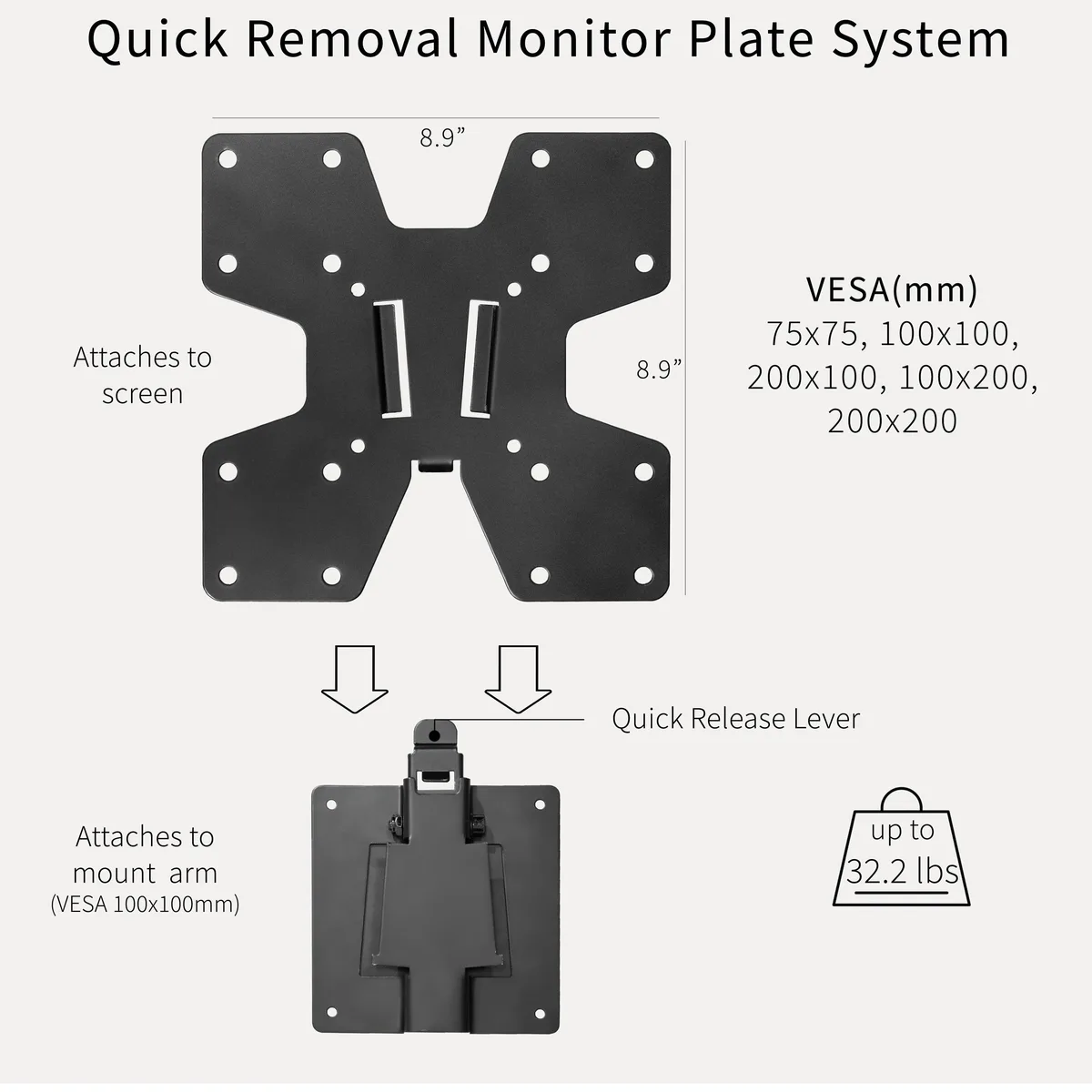

Large VESA Adapter Kit

This steel bracket kit bridges a monitor or TV to any VESA 100x100mm mount. It supports screens up to 32.2 lbs and fits VESA patterns of 75x75mm, 100x100mm, 200x100mm, 100x200mm, and 200x200mm. The two-piece design separates the screen plate from the mount bracket for easier handling.

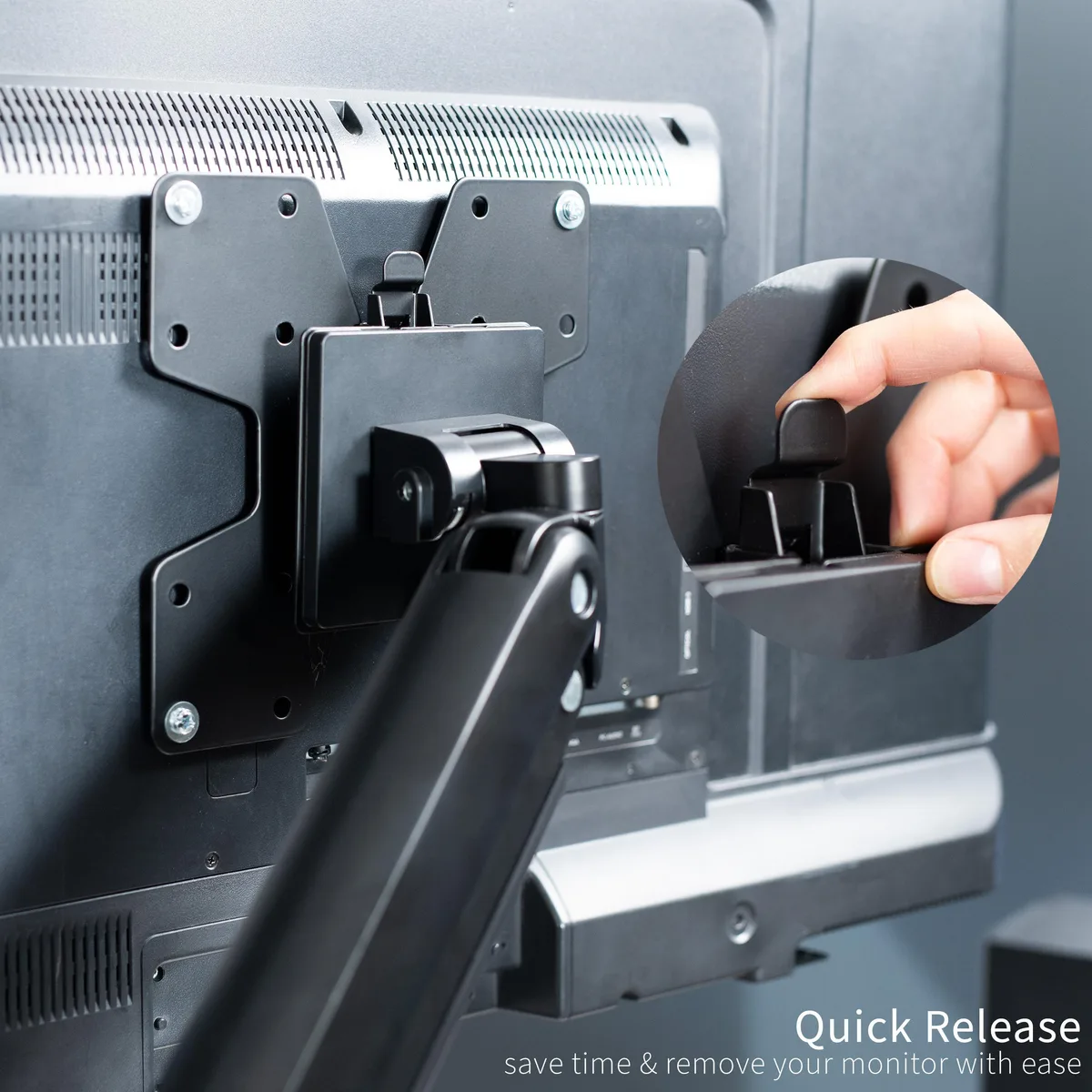

Clip-in Installation

A separate VESA plate attaches to the display first, then slides onto the mounted bracket and locks with a clip. This removes the need to hold the full weight while aligning screws. The kit includes all screen-side screws and hardware; wall-mounting hardware is not supplied. Misaligned threads on the display back are the most common snag.

Weight and Pattern Limits

The 32.2 lb rating and listed VESA patterns define the usable range. Displays heavier than 32.2 lbs or with hole spacings outside 75 to 200mm cannot be mounted safely. The back bracket requires a VESA 100x100mm interface on the mount itself, so mounts with only 75x75mm or 200x200mm bases will not accept this adapter.

Highlights

  • Simplifies large-screen mounting with a two-piece removable VESA plate
  • Secures monitors up to 32.2 lbs across 75, 100 and 200 mm patterns
  • Allows tilt and rotation once the plate clips into the bracket
  • Includes every screw and hardware piece except wall anchors
  • Steel construction in black finish measures 8.9 x 8.9 inches

Specifications

BrandVIVO

Questions about this item

How do I confirm the bracket is holding the monitor securely after installation?

After sliding the screen plate into the wall bracket, verify the locking clip engages fully; the monitor should then tilt and rotate smoothly without shifting, supporting up to 32.2 lbs.

Which screws and hardware come in the kit, and what must I supply for wall mounting?

All screws and hardware for attaching the plate to the monitor and the bracket to a VESA 100x100mm mount are included; wall anchors and lag bolts for the wall itself are not.

My screen uses a 200x200mm pattern — will this adapter fit, or do I need a different version?

The kit fits VESA 75x75, 100x100, 200x100, 100x200 and 200x200mm patterns, so a 200x200mm screen works with this single version.
