Black steel in-wall TV mount with recessed box and three-section articulating arm folded flat

VIVO

VIVO Recessed In-Wall TV Mount 50-100" 110 lbs

SKU CH-ZP5B-K8FFA

Recessed in-wall mount holds 50 to 100 inch flat or curved screens up to 110 lbs with full-motion articulation and a 4.3 inch folded profile

  • Mount StyleWall
  • TV Size Capacity< 100"
  • Weight110 lbs
  • Fits 50 to 100 screens up to 110 lbs with VESA 100x100 to 800x600
  • Recessed box design sits 4.3 from wall when folded for flush appearance
  • Extends 31.5 for full-motion articulation with 180 swivel and plus 15 to minus 15 tilt
  • Installs on 16 on-center wood studs or concrete brick walls with included hardware
  • Compatible with standard electrical boxes and internal cable routing knockouts

VIVO Recessed In-Wall TV Mount 50-100

This full-motion mount holds flat and curved screens from 50 to 100 inches up to 110 lbs. It supports VESA patterns from 100x100 to 800x600mm and installs on 16 on-center wood studs or concrete and brick walls. The steel construction includes a recessed box that fits standard electrical boxes with knockouts for in-wall wiring.

Ultra Low Profile Recessed Design

The three-section arm folds to a 4.3 profile for a near-zero-gap look and extends 31.5 total for flexible viewing. Articulation provides +15° to -15° tilt and 180° swivel to reduce glare and suit wide seating. Cables hide inside the recessed box when the arm is folded for a clean, picture-frame appearance.

Check Wall Depth and Stud Spacing Before Ordering

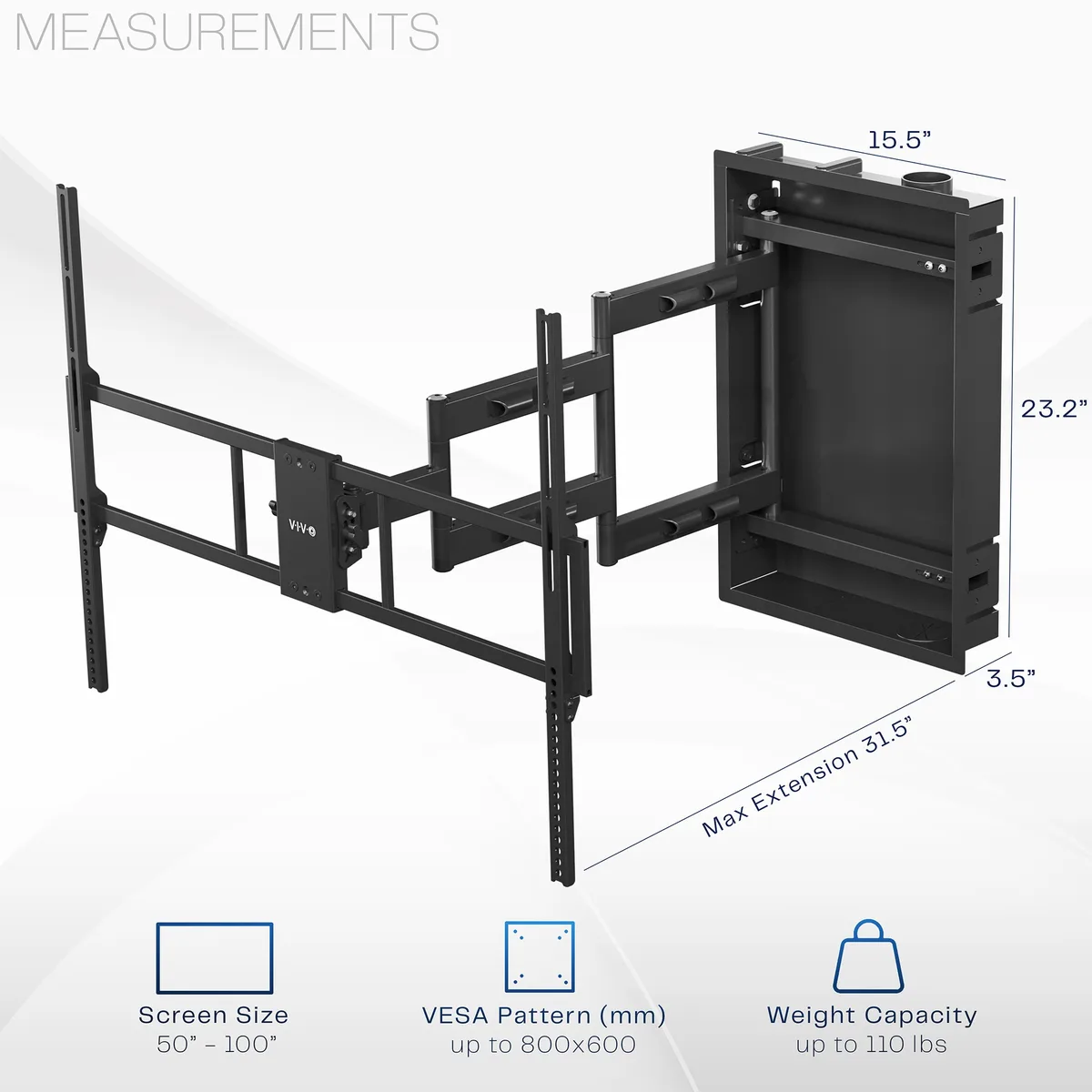

Verify the wall cavity can accept the 15.5 x 3.5 x 23.2 mounting box and that studs are spaced 16 on-center for the included hardware. Ensure your TV VESA pattern falls within the listed range and its weight does not exceed 110 lbs. This mount is not suited for walls without adequate cavity depth or non-standard stud spacing.

Highlights

  • Fits 50 to 100 screens up to 110 lbs with VESA 100x100 to 800x600
  • Recessed box design sits 4.3 from wall when folded for flush appearance
  • Extends 31.5 for full-motion articulation with 180 swivel and plus 15 to minus 15 tilt
  • Installs on 16 on-center wood studs or concrete brick walls with included hardware
  • Compatible with standard electrical boxes and internal cable routing knockouts

Specifications

Mount StyleWall
TV Size Capacity< 100"
Weight110 lbs

Questions about this item

What wall opening size does the 15.5 by 3.5 by 23.2 mounting box require?

Cut a hole that matches the 15.5 by 23.2 face and 3.5 depth so the steel box sits flush between studs.

How do I secure the mount to 16 on-center wood studs without missing the centre?

Mark both stud centres, level the box, then drive the supplied lag bolts through the pre-drilled holes into each stud.

When should I re-torque the 3-section arm pivot bolts after the first few weeks?

Check and snug the pivot hardware once the TV has settled, typically after two weeks of regular extend and swivel use.
