Black cast-aluminium quad monitor mount with four pneumatic arms on a tall central pole, C-clamp base visible

VIVO

VIVO Pneumatic Quad Ultrawide Desk Mount 49" 38" 44 lbs

SKU CH-TTJD-EXS7R

Holds one 49" and three 38" ultrawide screens on pneumatic arms with 55° tilt, 180° swivel and 360° rotation

  • Mounts four ultrawides up to 49 inch on one stand
  • Pneumatic arms counterbalance 5.5 to 44 lbs per arm for effortless height changes
  • Cast aluminum clamp and arms support heavy screens without sagging
  • Full articulation with 55 tilt 180 swivel 360 rotation for glare-free viewing
  • Detachable VESA plates fit 75 and 100 mm patterns for quick installation

Quad Ultrawide Desk Mount

The VIVO pneumatic quad ultrawide desk mount holds four ultra-wide monitors on a single stand, supporting one screen up to 49 inches and two screens up to 38 inches side by side. It is built for users who need a expansive multi-display workspace without sacrificing desk surface area. Heavy-duty cast aluminum construction provides the rigidity required for large screens. Detachable VESA plates simplify the installation process for compatible displays.

Capacity and headroom

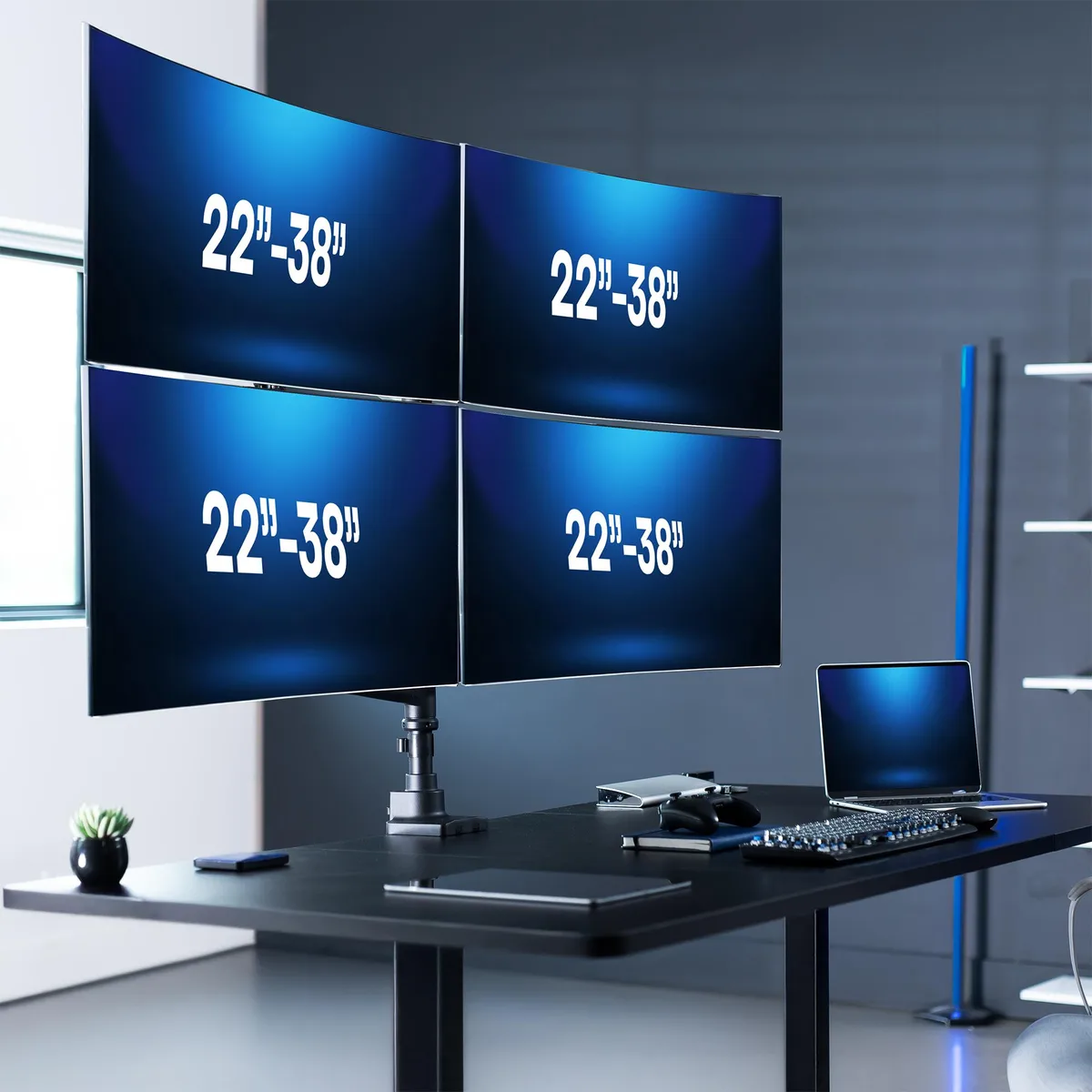

Each arm carries from 5.5 lbs to 44 lbs, accommodating heavy ultra-wide panels without sagging thanks to high-capacity tilt joints. The mount fits one 49-inch screen centrally with three 22-inch screens, or four 38-inch ultra-wides in a row. Maximum screen height reaches 37.6 inches for the center display, while the pole stands 26.4 inches tall. Arm span extends to 39.4 inches with a maximum extension of 19.7 inches per arm.

Practical limits of the standard

VESA compatibility is limited to 75x75mm and 100x100mm mounting patterns, so screens with larger hole spacing cannot be attached. The C-clamp base accepts desktop thicknesses from 0.4 to 1.8 inches, while the grommet option covers 0.4 to 1.6 inches. Articulation ranges are fixed at +55° to -25° tilt, 180° swivel, and 360° rotation, defining the boundaries of screen positioning.

Highlights

  • Mounts four ultrawides up to 49 inch on one stand
  • Pneumatic arms counterbalance 5.5 to 44 lbs per arm for effortless height changes
  • Cast aluminum clamp and arms support heavy screens without sagging
  • Full articulation with 55 tilt 180 swivel 360 rotation for glare-free viewing
  • Detachable VESA plates fit 75 and 100 mm patterns for quick installation

Specifications

BrandVIVO

Questions about this item

Will the 44 lbs per arm capacity handle my 49" ultrawide plus three 38" screens on the same mount?

Yes, the mount supports one 49" ultrawide and up to three 38" ultrawides, each arm rated for 5.5 lbs to 44 lbs.

How can I verify the pneumatic height adjustment is balanced correctly after assembly?

Gently release each screen; it should stay at the chosen height without drifting up or down.

Does the package include both C-clamp and grommet hardware for desktops up to 1.8" thick?

All mounting hardware and instructions are provided for both clamp and grommet installation.
