White steel drop ceiling mount with adjustable pole and rectangular base for VIVO electric flip-down TV mounts

VIVO

VIVO Drop Ceiling Mount for MOUNT-E-FD55W, MOUNT-E-FD70W

SKU CH-DPYZ-KPTJN

Ceiling drop mount secures VIVO electric flip-downs to wooden joists with four height settings from 3.5 to 6.5 inches and 77 lb TV capacity

  • Mount StyleCeiling Mount
  • ColorWhite
  • Weight77 lbs
  • Secure drop-ceiling installation on wooden joists
  • Designed exclusively for VIVO MOUNT-E-FD55W and MOUNT-E-FD70W
  • TV mounts parallel or perpendicular to joists for flexible layout
  • Solid steel supports up to 77 lbs TV weight and 105.6 lbs total
  • Four height settings adjust screen from 3.5 to 6.5 inches below joists

Drop Ceiling Mount for Electric Flip-Down Mounts

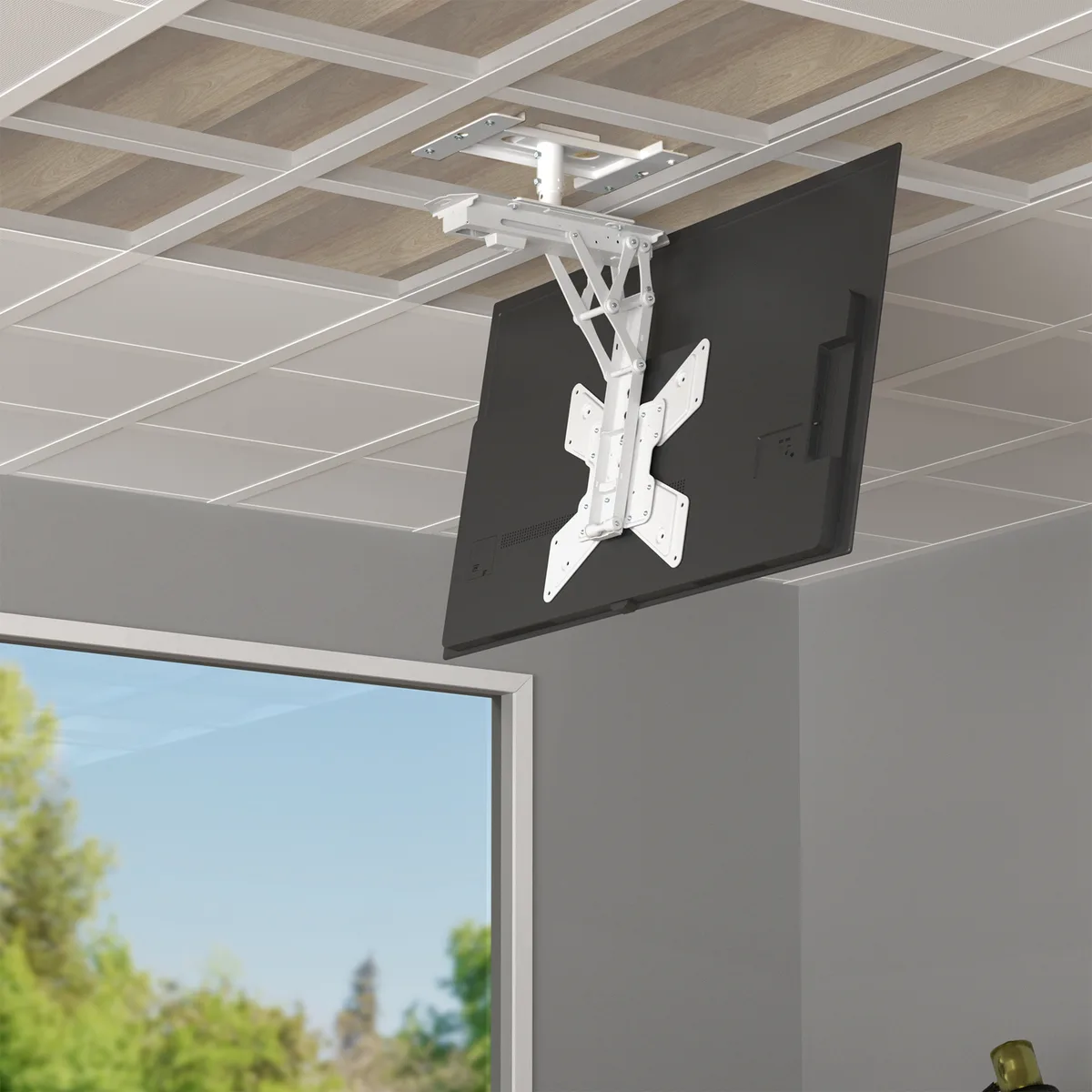

This white steel ceiling bracket is engineered specifically for VIVO electric flip-down mounts MOUNT-E-FD55W and MOUNT-E-FD70W. It secures to wooden joists above a drop ceiling, providing a stable platform for suspended displays. The assembly supports a television weighing up to 77 lbs and a combined load of 105.6 lbs including the TV mount itself.

Verify Joist Structure and Mount Compatibility

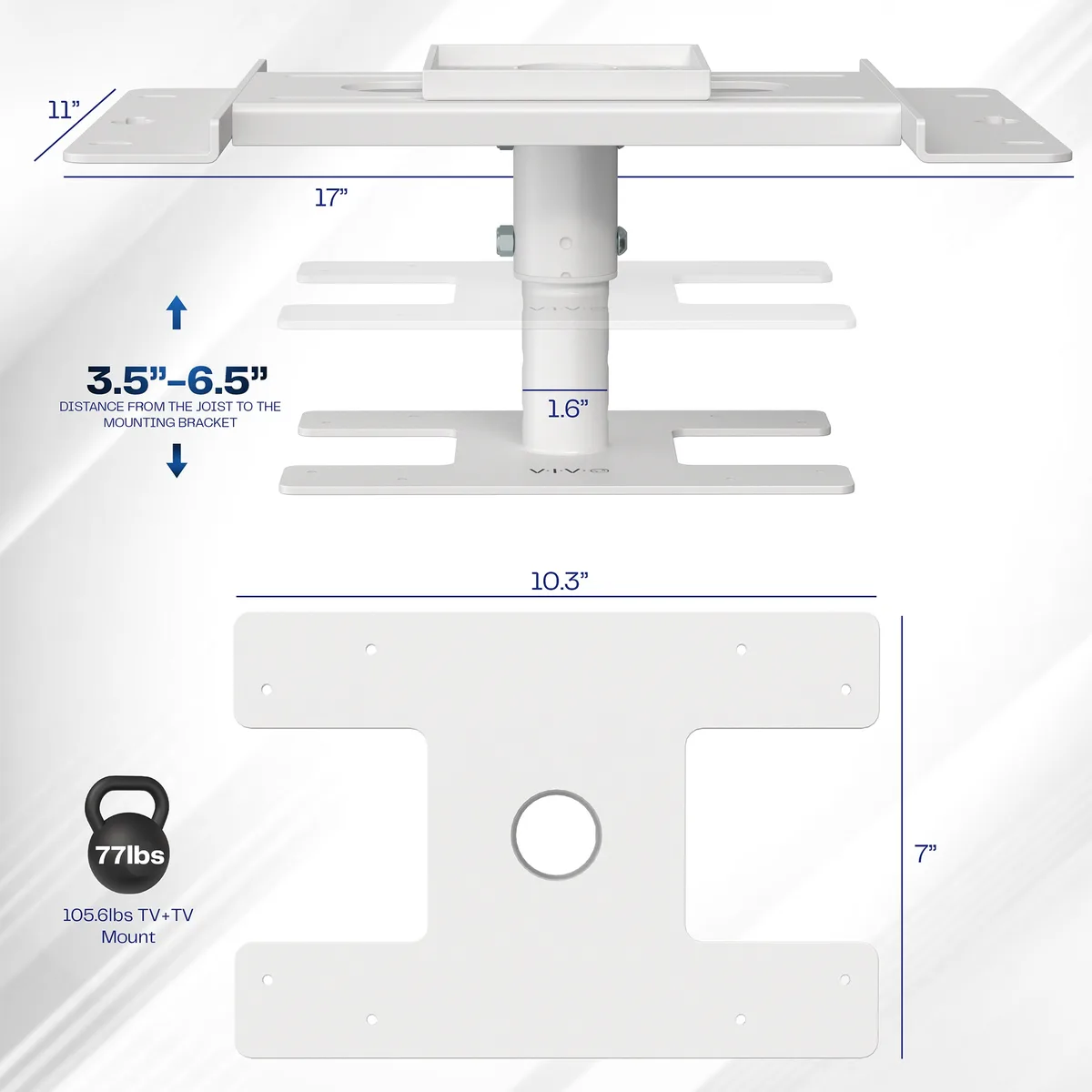

Confirm your ceiling uses wooden joists suitable for the four-bolt mounting bracket measuring 10.3 by 7 inches. The bracket base dimensions are 17 by 6.3 by 11 inches, so check available plenum space above the tiles. This accessory fits only the two listed VIVO electric mounts; it will not work with other ceiling mounts, fixed brackets, or different brands.

Fixed Extension Range and Steel Rigidity

The pole offers four discrete height settings, positioning the bottom of the mounting bracket 3.5 to 6.5 inches below the joist. Solid steel construction eliminates flex under load, keeping the screen steady during electric flip-down operation. No moving parts or fans are present, so the mount adds no operational noise or power draw to the installation.

Highlights

  • Secure drop-ceiling installation on wooden joists
  • Designed exclusively for VIVO MOUNT-E-FD55W and MOUNT-E-FD70W
  • TV mounts parallel or perpendicular to joists for flexible layout
  • Solid steel supports up to 77 lbs TV weight and 105.6 lbs total
  • Four height settings adjust screen from 3.5 to 6.5 inches below joists

Specifications

Mount StyleCeiling Mount
ColorWhite
Weight77 lbs

Questions about this item

What comes in the box and do I need to buy the TV mount separately?

The drop ceiling mount includes the steel mounting hardware and instructions for securing to wood joists. The compatible VIVO electric flip-down mounts MOUNT-E-FD55W and MOUNT-E-FD70W are sold separately.

Which VIVO electric ceiling mount models does this drop ceiling adapter support?

This adapter is designed specifically for the MOUNT-E-FD55W and MOUNT-E-FD70W electric flip-down ceiling mounts. It is not made for other TV mounts.

What does the 105.6 lbs total weight capacity mean for my installation?

The 105.6 lbs rating covers the combined weight of your TV plus the VIVO electric mount itself. The TV alone must not exceed 77 lbs. The pole offers four height settings from 3.5 to 6.5 inches below the joist.
