Black steel 2x2 video wall mount with four pop-out VESA bracket arms for 37 to 65 inch screens

VIVO

VIVO 2x2 Pop-Out Video Wall Mount 37-65 TVs

SKU CH-ZA9D-BBTY2

Mounts four 37–65 inch screens in a 2×2 video wall with pop-out brackets for rear access and micro-adjustment for precise alignment

  • Mount StyleWall
  • ColorBlack
  • TV Size Capacity< 60"
  • WeightMax. load 154 lbs.
  • Holds four 37-65 in. screens in 2x2 grid
  • Pop-out brackets give rear access after installation
  • Steel rails carry 154 lbs per screen on concrete
  • Micro-adjust swivel, tilt and slide align every display
  • Mounts in portrait or landscape to fit any layout

2x2 Video Wall Mount for 37–65 in Screens

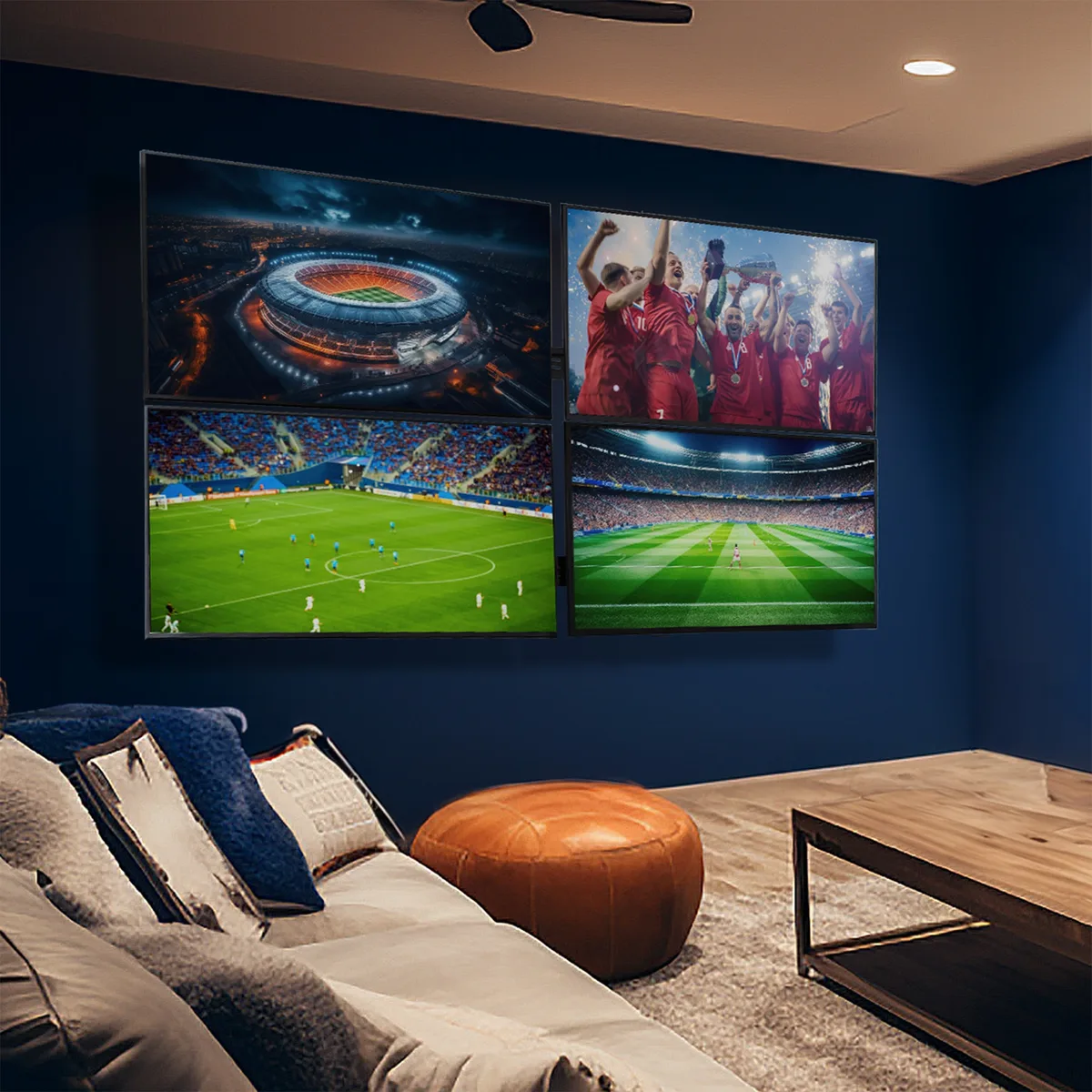

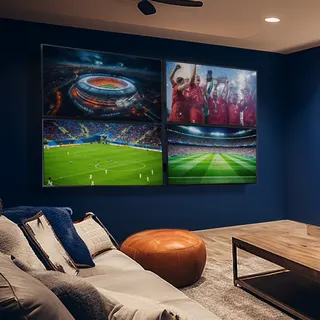

This VIVO mounting system holds four televisions in a 2x2 grid, supporting screens from 37 to 65 inches with VESA patterns from 100x100 mm up to 600x400 mm. Each display can weigh up to 154 lbs on concrete or 110 lbs on wood studs. The black steel rails handle 616 lbs total on concrete and 440 lbs total on wood. It suits home theatres, offices and professional signage installations.

Pop-Out Brackets Replace Fixed Rails

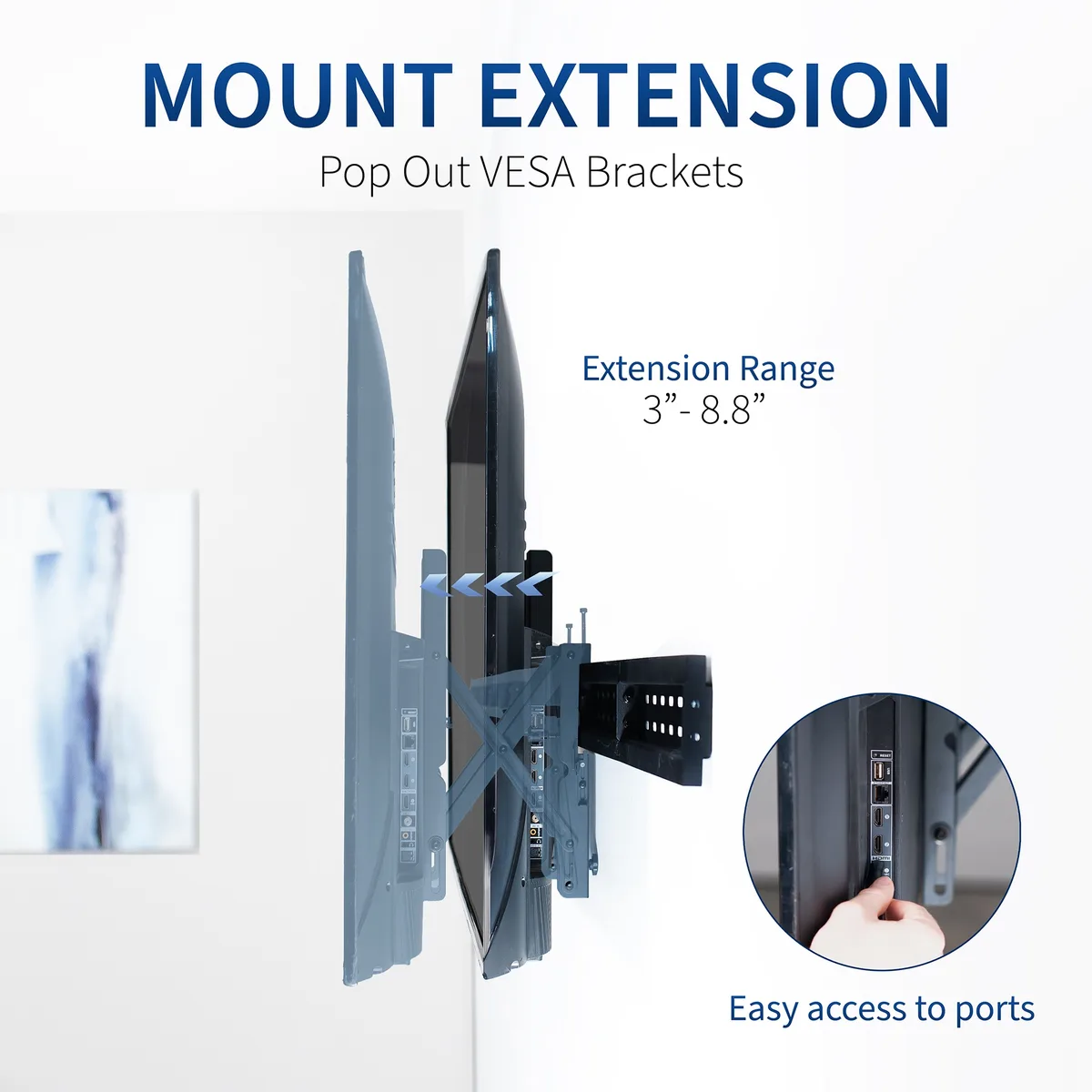

Fixed wall brackets force you to wire every screen before hanging it; the push-in pop-out arms here extend from 3 to 8.8 inches so you can reach ports and install hardware after the displays are mounted. The upgrade is worth it when you need post-mount cable changes or regular port access without removing heavy panels. If your installation is permanent and cables never move, a simpler fixed rail would suffice.

Steel Rails Need Solid Wall Anchors

The 88.6 x 1 x 4.1 inch horizontal rails must be anchored into concrete or wood studs using the supplied hardware; drywall alone cannot carry the load. Each VESA bracket measures 17.3 x 2.3 inches and provides +3° to –3° swivel, 0° to –1.5° tilt and lateral slide for precise alignment. The system frees up floor space by locking four screens flat to the wall in portrait or landscape orientation. Builders needing a single-screen mount or screens larger than 65 inches should look elsewhere.

Highlights

  • Holds four 37-65 in. screens in 2x2 grid
  • Pop-out brackets give rear access after installation
  • Steel rails carry 154 lbs per screen on concrete
  • Micro-adjust swivel, tilt and slide align every display
  • Mounts in portrait or landscape to fit any layout

Specifications

Mount StyleWall
ColorBlack
TV Size Capacity< 60"
WeightMax. load 154 lbs.

Questions about this item

What wall structure and VESA patterns does the 2x2 video wall mount support?

The steel rails accept VESA 100x100, 200x100, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400 and 600x400 patterns on TVs 37 to 65 inches. Mount to concrete for 154 lbs per screen or wood studs for 110 lbs per screen using the included hardware.

How do I install the pop-out brackets and which alignment step is most often missed?

Bolt the horizontal rails to the wall, slide each VESA bracket onto the rails, then attach the brackets to the TVs. The step most often missed is using the adjustment knobs to set 0 to -1.5° tilt and +3° to -3° swivel for perfect screen leveling across all four displays.

What ongoing adjustment or hardware checks will the mount need after installation?

Periodically verify that the pop-out brackets still extend smoothly from 3 to 8.8 inches and that the tilt and swivel knobs hold their positions. Re-torque the wall anchors if the total load approaches 616 lbs on concrete or 440 lbs on wood studs.
