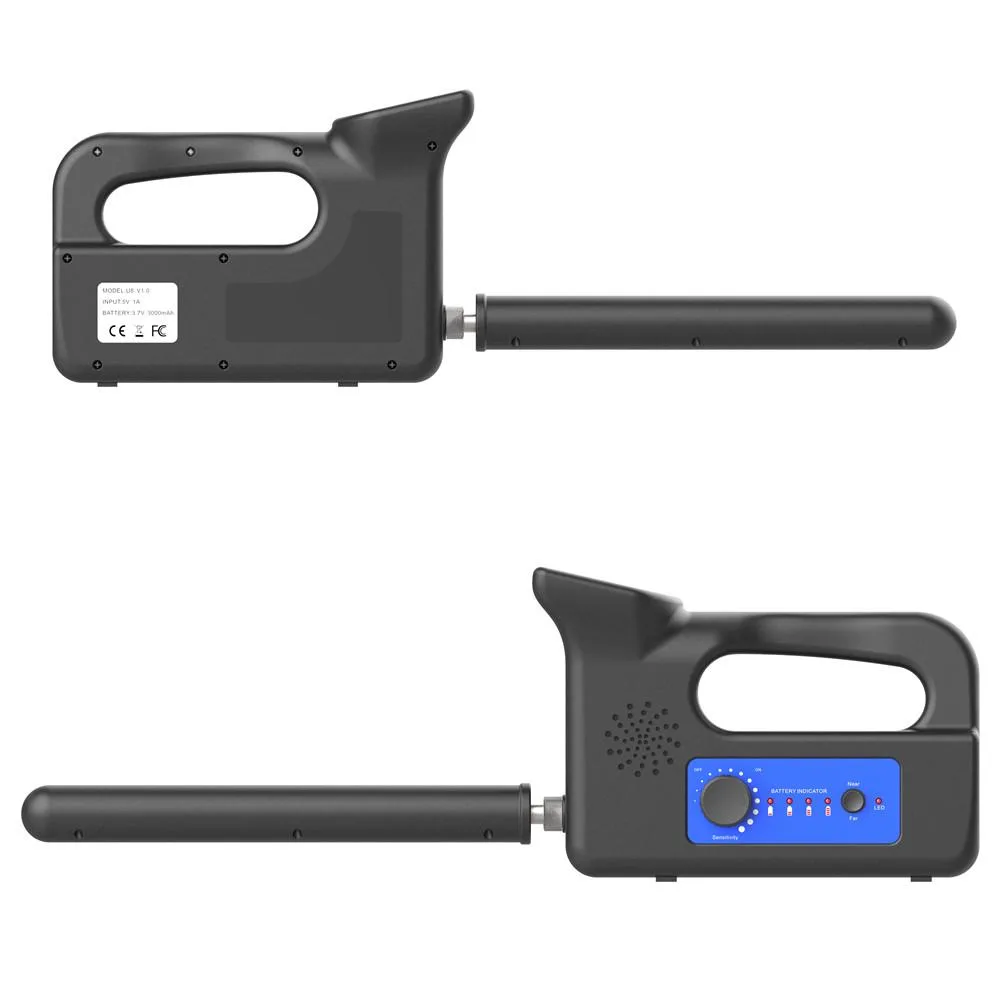

Handheld 512Hz pipe locator receiver with sensitivity knob and speaker in tool box

visiPower

visiPower 512Hz Locator Sonde equipment

SKU CH-S09Q-DAE66

A 512Hz pipe locator sonde with far and near detection modes, adjustable sensitivity, and a built-in 3.7V 3000mAh battery lasting about 10 hours

Options 512hz Locator Sonde

  • Precise underground pipe tracing with 512Hz magnetic signal detection
  • Adjustable range selection between 5m far mode and 2m near mode
  • Peak and null sensitivity modes for accurate transmitter pinpointing
  • Built-in 3.7V 3000mAh lithium battery delivers 10 hours continuous operation
  • Audio speaker and 6-level signal indicator provide real-time location feedback

512Hz Pipeline Locator Sonde

The visiPower 512Hz locator sonde is a new industrial plumbing tool designed for technicians who inspect sewer, drain and pipeline systems using a compatible 9-inch DVR inspection camera. It transmits a magnetic signal that the receiver detects to determine the transmitter's underground position and direction.

Detection range and operating modes

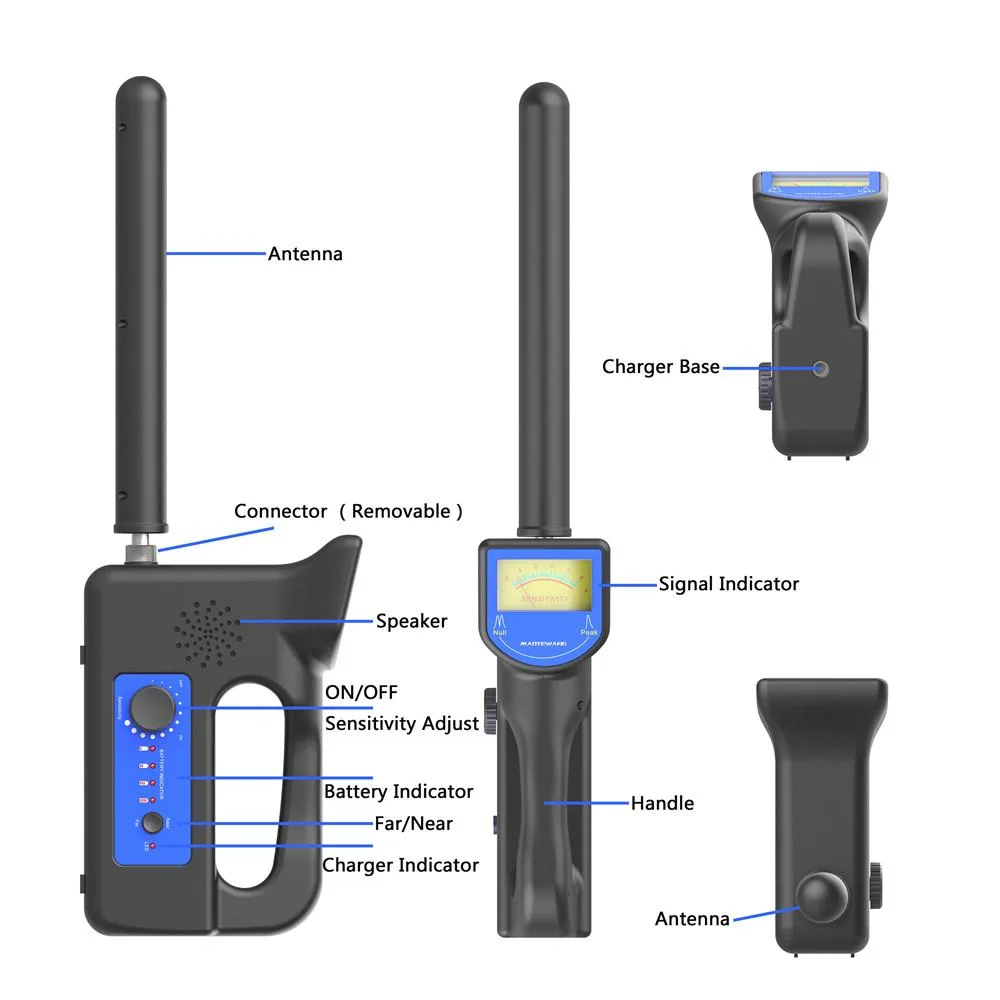

The receiver offers two selectable modes: Far mode covers approximately 5 metres while Near mode covers approximately 2 metres. Sensitivity is adjusted via a knob with peak and null settings, and signal strength is displayed across six levels. Audio feedback is provided through a built-in speaker.

512Hz frequency compatibility

This sonde operates strictly at 512Hz, so it only works with receivers tuned to that frequency. The integrated 3.7V 3000mAh lithium battery delivers roughly 10 hours of use after a six-hour charge from a 5V 0.5A supply. Buyers needing a different frequency or longer runtime should consider other equipment.

Highlights

  • Precise underground pipe tracing with 512Hz magnetic signal detection
  • Adjustable range selection between 5m far mode and 2m near mode
  • Peak and null sensitivity modes for accurate transmitter pinpointing
  • Built-in 3.7V 3000mAh lithium battery delivers 10 hours continuous operation
  • Audio speaker and 6-level signal indicator provide real-time location feedback

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I choose between the Far and Near receiving modes on this locator?

Select Far mode for detection up to about 5M depth, or Near mode for precision work within about 2 meter. Adjust the sensitivity knob and use peak or null mode to pinpoint the sonde.

What does the 512Hz frequency mean when I am tracing a pipe underground?

The 512Hz signal penetrates soil and pipe walls so the receiver can calculate the sonde's direction and position from above ground using its built-in induction coil.

How long can I operate the receiver on a single charge and how is it recharged?

The built-in 3.7V 3000MAH lithium battery runs for about 10 hours. Recharge with the supplied 5V 0.5A charger in about 6 hours; the four-gear indicator flashes when power is low.
