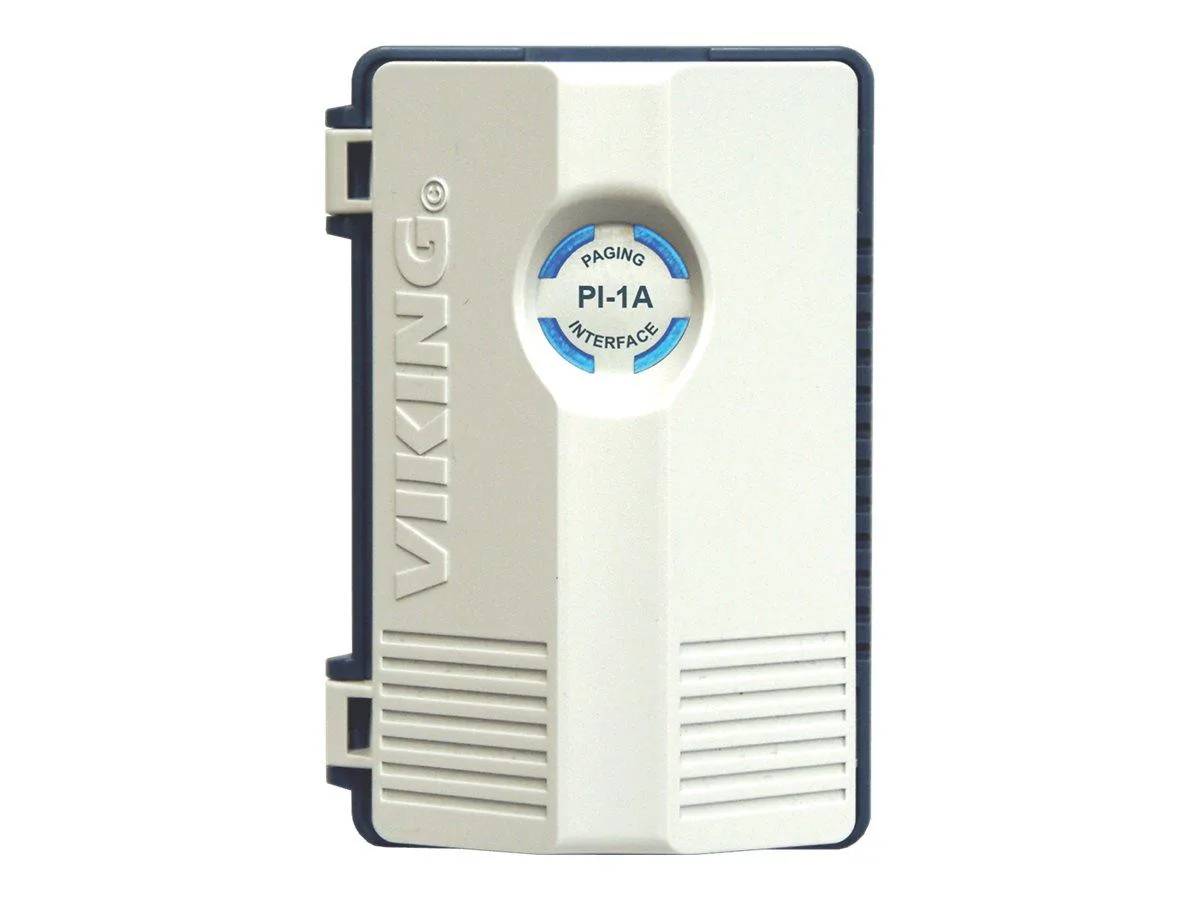

Compact beige rectangular telecom interface box with front-panel knobs and rear connectors

Viking Electronics

Viking Electronics VK-PI-1A Universal Telecom Paging

SKU CH-V1GK-GPJW3

Universal telecom paging interface integrates PA systems with phone systems, cuts background music, and provides a night bell with adjustable settings

  • SpecificationsUniversal Telecom Paging
  • Integrate PA with nearly any phone system via paging port interface
  • Cut out background music during paging using DPDT VOX contacts
  • Electronic night bell triggered by ringing line or contact closure
  • Floating 600 ohm output with selectable 22V DC talk battery
  • Compact 111 x 76 x 36mm unit powered by 120V AC adapter

Universal Telecom Paging Interface

The Viking Electronics VK-PI-1A connects a public address system to almost any telephone network. It provides a floating 600 ohm output and a selectable 22V DC talk battery for trunk or line ports. A UL listed 120V AC to 12V DC 500mA adapter powers the unit. Dimensions are 111 x 76 x 36mm.

Installers needing flexible night-bell

The module accepts ringing line voltage or a dry contact closure to trigger an electronic night bell. DPDT VOX-activated contacts mute background audio during pages with adjustable time-out and sensitivity. Volume and pitch for the night bell are also adjustable. Sites without analogue trunk ports or contact-closure sources cannot use the night-bell functions.

Floating 600 ohm output

This output stage matches standard telecom impedances and supplies talk battery for idle line inputs. The 22V DC source is switched on or off to suit the connected phone system. If the target equipment requires a different impedance or battery voltage, this interface will not integrate correctly.

Highlights

  • Integrate PA with nearly any phone system via paging port interface
  • Cut out background music during paging using DPDT VOX contacts
  • Electronic night bell triggered by ringing line or contact closure
  • Floating 600 ohm output with selectable 22V DC talk battery
  • Compact 111 x 76 x 36mm unit powered by 120V AC adapter

Specifications

BrandViking Electronics
ModelVK-PI-1A
SpecificationsUniversal Telecom Paging

Questions about this item

What phone-system ports does the VK-PI-1A need to connect to for paging?

It interfaces with an unused line input or trunk port on the phone system using the paging port and selectable 22V DC talk battery.

Will the VK-PI-1A mute my existing background-music amplifier when a page occurs?

Yes, DPDT normally open and normally closed VOX-activated contacts cut the music feed during paging with an adjustable time-out.

How can I verify the night-bell function is working after wiring the VK-PI-1A?

Trigger a ring on the analog line input or close the contact-closure input; the unit should sound the electronic night bell with adjustable volume and pitch.
