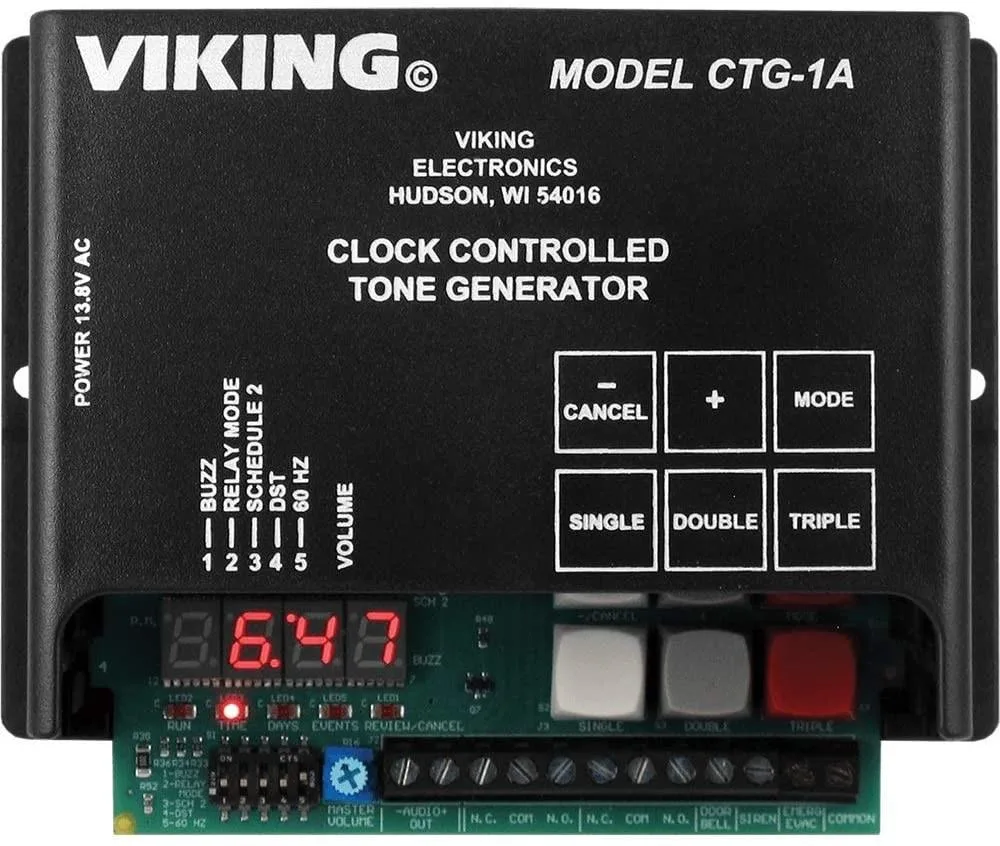

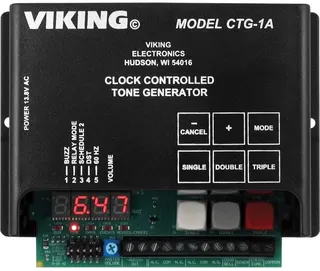

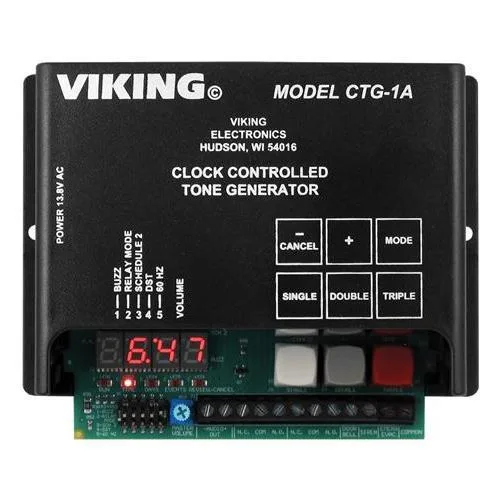

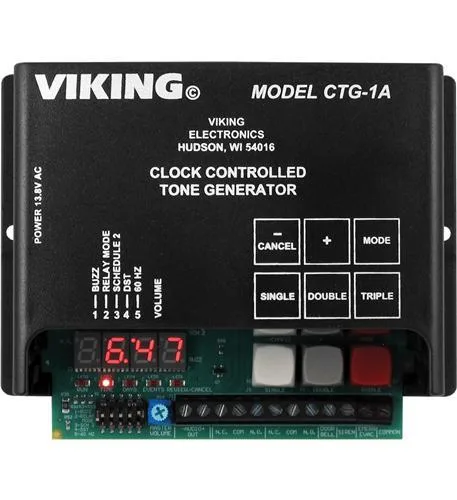

Compact grey metal box with digital clock display and front panel controls

Viking

Viking CTG-1A clock controlled tone generator video accessory

SKU CH-RC50-J04WG MPN CTG-1A

A clock-controlled tone generator with a 24-hour digital clock, 128 programmable events, selectable alert tones and three contact-closure sounds including an NFPA/ANSI-compliant evacuation signal

  • TypeOthers
  • Accurate timekeeping via 24-hour digital clock synced to AC power
  • Flexible scheduling with 128 programmable events across two independent schedules
  • Three distinct alert tones including NFPA/ANSI compliant temporal evacuation signal
  • Volume-adjustable 600 ohm line-level audio output for system integration
  • Automatic Daylight Saving Time switching with 50/60 Hz operation selectable

Clock-controlled tone generator

The Viking CTG-1A is a clock-controlled tone generator designed for audio and video accessory systems. It provides accurate 24 hour digital time display synced to AC power with a four day clock backup. The unit includes a user programmable 24 hour timer supporting 128 events across two separate schedules. It is suited for installations requiring scheduled alert tones and relay control.

128-event programmable timer

The single specification that decides suitability is the 128-event programmable timer with two separate schedules. Users can configure single, double or triple alert tones with selectable bong or buzzer outputs. Three contact closure controlled sounds are available: emergency siren yelp, temporal slow whoop evacuation signal compliant with NFPA/ANSI when used with supporting equipment, and doorbell chime. Volume controllable 600 ohm line level audio output and two sets of DPDT relay contacts handle muting and timed relay events.

Facilities needing scheduled alerts

This generator suits facilities that need scheduled alert tones, evacuation signals and relay control for paging or background music muting. It supports switchable 50/60 Hz operation and includes a Daylight Saving Time switch. Buyers who require wireless connectivity, network integration or more than 128 timer events should look at alternative solutions. The nonvolatile memory retains settings during power interruptions.

Highlights

  • Accurate timekeeping via 24-hour digital clock synced to AC power
  • Flexible scheduling with 128 programmable events across two independent schedules
  • Three distinct alert tones including NFPA/ANSI compliant temporal evacuation signal
  • Volume-adjustable 600 ohm line-level audio output for system integration
  • Automatic Daylight Saving Time switching with 50/60 Hz operation selectable

Specifications

BrandViking
TypeOthers
Shipping weight0.86 kg
Package size196 × 193 × 117 mm

Questions about this item

What does the 128-event timer let me schedule across the day?

You can programme up to 128 separate events in two independent 24-hour schedules, with day-of-week on/off control for each.

How does the 50/60 Hz switch affect clock accuracy?

The clock syncs to AC mains frequency; set the switch to match your local 50 Hz or 60 Hz supply so the displayed time stays accurate.

What wiring is needed for the 600 ohm audio output and relay contacts?

The unit provides a volume-adjustable 600 ohm line-level output plus two sets of DPDT relay contacts for muting paging or background music during alerts.
