ViewSonic X2000B-4K 4K UST laser home theater projector
Ultra-short-throw laser projector delivers true 4K HDR images up to 150 inches from just 23 cm with 2000 ANSI lumens and Harman Kardon 25 W audio
- Cabinet ColorBlack
- TypeUHD
- Aspect Ratio16:9 Aspect Ratio
- Display Size65"-150"
- Native Resolution3840 x 2160
- Brightness2000 ANSI Lumens
- True 4K HDR resolution delivers 3840 x 2160 pixel clarity
- Ultra-short 0.22 throw ratio projects 100 inch image from 23 cm
- Second-generation laser phosphor light source rated for 20000 hours
- Harman Kardon 25W cube speakers with Dolby and DTS support
- Dual HDMI 2.0 inputs with HDCP 1.4 and 2.2 plus HDMI ARC
Ultra-Short-Throw 4K Laser Projector
The ViewSonic X2000B-4K is an ultra-short-throw home theater projector that delivers true 4K UHD resolution at 3840 x 2160 with HDR support. Its 0.22 throw ratio produces a 100-inch image from just 23 cm away, while second-generation laser phosphor technology provides 2000 ANSI lumens brightness and a rated 20000-hour light-source lifespan.
Buyers Who Want Simple Big-Screen Setup
This model suits viewers who want a large 65-to-150-inch picture without ceiling mounts or long cable runs, and who value integrated 25 W Harman Kardon speakers with Dolby and DTS decoding. It is not for buyers who need higher native contrast than 3000:1, who require lens shift or optical zoom for placement flexibility, or who want a projector that operates silently in a completely dark room.
Deciding Specification: 0.22 Throw Ratio
The 0.22 throw ratio is the single figure that determines whether this projector fits the available space; it allows a 100-inch diagonal image from only 23 cm distance and scales up to 150 inches at 0.52 m. If the installation cannot place the unit that close to the screen or wall, a different throw-ratio projector will be required.
Highlights
- True 4K HDR resolution delivers 3840 x 2160 pixel clarity
- Ultra-short 0.22 throw ratio projects 100 inch image from 23 cm
- Second-generation laser phosphor light source rated for 20000 hours
- Harman Kardon 25W cube speakers with Dolby and DTS support
- Dual HDMI 2.0 inputs with HDCP 1.4 and 2.2 plus HDMI ARC
Specifications
| Brand | ViewSonic |
|---|---|
| Model | X2000B-4K |
| Cabinet Color | Black |
| Type | UHD |
| Aspect Ratio | 16:9 Aspect Ratio |
| Display Size | 65"-150" |
| Native Resolution | 3840 x 2160 |
| Brightness | 2000 ANSI Lumens |
| Contrast Ratio | 3000:1 |
| Horizontal Refresh Rate | 15K-135KHz |
| Vertical Refresh Rate | 23-120Hz |
| Throw Distance | 0.082m-0.520m |
| f Number | F=3.2 |
| Focal Length | f=2.335mm |
| Throw Ratio | 0.22 |
| Input Video Compatibility | Digital |
| Input Video Connectors | HDMI: 2(HDMI 2.0, HDCP 1.4/2.2) |
| Input Audio Connectors | AV in (3.5mm): 1 Audio-in (Bluetooth): 1 (BT4.2) |
| Output Audio Connectors | Audio-out (3.5mm): 1 Audio-out (Bluetooth): 1 (BT4.2) Audio-out (HDMI ARC): 1(Share with HDMI Input) |
| USB | Input: USB Type A: 2(USB2.0 Reader x2) Output: USB Type A (Power): 2(USB2.0 - 5V/1.5A x2,share with USB A Input) |
| Compatibility | HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Built-in Speakers | 25W Cube x2 (10W tweeter + 15W woofer) x2 |
| Power Supply | 100 - 240 VAC, 50/60Hz |

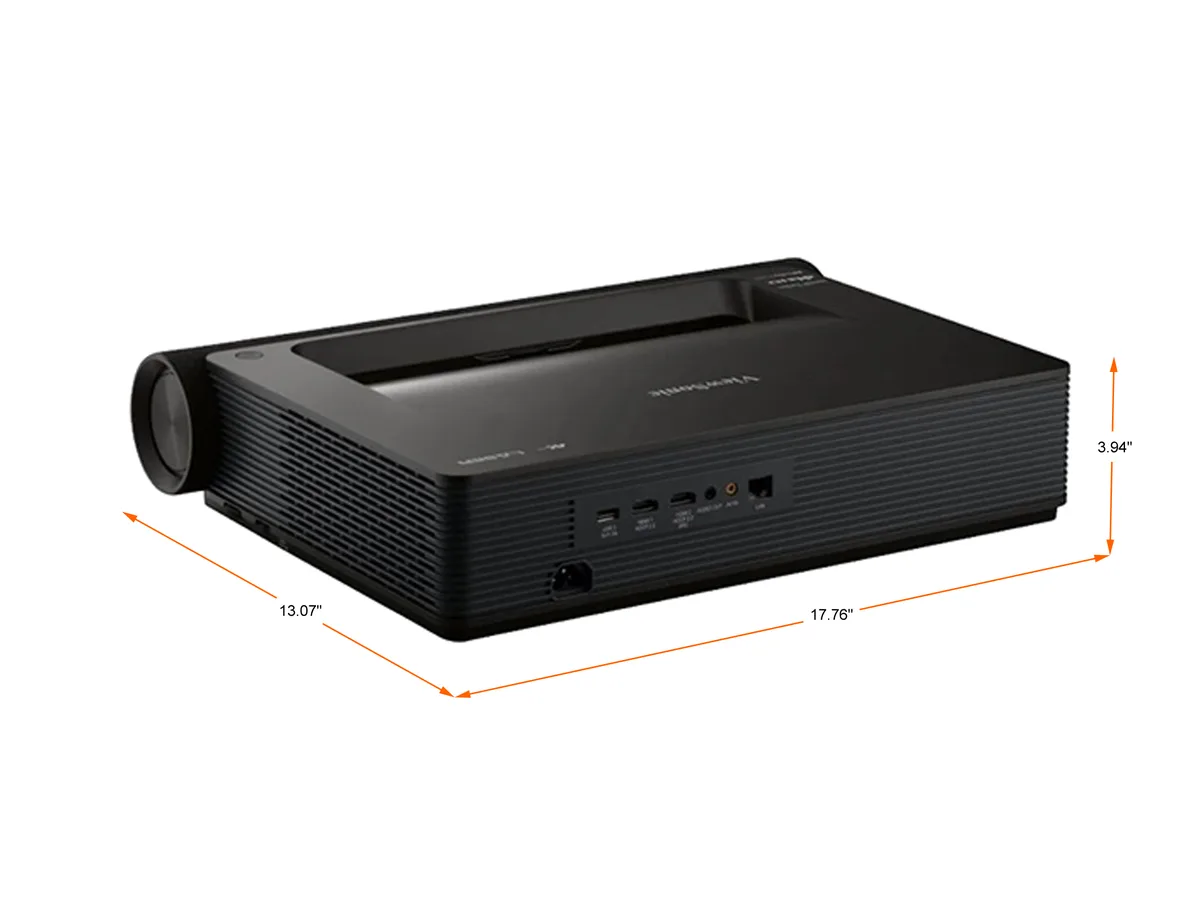

| Dimensions | 3.94" x 17.76" x 13.07" |
| Weight | 14.99 lbs. |
| Package Contents | Accessories: Power Cord Remote Control QSG Warranty Card |
| Shipping weight | 9.90 kg |
| Package size | 577 × 322 × 187 mm |
Questions about this item
What does the HDMI 2.0 interface cap in practice for 4K HDR content?
The two HDMI 2.0 ports with HDCP 1.4 and 2.2 support 4K UHD at 60 Hz, limiting HDR playback to 4:2:0 chroma at that frame rate.
How much clearance does the 0.22 throw ratio need for a 100 inch image?
A 100 inch diagonal requires roughly 23 cm from the lens to the screen, with the projector body adding about 17.76 inches of depth behind the lens.
How is the projector installed, and which step is often missed?
Place it on a stable surface, run the keystone and four-corner correction, then enable the eye-protection sensor so the laser dims when someone passes the beam.
